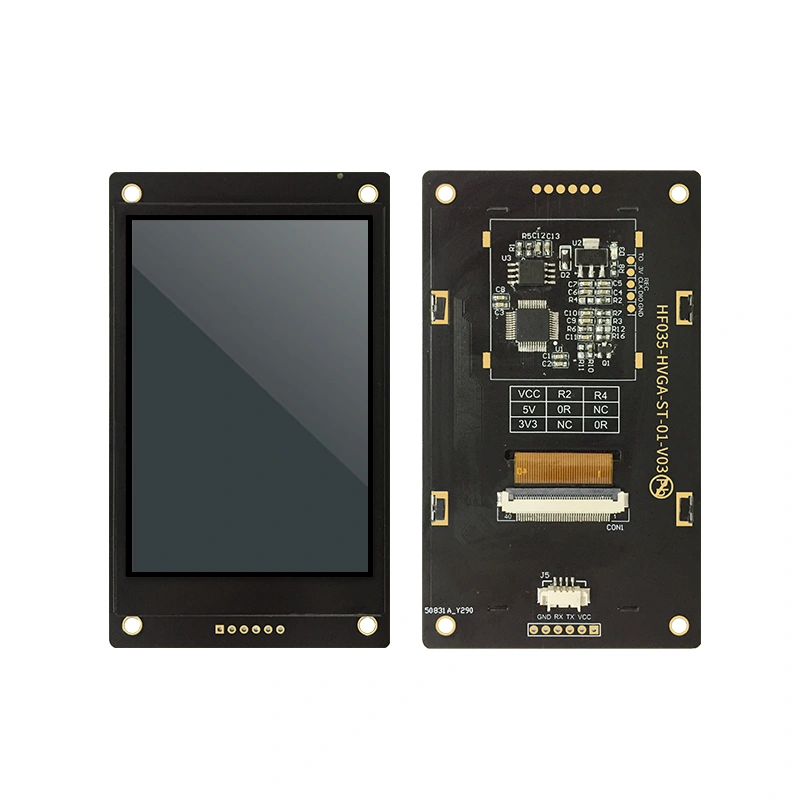

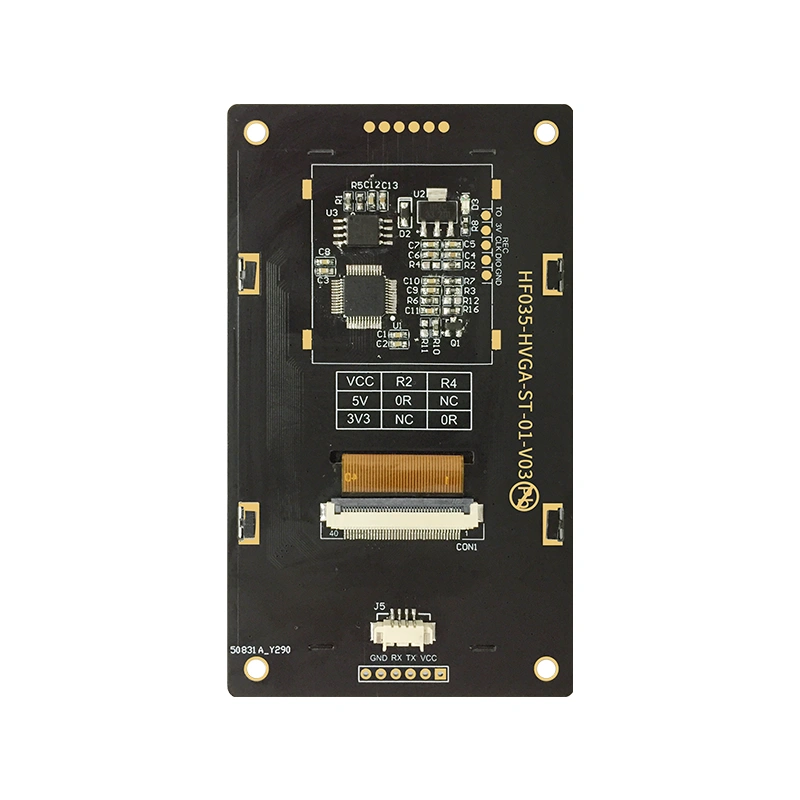

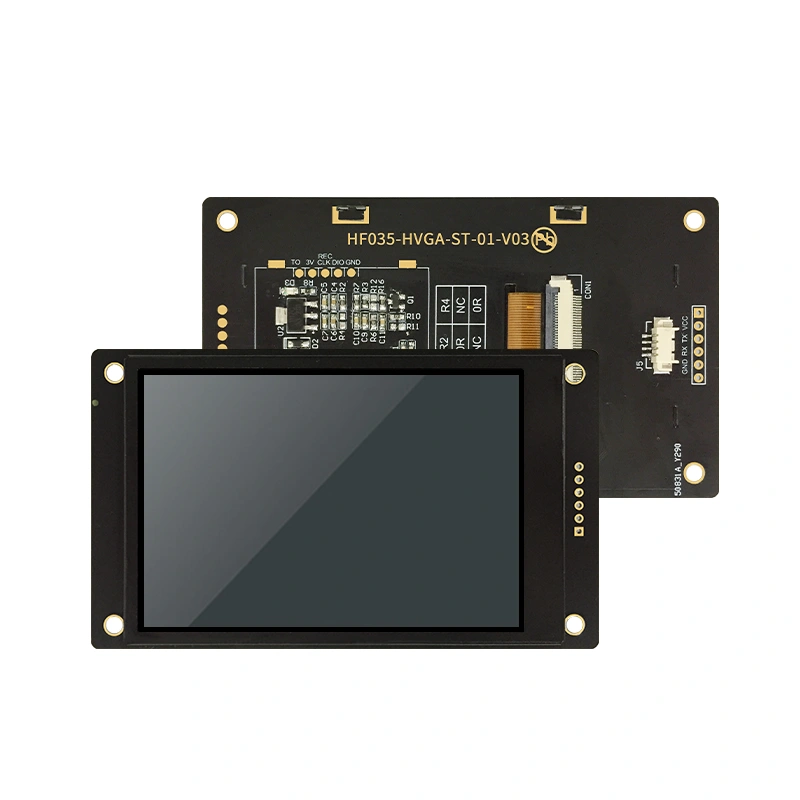

3.5" UART LCD HMI Display - UART TTL interface, No Code, 3.5inch, 320×240, Without Touch Screen - For Arduino, Rapberry Pi, STM32, MINI PC

SKU: PJDPHF03500A
3.5" UART LCD Display - UART TTL interface, RS485, No Code, 3.5inch, 320×240, Without Touch Screen - For Arduino, Raspberry Pi, STM32, MINI PC
0.0 (0 Reviews)
$39.94 $9.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    Only Display
    Basic Kit
    Full Kit
    Please select the information you wantX
Quantity
-
+
  • 3.5" UART LCD HMI Display - UART TTL interface, No Code, 3.5inch, 320×240, Without Touch Screen - For Arduino, Rapberry Pi, STM32, MINI PC
  • 3.5" UART LCD HMI Display - UART TTL interface, No Code, 3.5inch, 320×240, Without Touch Screen - For Arduino, Rapberry Pi, STM32, MINI PC
  • 3.5" UART LCD HMI Display - UART TTL interface, No Code, 3.5inch, 320×240, Without Touch Screen - For Arduino, Rapberry Pi, STM32, MINI PC
  • 3.5" UART LCD HMI Display - UART TTL interface, No Code, 3.5inch, 320×240, Without Touch Screen - For Arduino, Rapberry Pi, STM32, MINI PC
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

3.5" UART LCD Display



Introduction


The dot matrix resolution of the 3.5-inch HF series serial screen (HFD) is 320x480. It has a built-in simplified Chinese font library and English ASCII character set, and an open internal dot matrix DDRAM, which can display pictures and graphics at any position on the screen. In terms of hardware, it provides UART interface mode with simple wiring. With the sGUI drag-and-drop programming tool developed by our company, users can design beautiful and gorgeous user interfaces with only a few simple instructions. From then on, users no longer need to spend high hardware costs and long development cycles to configure LCD color screens for equipment and instruments. HFD's rich on-chip resources and powerful instruction set are the preferred solution for customer project development.





Features


  • Control Drag and Drop Programming
  • Minimalist instruction set
  • Dynamic QR Code Display
  • Startup Logo
  • UART, RS485


Shipping List


Only Display
x1 3.5" UART LCD Display - HF035
Basic Kit
x1 3.5" UART LCD Display - HF035
x1 TTL-USB adapter
Full Kit
x1 3.5" UART LCD Display - HF035
x1 TTL-USB adapter
x1 TTL-RS485 adapter


Applications


For Arduino, Raspberry Pi, STM32, MINI PC HMI Display


Specification


参数类型

Parameter type

测量数据

Measurement data

说明

Explain

显示区域(A.A)

Display area (A. A)

48.96mm*73.44mm

手工测量存在±0.2 误差

± 0.2 error in manual

measurement

分辨率(ppi)

Resolution (PPI)

320*480

/

像素间距

Pixel spacing

0.153mm*0.153 mm (V×H)

/

显示颜色

Display color

65K

/

像素布局

Pixel layout

RGB 垂直条状

RGB vertical strip

/

最佳视角

Best viewing angle

ALL(全视角)

ALL (Full View)

/

对比度

Contrast

600:1 (Typ.) (透射)

600:1 (Typ.)

/

背光光源类型

Backlight light source

type

WHITE LED

高亮白色 LED 灯,调节背光亮度

Highlight white LED, adjust

backlight brightness

模块亮度

Module brightness

520cd/m2

/

室内外可视

Visible indoors and

outdoors

Yes

/

DDRAM

300K 显存

300 K video memory

开放内部 DDRAM

Open internal DDRAM
