Banana Pi OpenWrt One - AP-24.XY Official OpenWrt Router Mainline Support

Name: Banana Pi OpenWrt One - AP-24.XY Official OpenWrt Router Mainline Support
Brand: youyeetoo geeker shop
SKU: BPDPWRTONE01
Price: 91.37 EUR
Availability: InStock

SKU: BPDPWRTONE01

Banana Pi OpenWrt One - Official OpenWrt router Mainline Support

0.0 (0 Reviews)

€91,37

Update: Back in stock. In the meantime, we are sending OpenWrt One inventory to Amazon warehouses in the US and Germany in time for the Chinese New Year. 2025.01.08

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Reviews

Banana Pi OpenWrt One - Official OpenWrt Router Mainline Support

Quick Start
Tips
- OpenWrt One - celebrating 20 years of OpenWrt
- https://openwrt.org/toh/openwrt/one

Estimated 3 business days to ship

Introduction

The OpenWrt One is a device based on the MediaTek Filogic 810 SoC that has WiFi 6, dual-band, 3×3/2×2, 1 x 2.5Gbit WAN, 1 x 1Gbit LAN, 1GB DDR4 RAM, 256 MiB NAND, 16 MiB NOR, M.2 SSD and USB 2.0.

Features

OpenWrt official board and support
MediaTek MT7981B (Filogic 820) SoC
Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3 5Ghz)
1GB DDR4
1 x 2.5GbE RJ45 port and |1 x Gigabit Ethernet RJ45 port
256 MiB SPI NAND and 16 MiB SPI NOR flash are used to make the board almost unbreakable
M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)
RTC support
PoE support
MikroBUS socket for expansion modules

Shipping List

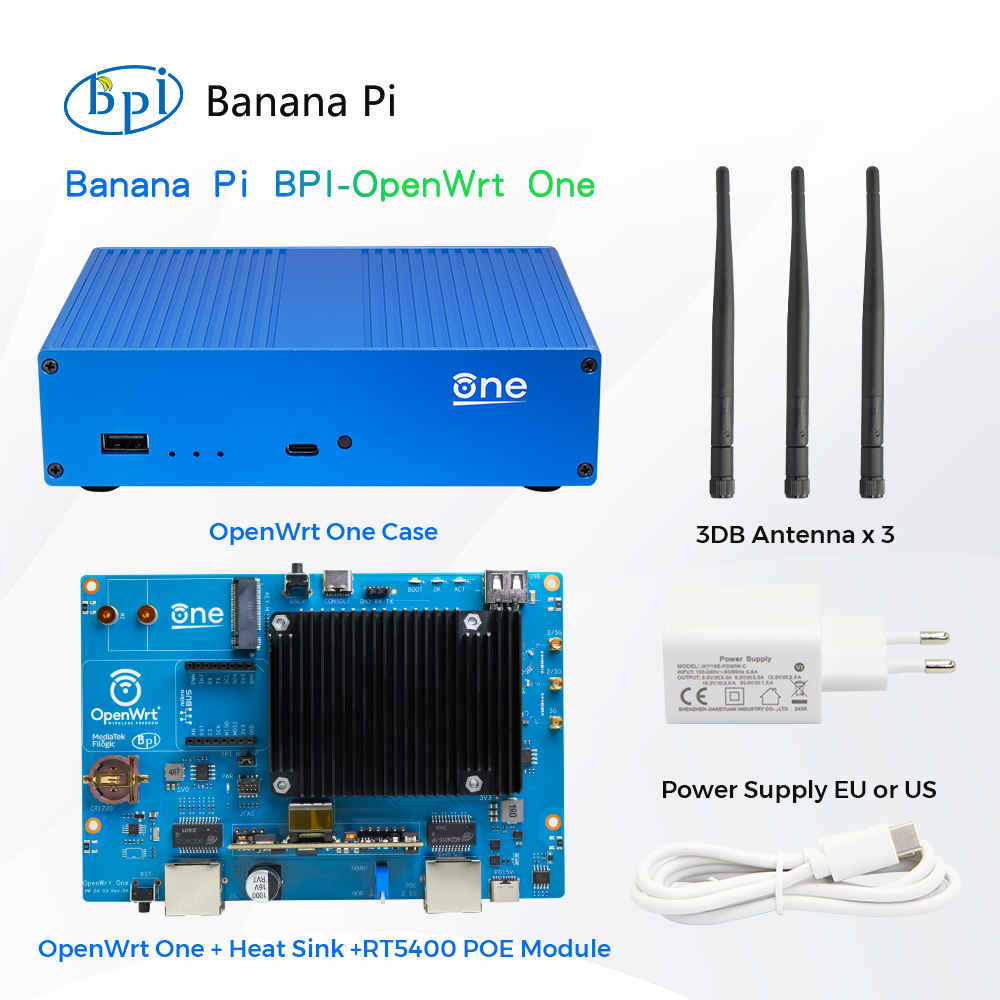

1x OpenWrt One Standard Kit

Specification

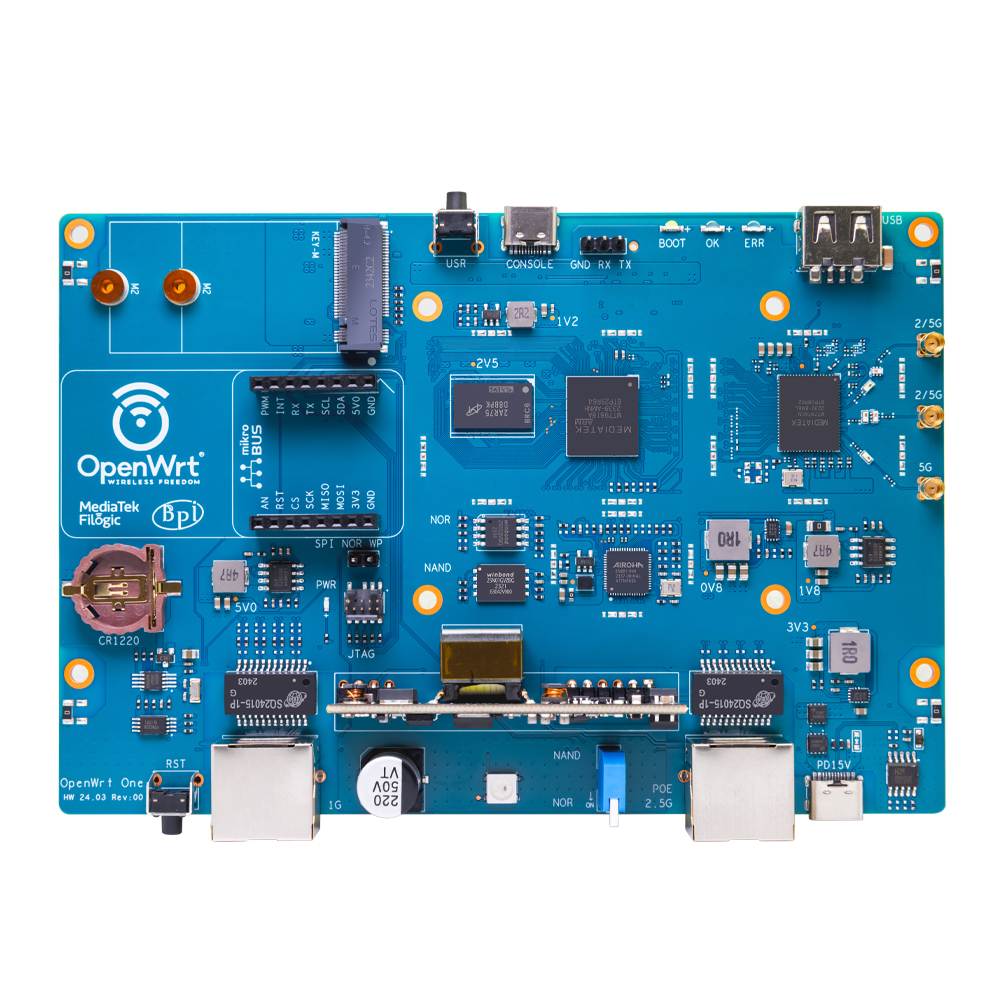

Hardware Specification of OpenWrt One

SoC

MediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor @ 1.3 GHz

System Memory

1GB DDR4

Storage

256 MB SPI NAND flash for U-boot and Linux

16 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper)

Two types of flash devices are used to make the board almost unbreakable

M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)

Networking

1 x 2.5GbE RJ45 port

1 x Gigabit Ethernet RJ45 port

Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz)

3x MMCX antenna connectors

USB

1x USB 2.0 Type-A host port

USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chip

Expansion

MikroBUS socket for expansion modules

Debugging

Console via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoC

RTC

support RTC onboard

Misc

Reset and User buttons

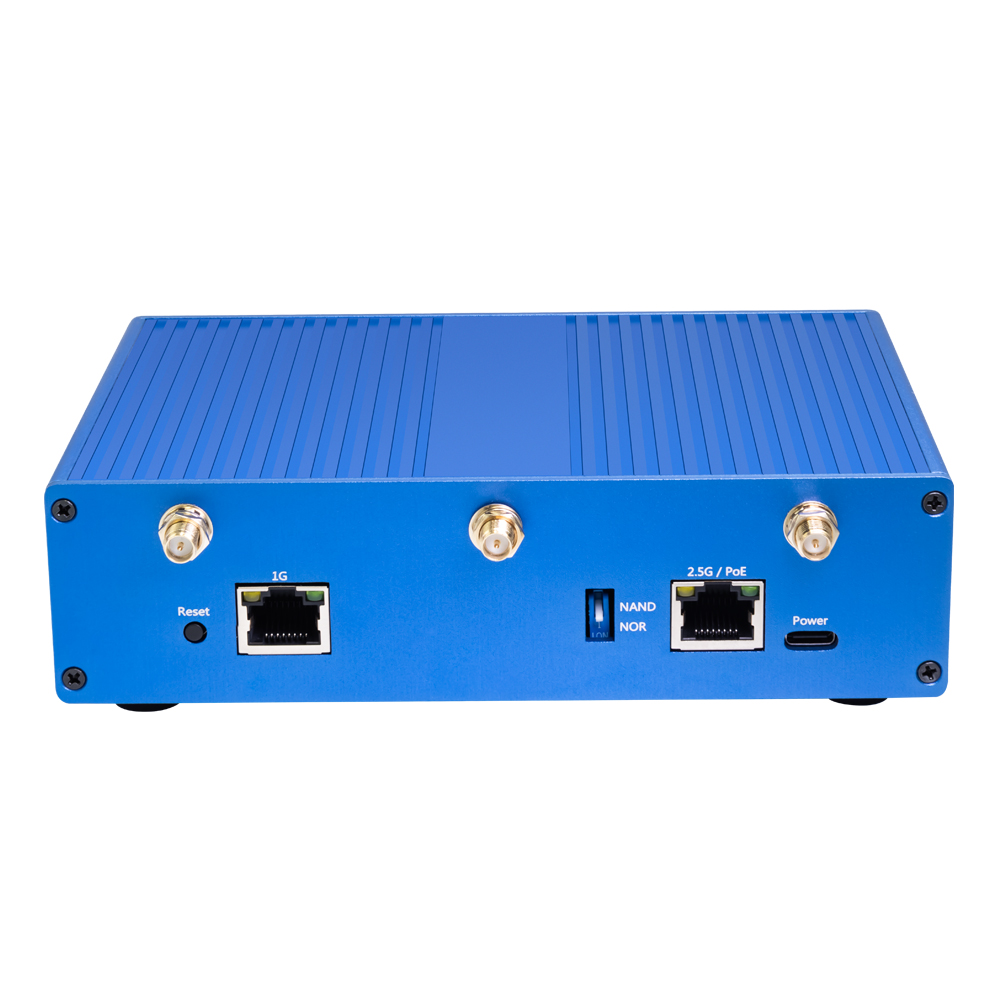

Boot select switch: NAND (regular) or NOR (recovery)

2x PWM LEDs, 2x Ethernet LED (GPIO driven)

EM6324 External hardware watchdog

NXP PCF8563TS (I2C) RTC with battery backup holder for CR1220 coin-cell

Power Supply

15V USB-PD on USB-C port

Optional 802.3at/af PoE via RT5040 module

Dimensions

148 x 100.5 mm compatible with Banana Pi BPI-R4 case design

Certifications

FCC/EC/RoHS compliance
