Introduction

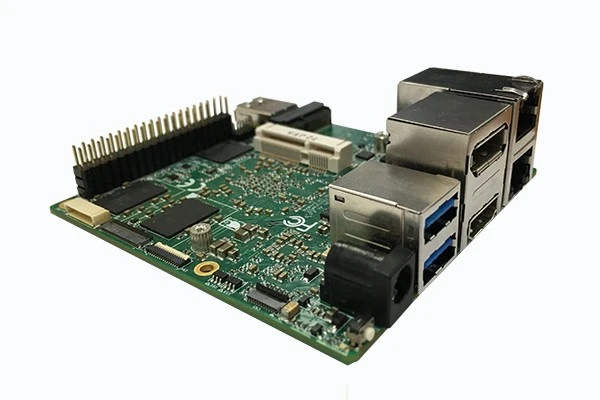

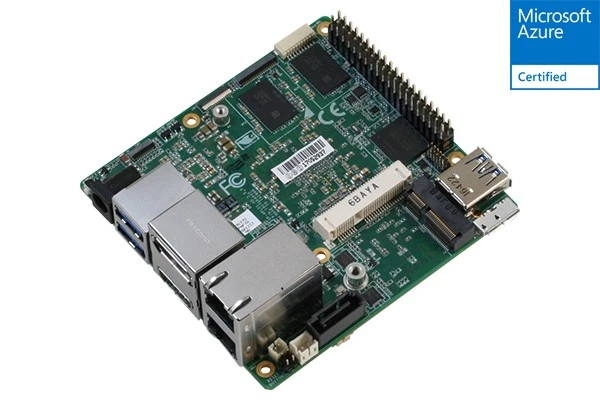

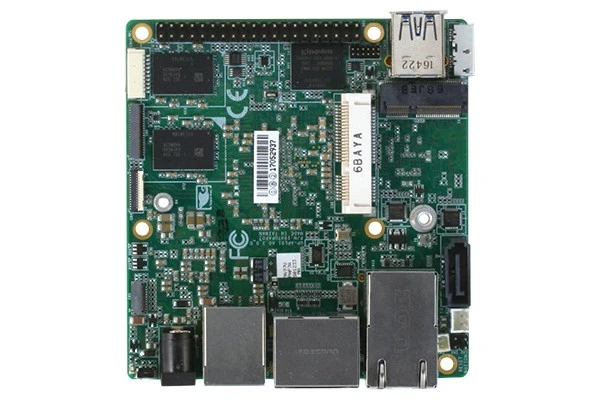

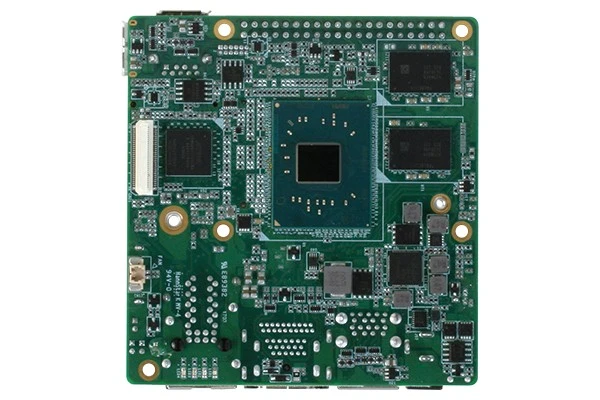

UP Squared (UP²) is world's fastest maker board with the high performance and low power consumption features of Intel^® Celeron^™, Pentium^™ and Atom^™ Processors (codename Apollo Lake).

The internal GPU is the new Intel^® Gen. 9 HD with 12/18 Execution Units, supporting 4K Codec Decode and encoding for HEVC⁴, H.264, and VP8. Thanks to the Vector Units Image Processing Unit and Precision Timing Management to synchronize CPU with I/O, improved determinism (cache QoS, Intel Virtualization Technology), all the graphic processing is effortless to UP Squared.

UP Squared comes with 2GB/4GB/8GB LPDDR4 and 32GB/64GB/128GB eMMC. A 40-pin GP-bus provides the freedom for makers to build up their modules. Additionally, there is a 60-pin EXHAT for embedded applications. This allows for the exploration of more possibilities. The expansion capabilities of UP2 (UP Squared) goes much further than this. Native mini-PCI-e, M.2 2230 and SATA3 are all built in on the board.

UP Squared supports the AI Core X mPCIe module, which features Intel Movidius Myriad X. With speeds up to 105 fps (80 typical) and 1 trillion floating point operations, adding on the AI Core X to UP Squared creates a powerful, compact AI Edge solution. UP Squared with AI Core X has proven real-world performance and is used by AAEON partners in applications from license plate recognition to drone-based visual inspections.

The board supports Windows 10, Windows IoT Core, Ubilinux, Ubuntu, Yocto and Android Nougat. It's really UP to you to decide which operating system is best for your application. Now, all you need is an UP Squared to begin your project! If you need a complete system for your project, check out the UP Squared System "UPS-GWS01".

Features

• Intel^® Pentium^® N4200/ Celeron^® N3350 Processor SoC
• Onboard LPDDR4 Memory up to 8GB
• Onboard eMMC Storage up to 128GB
• Gigabit LAN x 2, USB 2.0 x 2, USB 3.0 (Type A) x 3
• 5V DC-in, 4-6A
• 40 pin GPIO x 1
• DP/eDP/HDMI x 1
• MIPI-CSI (4-Lane & 2-Lane) x 1
• Mini-PCIe /M.2 2230 x 1
• SATA3 x 1
• 60pin EXHAT

Shipping List

1x Board
