For downloading the Tools, Driver and Firmware use the following link:
https://youyeetoo.com/blog/ares-500ai-192
Specifications
AI performance
AI module Huawei Atlas 200 (Ascend 310)
AI computing power 22/16/8 TOPS INT8, 11/8/4 TFLOPS FP16
Memory specification LPDDR4X 8 GB or 4GB, total bandwidth 51.2 GB/s
Codec capability
Support H.264 hardware decoding
- 16 channels 1080P 30 FPS (2 channels 3840*2160 60 FPS)
Support H.265 hardware decoding
- 16 channels 1080P 30 FPS (2 channels 3840*2160 60 FPS)
Support H.264 hardware encoding, 1 channel 1080P 30 FPS
Support H.265 hardware encoding, 1 channel 1080P 30 FPS
JPEG decoding capability 1080P 256 FPS, encoding capability 1080P
64 FPS, maximum resolution: 8192*4320
PNG decoding capability 1080P 24 FPS, maximum resolution
Rate: 4096*2160
Interface Specifications
LAN 4 x GbE RJ45
USB 2 x USB3.0 TypeA

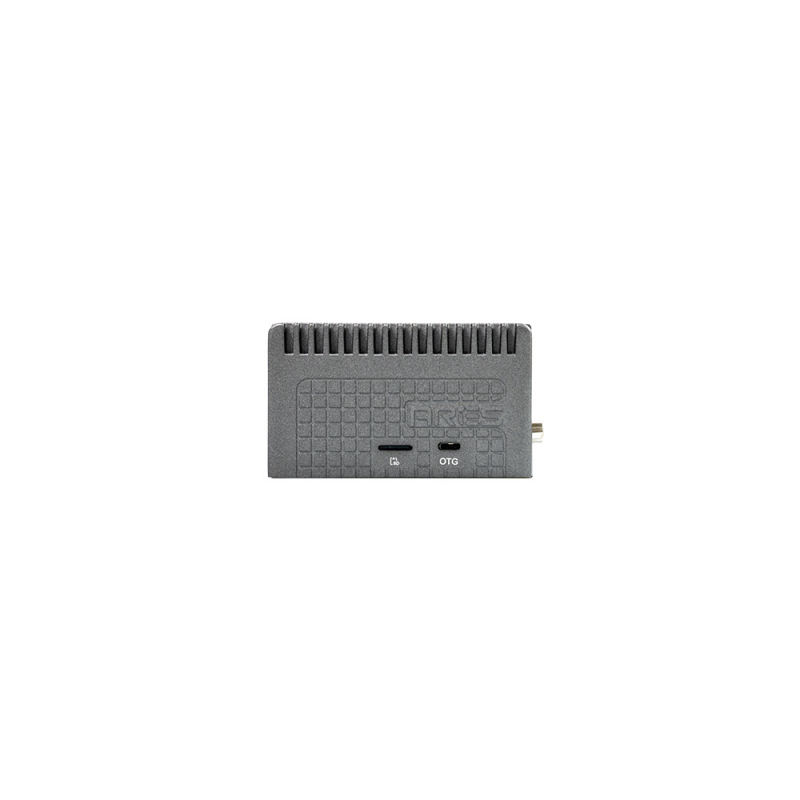

Micro USB 1 x USB 3.0 typeC OTG for burning firmware.
Storage SSD solid state drive or tf card
Console 1 x Console port
Serial 1 x RS232/422/485
Expand
1 x M.2 2280 / 2242 , support SSD
1 x M.2 3042/3052, SIM card slot, 4G/5G
1 x M.2 2230, support WIFI/BT
4 x DO, 4 x DI
Basic Specifications
Power supply DC-IN/9-36V, 3.81 phoenix terminal 3PIN with screw
Dimensions (W x D x H) 151mm x 108mm x 64mm
System
kernel Euler OS
[Tech-support]
Wiki: https://youyeetoo.com/blog/
Forum: bbs.youyeetoo.com
ExpertSupport: [email protected]
