NanoPi R4S Mini Portable Travel Router - OpenWRT Mainline, Dual-Gbps Ethernet Ports 4GB LPDDR4?

• Quick Start: WIKI
• Tips

  • Due to the shortage of the chip that has a unique built-in MAC address, we no longer list the R4S board with a unique MAC address for retail sales. If you want to order the R4S board with a unique MAC address, you have to place an order with a minimum order quantity of 100 pieces. Please contact?shop@youyeetoo.com?for more info.

Introduction

• The NanoPi R4S(as "R4S") is an open source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.
• The NanoPi R4S uses the RK3399 SoC. It has two Gbps Ethernet ports and 1G/4G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications etc.

Shipping List

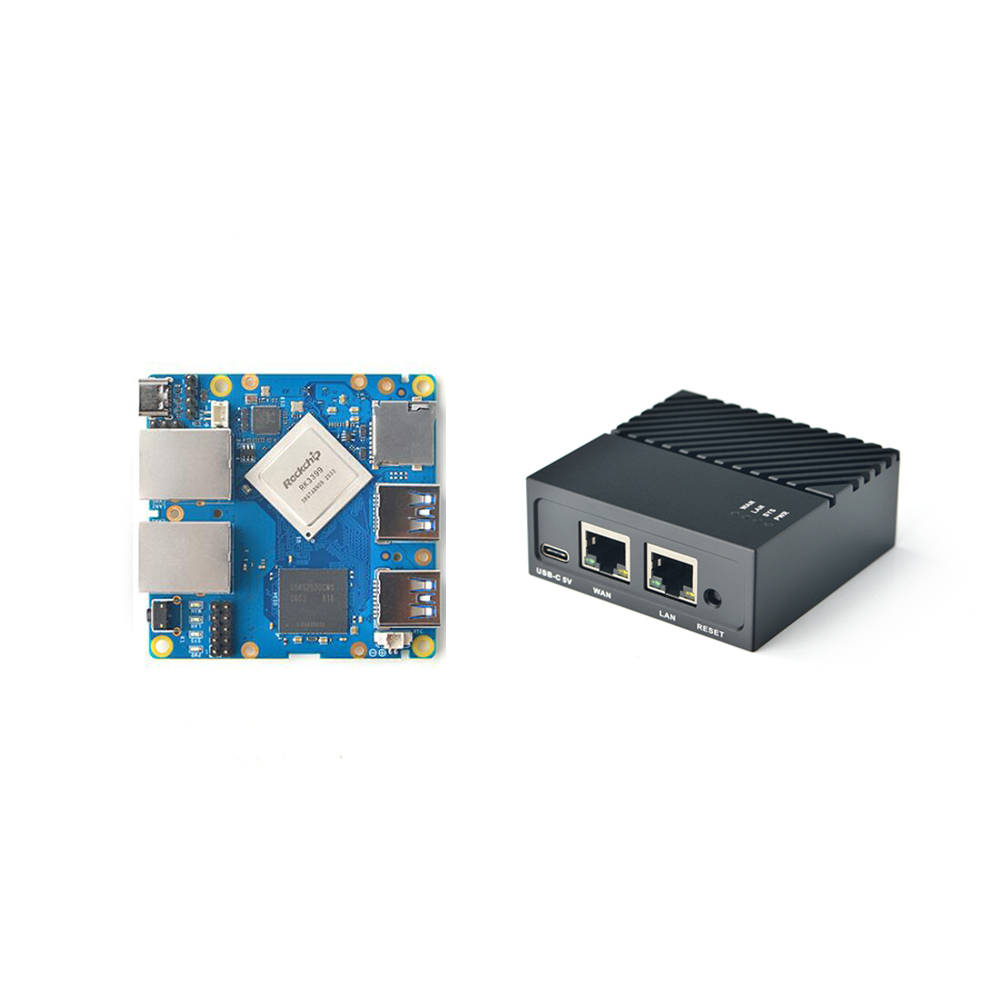

1x NanoPi R4S bare board
or

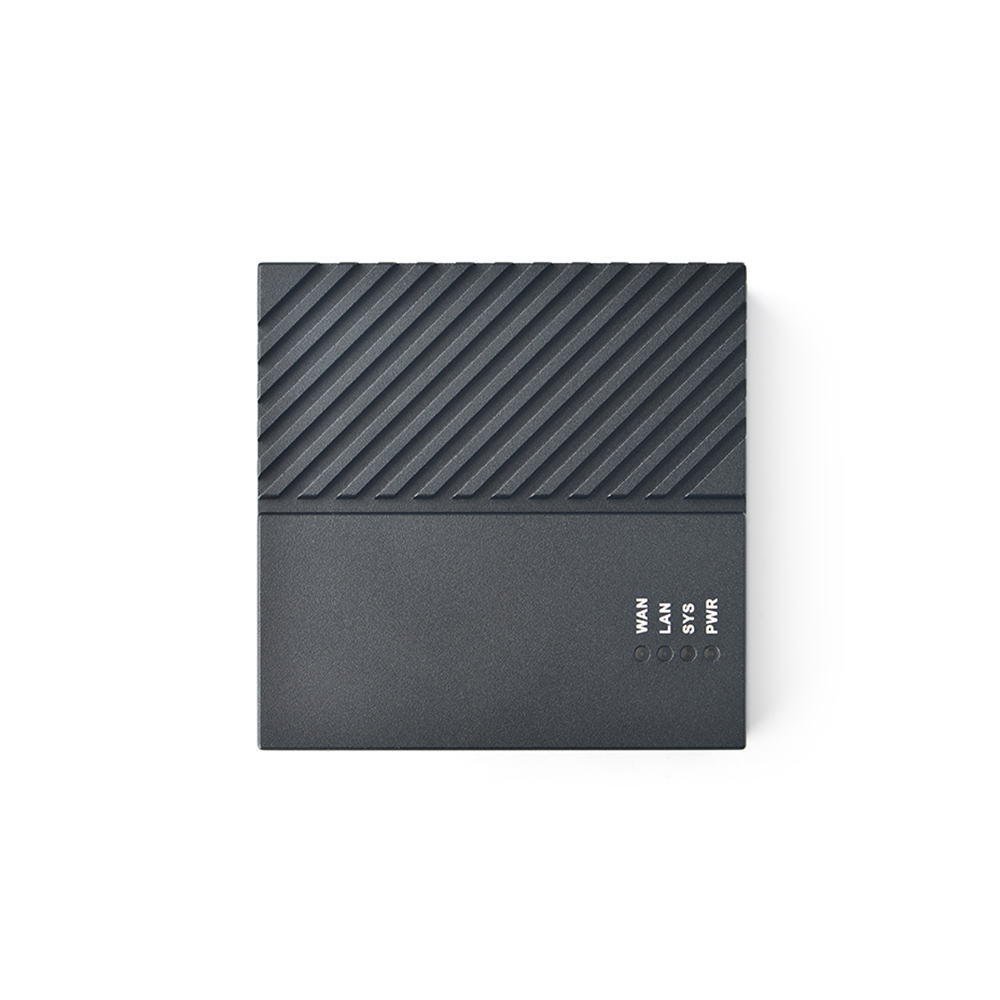

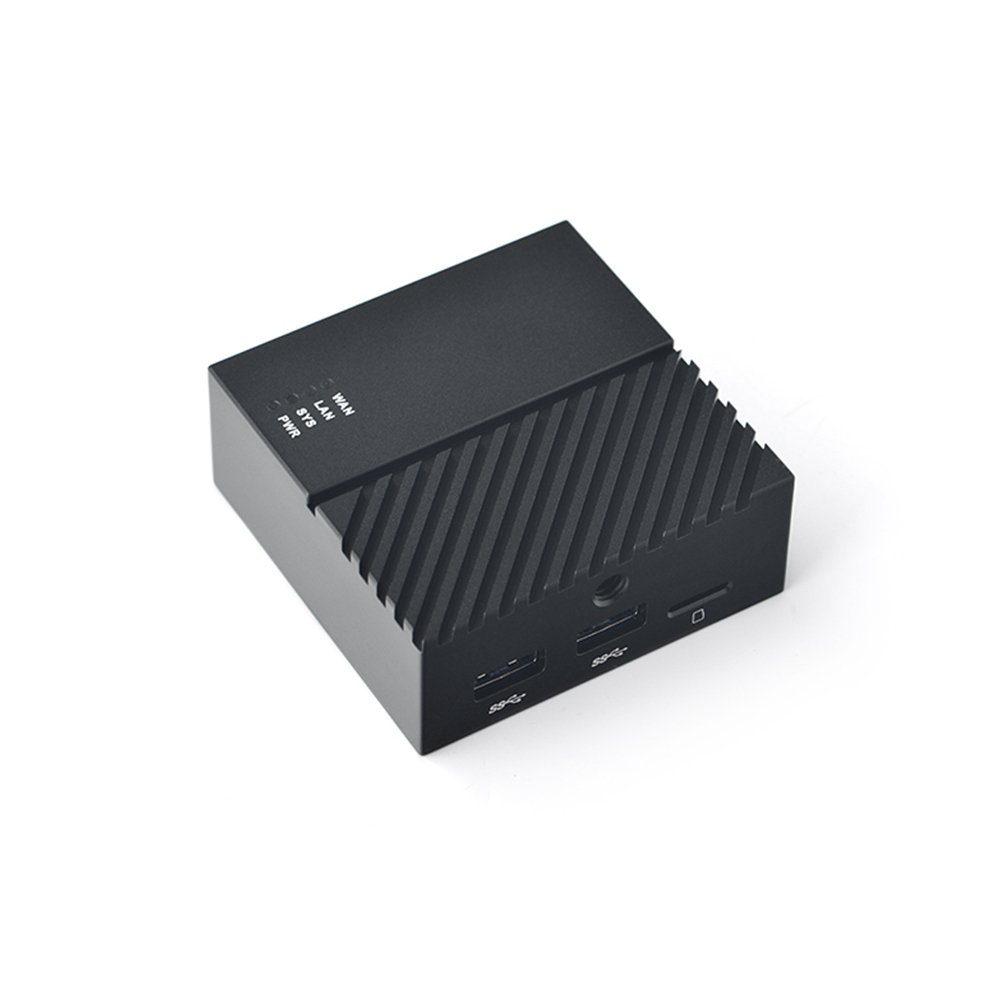

1x NanoPi R4S with Metal Case

Applications

Router, NAS

Specification

• SoC: Rockchip RK3399
  • CPU: big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)
  • GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
  • VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
• PMU: RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
• RAM: 1GB DDR3/4GB LPDDR4
• Flash: no Onboard eMMC

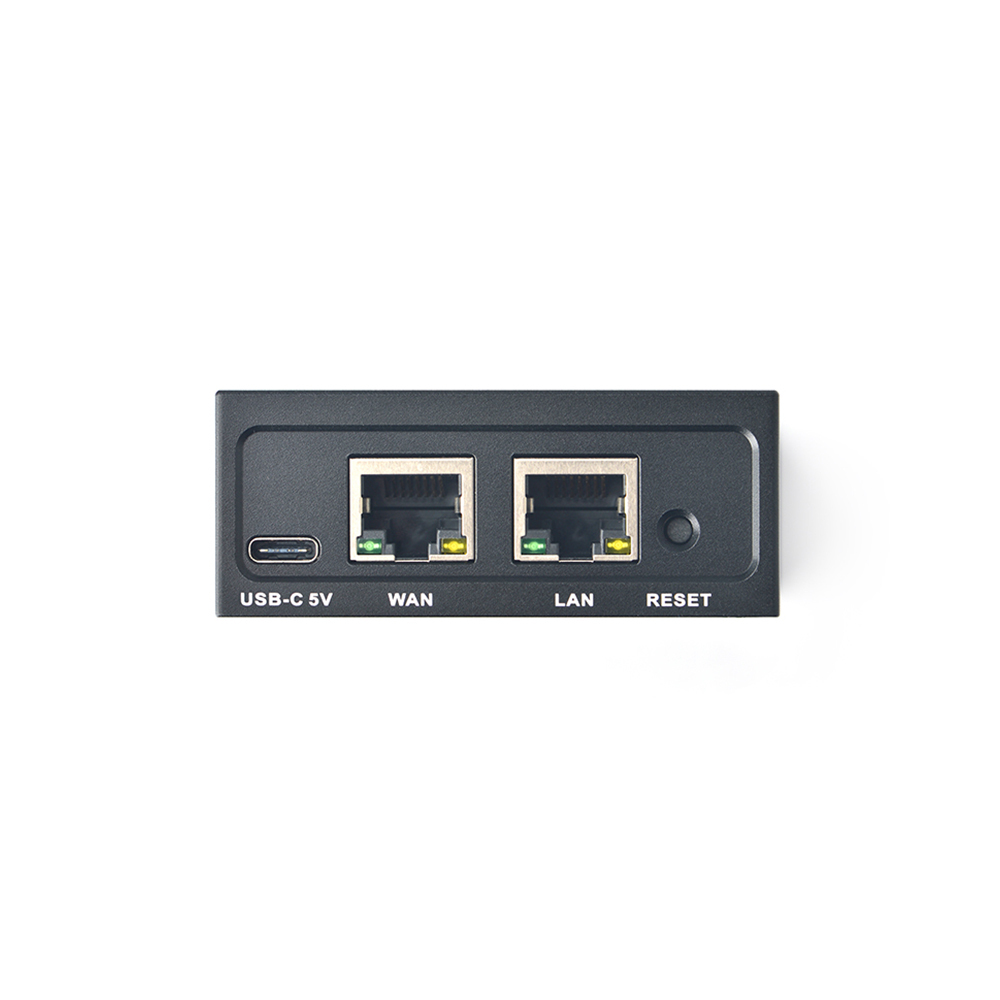

• Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet

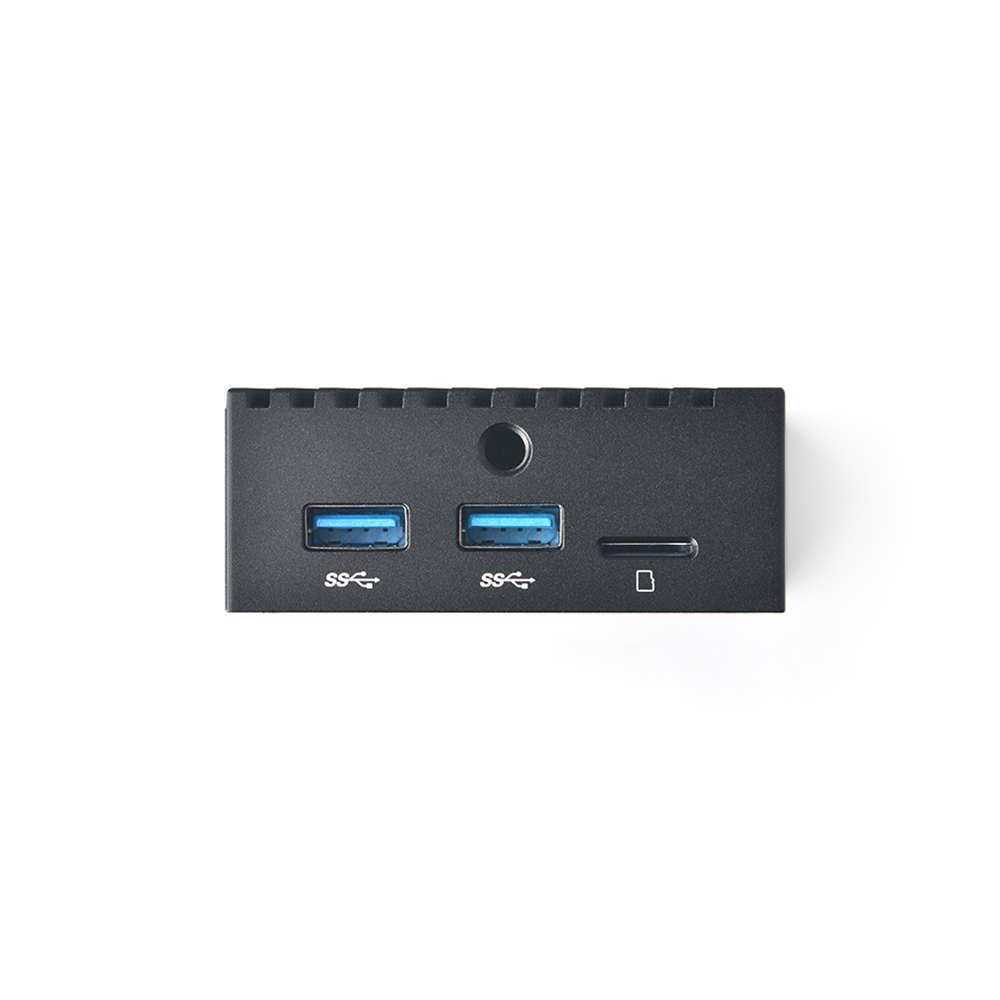

• USB: two USB 3.0 Type-A ports
• Pin header extension interface
  • 2x5-pin header: SPI x 1, I2C x 1
  • 4-pin header: USB 2.0
• microSD Slot x 1
• Debug: one Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps
• LEDs: 1 x power LED and 3 x GPIO Controlled LED (SYS, LAN, WAN)
• others:
  • 2 Pin 1.27/1.25mm RTC battery input connector
  • one User Button
  • one 5V Fan connector
• Power supply: DC 5V/3A, via USB-C connector or Pin header
• PCB: 8 Layer, 66 mm x 66 mm
• Temperature measuring range: 0℃ to 80℃

Detailed Descriptions

For detailed steps refer to:https://github.com/friendlyelec/cpu-temperature-test-script

CPU	Model: Rockchip RK3399 Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
GPU	Mali-T864 GPU，supports OpenGL? ES1.1/2.0/3.0/3.1, OpenCL?, DX11, and AFBC
VPU	4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
Memory	RAM: 1GB DDR3/4GB LPDDR4
Storage	Flash: no Onboard eMMC MicroSD Slot: MicroSD x1 for external storage up to 128GB
Power Management	RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
Connectivity	Ethernet: Native Gigabit Ethernet x1 PCIe Gigabit Ethernet x1
MAC Address	Globally Unique MAC Address
USB	USB 3.0 Host x2: USB Type A USB 2.0 Host x1: 2.54mm 4pin-header Type-C x1: Power Input Only
Pin-header	GPIO: 2.54mm pitch 2x5pin-header, include I2C x1, SPI x1 Serial Debug Port x1: 2.54mm pitch 3pin-header, 3V level, 1500000bps
Key	User Button x1
LED	PWR LED(Red) x1 STAT LED(Green) x1 LAN LED(Green) x1 WAN LED(Green) x1
Others	RTC: 2 Pin 1.27/1.25mm RTC battery input connector Fan: 5V Fan connector Working Temperature: -20℃ to 70℃
Power	DC 5V/3A, via USB-C connector or Pin header

OS Support

FriendlyWrt 21.02 FriendlyWrt 22.03 FriendlyCore Focal Lite (Base on Ubuntu 20.04) Debian 10 Desktop Debian 11 Desktop

PCB	8 Layer
Weight	40.90g (with Metal Case 310g)
Dimension	66x66 mm
