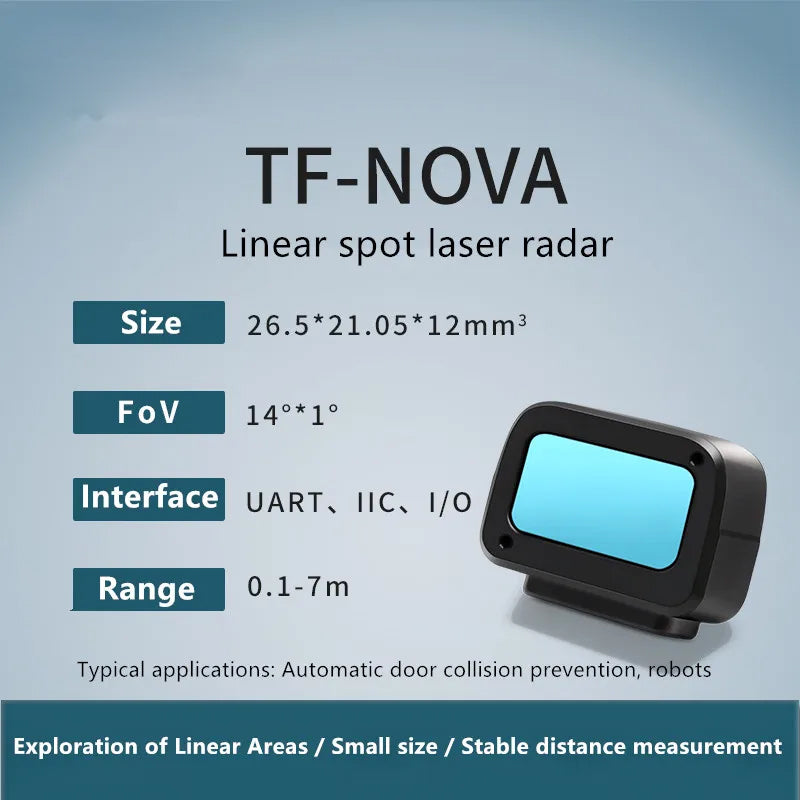

TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk

SKU: BXDPTFNOVA

TF-NOVA is a small-size, line-pattern laser beam LiDAR developed by Benewake, which is particularly suitable for applications such as obstacle detection, and presence activation trigger. Multiple parameters are available for customers to customize and configure to meet various scenario requirements.

0.0 (0 Reviews)
$0.00 $34.81
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • TF-NOVA Lidar Sensor - 0.1~14 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~14 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~14 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~14 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
1/1
  • TF-NOVA Lidar Sensor - 0.1~14 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~14 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
  • TF-NOVA Lidar Sensor - 0.1~7 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface - Arduino Raspberry Pixhawk
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

TF-NOVA Lidar Sensor - 0.1~14 Meter, 100Hz, 5g,100Klux, 5V UART IIC I/O Interface


  • Quick Start
  • Tips


Introduction


TF-NOVA is a small-size, line-pattern laser beam LiDAR developed by Benewake, which is particularly suitable for applications such as obstacle detection, and presence activation trigger. Multiple parameters are available for customers to customize and configure to meet various scenario requirements.

Features


  • Compact structure
  • Lightweight
  • Low-power consumption
  • Cost-effective


Shipping List


1x TF-NOVA

Applications


  • Assisted Focusing
  • Elevator projection
  • Intrusion detection
  • Level measurement


Specification


Parameter Specification
Performance Parameters
Detection Range ≥3m @ 3% reflectivity, 0Klux
≥7m @ 10% reflectivity, 0Klux
≥2m @ 10% reflectivity, 100Klux
Blind Zone ≤ 0.1m
Accuracy ±3cm @ 0.1-4m
Repeatability 1cm (1 sigma)
Distance Resolution 1cm
Default Frame Rate Default 100Hz, 1-500Hz customizable
Laser Parameters
Light Source VCSEL
Central Wavelength 905nm
Field of View (FoV) Typ. 14° × 1°
Eye Safety Class 1 Eye-safe [EN60825] (Design assurance, not yet certified by third-party)
Mechanical/Electrical Parameters
Average Power Consumption TBD
Peak Current TBD
Power Supply DC 5±10%V
Operating Temperature -25℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Technical Specifications
Dimensions TYP. 26.5 x 21.05 x 12.0mm³
Weight <5g
Connector 1.25mm-5P
Protection Level N.A.
Cable Length 10cm
Communication Protocol
Communication Interface UART, IIC, I/O
Baud Rate Default 115200
Data Bit 8
Stop Bit 1
Parity None


Detailed Descriptions
