Note: Tinker board have no eMMC onboard. If you need the eMMC vesion , please turn to tinker board S.

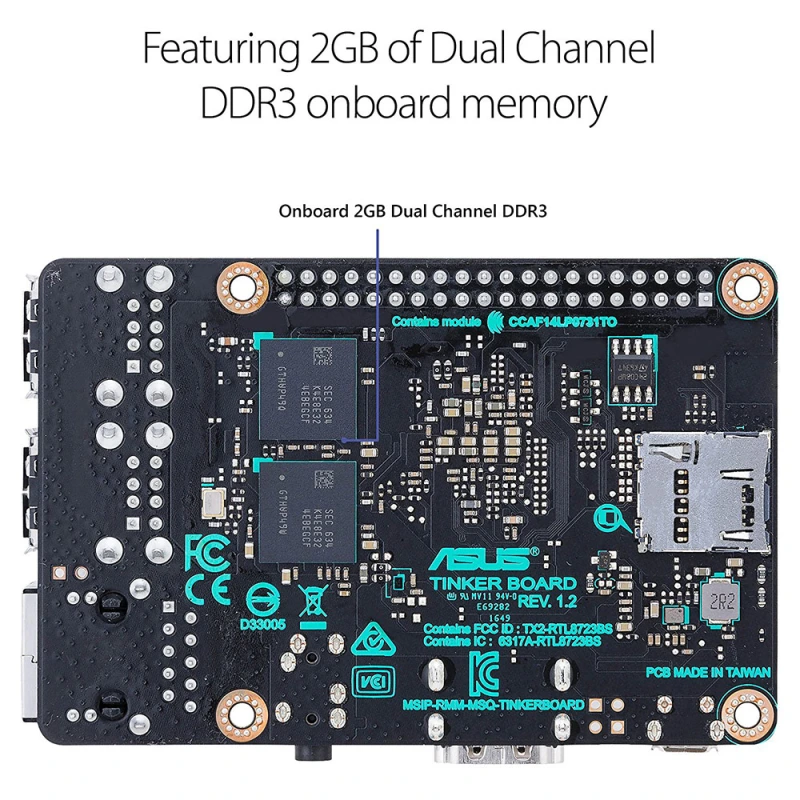

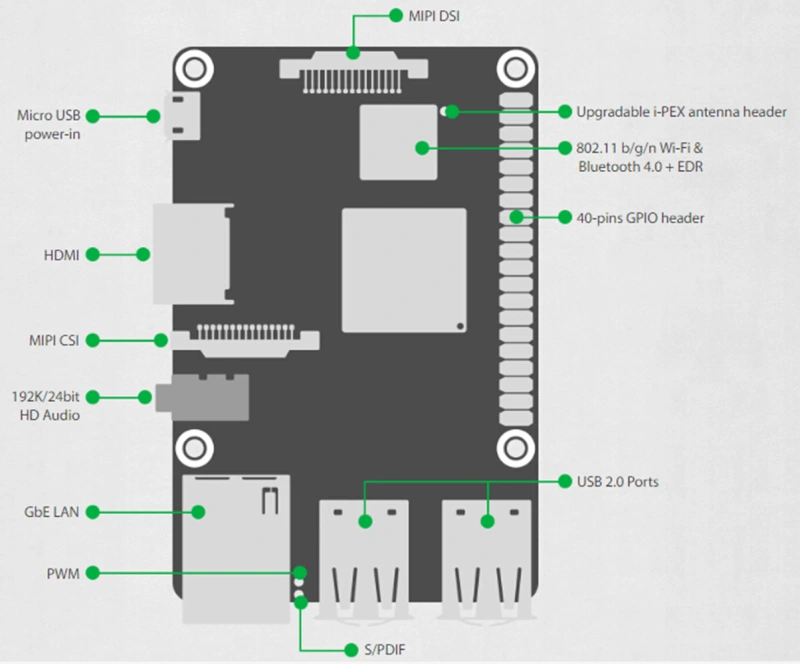

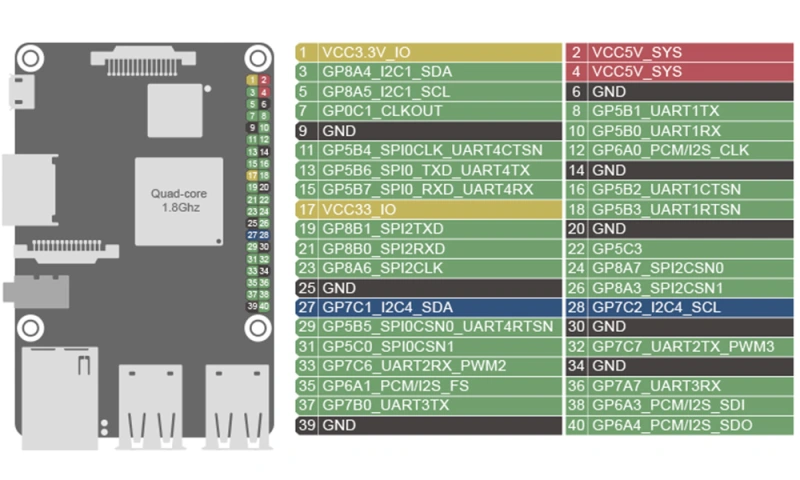

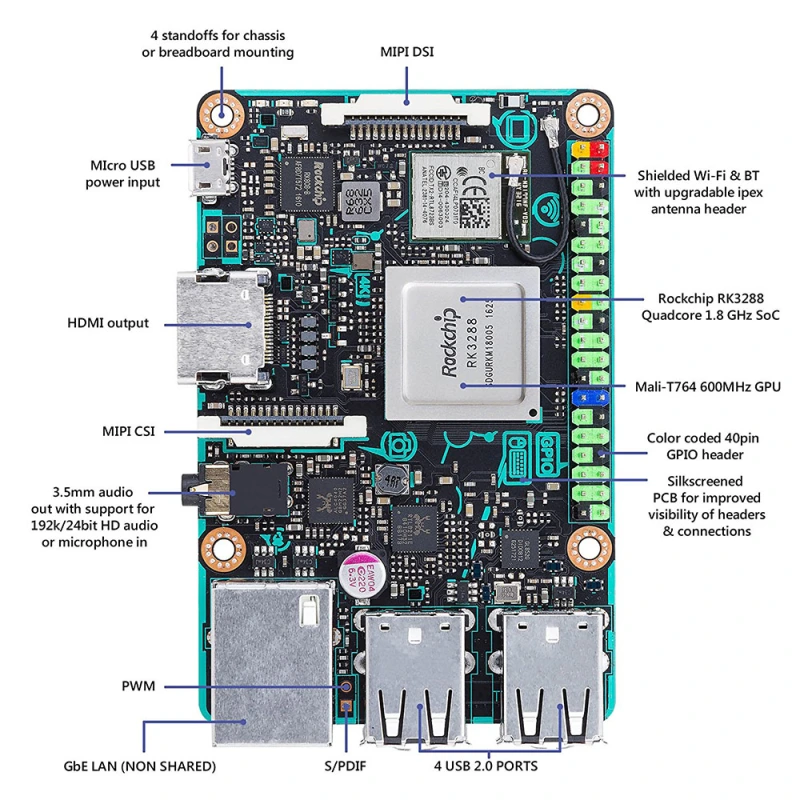

The Tinker board is a single board computer designed for SBC hobbyists, makers & IOT enthusiasts. It features a quad core 1.8GHz SoC with 2GB DDR3 RAM, non shared Gbit LAN, Wi-Fi with upgradable IPEX antenna support & color coded GPIO connectivity. The PCB & topology leverages industry standard dimensions allowing for extensive compatibility with a wide range of accessories & chassis.

• Class Leading Performance

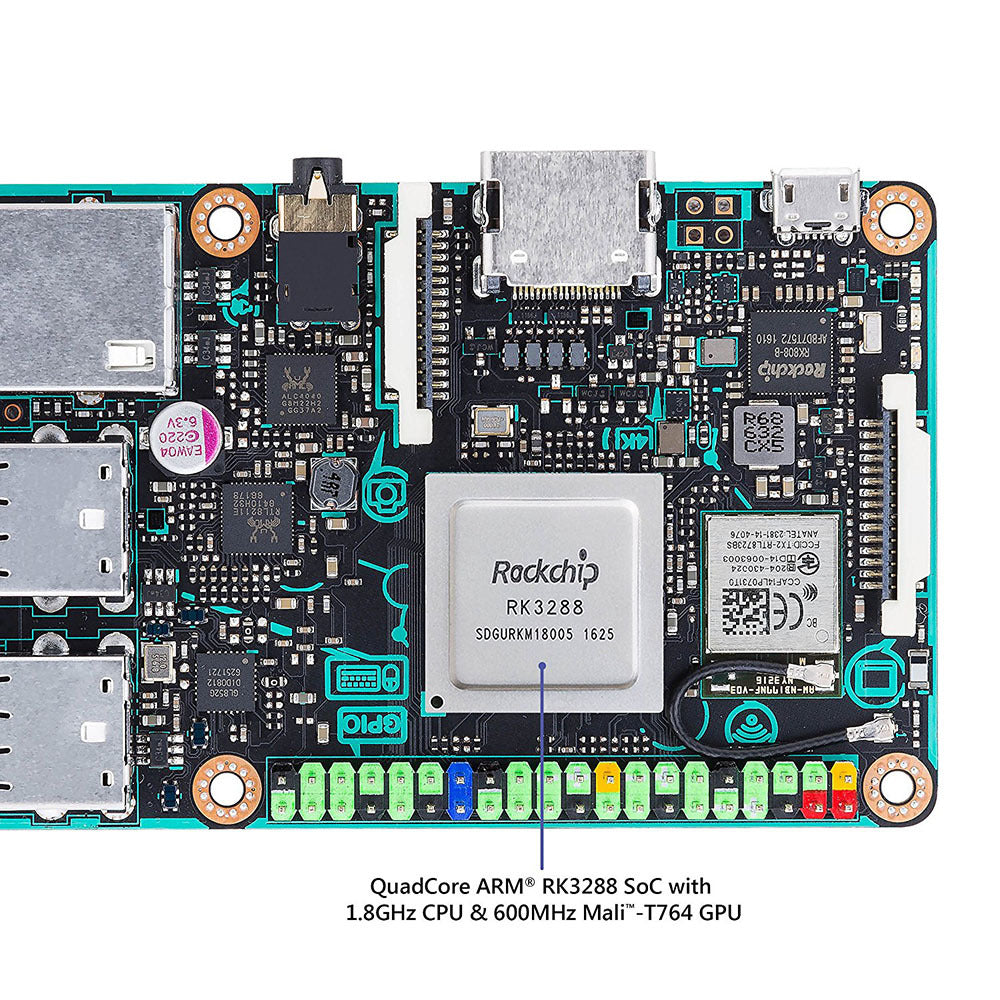

Tinker Board features an ARM-based RK3288 SoC and is equipped with 4 cores to enhance multithread application performance. It operates at frequencies of up to 1.8GHz, improving performance across all applications. This increase in CPU core count, along with an increase in processor frequency, helps to enable significantly faster performancein a wide range of applications, extending and enhancing project capabilities. As a result, typical PC tasks are faster and more responsive.

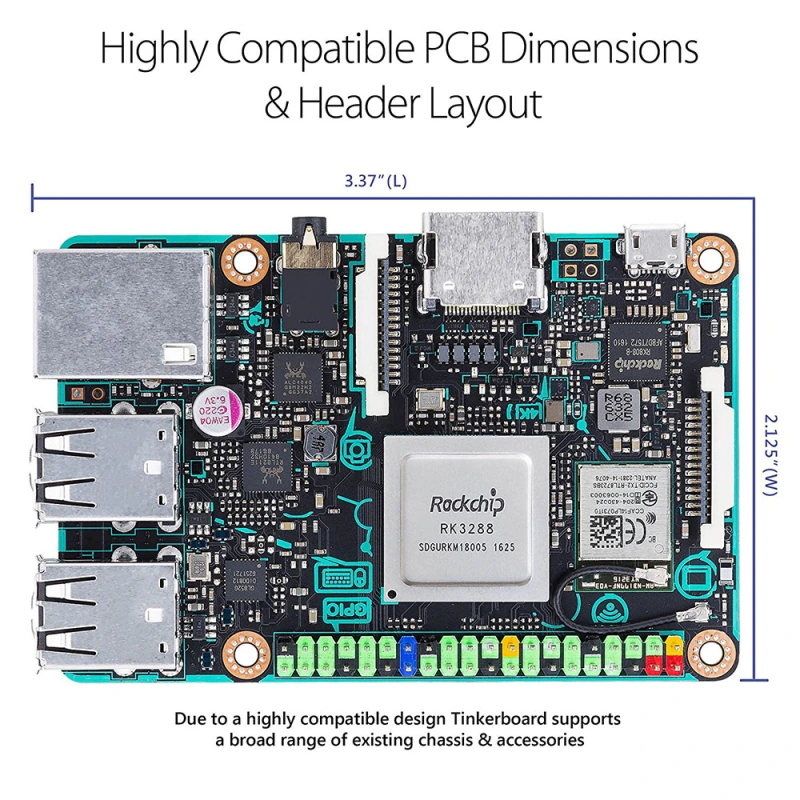

Tinker board is a single-board computer in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The tinker board offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering ideas into reality.

• GPU Performance

Tinker Board's GPU is based on the Mali-T764 GPU. It offers up 16 cores and a 600MHz clock speed. Tinker Board offers better GPU computing and GPU acceleration performance.

• Networks Performance

Tinker Board features Gigabit Ethernet, which offers significantly improved throughput versus competitor SBC that are equipped with 10/100 Ethernet.

• SD Card Read/Write Speed

Tinker Board features SD 3.0 specification support, allowing for microSD card compatibility and significantly faster performance. Faster SD Card performance makes it a preferred solution for everyday computing or for application installation, file access and backup.

• TinkerOS

A Debian-based distribution ensures a smooth and functional experience, directly out of the box. Whether it's browsing the web, watching videos, or writing scripts, TinkerOS is a great starting point for your next project or build.

[ Large Inventory ]

[ Official Sole Agnecy ]

Accessories

8MP camera

This is 8MP camera module that capable of 1080p video and still image, and it can connect to Raspberry Pi directly with CSI (Camera Serial Interface).

Metal Case

7inch Touch Screen

This 7″ touchscreen monitor for Raspberry Pi and Tinker board gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects.

10.1 inch LCD touch screen

This LCD Module can work with varuious demo boards in our store, such as Tinker Board & Firefly RK3399 & Firefly RK3288 & Banana Pi & Nano Pi and so on.?
