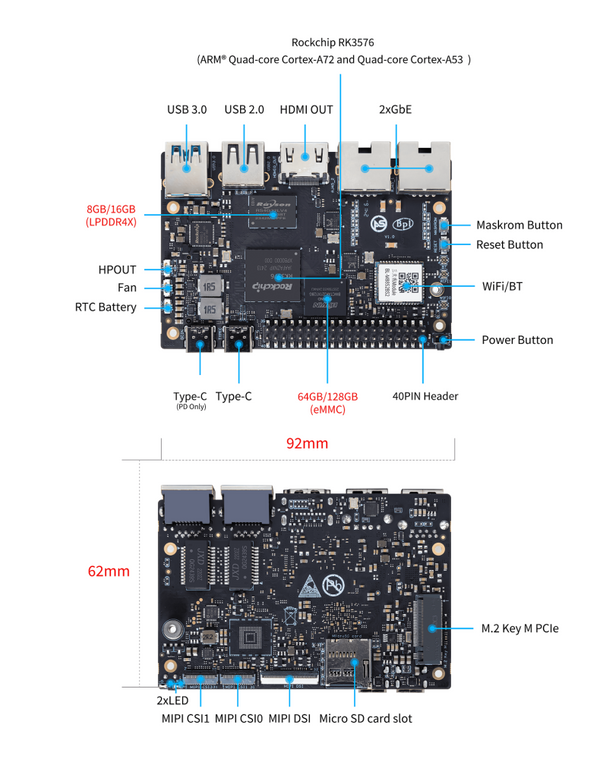

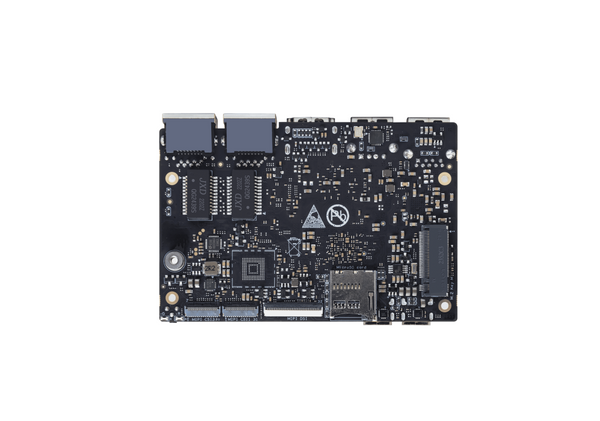

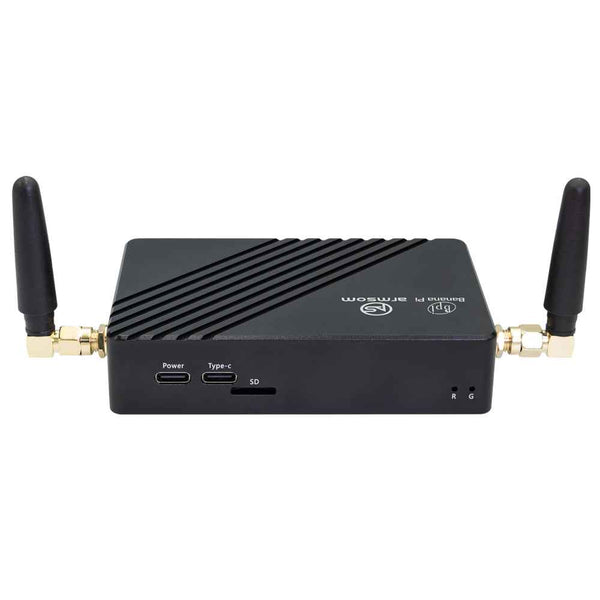

Banana Pi BPI-M5 Pro with Rockchip RK3576 - Up to 16GB RAM, 6TOPS NPU

• Quick Start: WIKI
• Tips

  Display 10 HD Purchase link:banana-pi-display-10-hd1-for-bpi-m7-bpi-m5-pro
  Banana Pi M7 (Rockchip RK3588) Purchase link: Same dimensions Click Here
  If you only need Banana Pi BPI-M5 Pro motherboard, Please contact shop@youyeetoo.com, Thank you.



Introduction

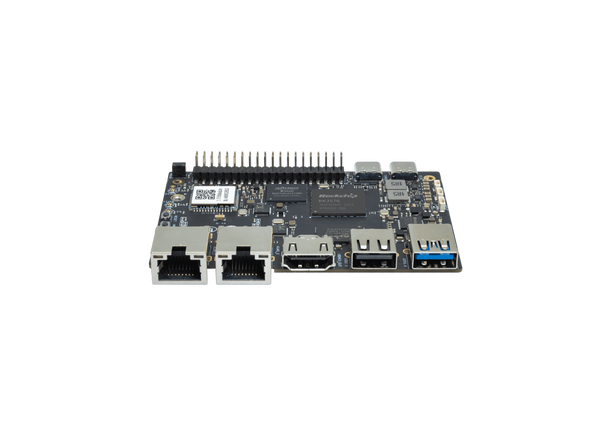

Banana Pi BPI-M5 Pro (Armsom Sige5) adopts the second-generation 8nm high-performance AIOT platform Rockchip RK3576, with a 6 TOPS computing power NPU and support for up to 16GB of large memory. It supports 4K video encoding and decoding and offers rich interfaces including dual gigabit Ethernet ports, WiFi 6 & BT5, and various video outputs. Compatible with multiple operating systems, it is suitable for ARM-based PCs, edge computing devices, personal mobile internet devices, and other digital multimedia applications.

Features

1.
   Processor and AI Capabilities: It is powered by the Rockchip RK3576, featuring a 6 TOPS NPU for AI tasks and a CPU with four Cortex-A72 cores at 2.2GHz and four Cortex-A53 cores at 1.8GHz.

2.
   Memory and Storage: The BPI-M5 Pro supports up to 16GB of LPDDR4x RAM, with 8GB as the default configuration, and offers eMMC storage options of 32GB or 128GB, with 128GB being the default.

3.
   Video Support: It provides robust video capabilities, including 4K video encoding and decoding, with support for various codecs such as H.264, H.265, VP9, AV1, and AVS2.

4.
   Connectivity: The device offers dual gigabit Ethernet ports, WiFi 6 & BT5, and multiple video outputs including HDMI 2.1, MIPI DSI, and DP1.4, catering to a wide range of connectivity needs.

5.
   Operating System Compatibility: It is compatible with multiple operating systems, including official support for Android 14, Debian 11, and Buildroot, with third-party support for Armbian, making it versatile for various applications.


Shipping List

Basic Kit

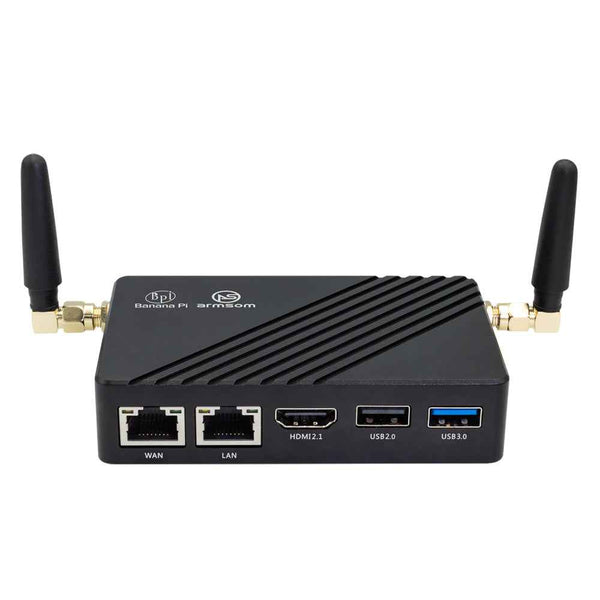

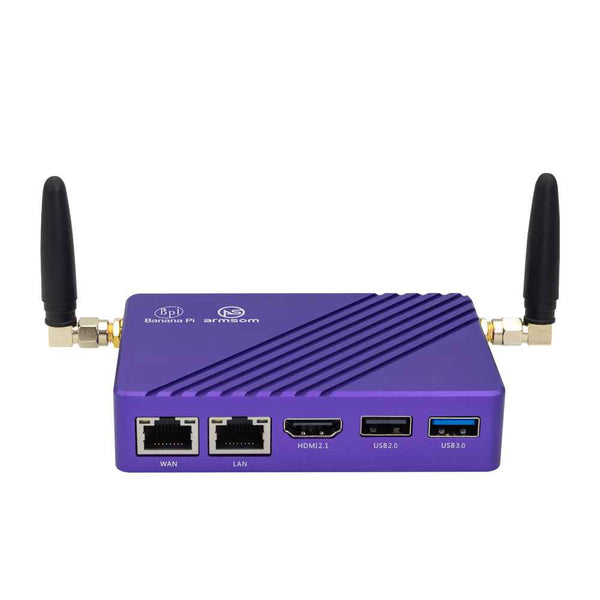

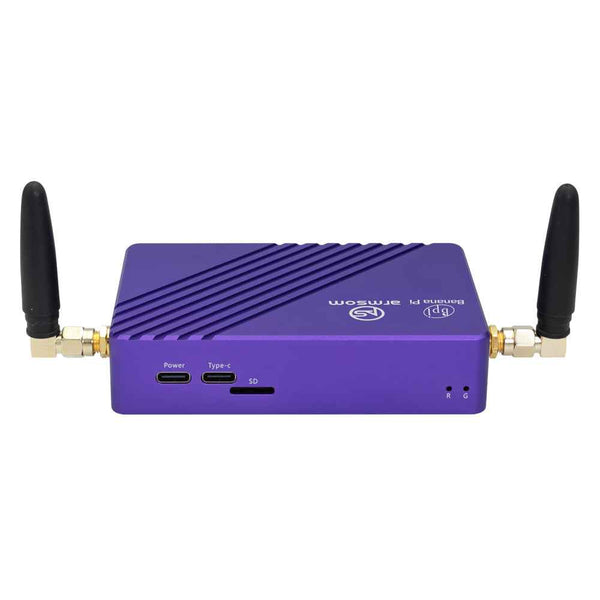

1x Banana Pi BPI-M5 Pro with Metal Case
2x Antennas
1x 20W PD Power

Developer Kit
1x Banana Pi BPI-M5 Pro with Metal Case
2x Antennas
1x Type-C Cable (for burn system)
1x 20W PD Power
1x CH340 Debug Module

Applications

ARM-based PCs, Edge computing devices, Personal mobile internet devices, and other Digital multimedia applications.

Specification

•
  SoC: Rockchip RK3576

•
  CPU: Integrated with four Cortex-A72 cores @ 2.2GHz and four Cortex-A53 cores @ 1.8GHz, along with a separate NEON co-processor.

•
  GPU: ARM Mali G52 MC3 GPU

•
  NPU: Up to 6 TOPs computing power (INT8), supports INT4/INT8/INT16 mixed operations.

•
  VPU/Encoding & Decoding:



  Hardware Decoding: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K@30fps or 4K@120fps.


  Hardware Encoding: Supports H.264 and H.265 up to 4K@60fps, and a high-quality JPEG encoder/decoder supports up to 4K@60fps.




•
  RAM: 8/16GB 32-bit LPDDR4x, default is 16GB. RK3576 supports a maximum of 16GB.

•
  Flash: 32/128GB eMMC, default is 128GB eMMC.

•
  Operating Voltage: Wide input voltage range, from 4.5V to 23V (voltage error ±5%).

•
  Operating Temperature: 0°C to 80°C

•
  Operating Systems:



  Official Rockchip Support: Android 14, Debian 11, Buildroot


  Third-party Support: Armbian




•
  PCB: 8-layer PCB board design

•
  Weight: 43g

•
  Dimensions: 92mm × 62mm
