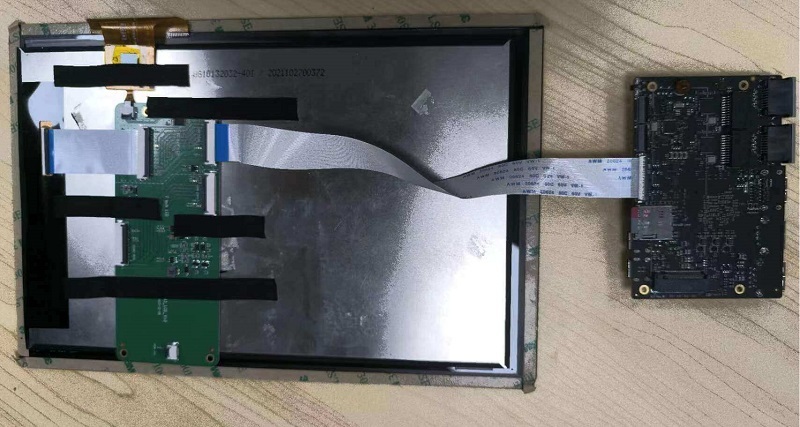

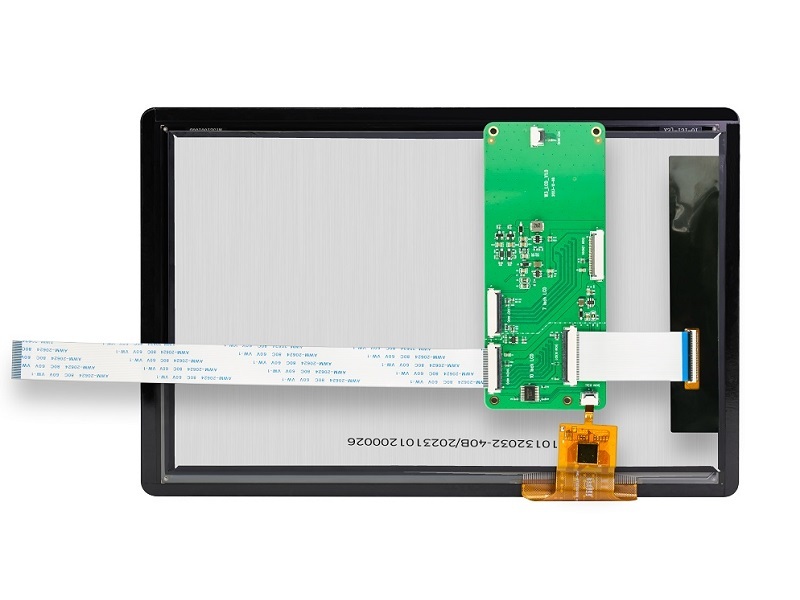

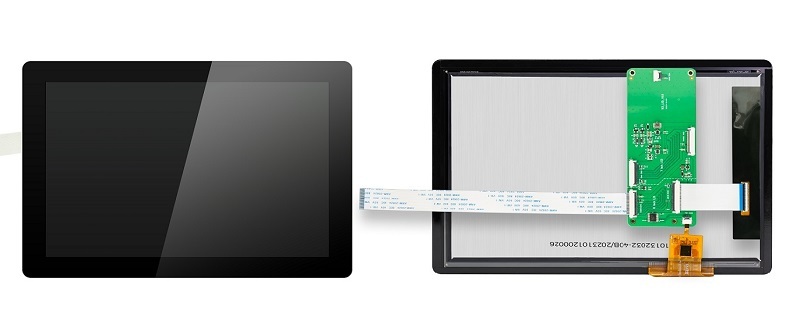

The display model Banana Pi Display 10 HD1 is an ALL O'clock TFT LCD (Thin Film Transistor Liquid Crystal Display) module. This model is Composed of a TFT LCD panel, a driving circuit, and a backlight, and also has a 10.1-inch diagonally measured active display area with FHD(1200 horizontal by 1920 vertical pixel) resolution in a stripe arrangement. Display 16.7M colors by 8-bit R.G.B signal input.

0.0 (0 Reviews)

$419.90

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Reviews

The display model Banana Pi Display 10 HD1 is a ALL O‘ clock TFT LCD (Thin Film Transistor Liquid Crystal Display) module. This model is Composed of a TFT LCD panel, a driving circuit and a back light, and also has a 10.1 inch diagonally measured active display area with FHD(1200 horizontal by 1920 vertical pixel) resolution in a stripe arrangement. Display 16.7M colors by 8 bit R.G.B signal input.

General information

Outline Dimension: 143×228.70×2.25 (TYP.) mm
Display area: 135.36(H)×216.58(V) mm
Number of Pixel: 1200RGB(H)×1920(V) pixels
Pixel pitch: 0.1128 (H)×0.1128(V) mm
Pixel arrangement: RGB Vertical stripe
Display mode: IPS
Surface treatment: AG
Back-light: White LED
System interface: 4 lane MIPI
NTSC: 72（type） %
Viewing Direction: ALL VIEW
Power Consumption: TBD mW

Pinout define

PIN NO

SYMBOL

Description

OPEN

2-3

VDDIN Power SUPPLY 3.3V

GND

Ground

RESET

Global reset signal,=VDDIN

OPEN

GND

Ground

MIPI_TDN0

MIPI data input.

MIPI_TDP0

MIPI data input.

GND

Ground

MIPI_TDN1

MIPI data input.

MIPI_TDP1

MIPI data input.

GND

Ground

MIPI_TCN

MIPI clock input.

MIPI_TCP

MIPI clock input.

GND

Ground

MIPI_TDN2

MIPI data input.

MIPI_TDP2

MIPI data input.

GND

Ground

MIPI_TDN3

MIPI data input.

MIPI_TDP3

MIPI data input.

GND

Ground

23-24

OPEN

GND

Ground

OPEN

CABC

PWM control signal for LED driver

28-29

OPEN

GND

Ground

31-32

LEDK

LED Cathode

33-38

OPEN

39-40

LEDA

LED Anode

Enable Display Overlay

Ubuntu22.04 image to enable display overlay

Use nano to open the /boot/firmware/ubuntuEnv.txt file:

sudo nano /boot/firmware/ubuntuEnv.txt

Find the "overlays=" keyword in the file, and add the following:

overlays=armsom-sige7-display-10hd

Shortcut keys: Ctrl + S to save, Ctrl + X to exit

After editing, restart the device to change the Overlays settings to support the Display 10 HD.

Armbian image to enable display overlay

Use nano to open the /boot/armbianEnv.txt file:

sudo nano /boot/armbianEnv.txt

Find or add the "overlays=" keyword in the file.

overlays=armsom-sige7-display-10hd

Shortcut keys: Ctrl + S to save, Ctrl + X to exit

After editing, restart the device to change the Overlays settings to support the Display 10 HD.
