2.5G M.2 Ethernet Card - 2500Mbps LAN Card, RJ45, Intel I226 Chipset

• Quick Start: Driver Download
• Tips
  • Not sure which one to choose. Please look here first: What is M.2?

  • Normally, the link to WIFI is the M.2 A+E Key.
  • The M.2 Key B+M chip has been upgraded to the I226V, which has better performance than the I226V.

Introduction

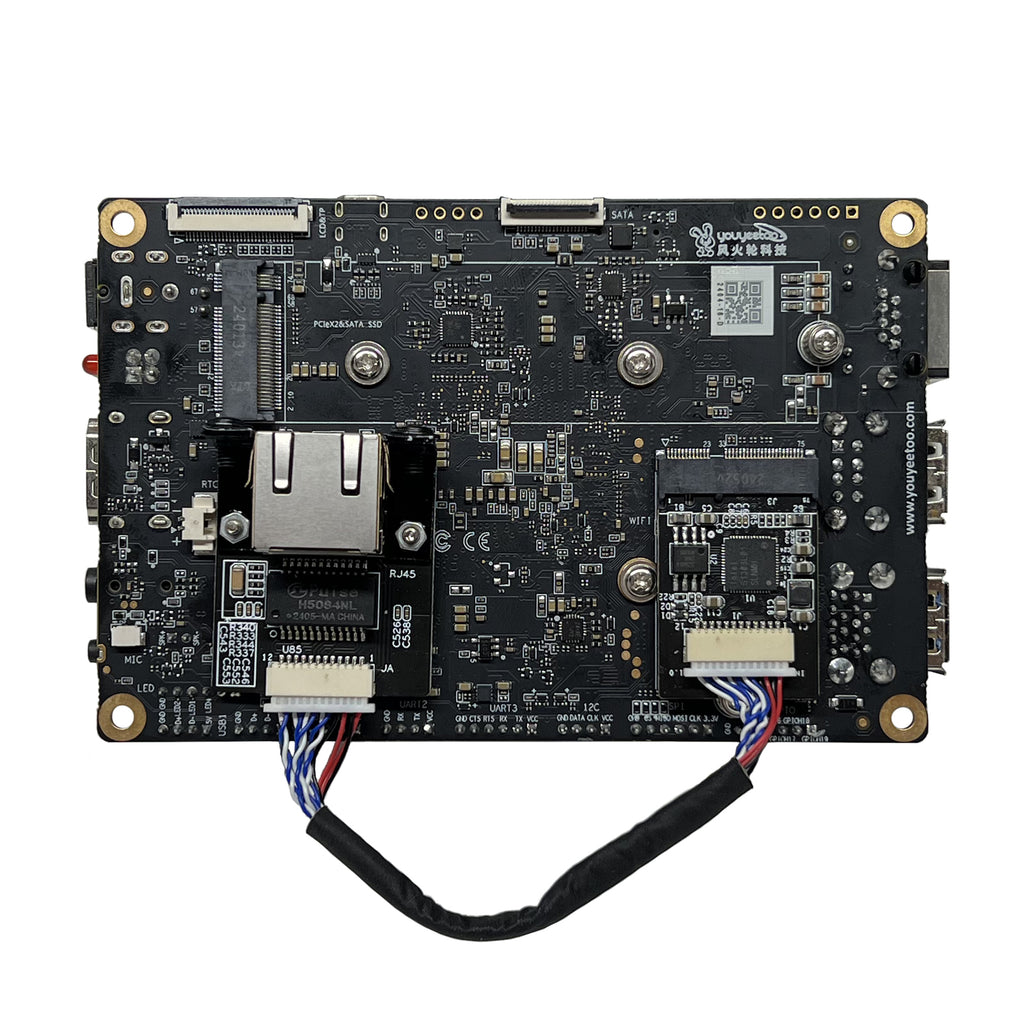

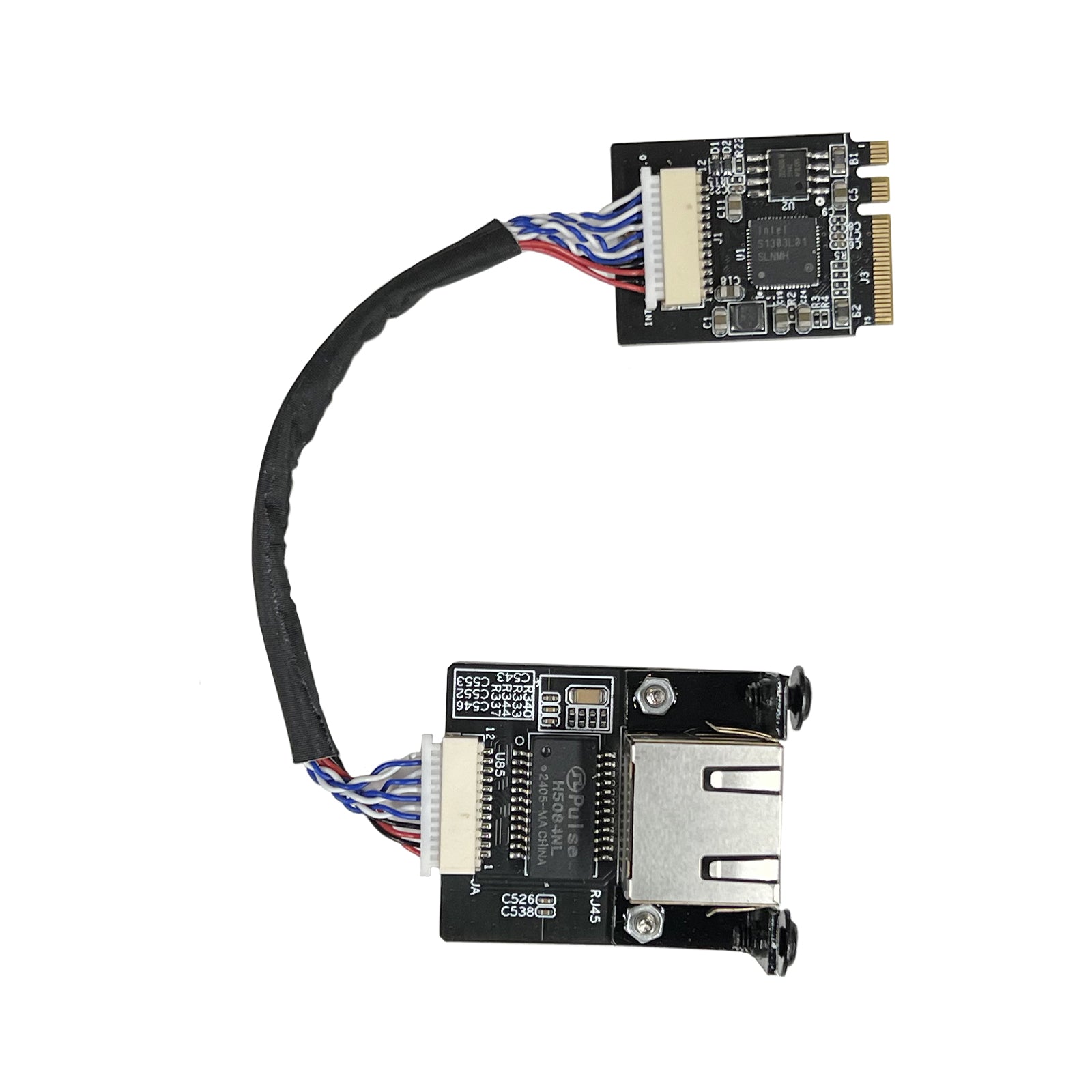

2.5G M.2 Ethernet Card - 2500MbpsLAN Card, RJ45, Intel I226 Chipset - B+M key, A+E key

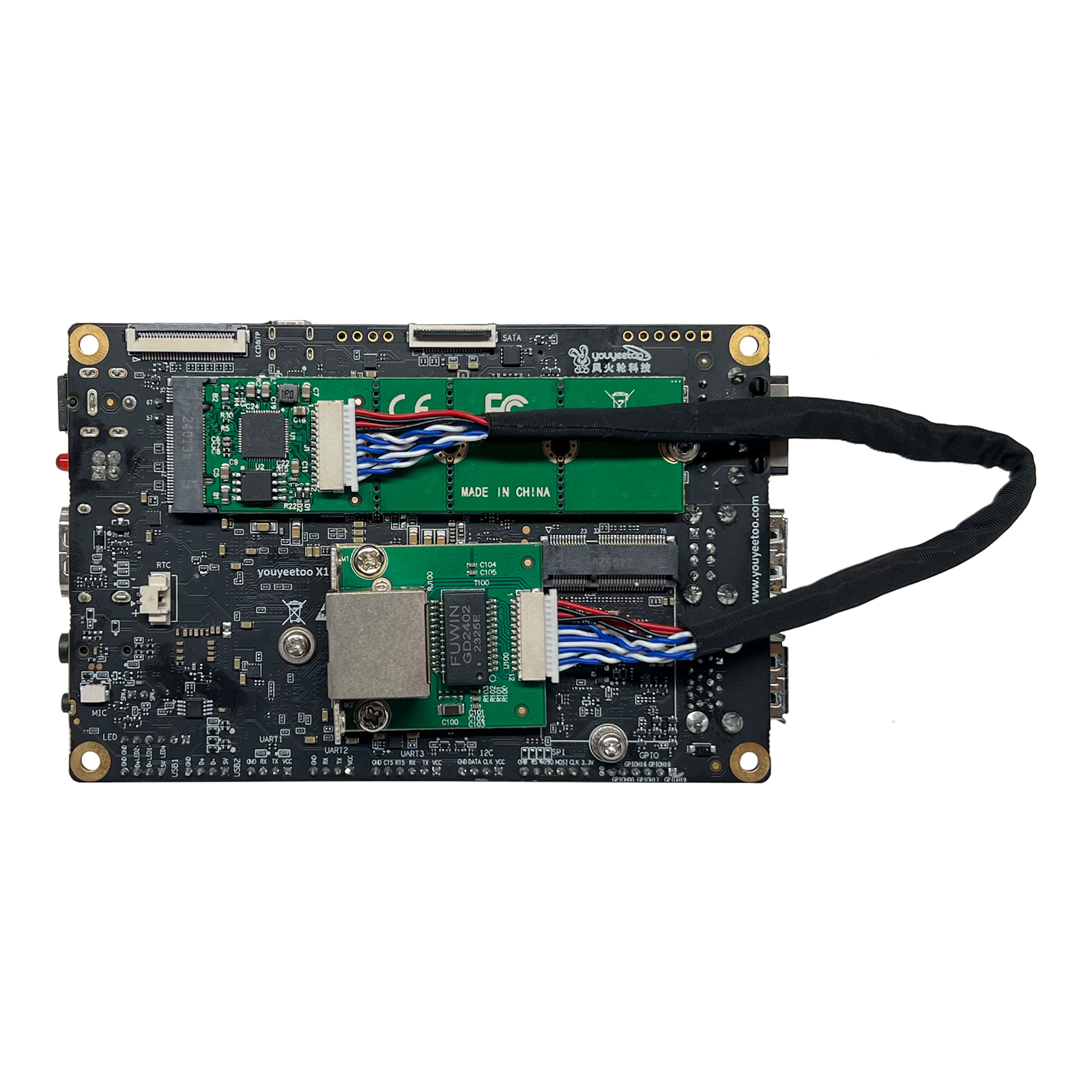

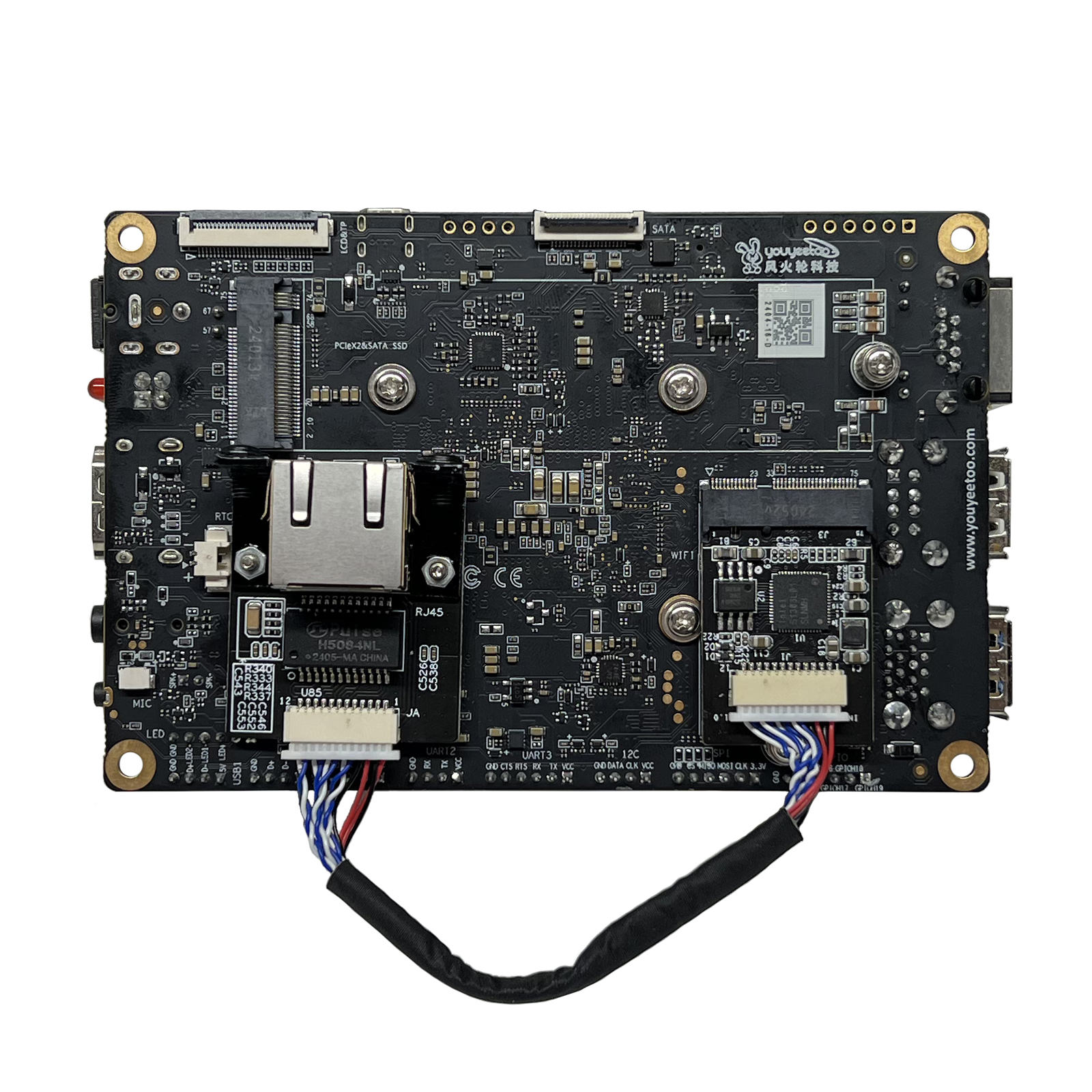

Suitable for youyeetoo x1

Features

• Compliant with M.2 Key B+M NGFF Card Electromechanical Specification
• Compatible with M.2 key B/M (2242) Card Electromechanical specification
• Integrated MAC/PHY supporting 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications
• RJ45 connection: Compatibility with cable lengths up to 100 meters using CAT5e, CAT6, or CAT6A.
• PCI Express 3.1：5GT/s support for x1 width (Lane).
• IEEE 802.3 auto negotiation
• IEEE 802.3x and IEEE 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
• Multiple Queues: 4 Tx and Rx queues per device
• Tx/Rx IP, SCTP, TCP, and UDP checksum offloading(IPv4 IPv6) capabilities
• Active State Power Management (ASPM)
• Full wake-up support
• ACPI register set and power down functionality supporting D0 and D3 states
• MAC Power Management controls
• Power Management Protocol Offload (Proxying)
• Preboot Execution Environment (PXE) Support
• TCP/UDP, IPv4 checksum offloads (Rx/Tx)
• Transmit Segmentation Offloading (TSO) (IPv4, IPv6)
• Low-Latency Interrupts
• Receive Side Scaling (RSS) for Windows: Up to four queues per port.
• Support for packets up to 9.5KB (Jumbo Frames): Enables faster and more accurate throughput of data.

Shipping List

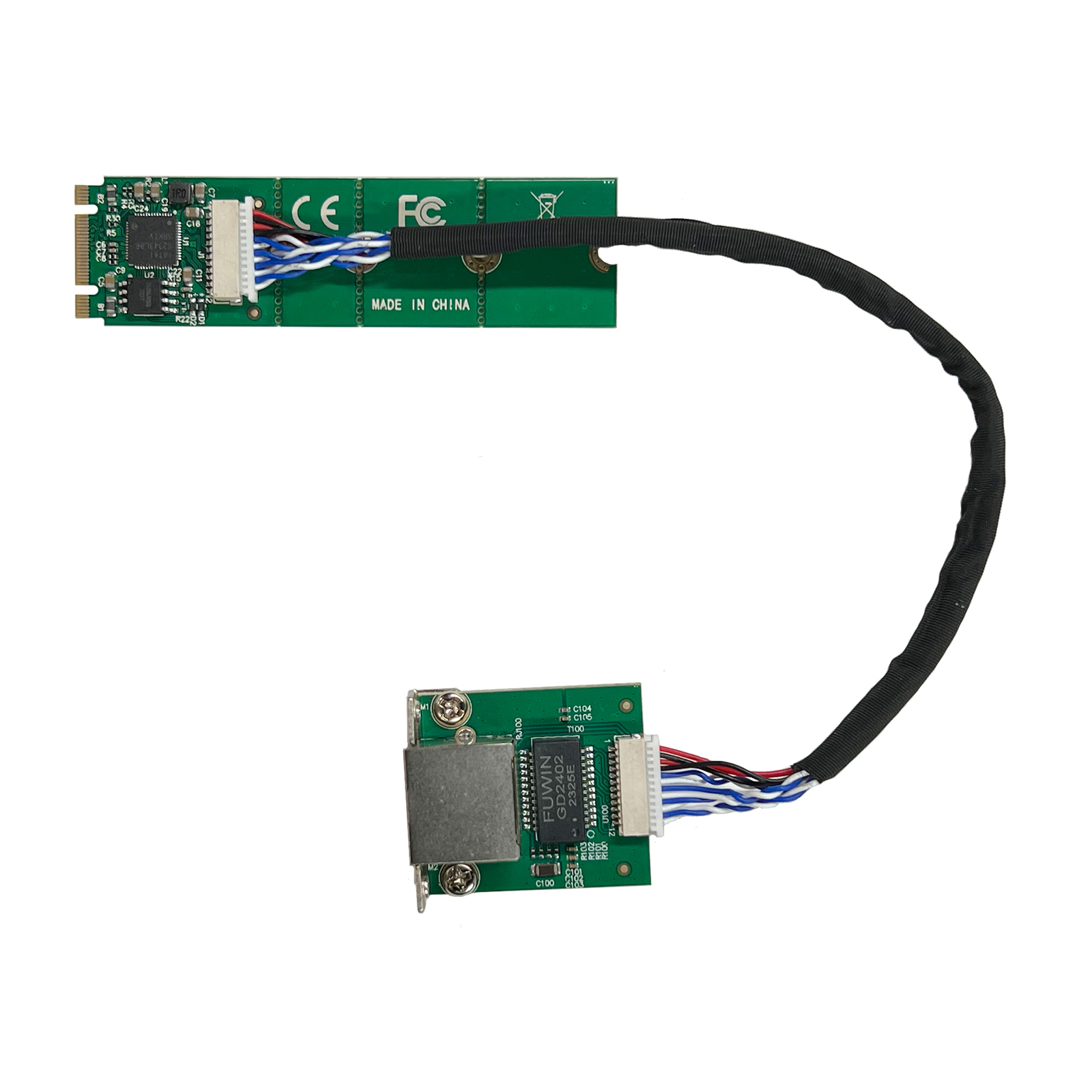

• 1 x M.2 B+M Key 2.5Gigabit network adapter-main card
• 1 x RJ45 Network Connector card-daughter board
• 1 x 10-pin Network cable
• 1 x 4-pin LED cable
• 1 x User Manual

Detailed Descriptions
