TF02-Pro - 40M, IP65 Lidar Sensor

• Quick Start[Datasheet&Tools]:
• Tips

• • Tech Feedback: Forum.youyeetoo.com

Introduction

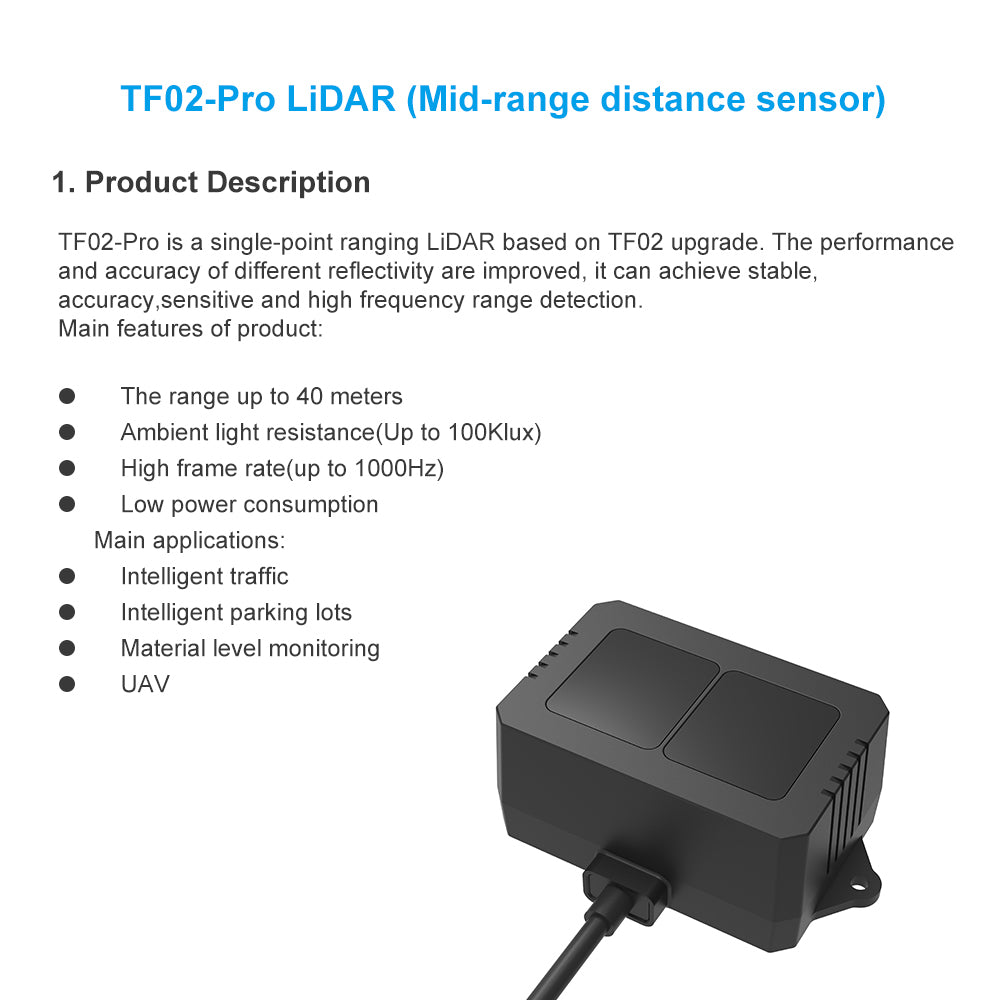

TF02-pro is greatly upgraded and optimized based on TF02, with ranging performance up to 40m, more efficient optical system, and better circuit design, while ensuring higher ranging performance, blind zone and power consumption have excellent performance. With the optimization of the algorithm, the error performance in different environments is also improved significantly. Currently, TF02-Pro has been widely used in fields such as drone altitude holding, intelligent transportation, smart parking lots, and smart agriculture.

Features

• High sensitivity, and able to measure as far as 40 meters
• High-speed measurement with a maximum sampling frequency of 100Hz
• Excellent anti-ambient light usability (operable under 100kLux ambient light)
• Protection Grade reaches IP65
• Anti-corrosive against pesticide
• Small in size and light

Shipping List

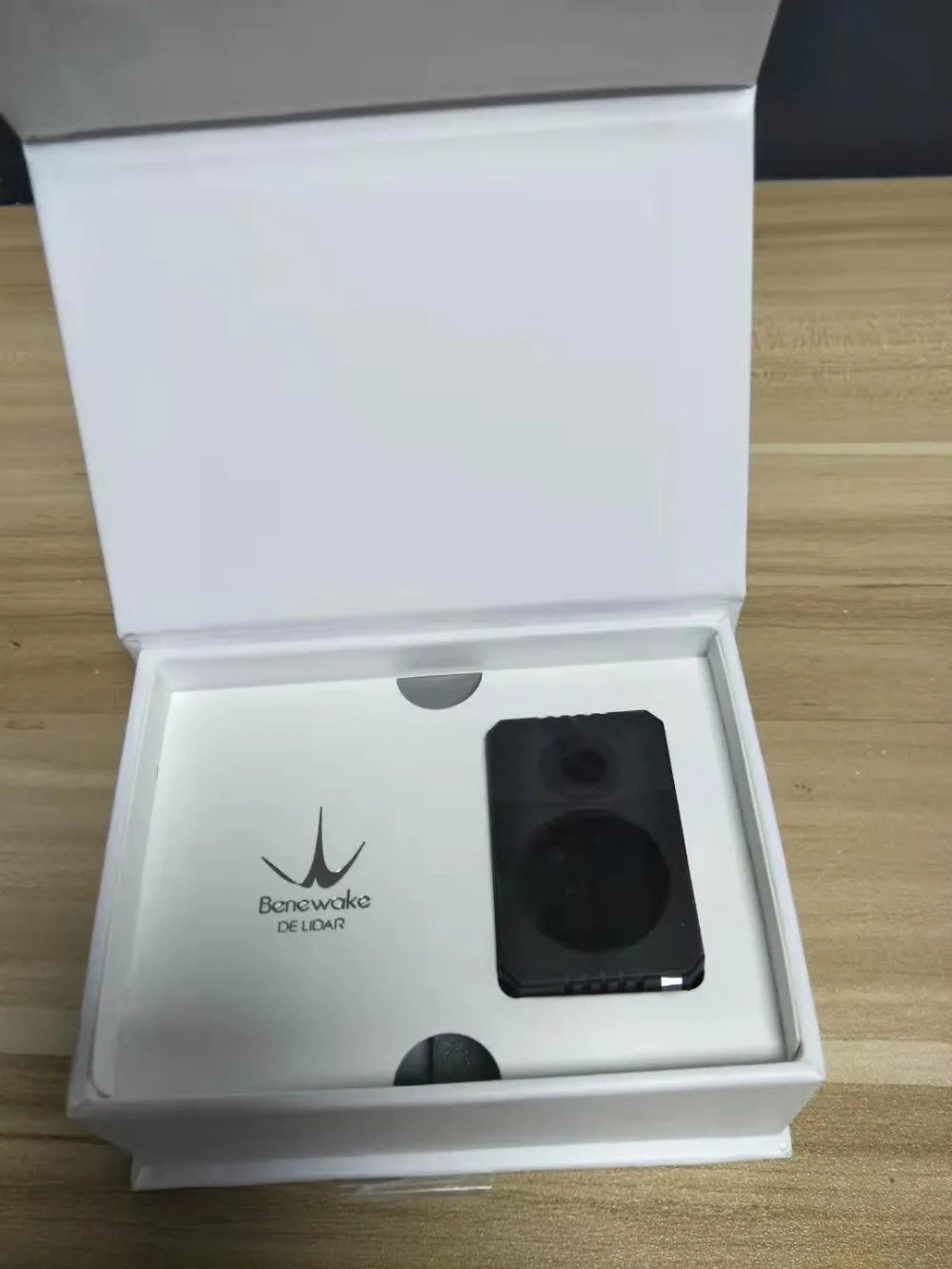

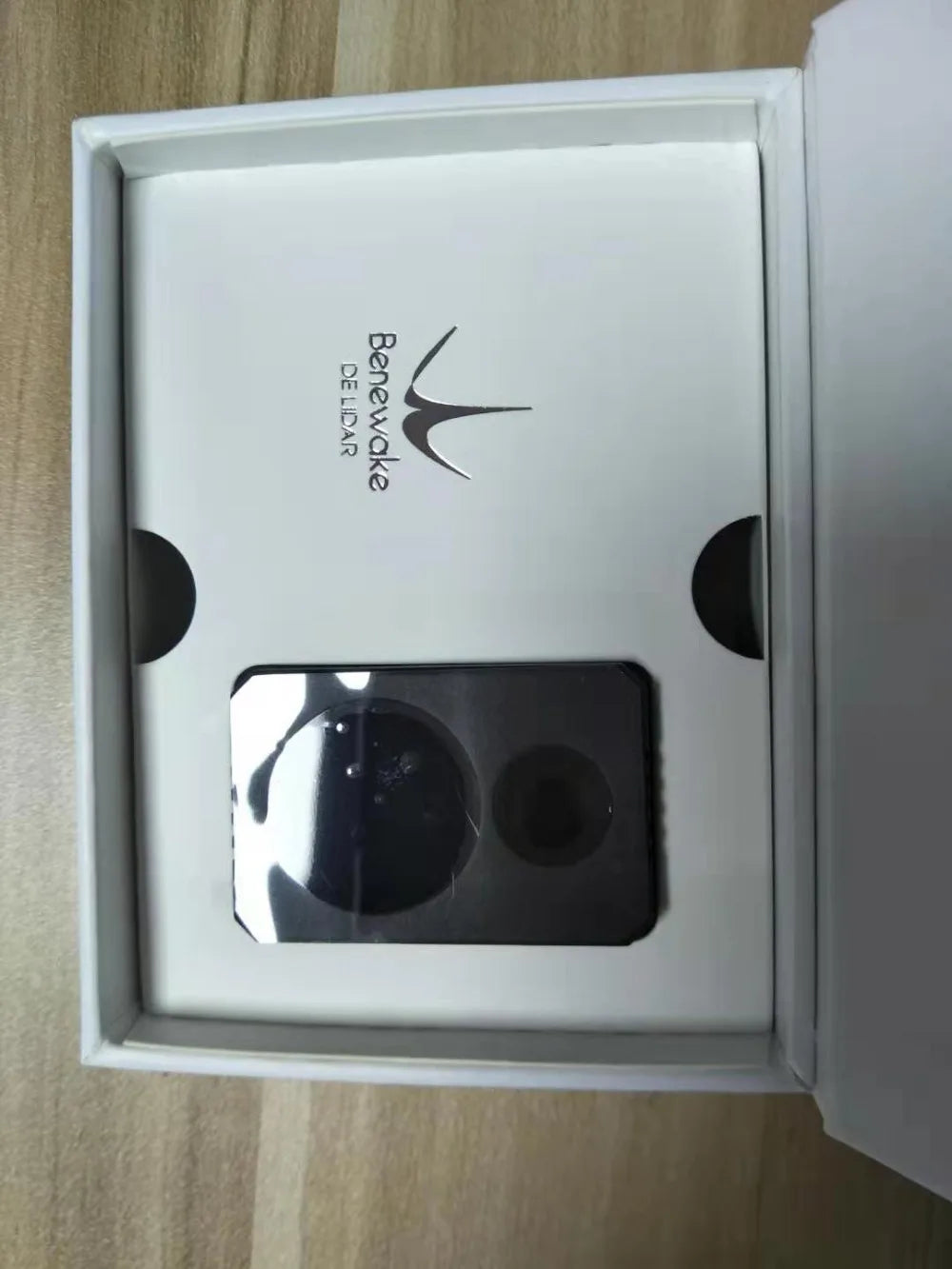

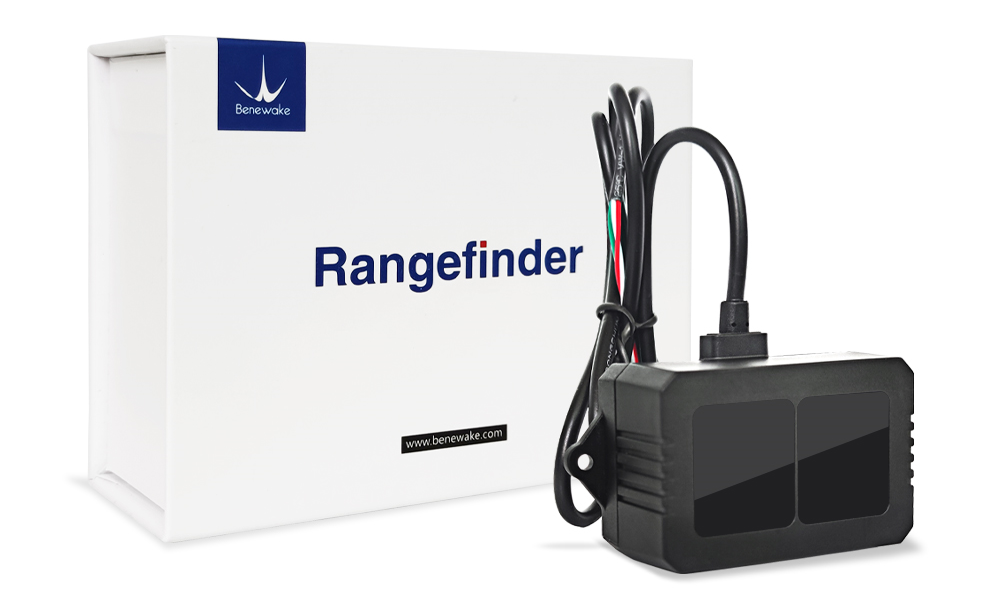

TF02-Pro 40M Lidar Sensor x1

Applications

• Drone altitude holding and terrain following
• Machine control and safety sensors
• Distance measuring instrument
• UAV

Specification

Product performance

Operating Range:

• 0.05 ~40 m @90% reflectivity
• 0.05 ~13.5 m @10% reflectivity
• 0.05 ~40 m @90% reflectivity (100 Klux)
• 0.05 ~13.5 m @10% reflectivity (100 Klux)
• Accuracy: ±5 cm (0.05 ~5 m), ±1% (5~40 m)
• Distance Resolution: 1 cm
• Frame rate: 100 Hz
• Repeatability: 1σ: <2 cm (0.05 ~35 m @90% reflectivity)
• Ambient light resistance: 100 Klux
• Operation t temperature: -20 ~ 60 °C
• Protection Level: IP65

Optical Parameters

• Light source: VCSEL
• Central wavelength: 850 nm
• FOV: 3°
• Photobiological safety: Class 1 (EN60825)

Electrical Parameters

• Supply voltage: DC 5 V ~ 12 V
• Average Current: ≤200 mA
• Power consumption: ≤1 W
• Peak Current: 300 mA
• Communication level: LVTTL (3.3 V)
• Communication interface: UART/I2C

Other Parameters

• Weight: 50 g (with cables)
• Enclosure material: PC/ABS
• Storage temperature: -30 ~80 °C
• Cable length: 80 cm
