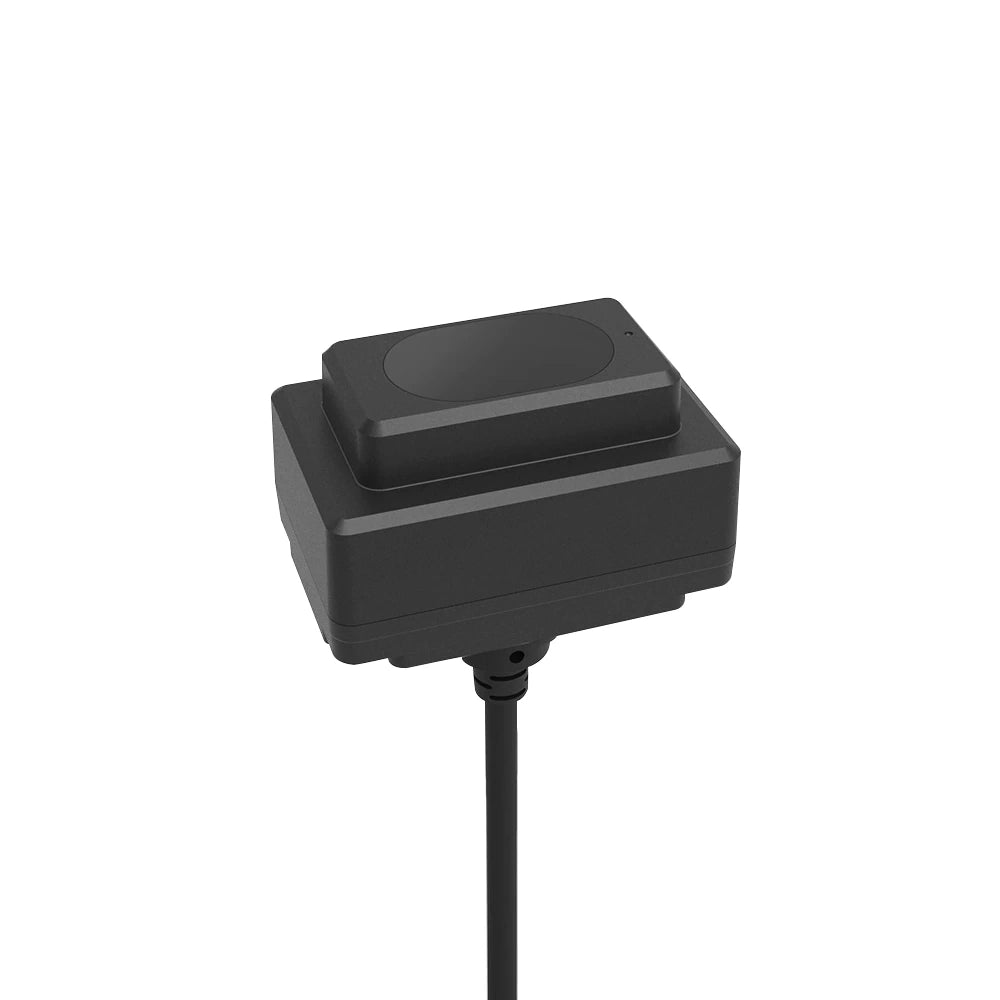

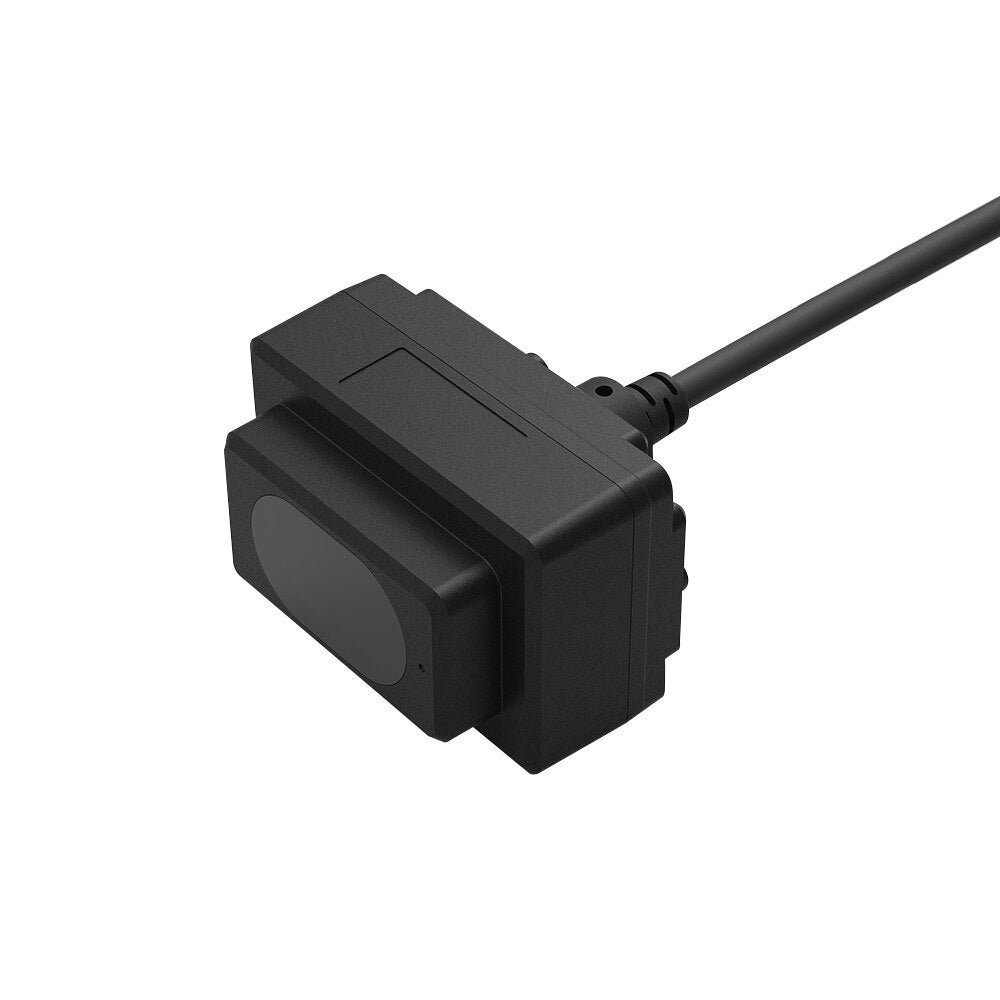

TFmini-i LiDAR is an industrial-grade medium-range distance sensor. Its maximum detection range can reach up to 40m and it has an adjustable frame rate with a maximum of 1KHz. It has a PC/ABS/PMMA enclosure with IP65 water and dust resistance. It supports a wide range of input voltages (7-30V) with reverse protection to protect the internal circuit. Multiple built-in operating modes are included for the users to change their parameters and configurations to meet different applications.
TFmini-I 12m Lidar Sensor x1
| Parameters | Details | |
|---|---|---|
| Product Performance |
Operating Range | 0.1-12m@90% reflectivity 0.1-7m@10% reflectivity 0.1-12m@90% reflectivity (70Klux) 0.1-7m@10% reflectivity (70Klux) |
| Accuracy | ±6cm (0.1~6m), 1% (6m-12m) | |
| Distance resolution | 1cm | |
| Frame rate | 1Hz~1000Hz adjustable (default 100Hz) | |
| Ambient light immunity | 70Klux | |
| Operating temperature | -20~60℃ | |
| Optical Parameters |
Light source | VCSEL |
| Central wavelength | 850nm | |
| Photobiological safety | Class1 (EN60825） | |
| FOV (Field of view) | 2° | |
| Electrical Parameters |
Supply voltage | 7~30V |
| Average current | ≤65mA@12V | |
| Power consumption | ≤0.8W@12V | |
| peak current | 100mA@12V | |
| Communication interface level |
LVTTL（3.3V） | |
| Communication interface | CAN | |
| Others | Enclosure rating | IP65 |
| Enclosure material | PC/ABS/PMMA | |
| Dimensions | 50mm*34mm*41mm(L*W*H) | |
| Storage temperature | -30℃~75℃ | |
| Weight | 52g | |
| Cable length | 70cm | |
