youyeetoo Core-3588SJD4 - RockChip RK3588S SOM , up to 2.4GHz 6 TOPS NPU, Support UEFI Boot,Android 12.0,Linux

8-Core 8K AI Core Board

Powered by Rockchip RK3588S new-gen 8-core 64-bit processor, the core board can be configured with up to 32GB RAM. Capable of 8K video encoding and decoding, it provides abundant interfaces, supporting multiple hard disks, Gigabit Ethernet, and dual-band WiFi6.It also supports various operating systems. Backplane reference design is provided for users to make further customization.

RK3588S is a new generation of high-end processor

RK3588S is Rockchip's new-gen flagship AIoT SoC with an 8nm lithography process. Equipped with an 8-core 64-bit CPU, it has a frequency of up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, it provides 6Tops computing power and supports mainstream deep learning frameworks. The powerful RK3588S can deliver more optimized performance in various AI application scenarios.

8K video encoding and decoding

The core board supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and also supports encoding and decoding simultaneously — up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding can be achieved. The strong video encoding and decoding capability makes 8K HD display and delicate picture quality available.

Super-large 32GB RAM

Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed.It can meet the application requirements of products with large RAM and large storage.

Multi-channel input and output

It supports HDMI 2.1 (8K), DP1.4 (8K), and dual MIPI-DSI multi-channel video output — up to four-screen output with different displays can be achieved. Dual MIPI-CSI camera input is also supported.

Strong network communication capability

Integrated with PCIe/GMAC/SDIO3.0/USB3.0, it can be extended to Gigabit Ethernet, WiFi 6/Bluetooth, and 5G/4G LTE, enabling network communication to have a higher speed.

Multiple hard disks, Massive capacity

PCIe2.1 and SATA3.0 interfaces can be connected with multiple SSD/HDD mass storage devices at the same time, making it a reality that the device can be easily expanded with TB storage capacity.

A variety of interfaces

SATA3.0, PCIe2.1, I2S, I2C, CAN, UART, SPDIF, SDIO3.0, MIPI-CSI, MIPI-DSI, USB3.0, USB2.0, SPI and GPIO are configured.

High-performance mainboard

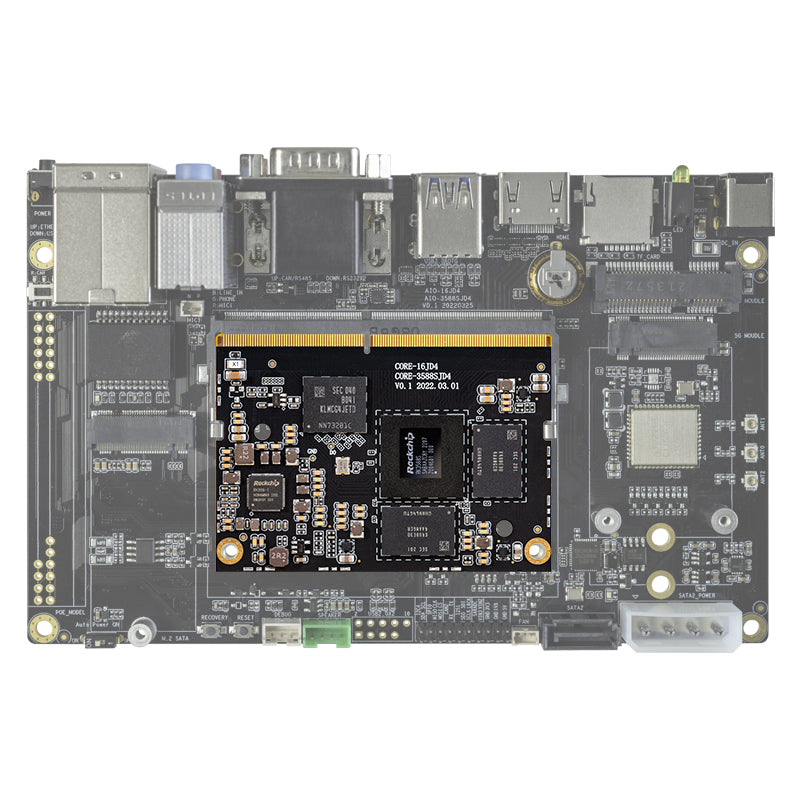

The core board with 260Pin standard SODIMM interface, which is small in size. It can be combined with a backplane to form a complete high-performance mainboard with richer expansion interfaces. So it can be directly applied to various smart products to accelerate their development.

Provide backplane reference design

Backplane reference design and complete technical information are provided, so users can efficiently proceed with secondary development to quickly create independent and controllable products.

Support various operating systems

Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, Kylin, and UOS are supported. It supports RTLinux, delivering excellent real-time performance. UEFI Boot is also available. The reliable operation provides a safe and stable system environment for product research and production.?

Abundant resources

SDK, tutorials, tech docs, and development tools are provided, making development simpler and more convenient.

A wide range of applications

The core board can be widely used in edge computing, Artificial Intelligence, cloud computing, VR/AR, blockchain, smart security, smart home, intelligent retail, and smart industry.

Specifications
