Banana Pi BPI-M7

• Quick Start
• Tips :
  • Offical OS: Username: bpi or root or pi, Password: bananapi
  • Baud rate: 1500000

Introduction

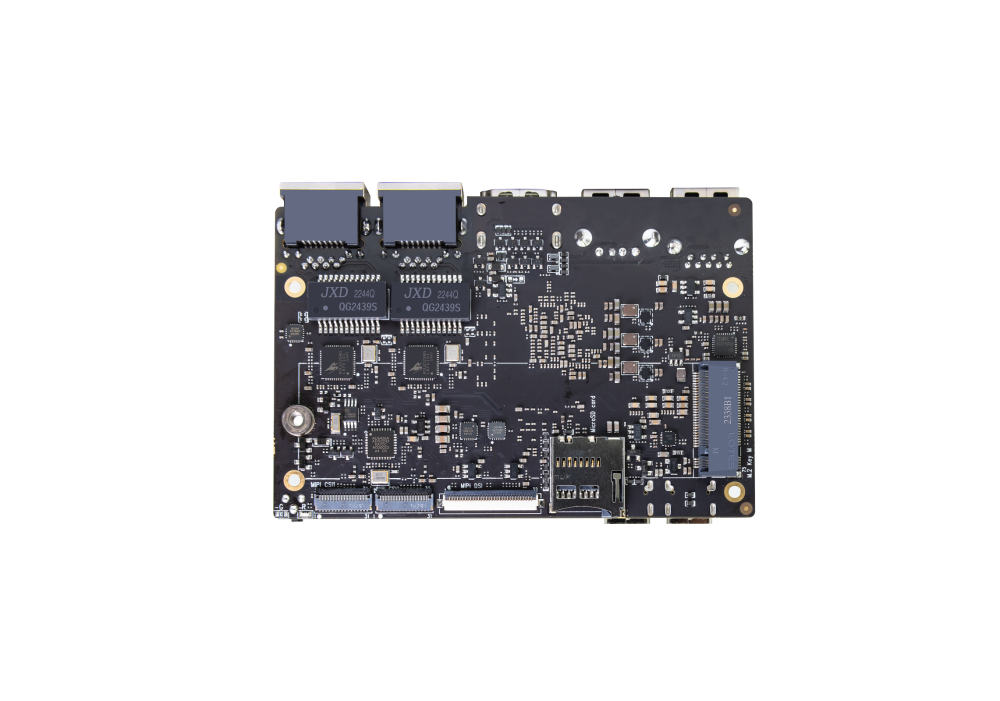

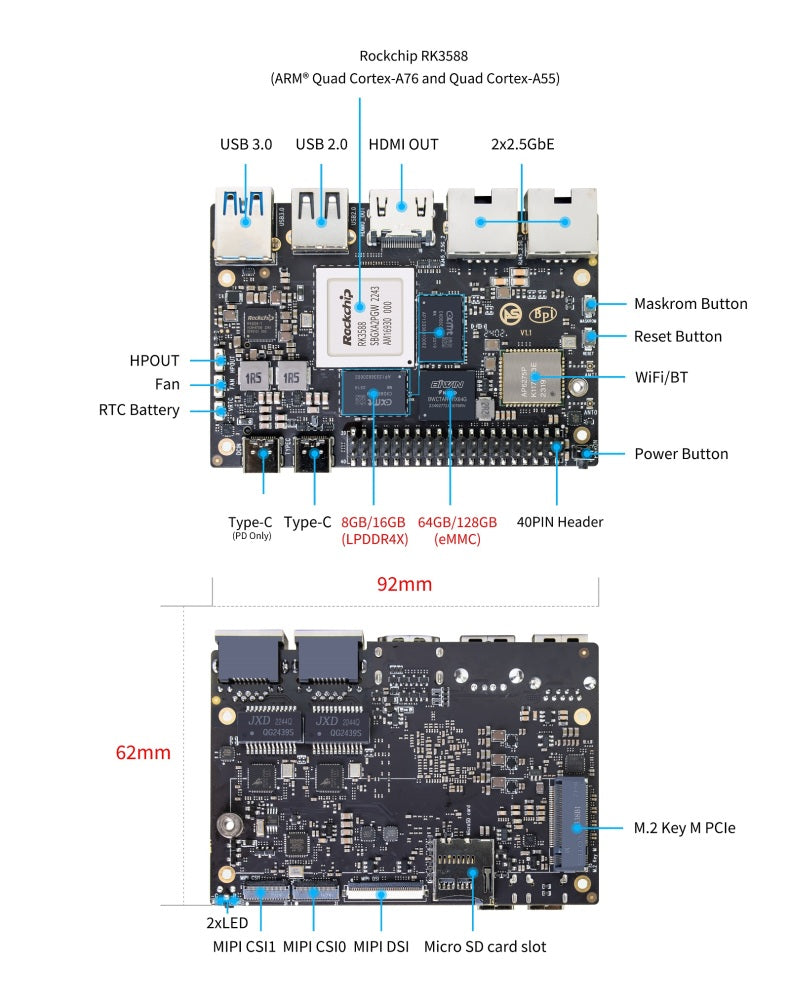

Banana Pi BPI-M7 with Rockchip RK3588, 8/16/32G, RAM 64/128G eMMC,wifi6 support. 2x2.5G port,1xHDMIout,2x USB3.0,2xTYPE-C,2x MIPI CSI interface, 1x MIPI DSI interface, 1x M.2 KEY M interface,40 PIN GPIO, Mini size just 92x62mm.
BPI-M7 is applied for various applications, such as ARM PCs, edge computing, cloud servers, AI, cloud computing, virtual/augmented reality, blockchain, smart NVRs, and more.

Features

• 8K Video Encoding/Decoding

• Dual 2.5G Ethernet

• WiFi 6/BT 5 onboard

• 3x video outputs : DSI x2 ,HDMI x1, DP x1

• 40PIN GPIO: UART/SPI/I2C/I2S/PWM/ADC/5V Power/3.3V Power

• OS Support: Android, Debian, Buildroot, Armbian, Ubuntu, Kylin OS

Shipping List

• Basic
  • BPI-M7 x1
• Dev Kit(Bard Board)
  • BPI-M7 x1
  • Type-C to Type-A Cable x1
  • 20W PD PSU x1
• Dev Kit(With Case)
  • BPI-M7 x1
  • Type-C to Type-A Cable x1
  • 20W PD PSU x1

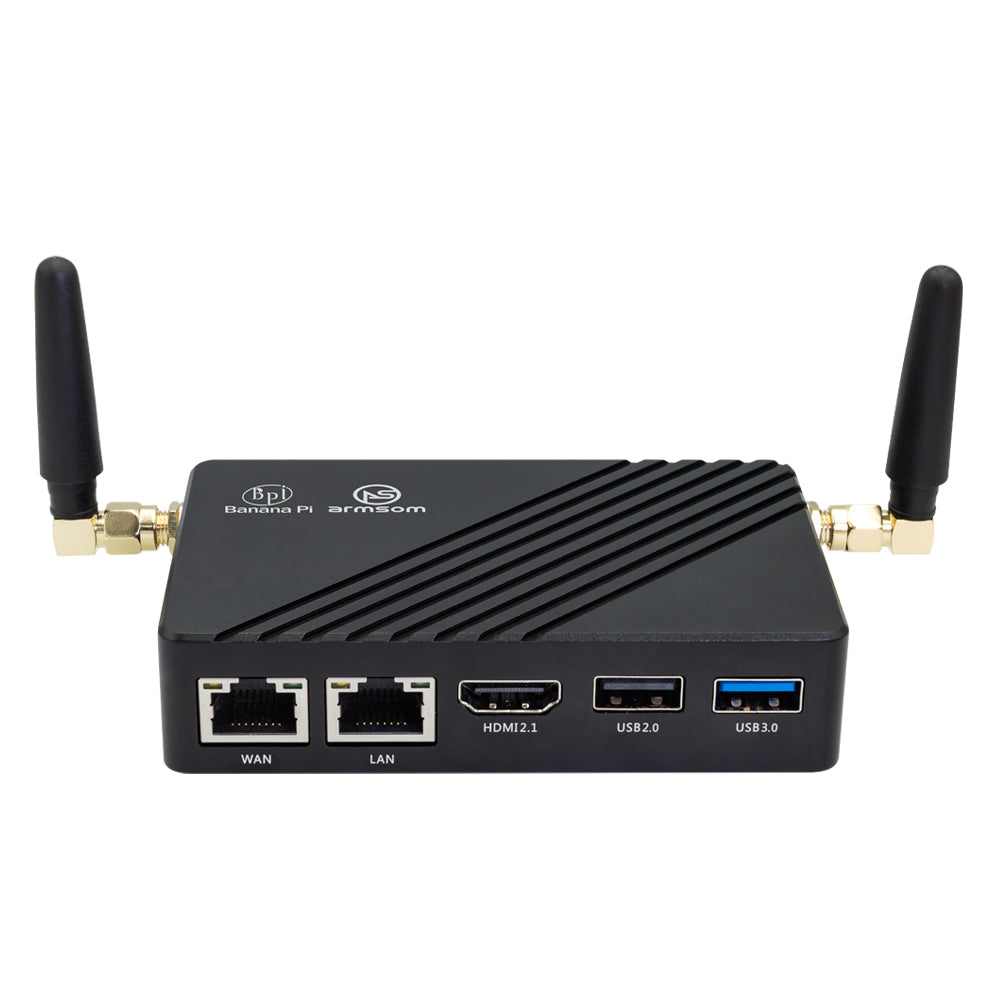

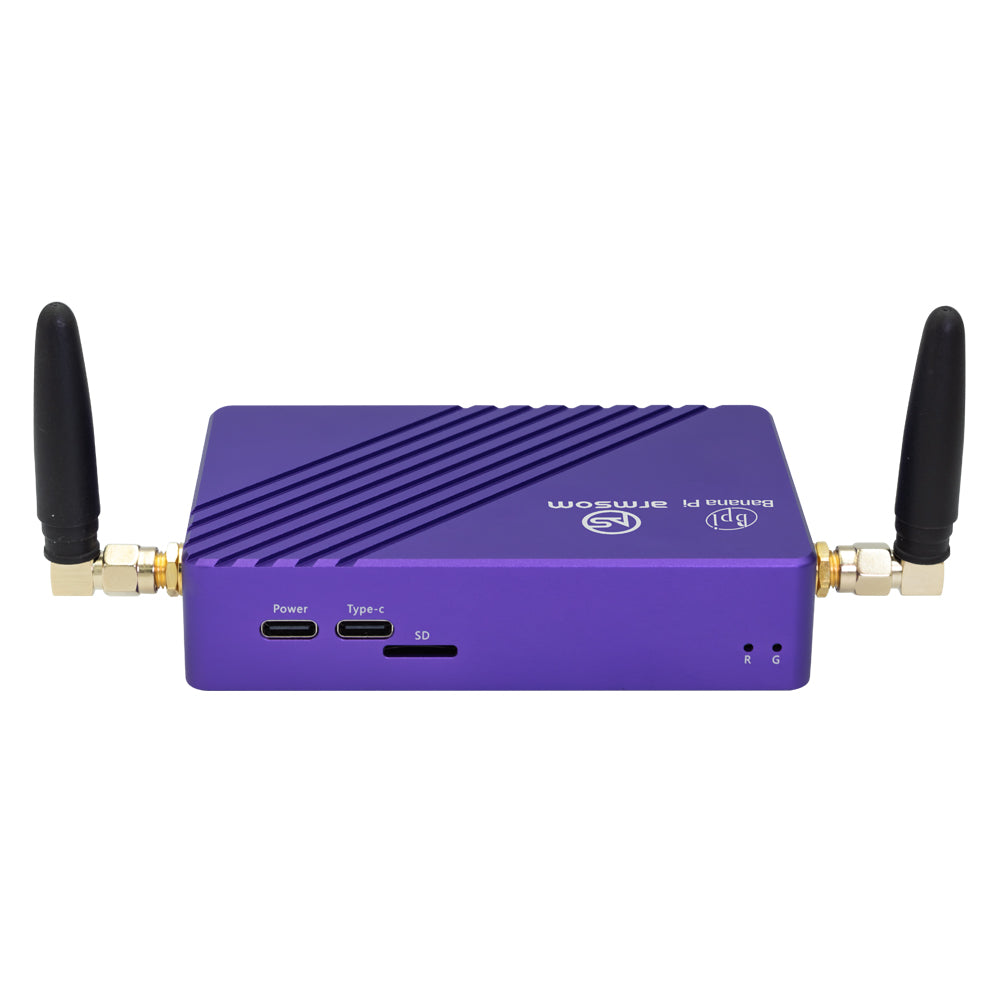

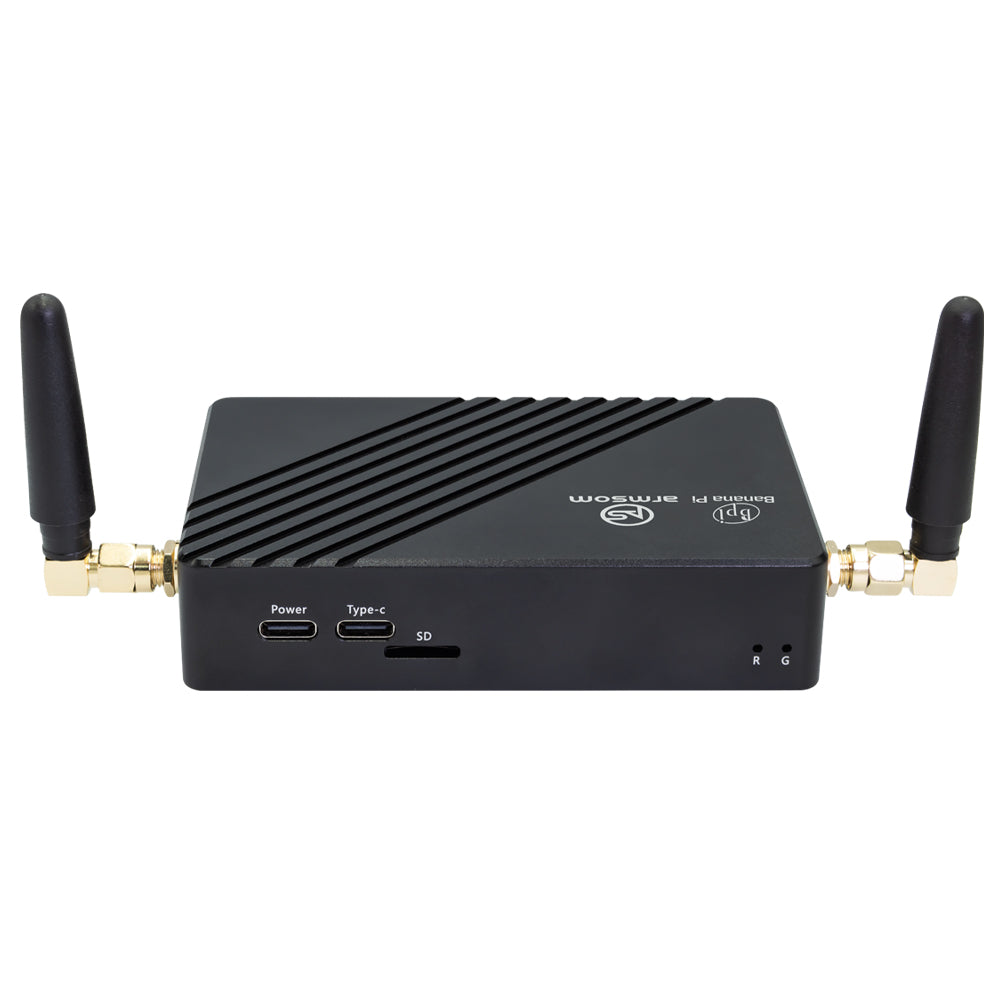

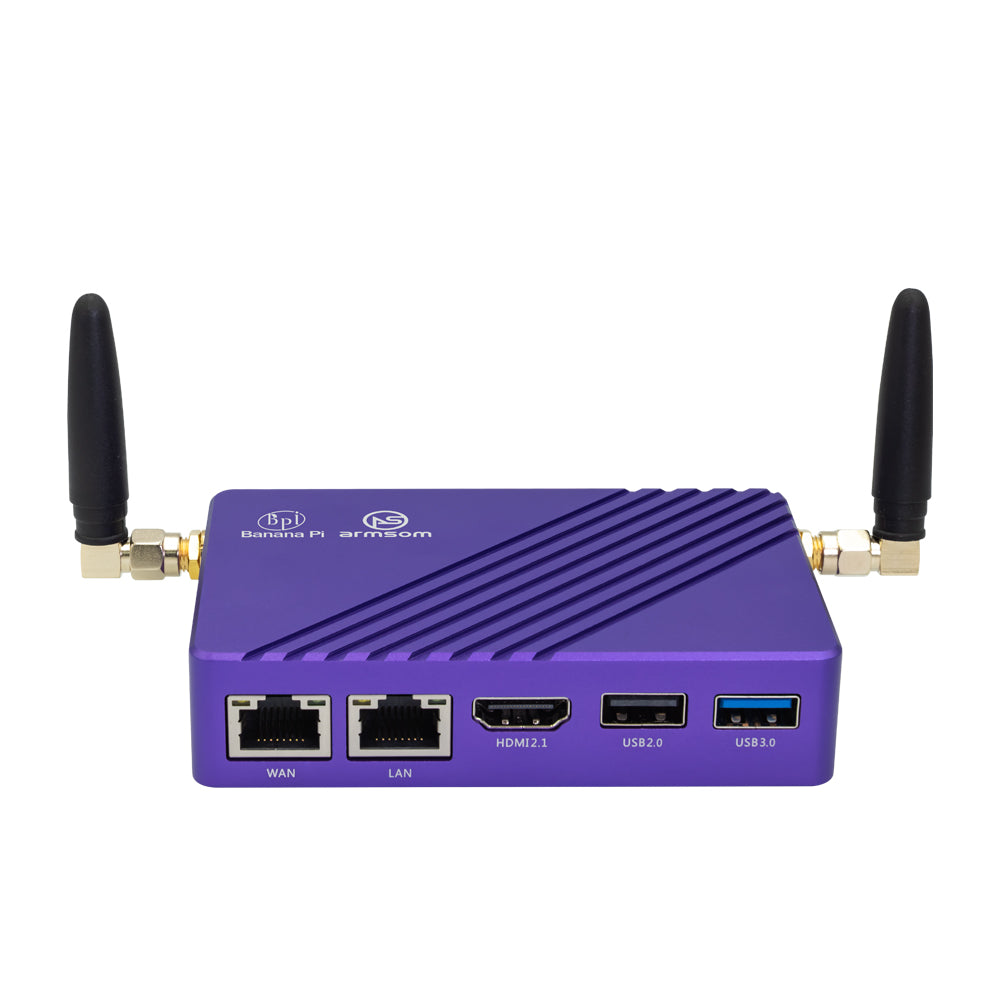

  • Metal Case x1

Applications

Specification

• SoC: Rockchip RK3588

• CPU: 4x Cortex-A76 @ 2.4GHz + 4x Cortex-A55 @ 1.8GHz, 8nm

• GPU: ARM Mali-G610 MP4

• NPU: Up to 6 TOPS (INT8), supports INT4/INT8/INT16 mixed computing

• VPU/Codec:

  • Hardware Decode: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8

  • Hardware Encode: 8K@30fps H.265 / H.264

• RAM: 8GB/16GB/32GB (max 32GB) 64bit LPDDR4/LPDDR4x, default 8GB LPDDR4x

• Storage: 64GB/128GB eMMC, default 64GB eMMC

• Operating Voltage: Wide input voltage, 5V to 20V (±5% tolerance)

• Operating temperature: 0°C ~ 70°C

• OS:

  • Official: Android 12.0, Debian 11, Buildroot

  • 3rd party: Armbian, Ubuntu 20.04, Ubuntu 22.04, Kylin OS

• PCB: 12-layer

• Weight: 200g

• Size: 92mm × 62mm

Detailed Descriptions
