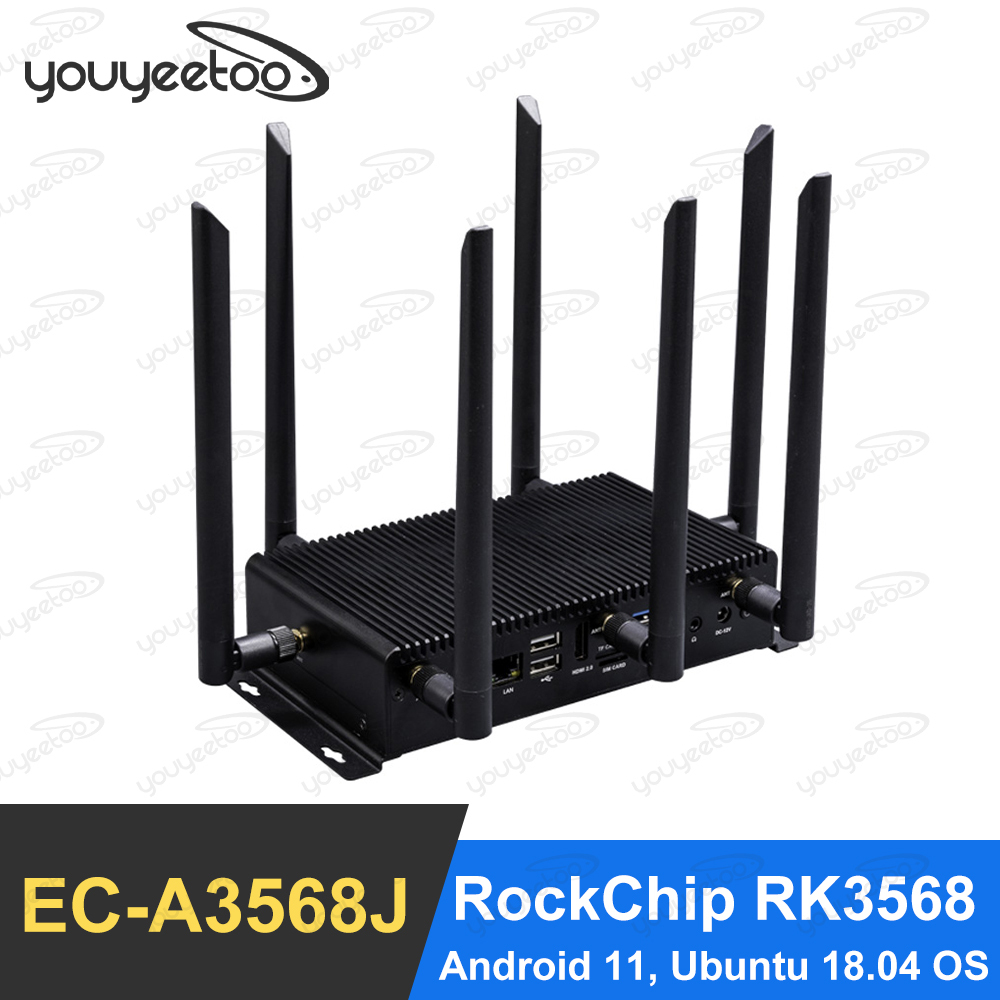

youyeetoo EC-A3568J AI Embedded Computer - RockChip RK3568 Support Android ,Ubuntu

For downloading the Tools, Driver and Firmware use the following link:

https://youyeetoo.com/blog/ec-a3568j-tqdp35680002-176

Note：Please note the type what you want:

Bundle 1： 2G + 32G

Bundle 2： 4G + 32G

Bundle 3： 8G + 64G

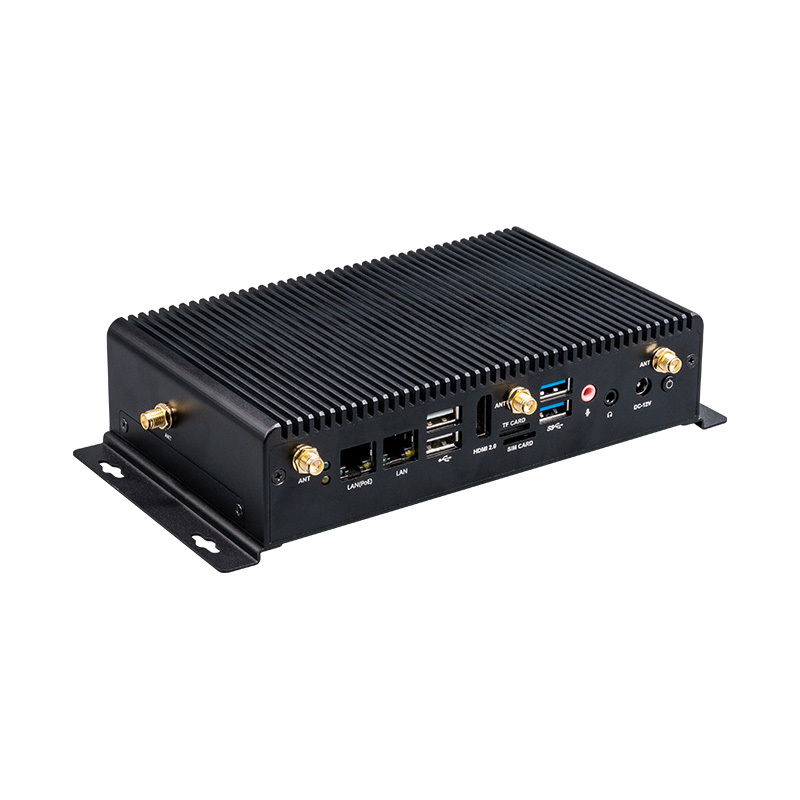

EC-A3568J Quad-Core 64-Bit AI Embedded Computer

The embedded computer is equipped with Rockchip quad-core processor RK3568 which is configured with dual-core GPU and high-performance NPU, supporting up to 8G RAM. It supports POE+ power supplying, dual Gigabit Ethernet ports and WiFi 6 wireless transmission. Providing various interfaces, it is suitable for applications such as smart NVR, cloud terminal, IoT gate way and industrial control.

RK3568 quad-core 64-bit processor

RK3568 quad-core 64-bit Cortex-A55 processor, with brand new ARM v8.2-A architecture, has frequency up to 2.0GHz — the efficiency is greatly improved. With 22nm lithography process, it features low power consumption and high performance.

8GB large RAM, all-data-link ECC

It supports up to 8GB RAM, with up to 32Bit width and frequency up to 1600MHz. It supports all-data-link ECC, making data safer and more reliable, and meeting the requirements of running large-memory products.

Integrated co-processors

It is integrated with dual-core GPU, high-performance VPU and high-efficiency NPU. The GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1. The VPU can achieve 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe/TensorFlow.

Dual Gigabit Ethernet ports

It is equipped with dual adaptive RJ45 Gigabit Ethernet ports, through which internal and external network data can be accessed and transmitted, improving network transmission efficiency, and meeting the needs of products with multiple network ports such as NVR and industrial gate way. The LAN (POE) network port supports POE+ (802.3AT, output power 30W) power supplying — while transmitting network data, it can also supply power to the device to ensure the normal operation of the device.

Powerful wireless network communication

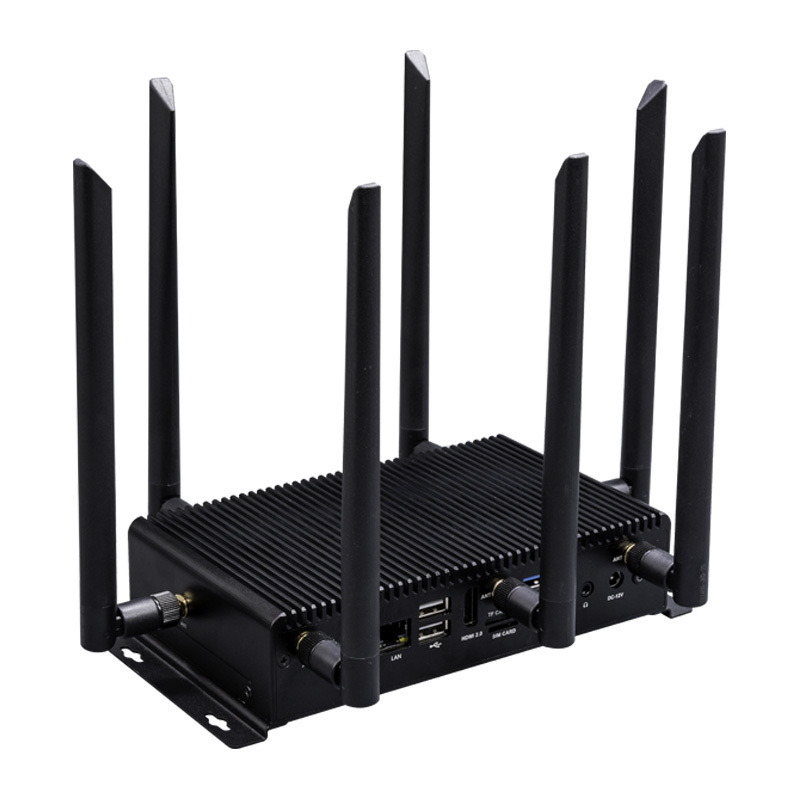

Supporting WiFi 6 (802.11ax) wireless network communication, it features high-speed transmission, lower packet loss rate and retransmission rate, which more effectively reduces data congestion, making the transmission more stable and secure. It can also be connected to 5G/4G module, enabling the product to have a higher-rate, larger-capacity and lower-latency communication.

Onboard M.2 and SATA3.0 interfaces

The onboard M.2 PCIe3.0 and SATA3.0 interfaces can be connected with an M.2 NVMe SSD and a 2.5-inch SATA SSD/HDD respectively, owning the advantages of high-speed reading and writing and large capacity.

Excellent heat dissipation

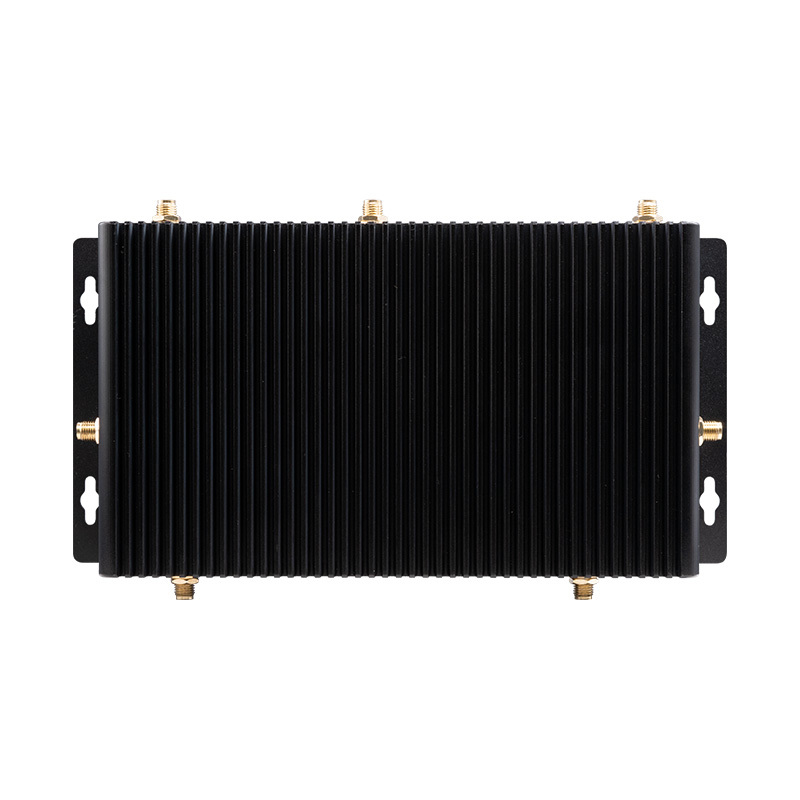

Industrial-grade aluminium alloy enclosure delivers excellent heat dissipation without fans. It passes high temperature aging test at 60℃ and supports stable operation for 7x24 hours. A variety of installation methods can be used, which make it be quickly embedded into various smart products.

Android and Ubuntu supported

Android 11.0, Ubuntu 18.04 OS are supported. The stable and reliable operation provides a safe and stable system environment for product research and production.

A variety of interfaces

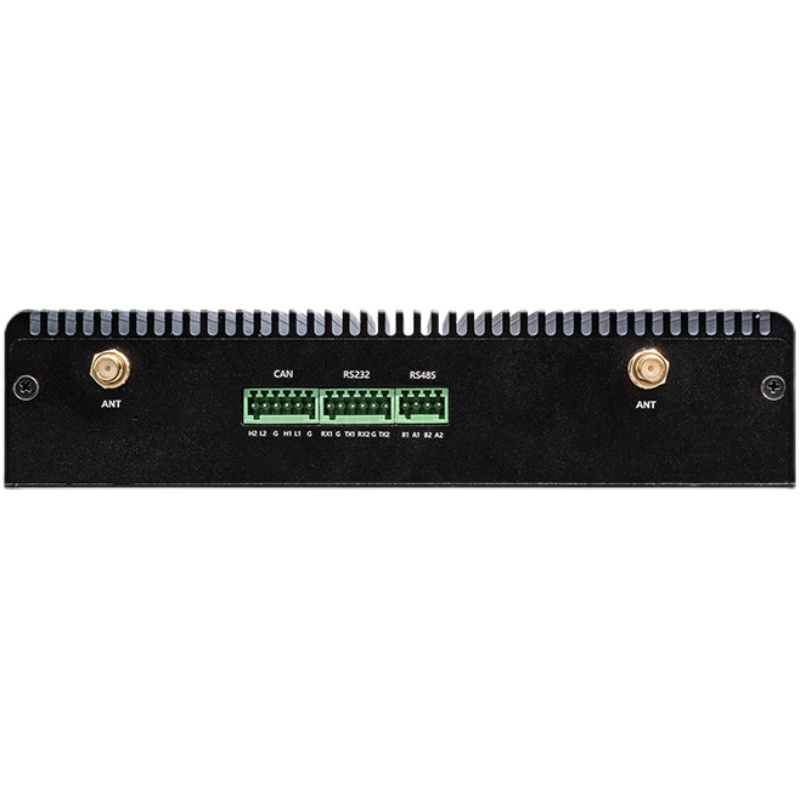

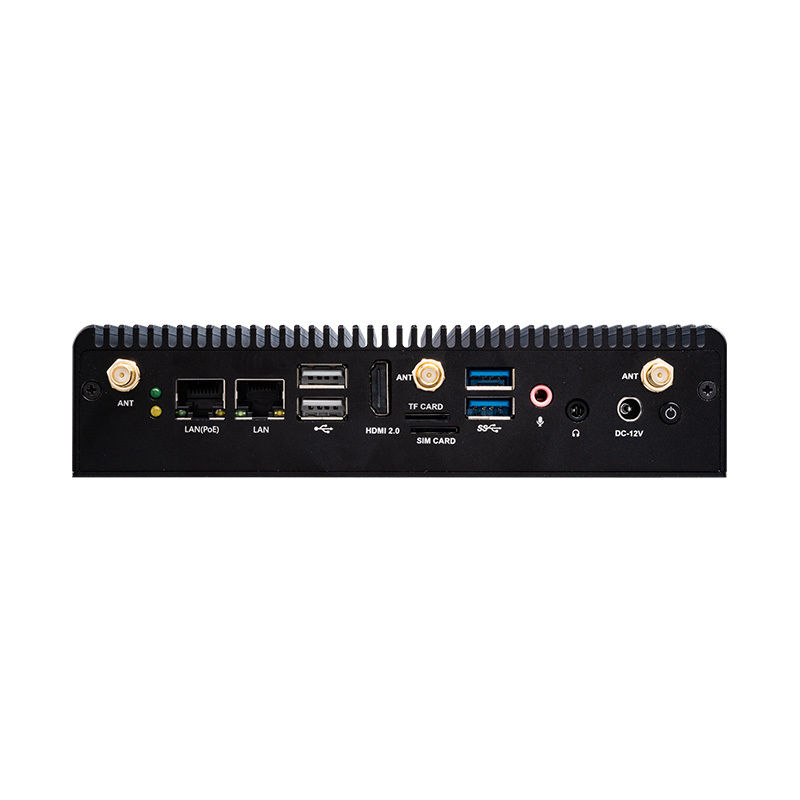

Dual Gigabit Ethernet port, USB3.0 x2, USB2.0 x2, HDMI2.0, RS485 x2, RS232 x2, CAN, it can be directly used in various intelligent products to facilitate the completion of products.

Abundant resources for customization

A complete SDK, development documents, examples, technology documents, tutorials and other resources are provided for the users to make a further customization.

A wide range of applications

This embedded computer can be widely used in smart NVRs, cloud terminals, IoT gate ways, industrial control, edge computing, face recognition gates, NASs, vehicle center consoles, etc.

Specifications
