Introduction

Features

1. [High-performance Chip] Equipped with the S100 intelligent computing chip, featuring a BPU that delivers up to 80TOPS of computing power, it can efficiently handle complex intelligent computing and robotics application tasks.

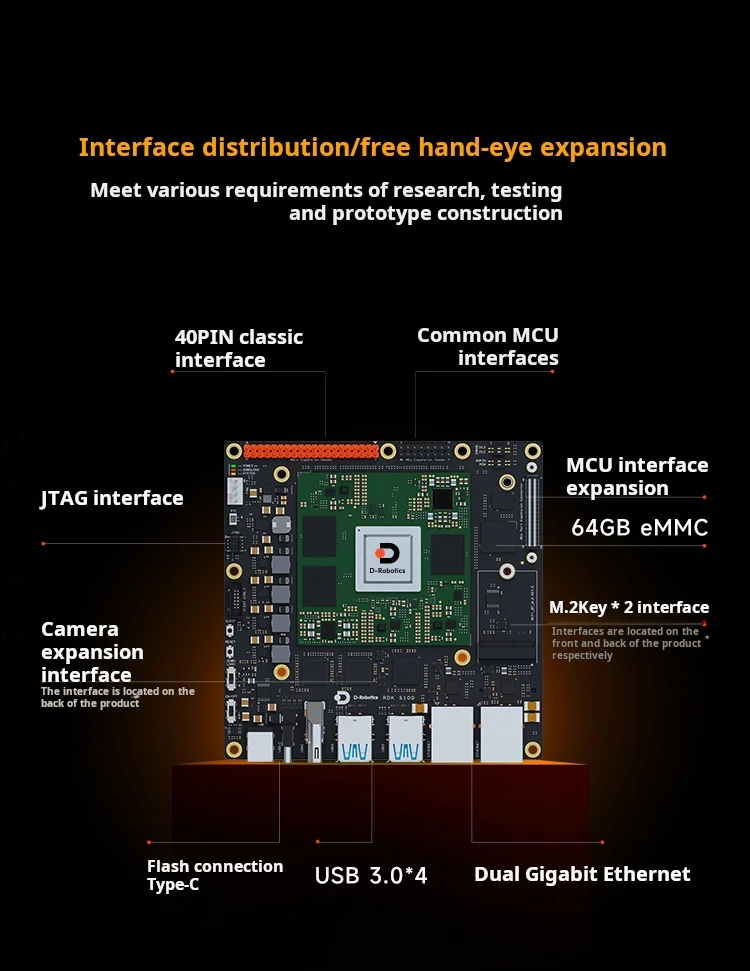

2. [Rich Interface Design] It has 4xUSB 3.0 Type-A ports, 1xUSB 2.0 Type-C port, 1xJTAG debugging interface, 40-Pin GPIO interface, etc. The HDMI interface supports up to 2560x1440@60Hz, making it convenient to connect various external devices.
3. [Efficient Networking Capability] It has 2 RJ45 Gigabit Ethernet ports that support auto-negotiation rate switching. It also has an M.2 Key E interface that can connect WiFi & BT modules, meeting the high-speed communication needs of different network environments.
4. [Large-capacity Storage and Expansion] It has 64GB of onboard EMMC storage and provides an M.2 Key M hard disk interface, making it easy for users to expand storage capacity according to their needs.
5. [Flexible Power Supply] It supports 12-20V DC power input, with a maximum power consumption of 150W. Different power adapters can be chosen to suit various usage scenarios.
6. [Multiple Boot Modes] With a DIP switch, users can easily select to boot from the onboard eMMC or the M.2 NVMe solid-state drive, offering flexible boot options for different development requirements and system configurations.

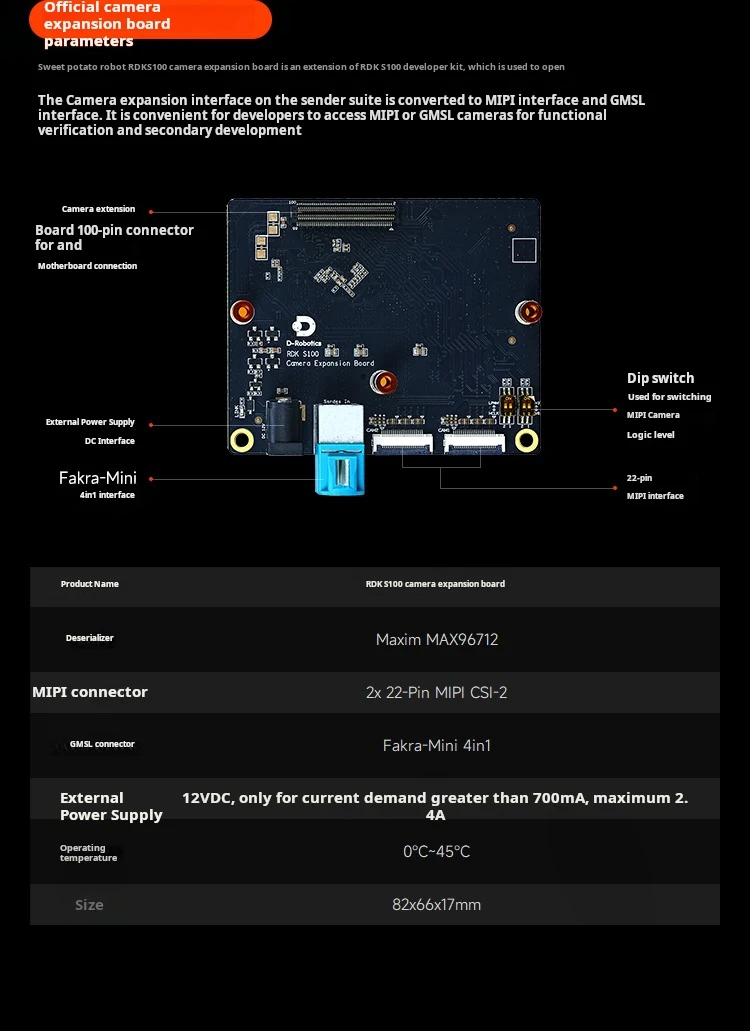

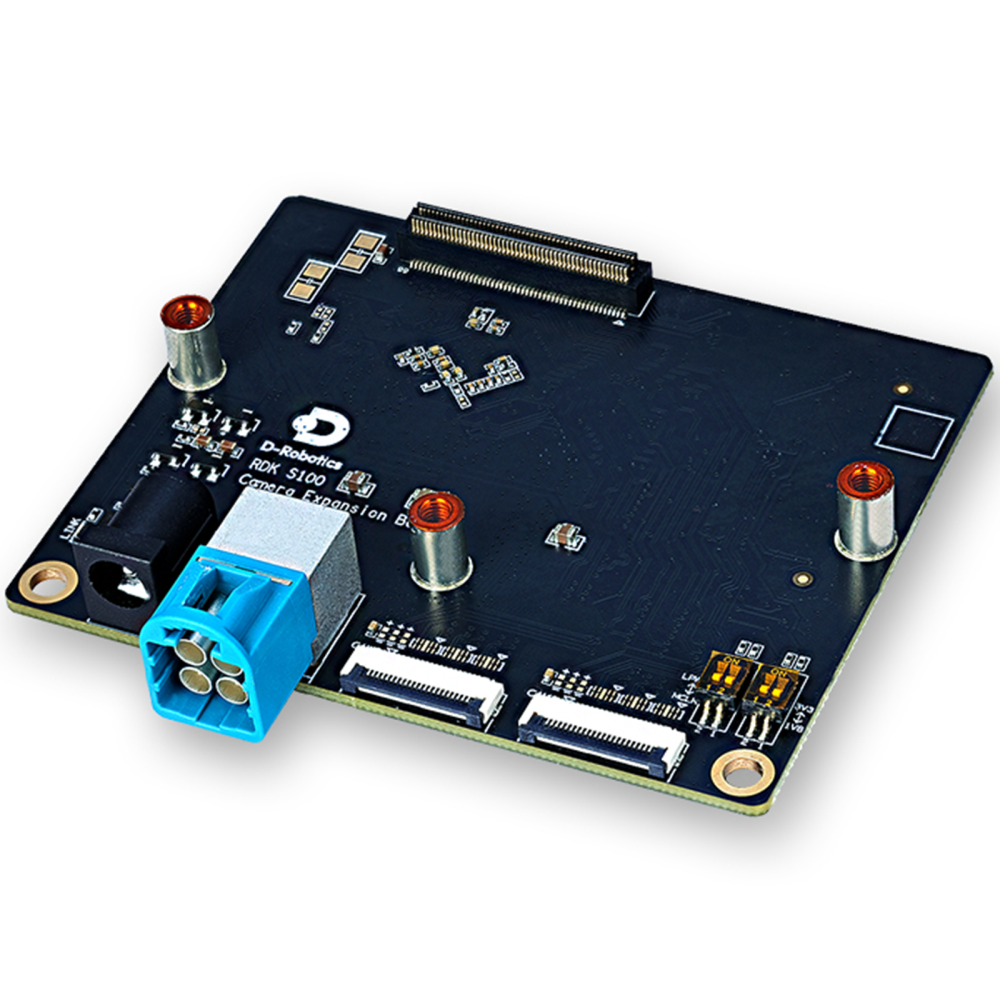

7. [Powerful Camera Expansion Interface] It provides 3x4lane MIPI CSI-2 camera expansion interfaces, supporting high-resolution image acquisition. This makes it suitable for computer vision and robotics vision system development.

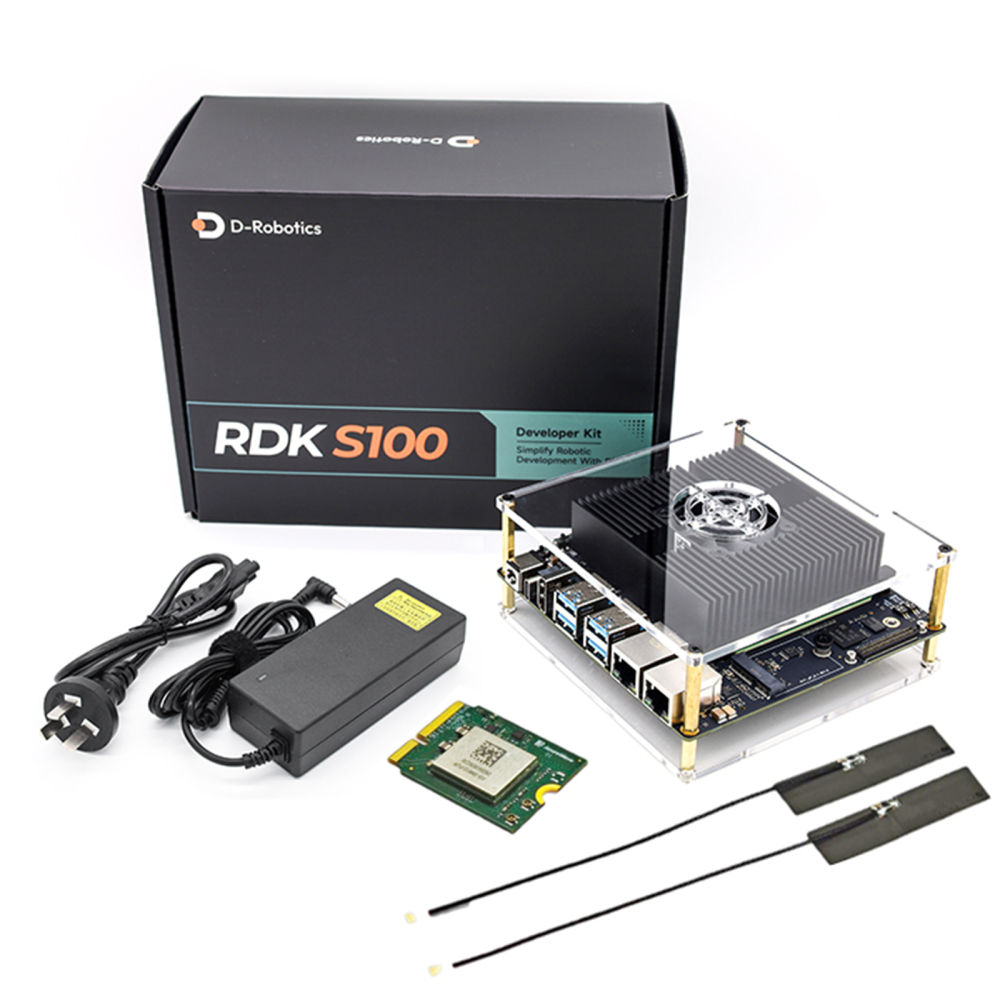

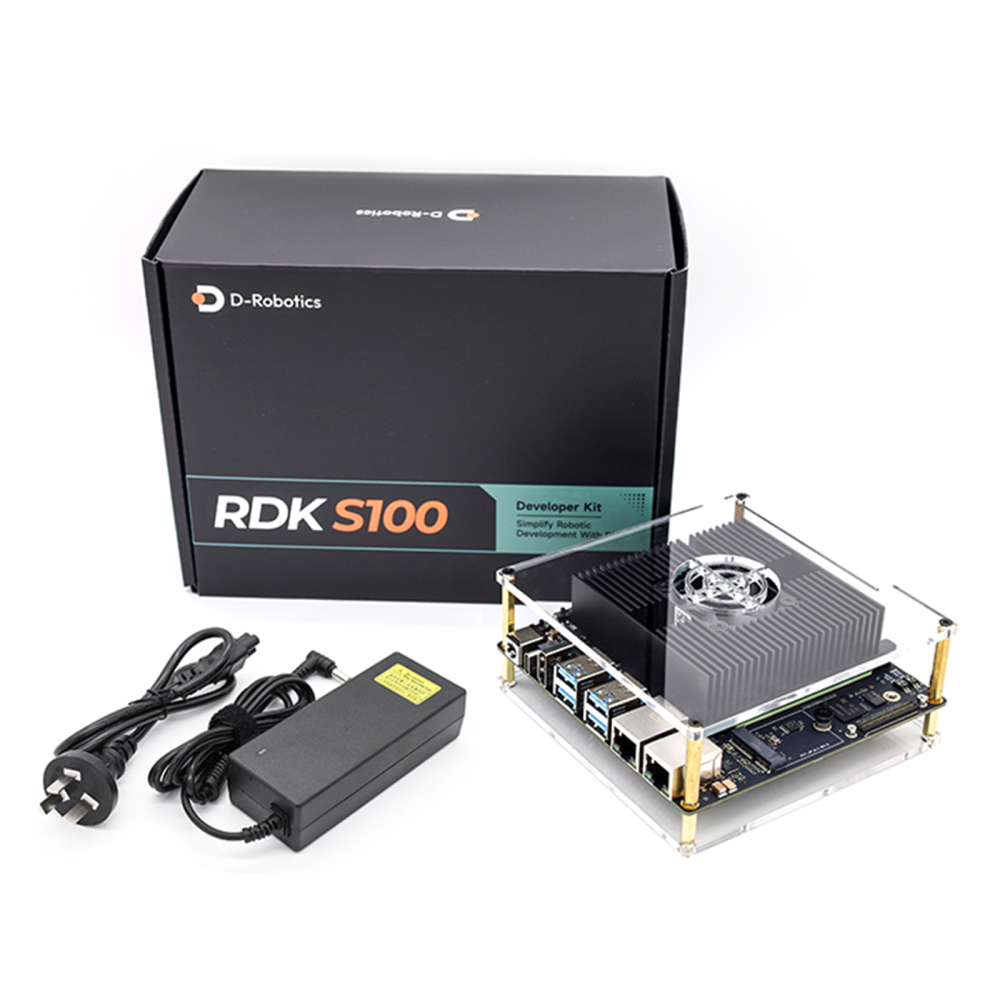

Shipping List

Reference to the picture.

Applications

intelligent computing, robotics development, AI applications, industrial automation, and computer vision

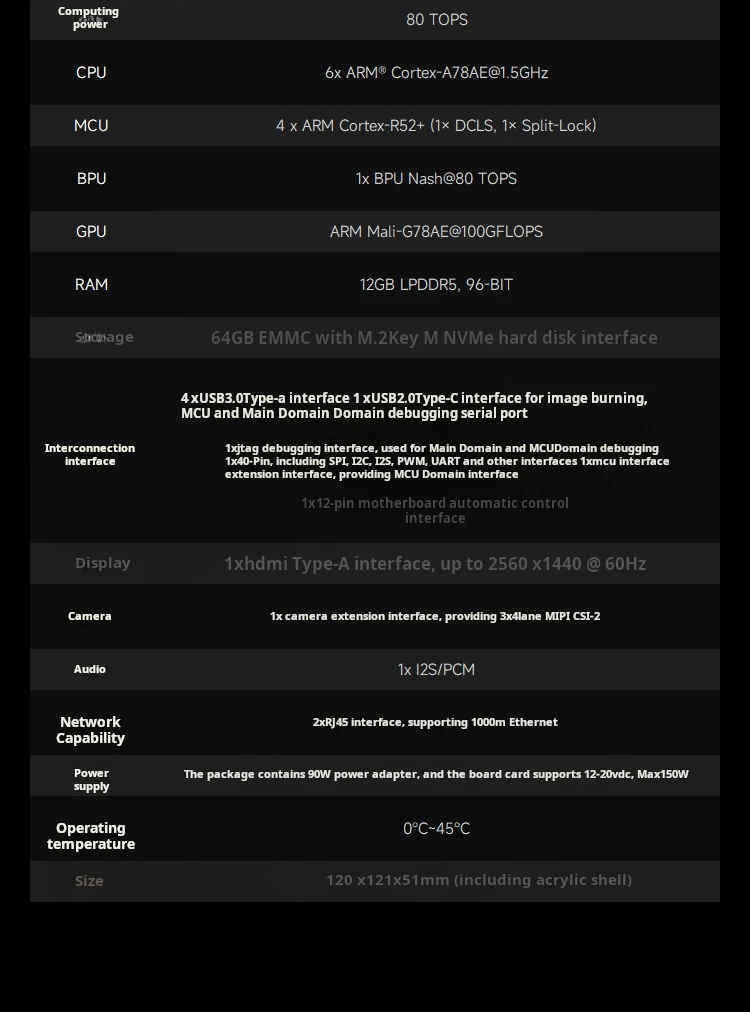

Specification

Detailed Descriptions
