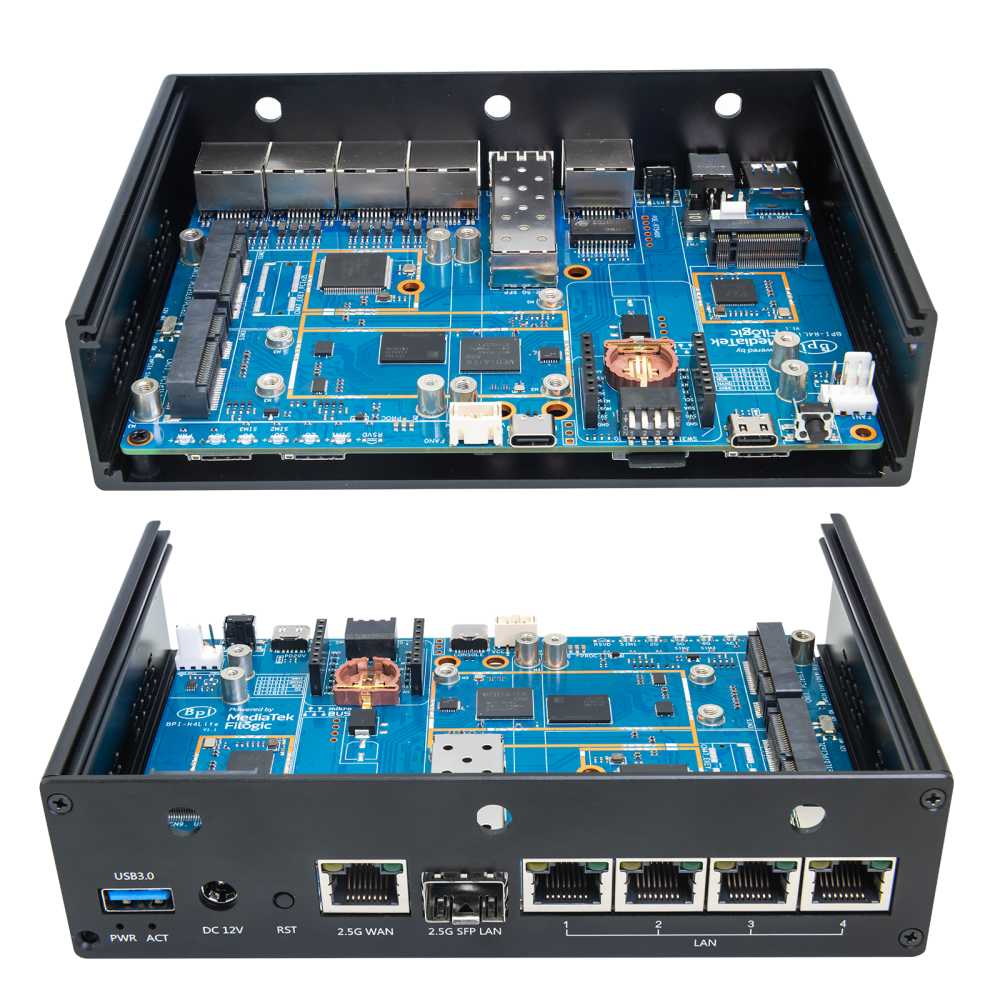

Banana Pi BPI-R4 Lite - 2.5G SFP & RJ45 WAN, 4x 1G LAN, Superior Network Connectivity Industrial Single-board Computer - OpenWrt Router

• Quick Start: https://docs.banana-pi.org/en/BPI-R4_Lite/GettingStarted_BPI-R4_Lite
• Tips
  • If using WIFI 7, 4G, or 5G modules, it is recommended to use a 12V 5A DC power supply.



Introduction

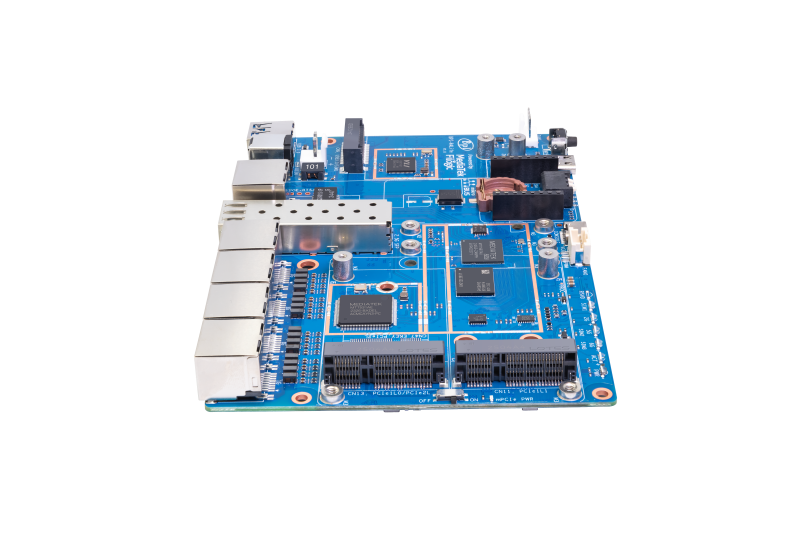

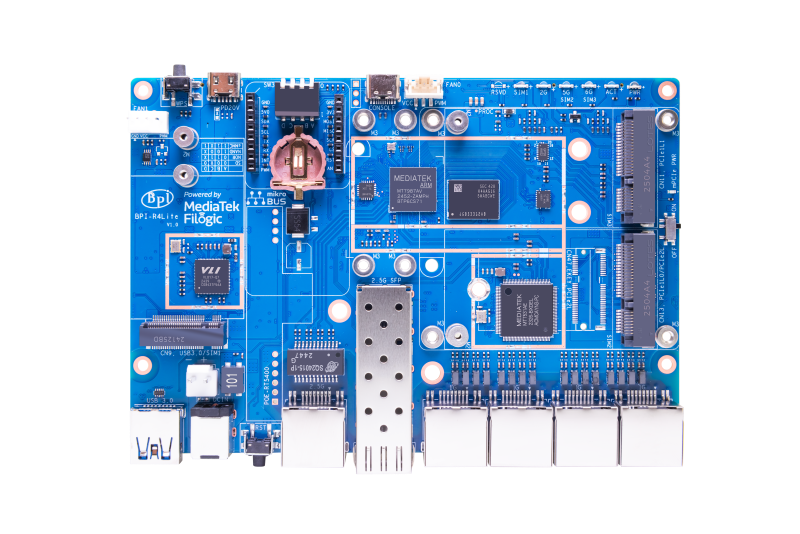

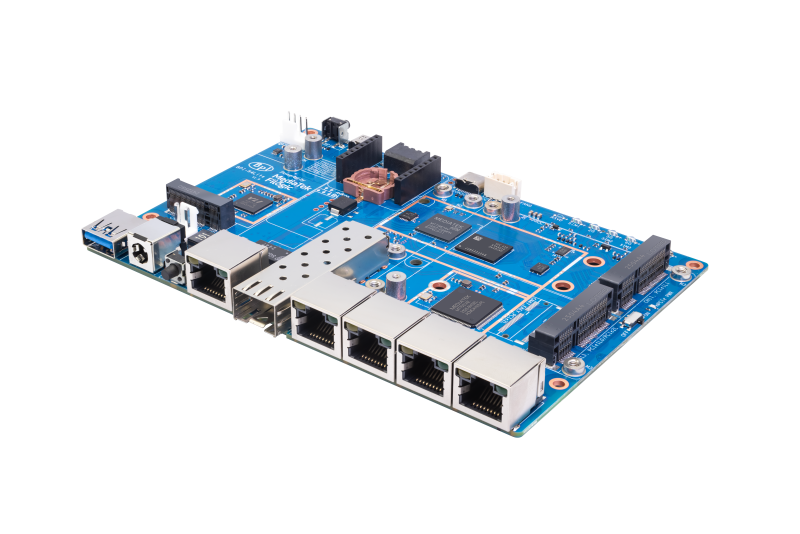

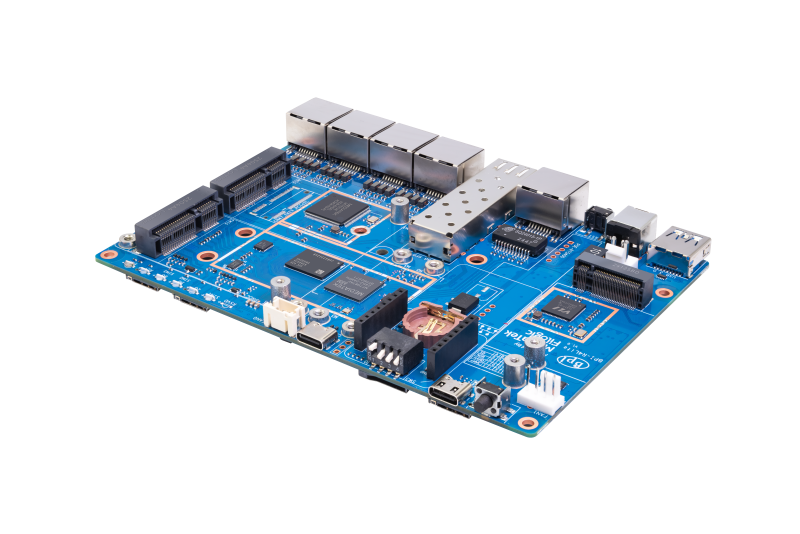

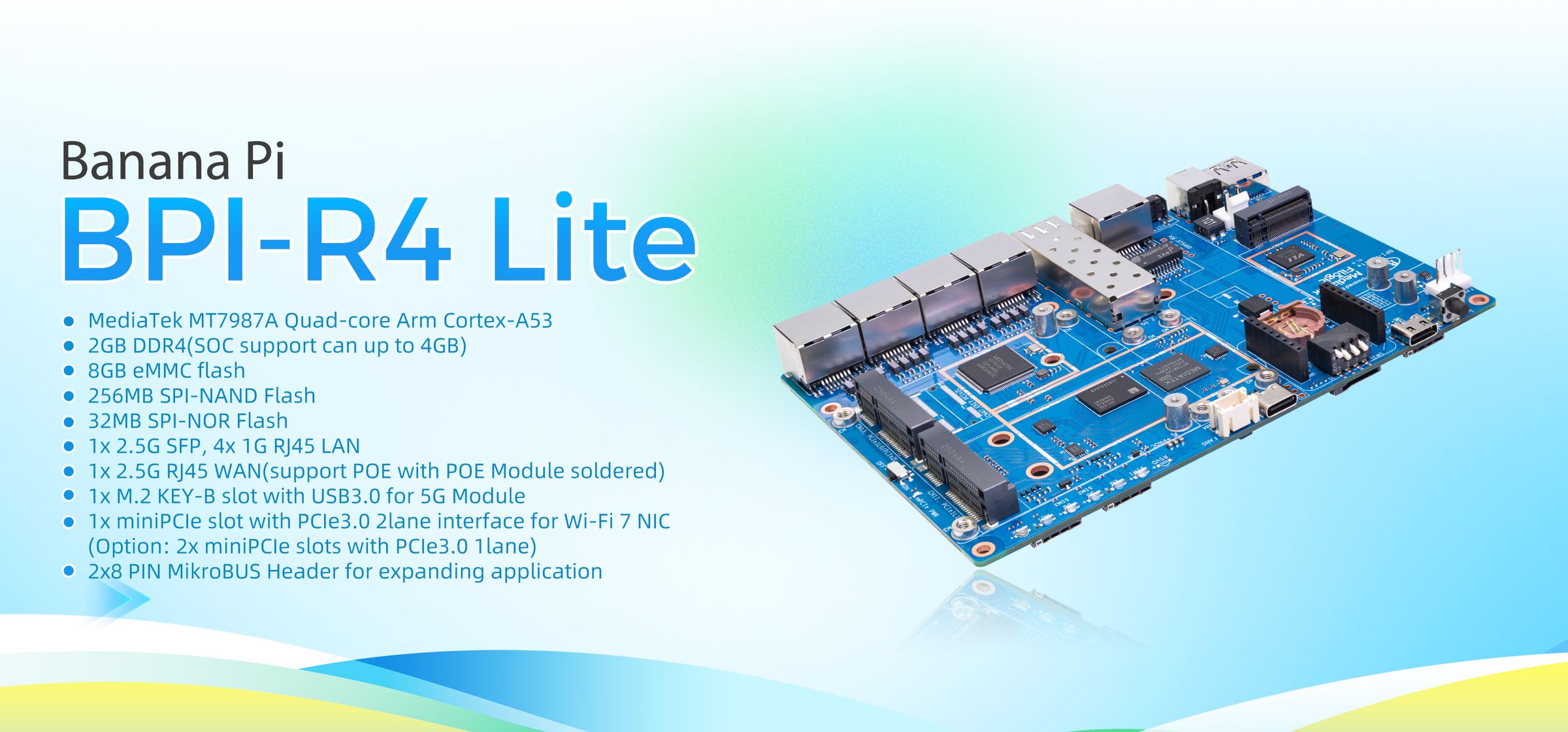

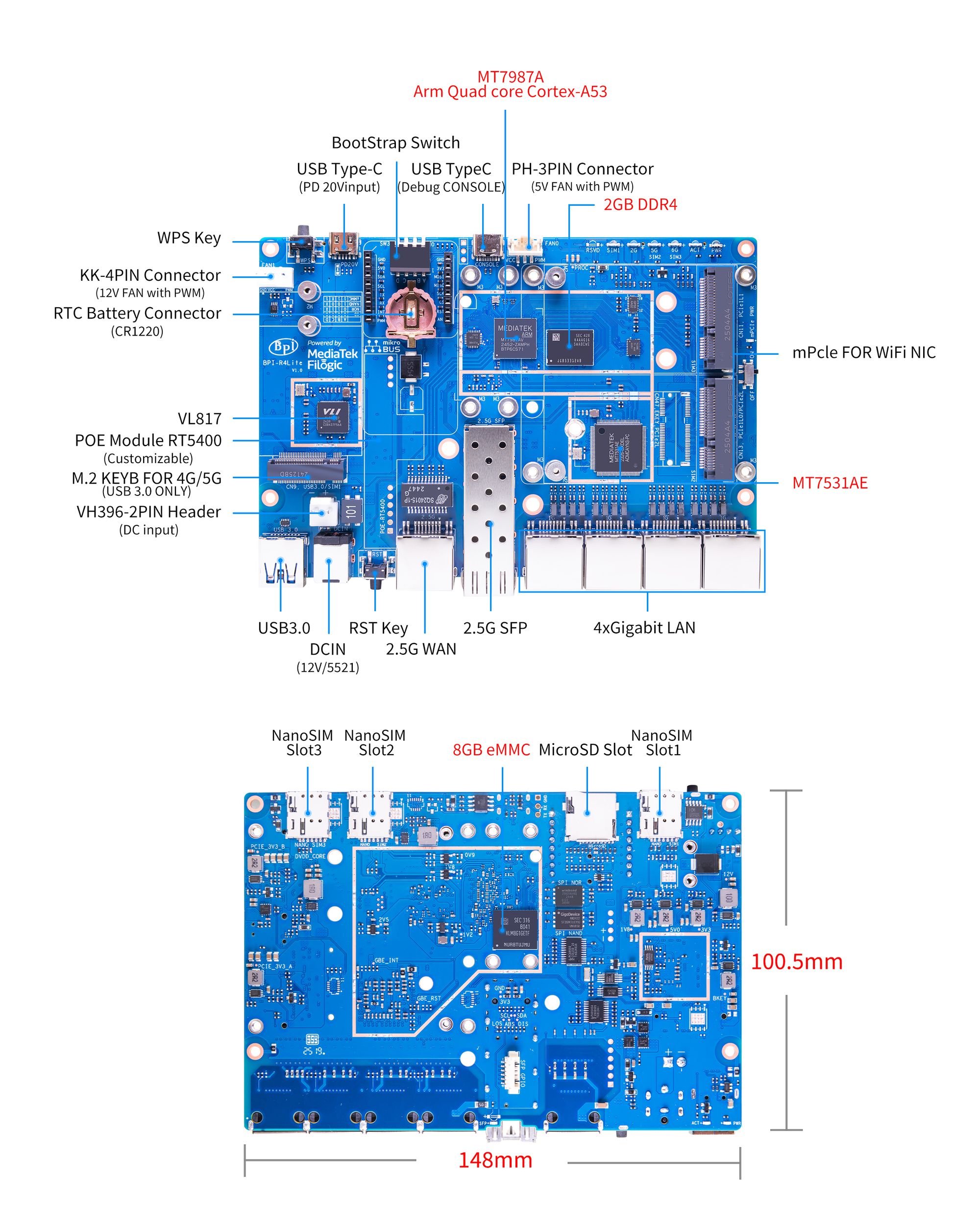

The Banana Pi BPI-R4 Lite, driven by a MediaTek MT7987A Quad-core Arm Cortex-A53 processor, is a high-performance industrial single-board computer. It comes with 2GB DDR4 (extendable to 4GB), 8GB eMMC flash, 256MB SPI-NAND Flash, and 32MB SPI-NOR Flash, supported by a Micro SD card slot. The board provides robust networking capabilities, featuring 1x 2.5G SFP, 1x 2.5G RJ45 WAN (POE-supported with a soldered POE module), and 4x 1G RJ45 LAN ports. For expansion, it includes 1x USB3.0 slot, 1x M.2 KEY-B slot with USB3.0 for 5G modules, and 1x miniPCIe slot with PCIe3.0 2lane interface for Wi-Fi 7 NIC, alongside a miniPCIe slot with USB2.0 interface. Additionally, it has a USB Type-C Debug Console and 2x8 PIN MikroBUS Headers for further application expansion. This powerful SBC is ideal for various industrial and communication applications.

Features

• MediaTek MT7987A Quad-core Arm Cortex-A53 processor delivers high-performance computing for industrial applications.
  •  Provides powerful computational capabilities for complex industrial tasks and real-time data processing.

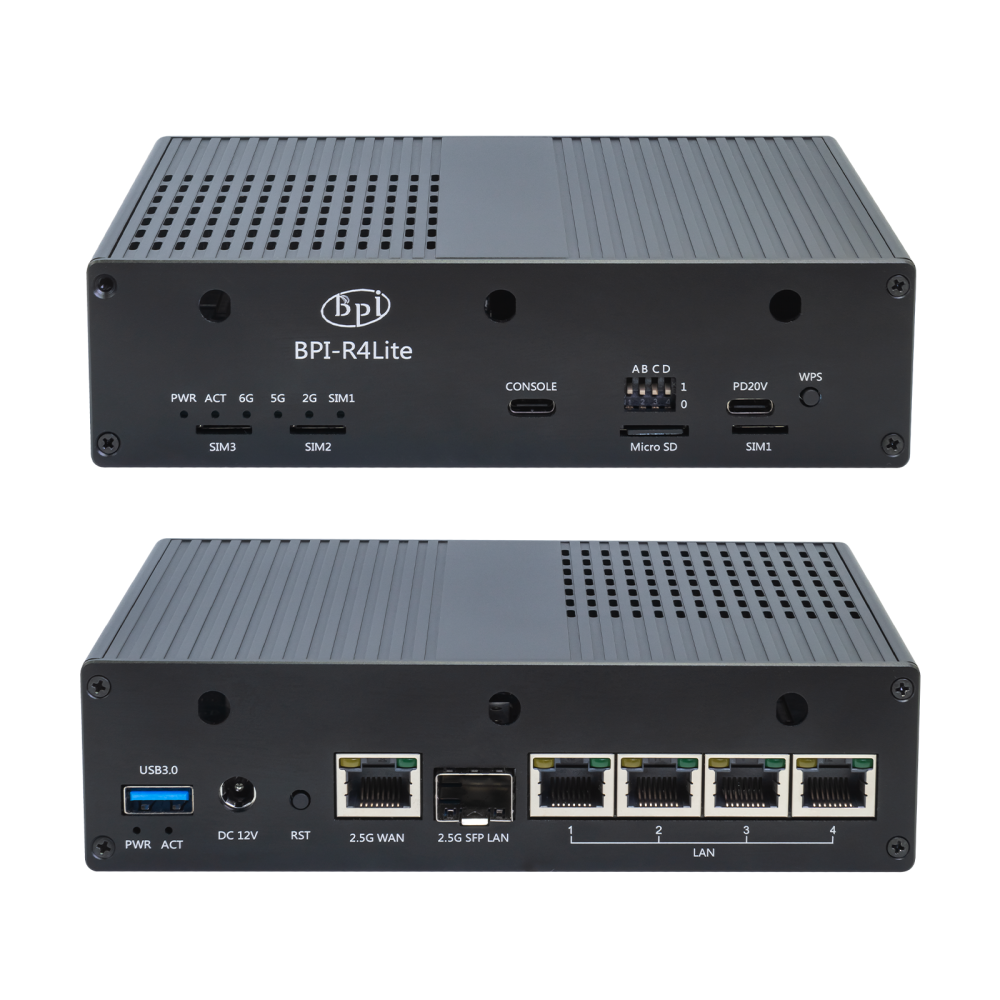

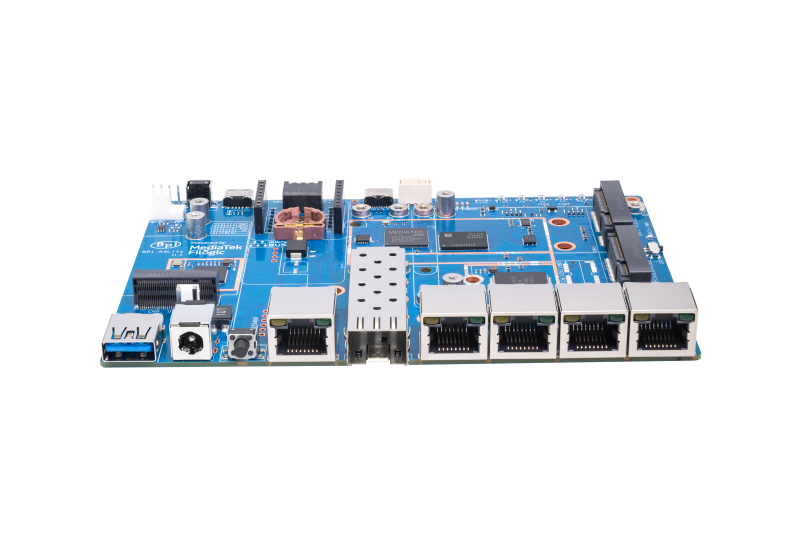

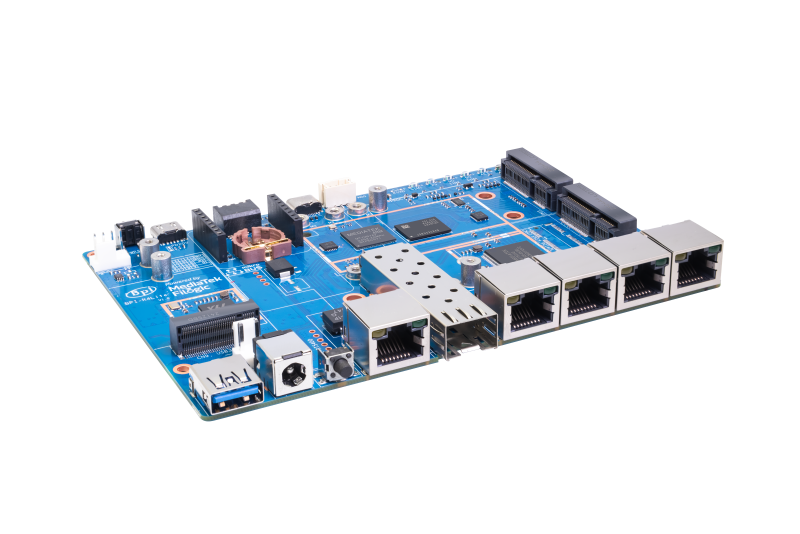

• Robust networking via 2.5G SFP, 2.5G RJ45 WAN (POE-supported with module), and 4x 1G RJ45 LAN ports.
  • Enables fast and reliable data transmission for high-speed network applications in industrial environments.
• 2GB DDR4 (upgradable to 4GB), 8GB eMMC flash, plus SPI-NAND and SPI-NOR Flash storage options.
  • Offers flexible and expandable storage to accommodate various application needs and future upgrades.
• Dual flash storage with 256MB SPI-NAND and 32MB SPI-NOR Flash, plus Micro SD card slot for extended storage.
  • Enhances data storage reliability and provides additional space for firmware, applications, and user data.

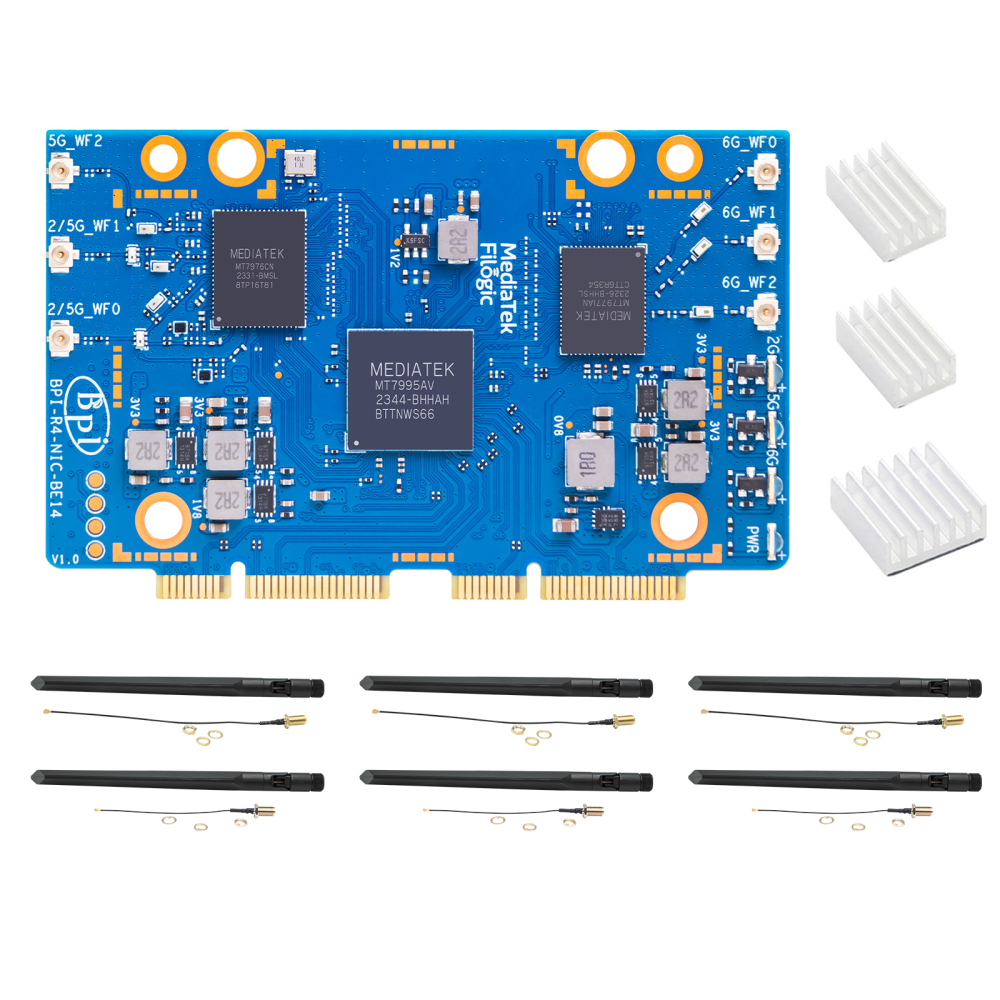

• Versatile expansion with USB3.0 slot, M.2 KEY-B slot for 5G module, and miniPCIe slot for Wi-Fi 7 NIC.
  • Allows easy integration of additional functionalities and future-proofing of the device.

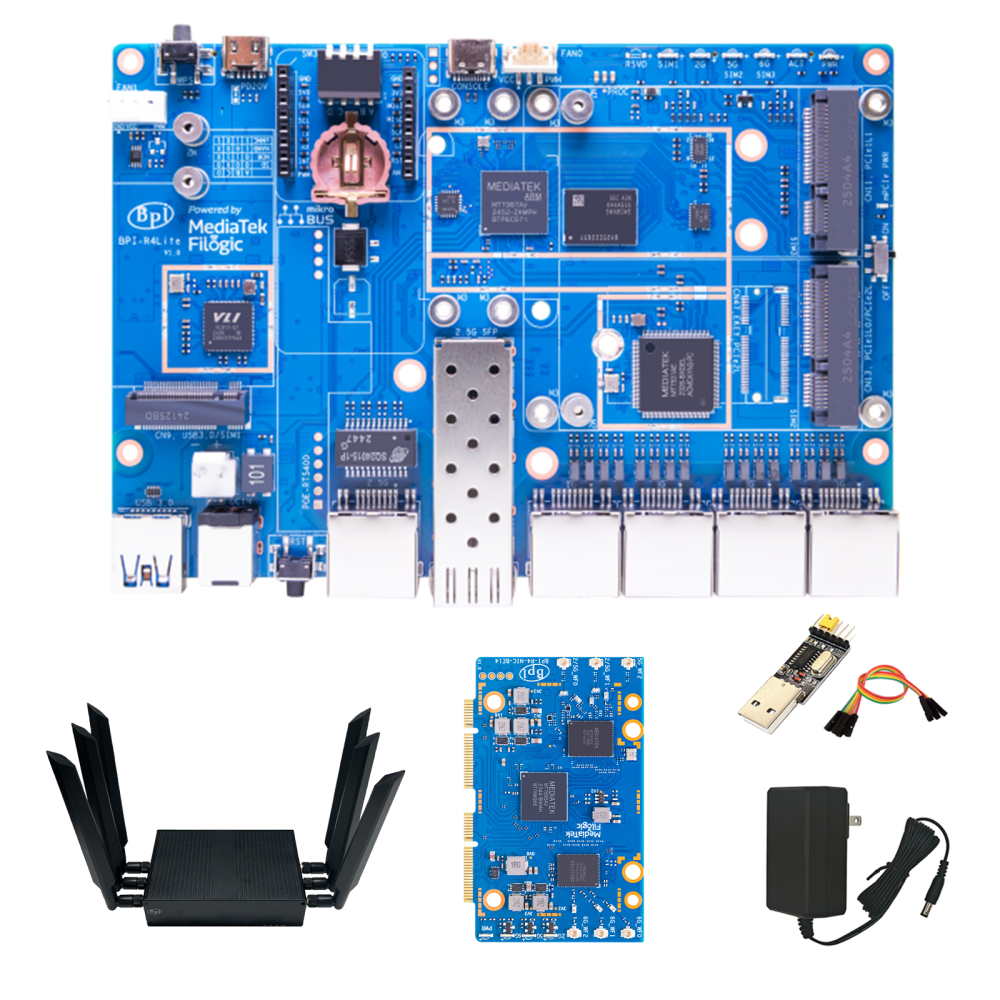

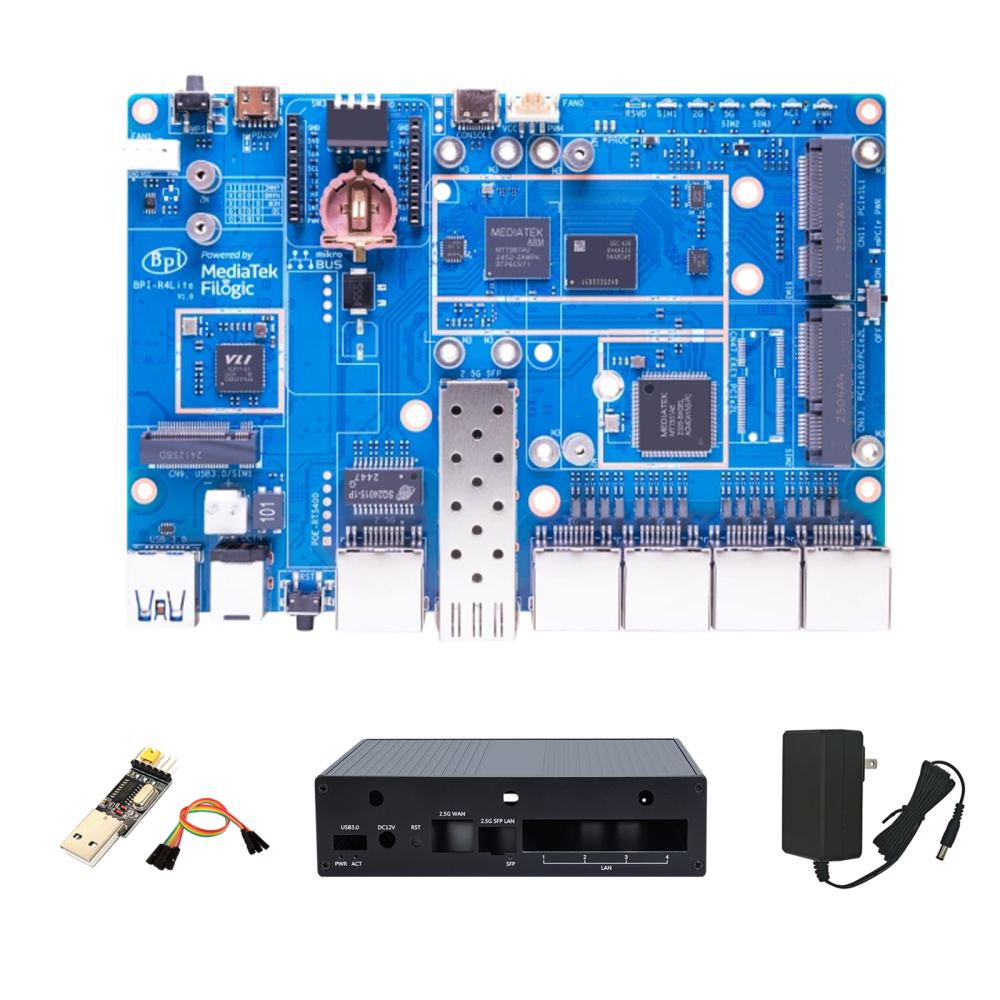

Shipping List

Applications

Specification

Detailed Descriptions
