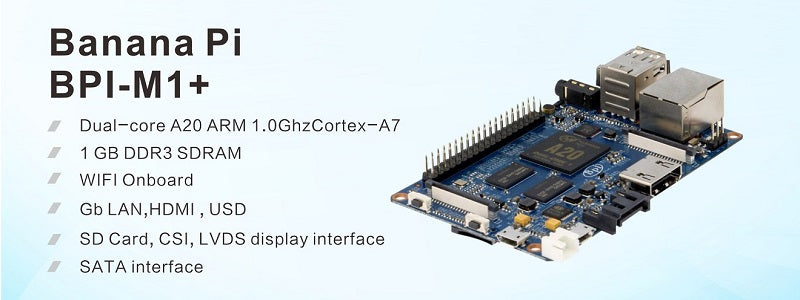

The Banana Pi M1+ is our upgraded M1 board. We feel like the onboard WiFi adds a lot more features to the board and makes it more convient for users to set up their linx desktop or router projects. Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. With a Banana Pi, we want you to explore and experience the world of DIY projects and portable computing. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

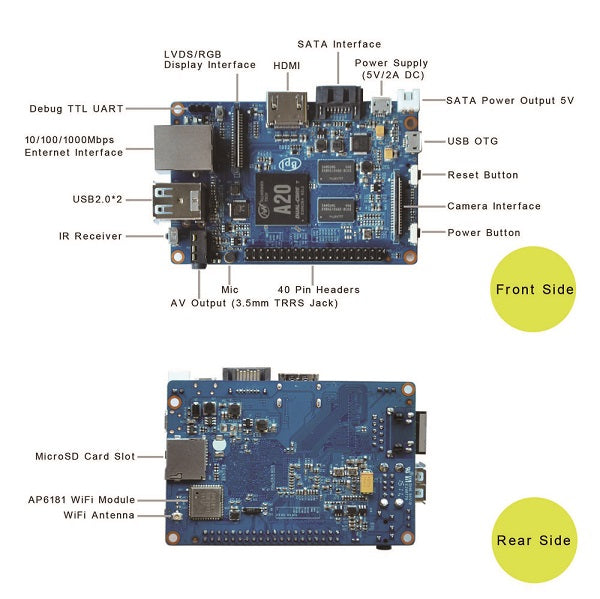

Hardware interface:
Hardware spec:
Banana Pi BPI-M1+ | |||
CPU | A20 ARM Cortex -A7 Dual-Core | ||
GPU | ARM Mali400MP2Complies with OpenGL ES 2.0/1.1 | ||
Memory | 1GB DDR3 | ||
Network | 10/100/1000 Ethernet | ||
wifi&BT | Wifi support onboard | ||
Video Input | A CSI input connector allows for the connection of a designed camera module | ||
Video Outputs | HDMI, CVBS, LVDS/RGB | ||
Audio Outputs | 3.5mm jack and HDMI | ||
Power Source | 5V/2A via Micro USB (DC in only) and / or Micro USB OTG | ||
USB 2.0 ports | 2(direct from Allwinner A20 chip) | ||
GPIO | GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS,CAN bus, ADC, PWM, +3.3V, +5V, GND | ||
LED | Power Key & 8P8C | ||
Storage | SATA 2.0 | ||
OS | Android 4.4, Android 4.2, Raspbian, Lubuntu, Open Suse, Debian |
