Model:

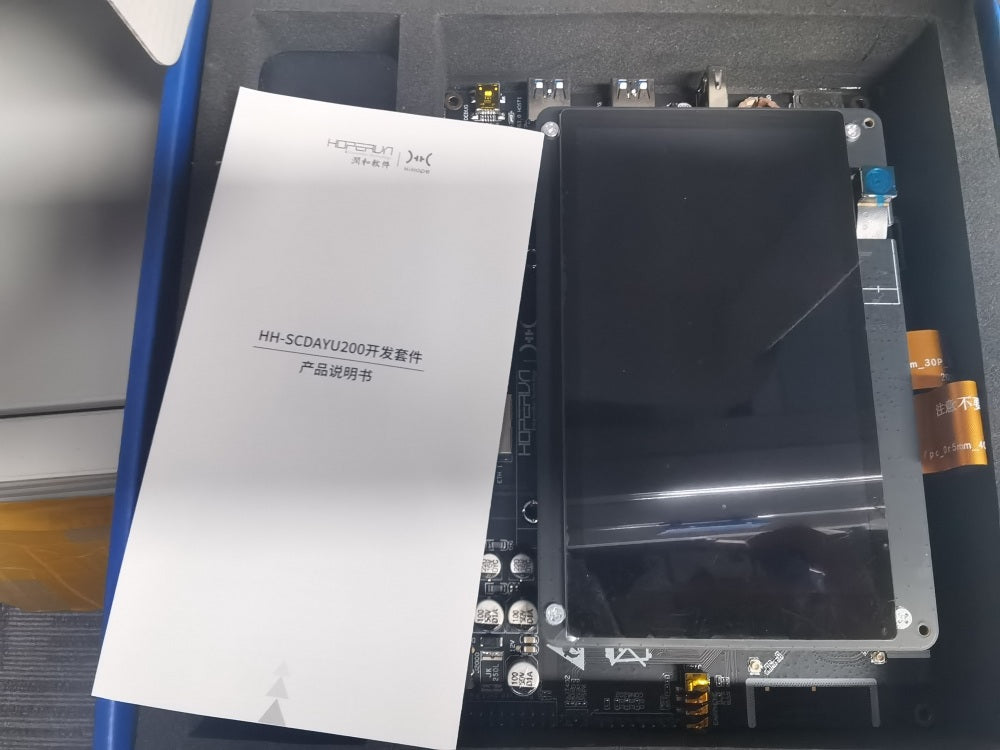

Dev kit : HH-SCDAYU200 Development kit x1 (with LCD , Camera)

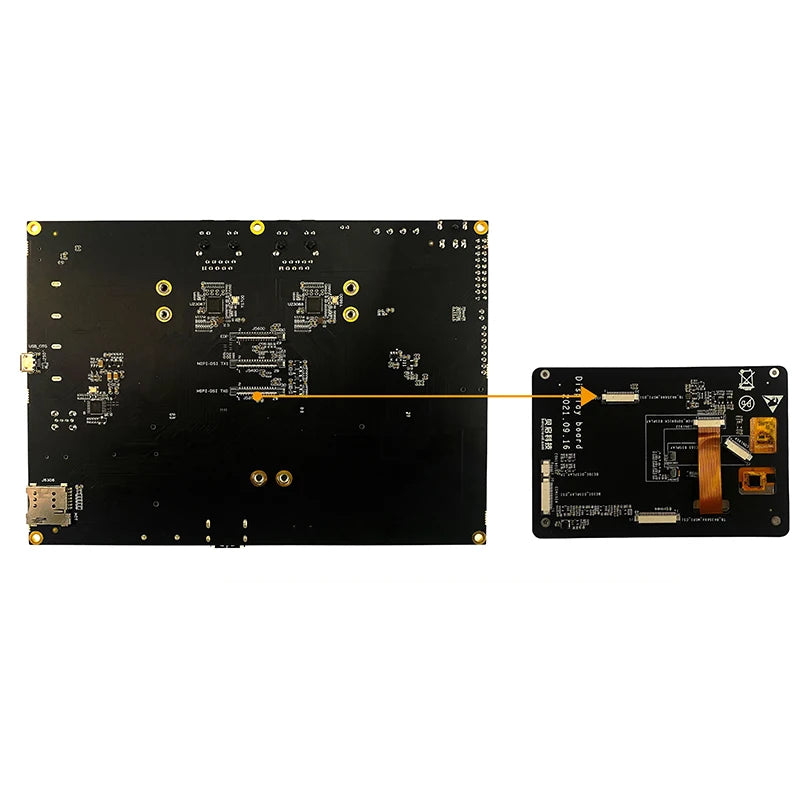

5.5 inch LCD: 5.5 display touch screen ONLY

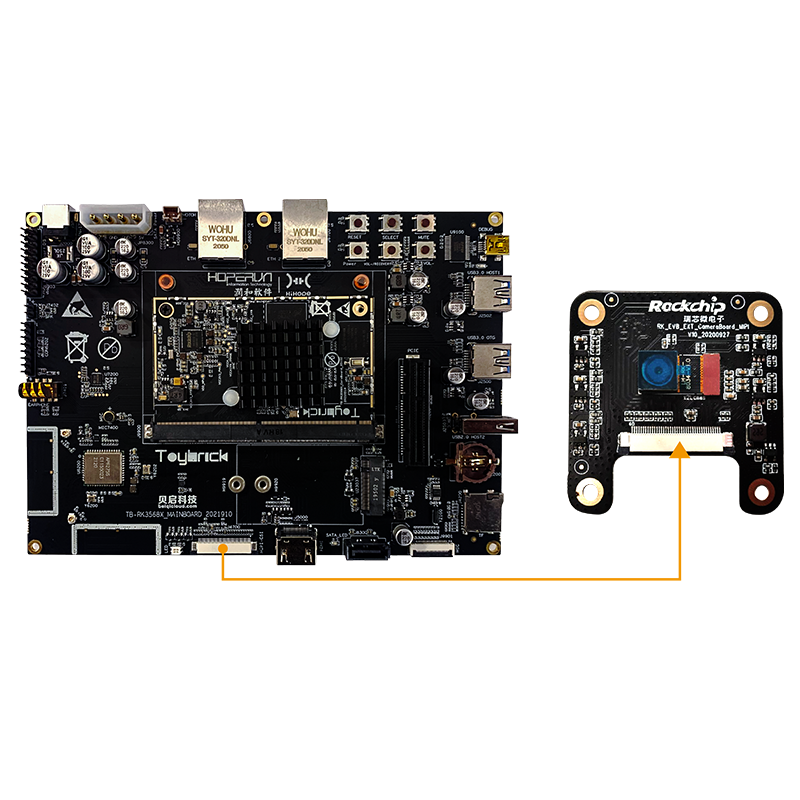

Camera: 8 megapixel camera ONLY
Only SOM: RK3568 core board ONLY
For downloading the Tools, Driver and Firmware use the following link:
https://youyeetoo.com/blog/hh-scdayu200-ymdpdy356801-145

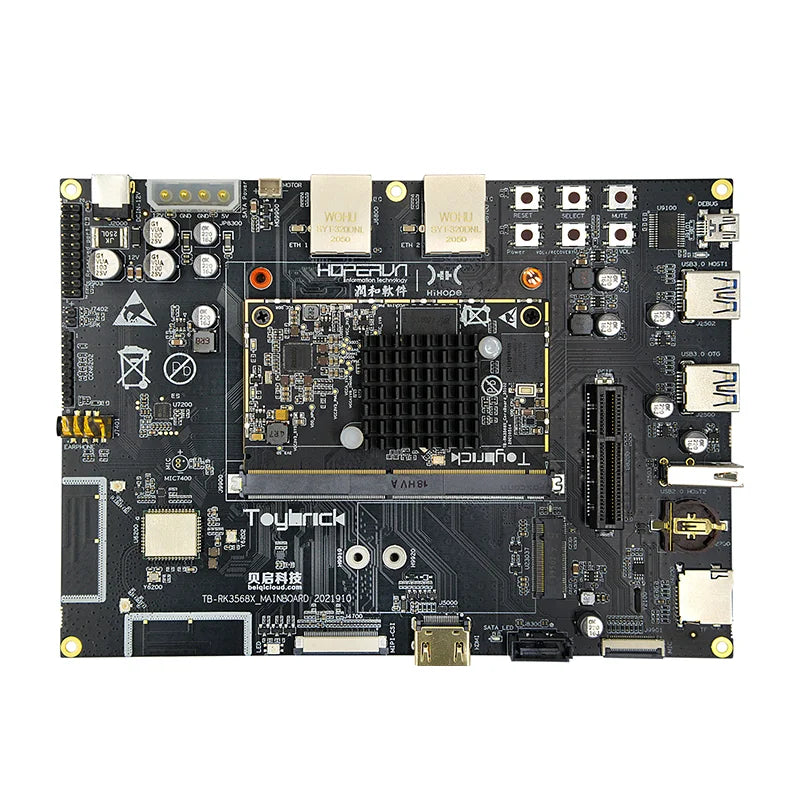

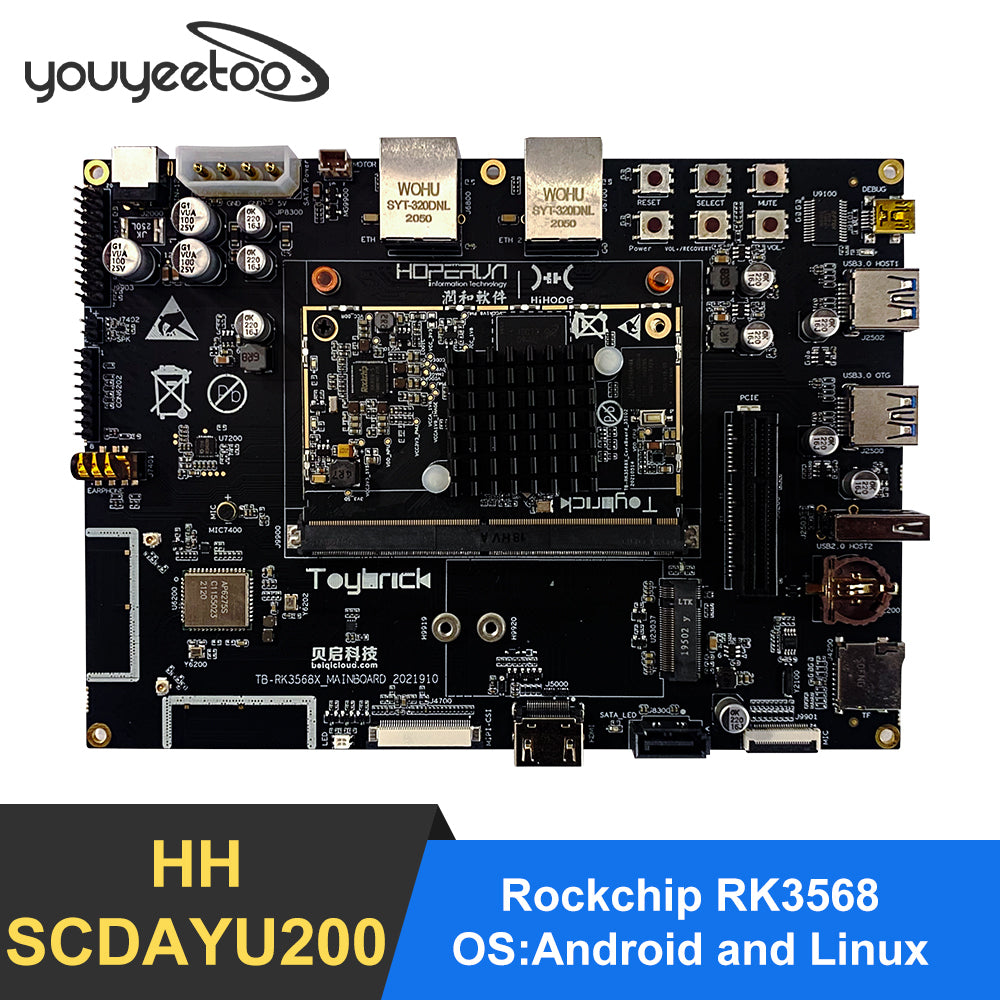

HH-SCDAYU200 Product Information:
Based on Rockchip RK3568, integrated dual-core architecture GPU and high-performance NPU; onboard quad-core 64-bit Cortex-A55 processor adopts 22nm advanced technology, main frequency up to 2.0GHz; supports Bluetooth, Wi-Fi, audio, video and camera functions , has a wealth of expansion interfaces, supports a variety of video input and output interfaces; equipped with dual Gigabit adaptive RJ45 Ethernet ports, which can meet the needs of multi-network port products such as NVR and industrial gate ways. Connect the core board and the bottom board through the SODIMM 314P standard interface to form a complete AI development board.
Product Highlights:
Enhanced graphics processing capability: Equipped with dual-core architecture GPU, high graphics computing power.
Dual network port communication: You can access and transmit internal and external network data through dual network ports to improve network transmission efficiency.
Supports multiple systems: supports OpenHarmony, Linux systems, and can be flexibly adapted
High-definition video capability: support HDMI screen to meet high-quality video processing and transmission.
Integrate multiple functions: support camera, video, wifi and other multi-dimensional composite capabilities
The core board adopts a 6-layer wiring process, with a size of only 82mm × 60mm, which can meet the space requirements of small terminal products.
Cost-effective: suitable for small and medium-sized enterprises/users.
Application Scenarios:
It is suitable for scenarios such as intelligent NVR, cloud terminal, Internet of Things gate way, industrial control, information release terminal, multimedia advertising machine, etc. It can also be widely used in the field of embedded artificial intelligence.
Core Board Specifications:
|
SOC |
Rockchip RK3568 |
|
CPU |
Quad-core Cortex-A55 up to 2.0GHz |
|
GPU |
Mali-G52 GPU
Support OpenGL ES 1.1/2.0/3.2, OpenCL2.0, Vulkan 1.1
Embedded high-performance 2D accelerationhardware |
|
VPU |
Support 8M ISP, support HDR Video decoding: 4K@60fps H.265/H.264/VP9 Video encoding: 1080P@100fps H.265/H.264 |
|
NPU |
NPU computing power is up to 0.8 TOPS, Supports INT8/INT16 /FP16 operation |
|
RAM |
2/4GB LPDRR4/LPDRR4x (Up to 8GB optional,frequency up to 1600MHz) |
|
NPU Memory |
Share 3568-end ddr and decide how big it will be based on the model size |
|
Storage |
16/32 GB flash |
|
Power |
DC 12V/2A |
|
OS |
Android,Linux |
|
PCB |
6-layer design |
|
Size |
82mm×50mm |
|
Interface Type |
SODIMM 314P（MXM 3.0） |
|

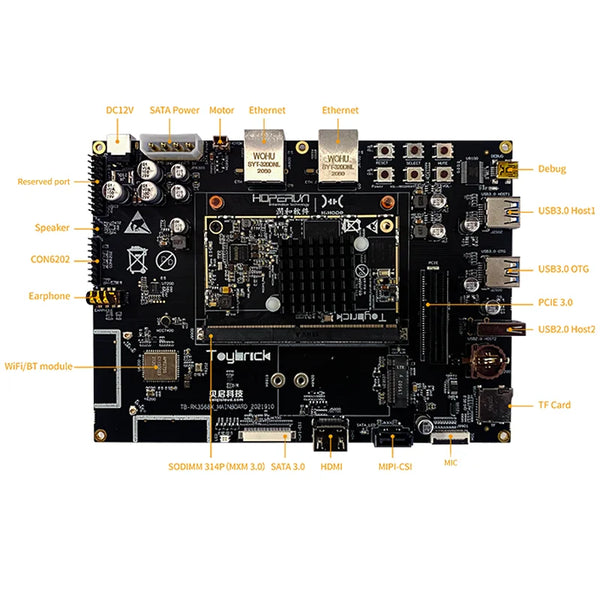

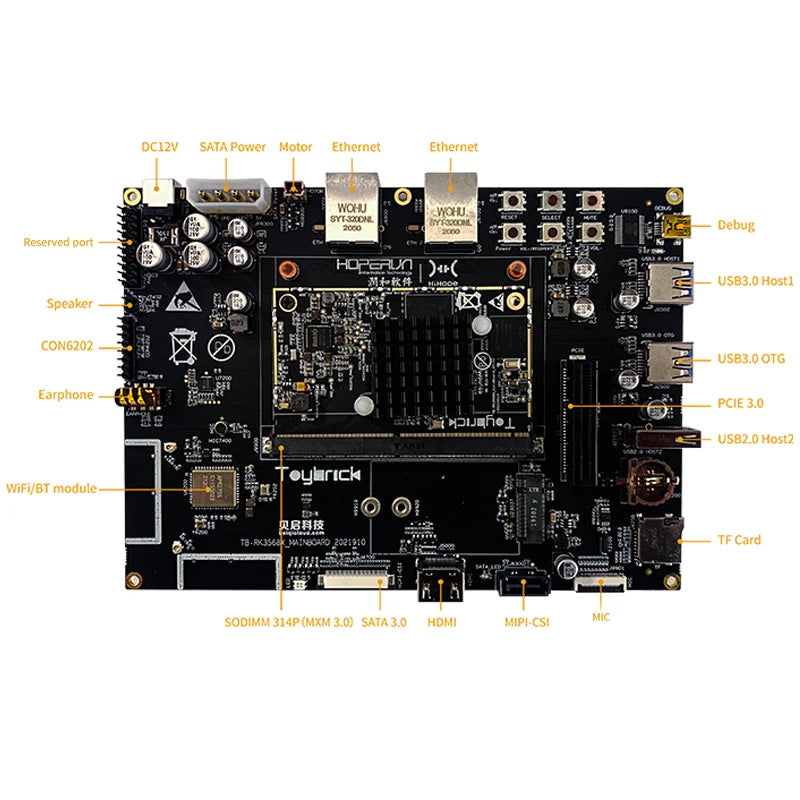

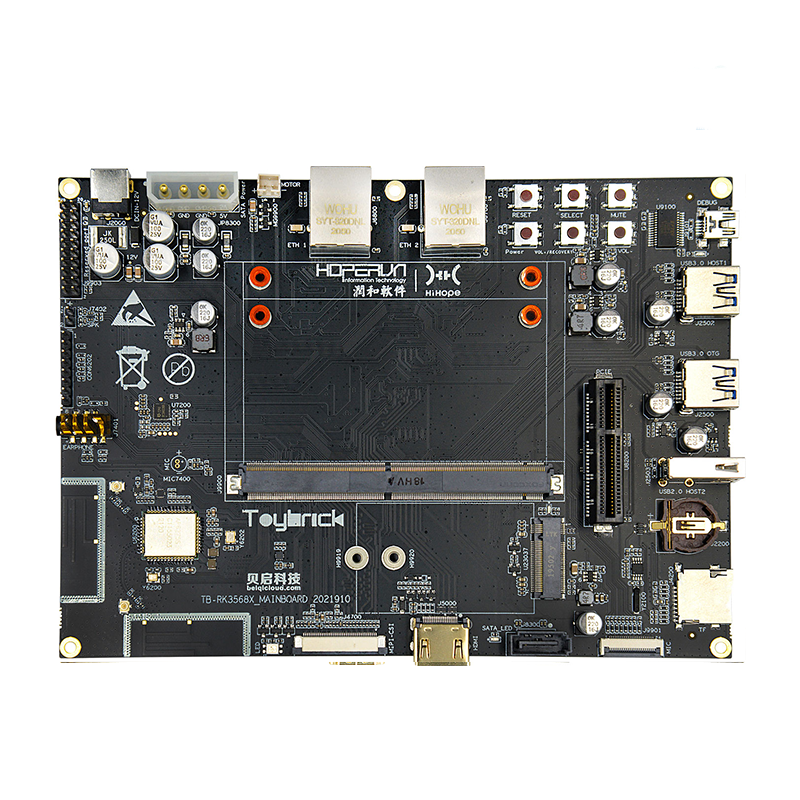

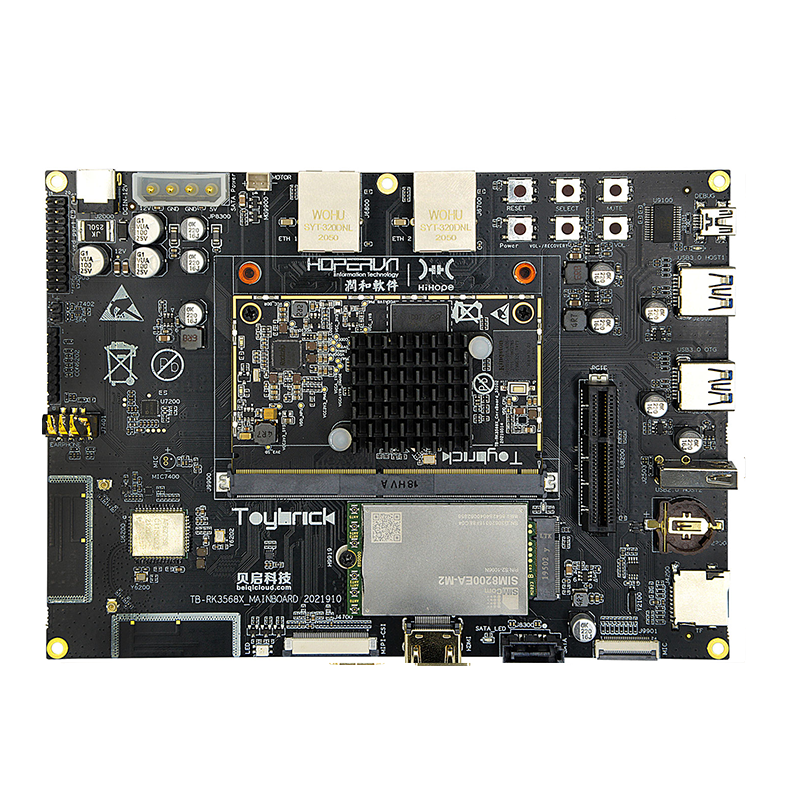

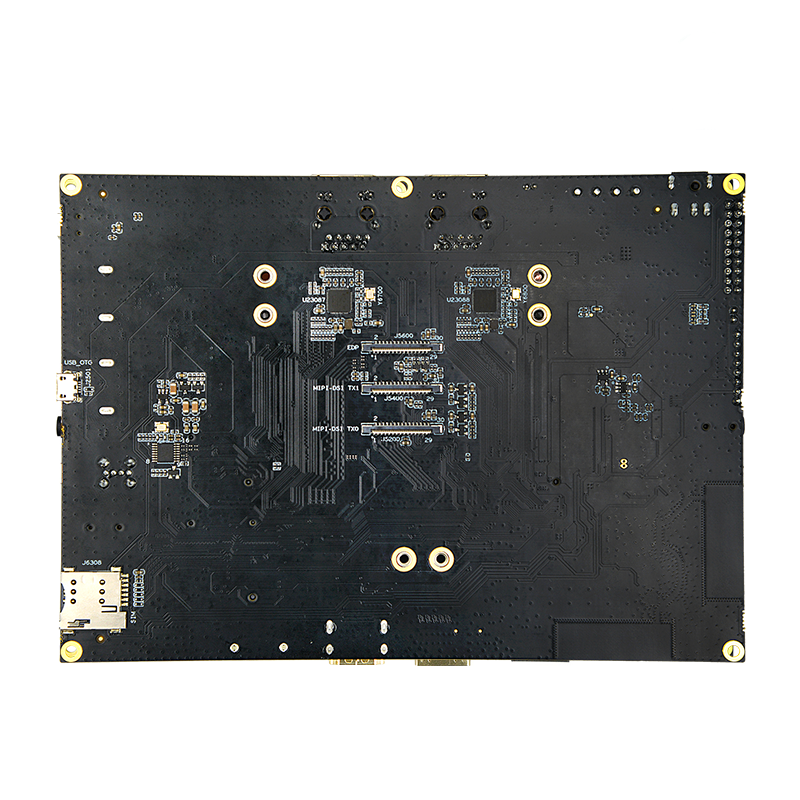

Baseboard Specifications: |
|
|
Display |

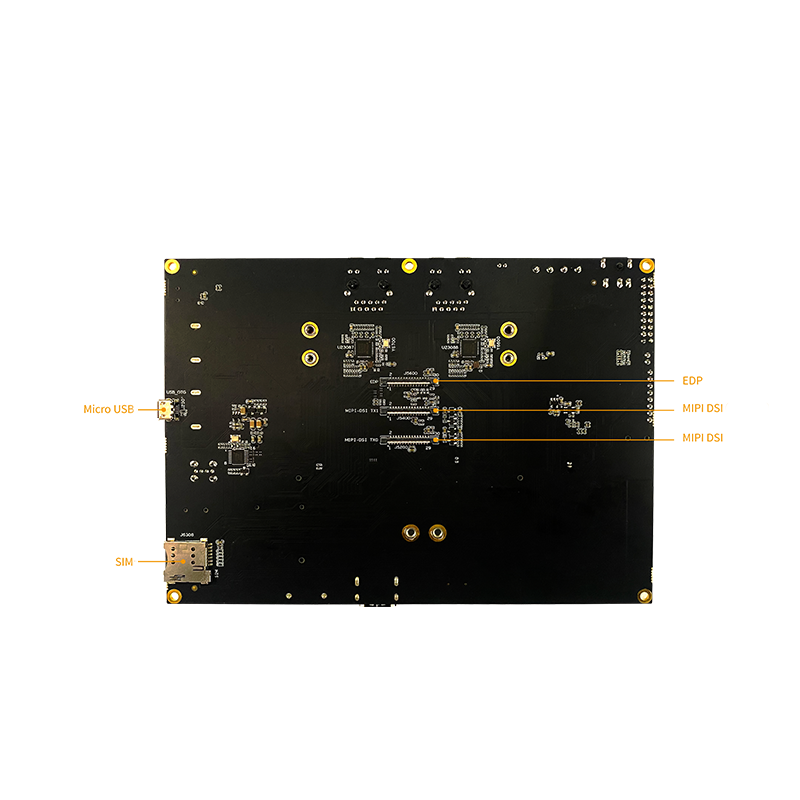

Video output: 1x HDMI2.0(Type-A,4K@60fps) 2x MIPI(1920*1080@60fps) 1x eDP(2K@60fps) |
|
Audio |
1x 8ch I2S/TDM/PDM 1x HDMI Audio output 1x speaker output 1x headphone output 1x microphone, onboard audio input |
|
Ethernet |
2x GMAC(10/100/1000M) |
|
Network |
SDIO Interface,Support WIFI6 5G/2.5G,BT4.2 |
|
Camera |
MIPI-CSI2, 1x4-lane/[email protected]/lane |
|
USB |
2x USB2.0 Host,Type-A 1x USB3.0 Host,Type-A 1x USB3.0 OTG |
|
PCIe |
1x 2Lanes PCIe3.0 Connector (RC Mode) |
|
SATA |
1x SATA3.0 Connector |
|
SDMMC |
1x Micro SD Card3.0 |
|
Button |
1x Vol+/Recovery 1x Reset 1x Power 1x Vol- 1x Mute |
|
Debugging |
1x debug serial port |
|
RTC |
1x RTC |
|
IR |
1x IR |
|
Tricolour light |
3x LED |
|
G-sensor |
1x G-sensor |
|
FAN |
1 x Fan |
|
Extension Interface |
The 20Pin extension interface includes: 2 x ADC interface 2 x I2C interface 7 x GPIO (or 3 x gpio +4 x uart signals) 3 x Vcc power (12V、3.3V、5V)） |
|
Size |
180mm×130mm |
|
PCB |
4-layer design |
