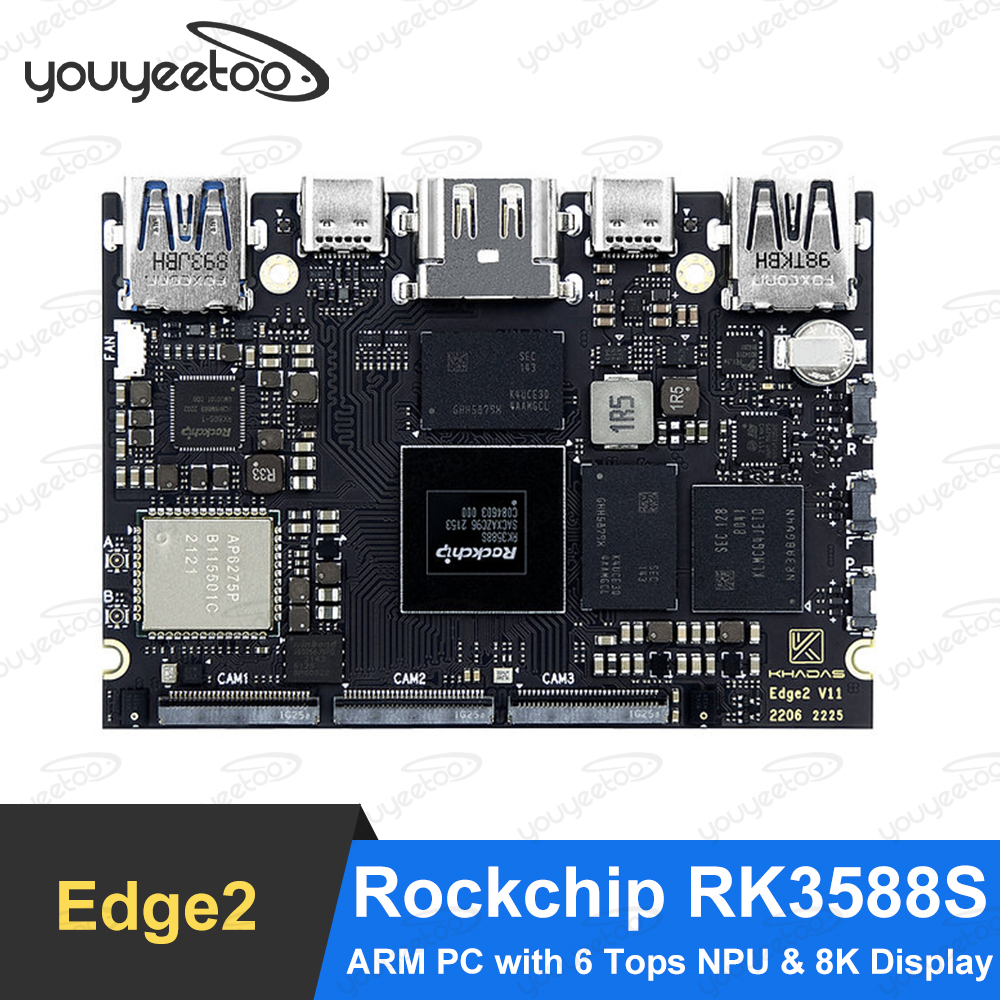

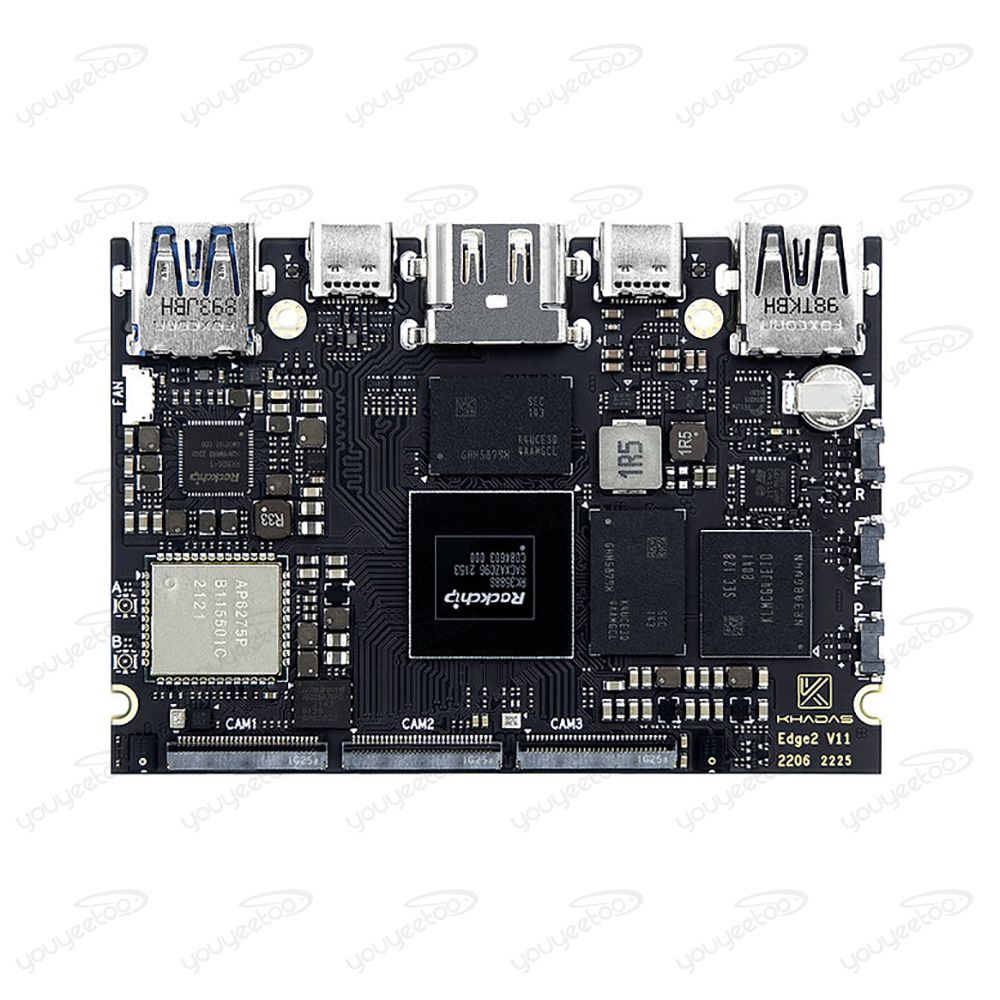

Khadas Edge 2 - 8K ARM PC Single Board Computer - RK3588S 2.25GHz Quad Core ARM Cortex-A76

For downloading the Tools, Driver and Firmware use the following link:

bbs.youyeetoo.com

Note:Please note the type what you want:

Bundle 1：Edge2 Basic Maker Kit

Bundle 2：Edge2 Basic ARM PC

Bundle 3：Edge2 Pro Maker Kit

Bundle 4：Edge2 Pro ARM PC

Edge2

Rockchip RK3588S ARM PC with 6 Tops NPU & 8K Display

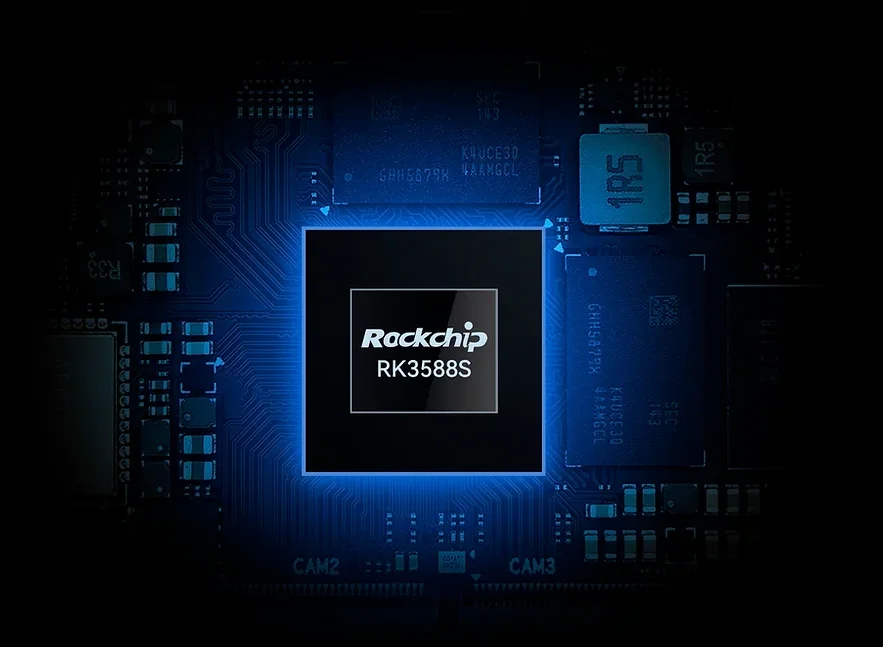

Rockchip RK3588S

8 nanometer ARM SoC

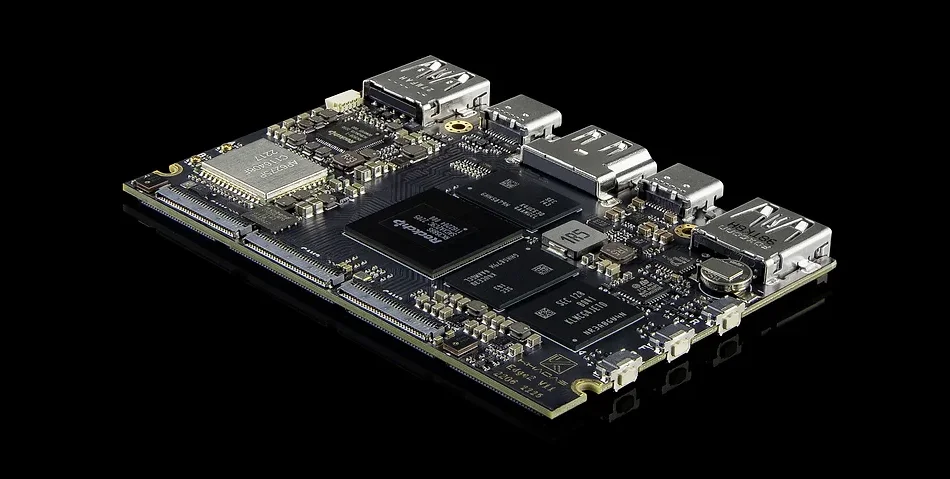

Edge2 is powered by the RK3588S, a next generation 8-core 64-bit SoC from Rockchip. The RK3588S is Rockchip's newest flagship IoT SoC utilizing the 8 nanometer lithography process. As a result, power consumption is similar to the RK3399, yet we have achieved an overall performance boost of up to 2.5 times.

Octa Core Processor

Edge2 is equipped with an 8-core 64-bit CPU (up to 2.25GHz clock speed). x4 2.25GHz Cortex-A76 performance cores are paired with x4 1.8GHz Cortex-A55 efficiency cores.

Extreme GPU Performance

The RK3588S has an integrated 4-core GPU, the ARM Mali-G610 MP4 (up to 1GHz clock speed) which supports a lag-free 4K user interface. 3D rendering has been greatly improved and you can play expansive open-world online games, console games and even some AAA titles.

High Performance NPU

The RK3588S has a built-in NPU which provides up to 6 TOPS (tera operations per second) of neural network processing. The NPU supports mainstream deep learning frameworks, such as TensorFlow, Pytorch, MxNET and so on. The powerful RK3588S brings optimized neural network performance to various A.I. applications.

Quad Display Interfaces

x1 HDMI, x1 USB-C, x2 DSI

Edge2’s hardware supports up to four independent displays. This greatly expands the potential applications of Edge2 in multi-display scenarios such as digital signage, development and gaming.

* In practice, the number of supported independent displays is determined by the OS.

8K Decoding & Encoding

Powerful video encoding and decoding capabilities enable Edge2 to output beautifully crisp and clear 8K HD resolution. This will greatly expand the potential applications of Edge2 in multi-display environments such as digital signage, entertainment and gaming.

Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9)

Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)

Large RAM Capacity

The Edge2 supports up to 16GB of RAM! Run multiple applications simultaneously whilst still having a smooth and lag-free experience.

Basic: 8GB 64-bit 2112MHz LPDDR4X + 32GB eMMC 5.1

Pro: 16GB 64-bit 2112MHz LPDDR4X + 64GB eMMC 5.1

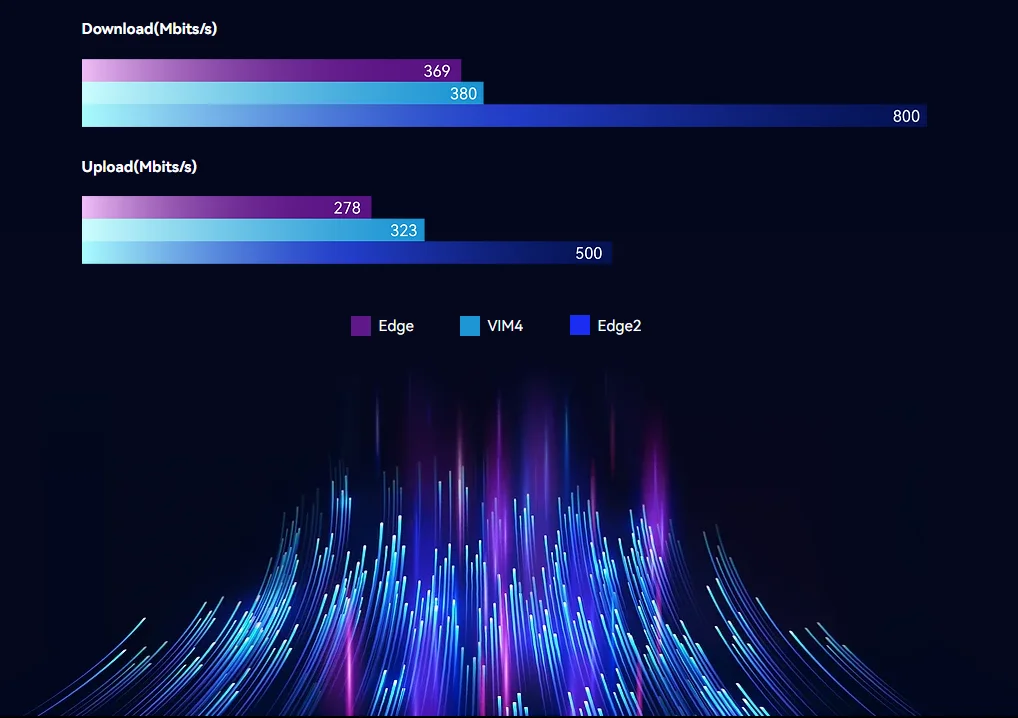

High Speed Wireless

Edge2 integrates the Ampak AP6275P Wi-Fi 6 PCIe module, which is capable of high-speed wireless data transmission. This module supports IEEE 802.11 b/n/g/a/ac/ax and 2T2R for greater bandwidth. This advanced wireless transceiver module makes data transmission stable and fast. Bluetooth 5.0 is supported as well.

Maker Friendly

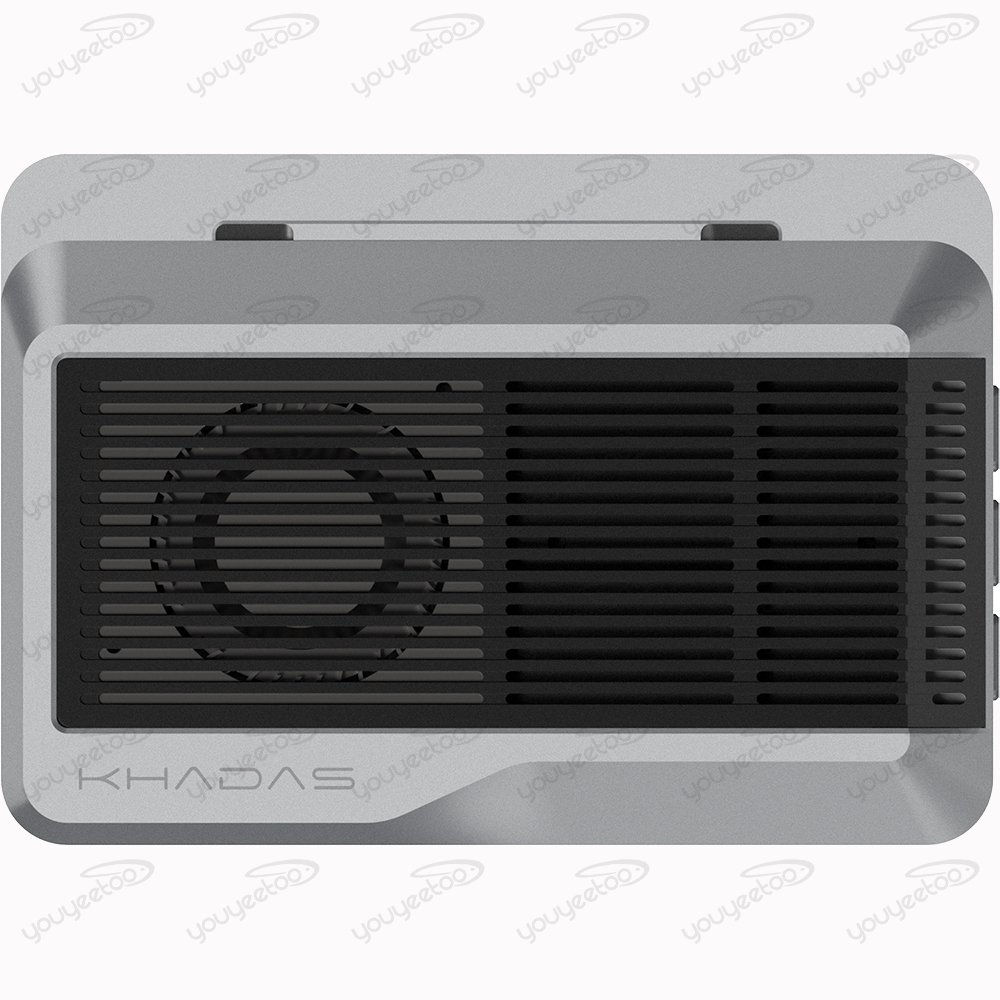

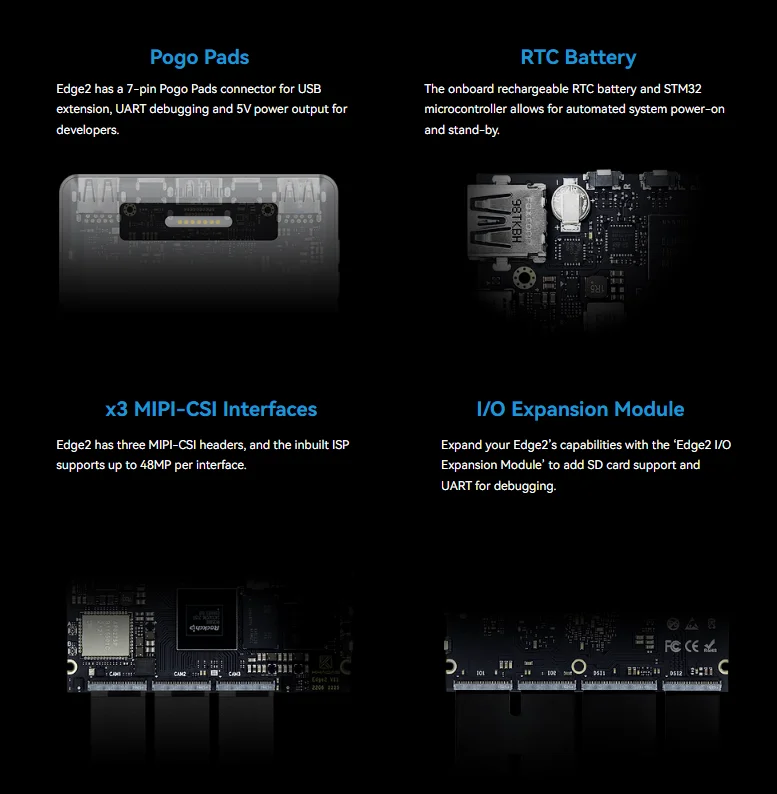

Edge2 is an ultraslim, credit-card sized ARM PC that is designed with Pogo Pads, FPC headers and MIPI-Interfaces which makes it convenient for Programmers and Developers to access the necessary I/O. The beautifully designed polycarbonate shell increases electrostatic resistance which means Makers will have a stable and predictable PCBA upon which to build their projects.

*Only the Edge2 Maker Kit includes additional I/O access via FPC/VIN headers integrated into the PCBA

OOWOW

OOWOW is a standalone embedded service for seamless online OS delivery, device maintenance, and much more! OOWOW is developed and maintained by Khadas Team. Make system installation much easier with OOWOW. You can download and install your preferred OS directly from the Cloud. OOWOW will start automatically if the device storage is empty, with OOWOW you will always be in control of your Edge2.

Multi OS Support

Edge2 supports a wide range of popular open source operating systems, such as Ubuntu and Android. It provides a reliable and stable software environment for product development and production. Software developers in partnership with Khadas, will release more customised operating systems for the Edge2 in the coming months.

Versatile Applications

Edge2 supports a wide range of potential applications, which include but are not limited to: edge Computing, artificial intelligence, cloud computing, VR/AR, blockchain, smart security, smart home, intelligent retail and smart industry.

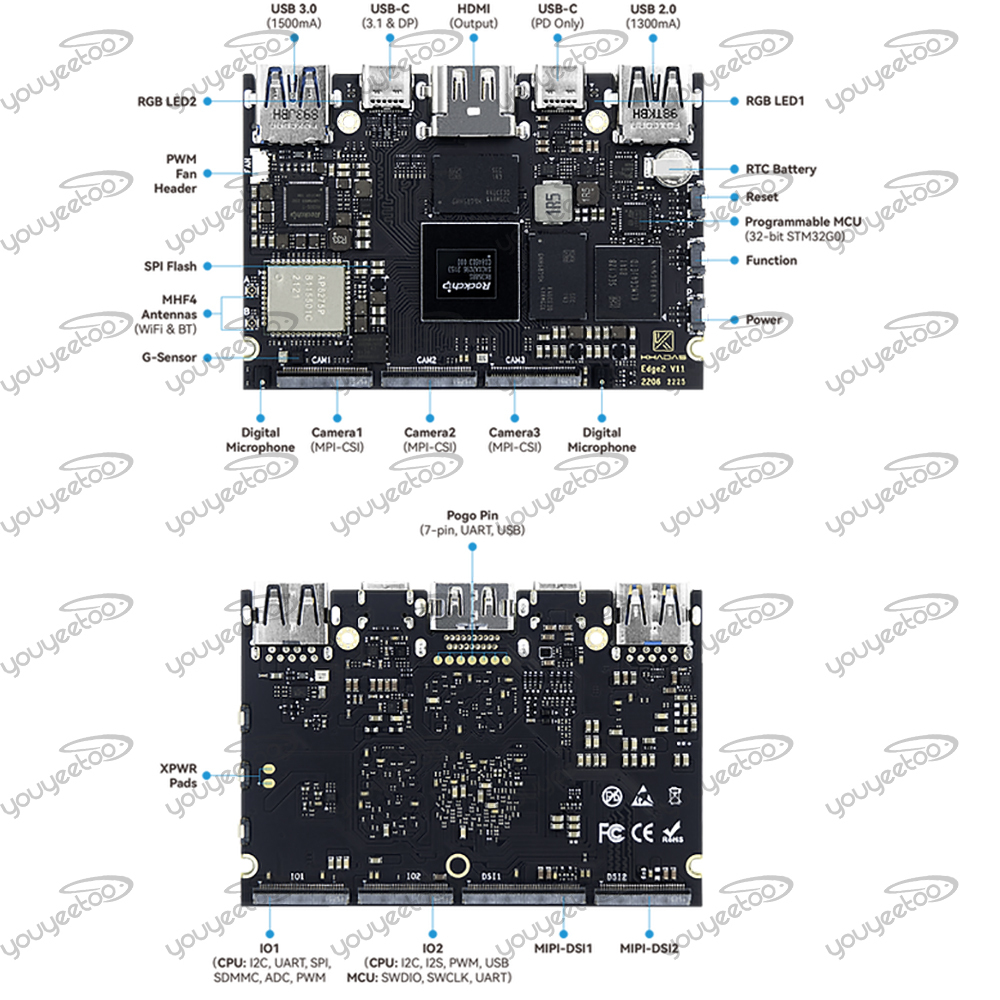

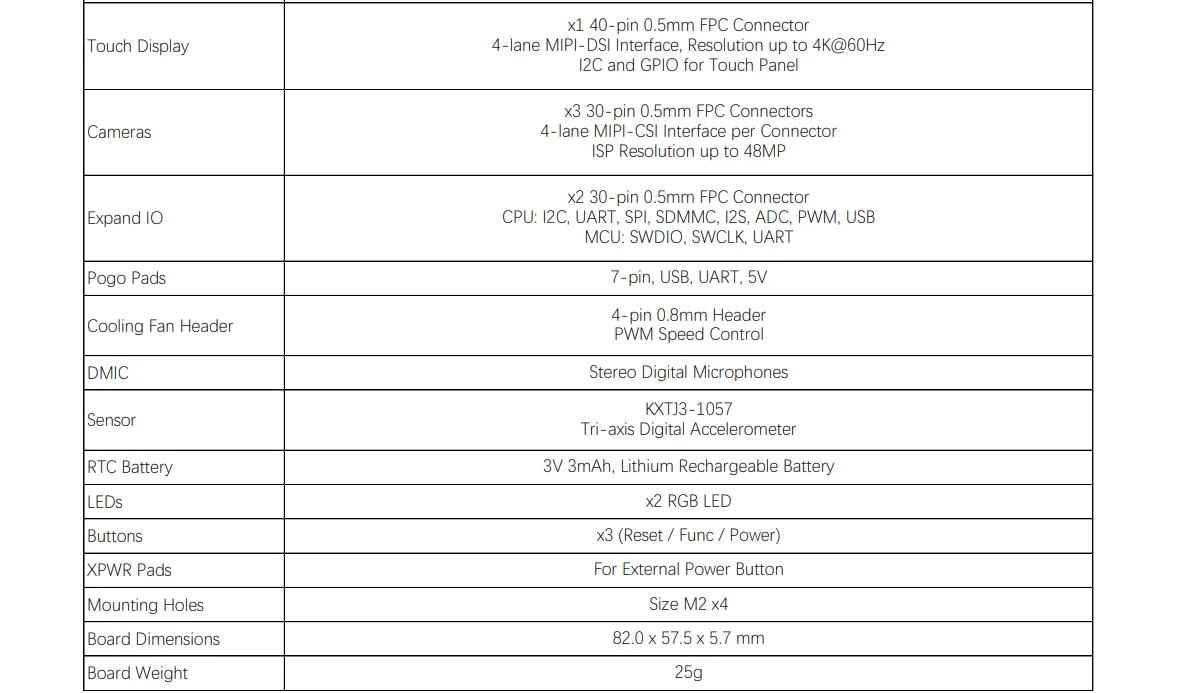

Interfaces

Edge2 ARM PC

Edge2 Maker Kit

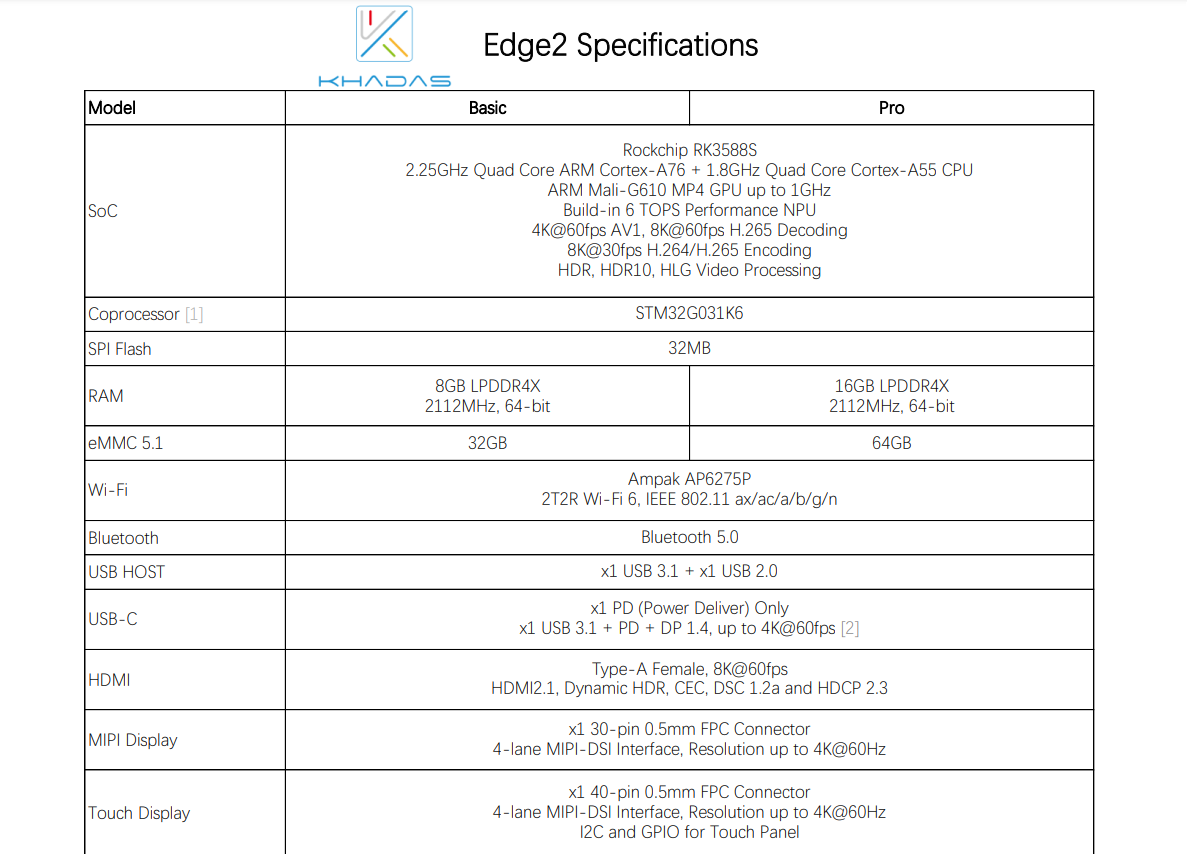

[1] MCU: power management, and boot media(SPI Flash or eMMC) setup.

[2] The official ROM is configured for 4K@60fps, however developers can change this to 8K@30fps by modifying the configuration files.

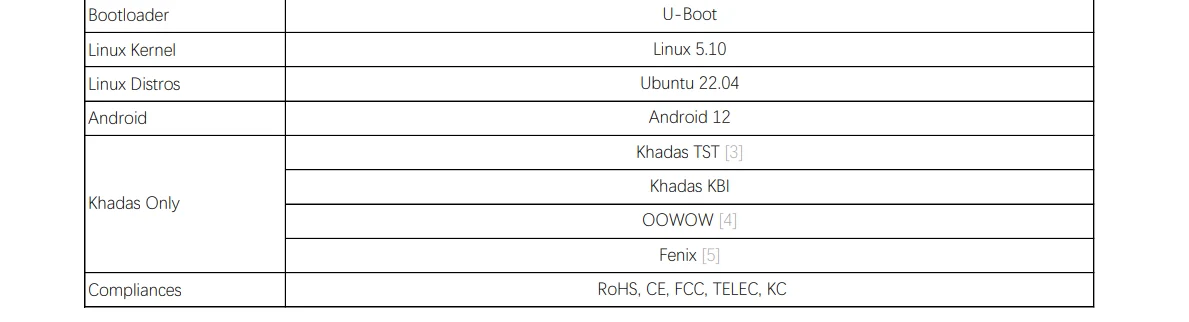

[3] The Khadas TST feature enables developers to enter upgrade mode easily: simply press the function key 3 times within 2 seconds, and it works even if the boot loader is damaged.

[4] OOWOW: a standalone embedded service for seamless online OS delivery, device maintenance, and much more!

[5] Fenix Script: one-click script for building of Linux Distributions.

[Tech-support]

Wiki: https://youyeetoo.com/blog/

Forum: forum.youyeetoo.com

ExpertSupport: [email protected]
