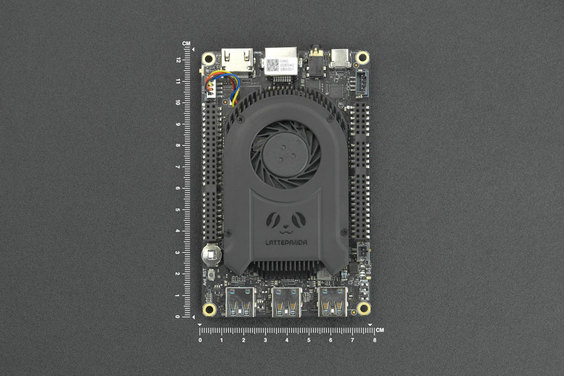

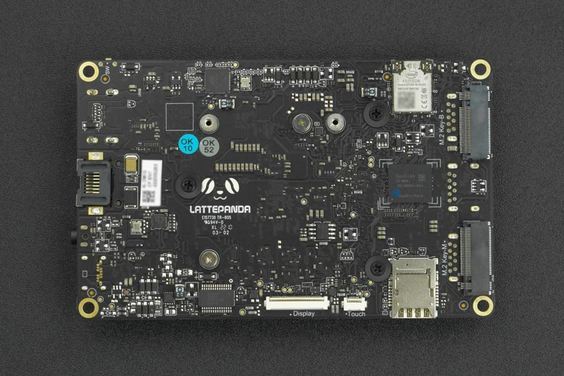

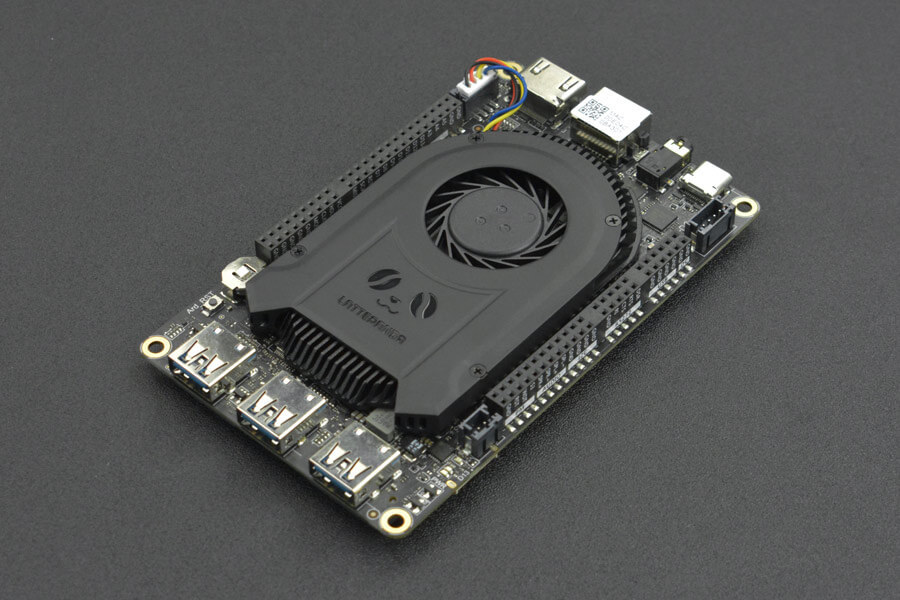

LattePanda 3 Delta 864 - The Fastest Pocket-sized Windows/Linux Single Board Computer with Win10 Enterprise License

FEATURES

• Enhanced CPU performance, it features the Intel 11th generation mobile quad-core processor N5105 and offers significantly improved performance.

• Upgraded to 8GB RAM and 64GB eMMC, substantial high-bandwidth RAM and speedy solid-state drive to smoothly run your multiple applications at once, and ensure seamless performance and reliable multitasking.

• ULTRA-FAST connectivity: With a lightning-fast Wi-Fi 6 and Gigabit Ethernet, stream videos or download massive files quickly

• Higher data transfer rate: 1 x USB3.2 gen2, 2x USB 3.2 gen1, and 1x USB Type C for high data transfer speed, up to 10X faster than USB2.0

• Support Dual 4K HDR and 3-Way Video Output, including HDMI, Display port over USB-C, and eDP for superb flexibility

• Rich IOs and Integrated Arduino Coprocessor ATmega32U4, compatible with 200+ sensors and actuators

• Support Windows(Win 10 and Win 11) & Linux OS

APPLICATIONS

• Home Theater

• Mini Game Console

• 4K Portable Video Streamer

• Monitoring System

SPECIFICATION

• CPU: Intel® Celeron® N5105

• Core: 2.0~2.9GHz Quad-Core, Four-Thread

• Graphics: Intel® UHD Graphics (Frequency: 450 – 800MHz)

• Memory: LPDDR4 8GB 2933MHz

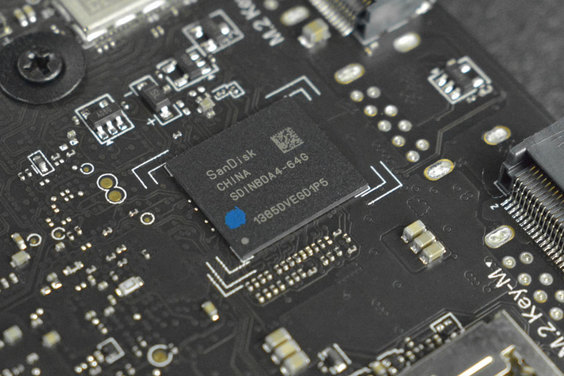

• Storage: 64GB eMMC V5.1

• Expansion Slots:
          1x M.2 M Key, PCIe 3.0 2x, Supports NVMe SSD
          1x M.2 B Key, USB 2.0, USB 3.0, SIM, SATA(Option support PCIe 3.0 1x), Supports 4G & 5G module

• Connectivity:
          1x Wi-Fi 6 @ 2.4GHz &5 GHz(160MHz)
          1x Bluetooth 5.2
          1x Intel Gigabit Ethernet

• USB Ports:
          2x USB 3.2 Gen1 Type A
          1x USB 3.2 Gen2 Type A
          1x USB Type C, Supports PD, DP, USB 2.0
          1x USB 2.0 Pin Header

• Display:
          1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR
          1x DP 1.4: Up to 4096x2160 @ 60Hz HDR
          1x eDP: Extendable Touch Displays up to 1920*1080

• TPM: built-in TPM(2.0)

• Co-processor: Arduino Leonardo ATMEGA32U4

• Audio: Microphone + Headphone Combo Connector

• GPIO & Other Features:
          12x Analog Inputs*
          Up to 23x Digital Input/Output (7 PWM)*
          1x UART
          1x I2C
          1x SPI
          1x Audio Connector
          1x 4-Pin RS232 Header
          1x Fan Port (4 Pin 1.25mm PWM 5V）
          1x 4-Pin Header (Power and Switch)

• OS Support: Windows 10 & Windows 11 & Linux

• Dimension: 125 x 78 x 16mm

• Operating Temperature: 0°C~75°C

PROJECTS

Project 1: LattePanda 3 First look, An All New Powerful X86 SBC And Runs Windows 11!

Introduction: This is a unboxing video, it goes over the specs, and tests some 4k Video playback, PC gaming, and emulation like PSP, PS2, Gamecube, and WiiU.

Project 2: LattePanda 3 Delta: Powerful Intel CPU SBC

Introduction: LattePanda 3 Delta single board computer review, including full specifications, demos running Windows 10 and Linux Mint 21, and some speed tests.

Project 3: I Turned The New LattePanda 3 Delta Into A Rugged Cyberdeck

Introduction: This video uses the new LattePanda 3 Delta to build a Cyberdeck that packs up into a rugged, waterproof case that you can take with you almost anywhere.

Project 4: LattePanda 3 Delta Powered LATTEintosh Mini PC

Introduction: Made a mini PC based around LattePanda 3 Delta entirely from scratch.
