LattePanda MU - Intel N100 x86 compute module

• Quick Start: WIKI
  • ?open-source carrier board files and libraries?
• Tips

Introduction

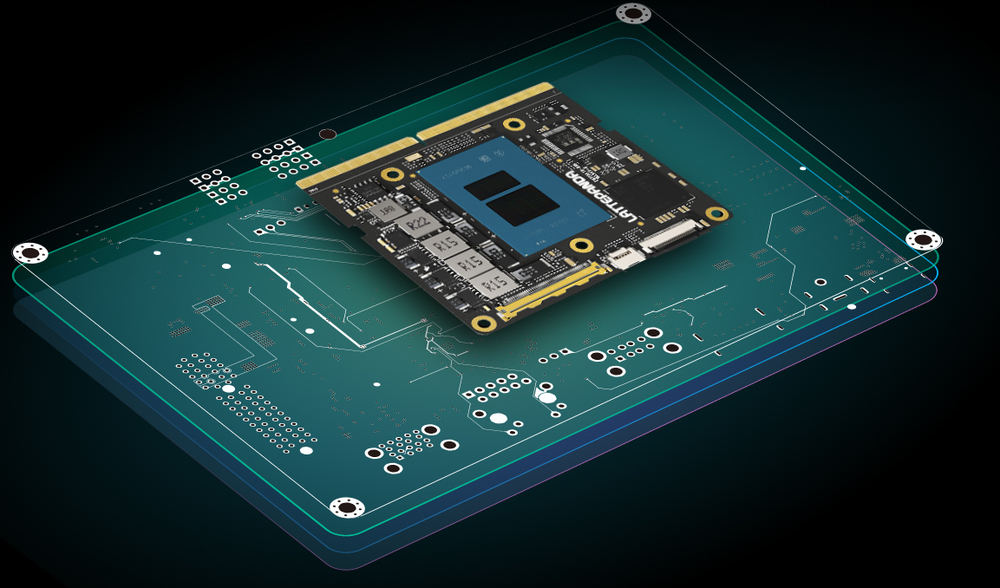

LattePanda Mu?is a micro x86 compute module featuring an Intel N100 quad-core processor, 8GB LPDDR5 memory, and 64GB storage. LattePanda Mu exposes extensive pins, including 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, and up to 9 PCIe 3.0 lanes. These flexible ports and open-source carrier board files enable users to effortlessly design custom carrier boards to meet their unique requirements.

Features

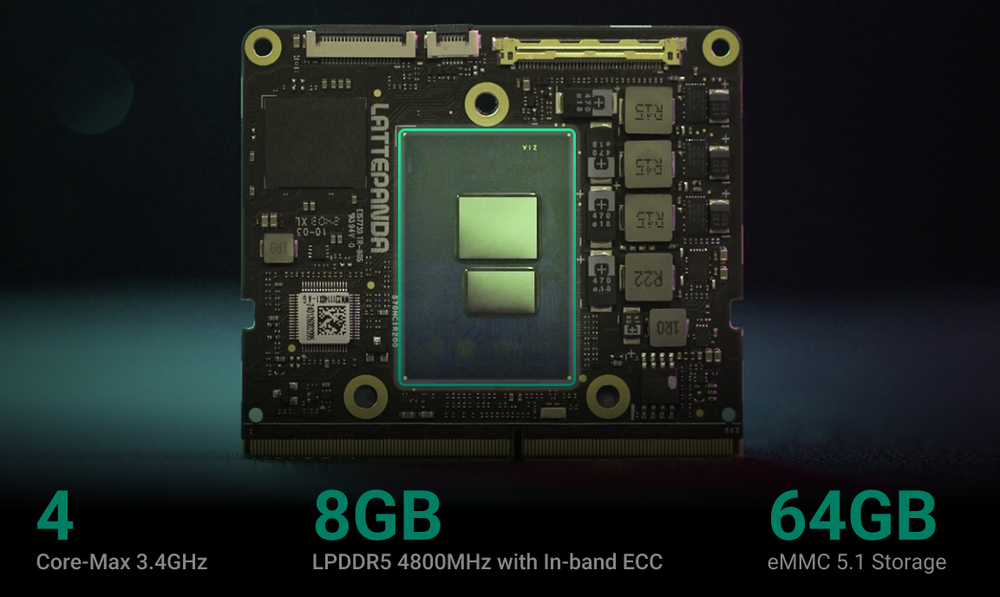

• Intel Processor N100 (Up to 3.4GHz, 4-core, 4-thread)
• Onboard 8GB 4800MHz LPDDR5 memory with IBECC supported
• 64GB eMMC 5.1 storage
• Configurable TDP: 6W ~ 35W
• Multiple OS Support: Windows 10, Windows 11, Ubuntu
• Rich Expansion Pins, including 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0, 64 expandable GPIOs, etc.
• Open-source Design Files (KiCAD) of Carrier Boards

Shipping List

Applications

Robot?

Specification

• Processor: Intel Processor N100 4 Cores up to 3.4GHz
• Memory: LPDDR5 4800MT/s 8GB with IBECC supported
• Storage: eMMC 5.1 64GB
• Display: 3 Ouputs; Max Resolution 4096 x 2160@60Hz
• I/O
  ? ? ? ? ?PCIe 3.0: up to 9 lanes
  ? ? ? ? ?SATA 3.0: up to 2 ports
  ? ? ? ? ?USB 3.2 (10Gbps): up to 4 ports
  ? ? ? ? ?USB 2.0 (480Mbps): 8 ports
  ? ? ? ? ?I2C, UART and GPIOs
• Power: 9~20V
• Operating System: Windows, Ubuntu
• Environment: 0~60°C; 0~80% relative humidity
• Size: 69.6 x 60mm

Detailed Descriptions

Small but Powerful

LattePanda Mu x86 compute module features an Intel N100 quad-core processor with 3.4GHz turbo frequency, offering ample performance and multitasking capabilities for the majority of applications.

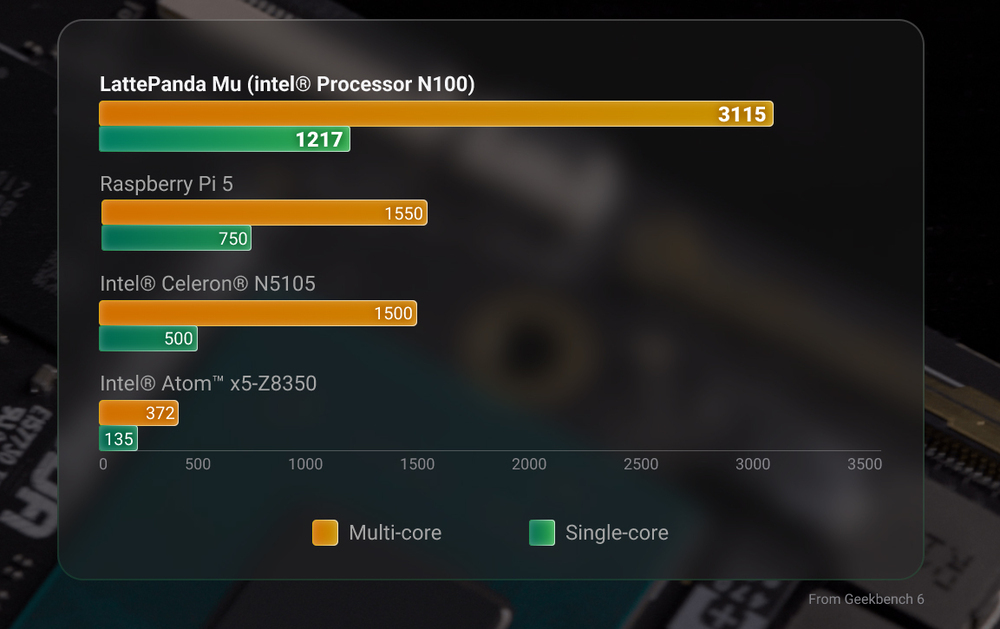

Equipped with an Intel Processor N100, the LattePanda Mu compute module offers a multi-core score of 3115 and a single-core score of 1217 on Geekbench 6, outperforming the Raspberry Pi 5. Its CPU performance doubles the Raspberry Pi 5.

?

Card-Sized?

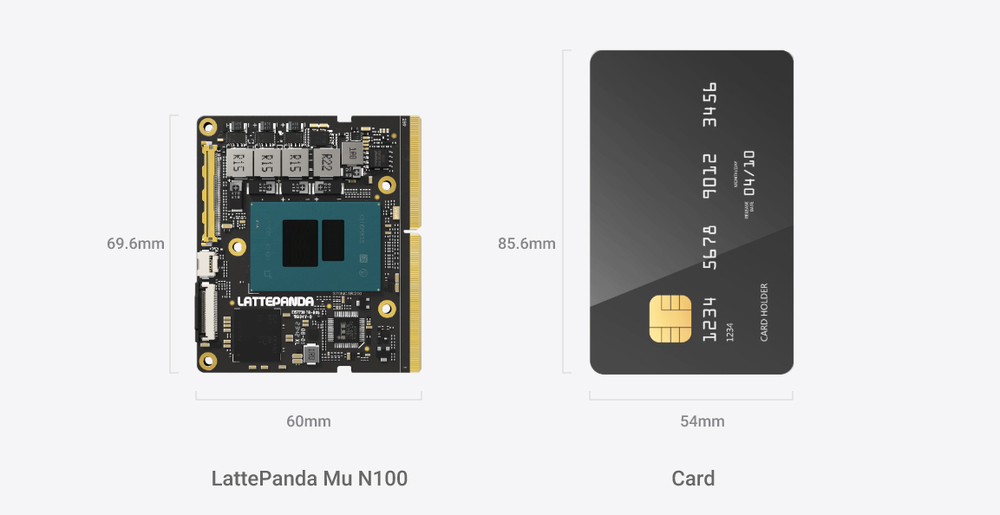

Despite its small size of 69.6mm x 60mm, The pocket size of the LattePanda Mu x86 compute module allows for integration into space-constrained devices, delivering powerful computation without occupying much space.

?

?

Flexibility in Performance and Energy

The processor's TDP can be adjusted from 6W to 35W, providing flexibility in power usage and heat output.
The 6W setting enables efficient operation with minimal heat and silent passive cooling, while the 35W setting offers robust performance but requires active cooling.

?

Flexible Expansion Pins

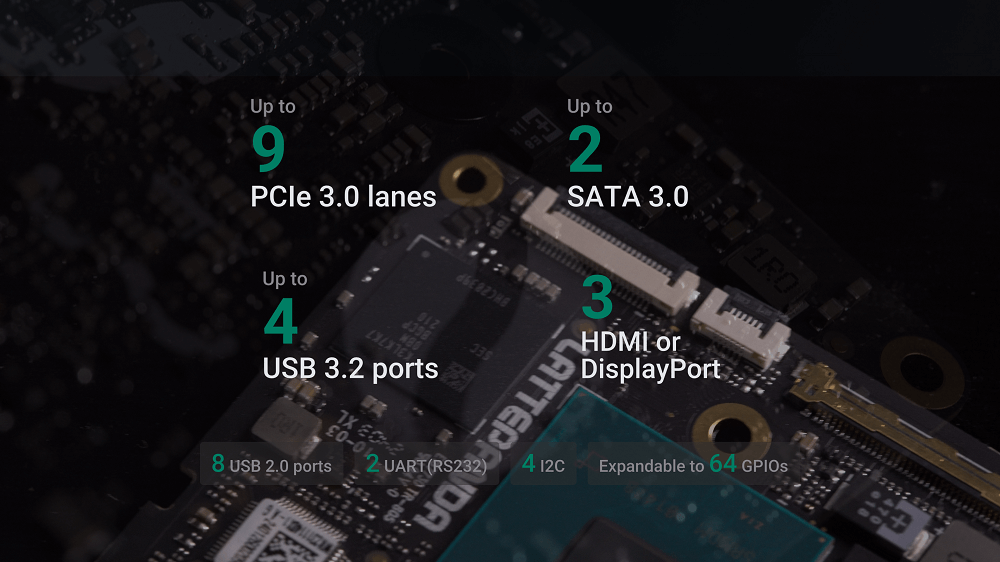

LattePanda Mu exposes extensive pins, such as 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0 and 64 expandable GPIOs. This offers unparalleled flexibility and expandability, allowing you to create a specific solution.

?

Carrier Boards - Expanding Infinite Possibilities

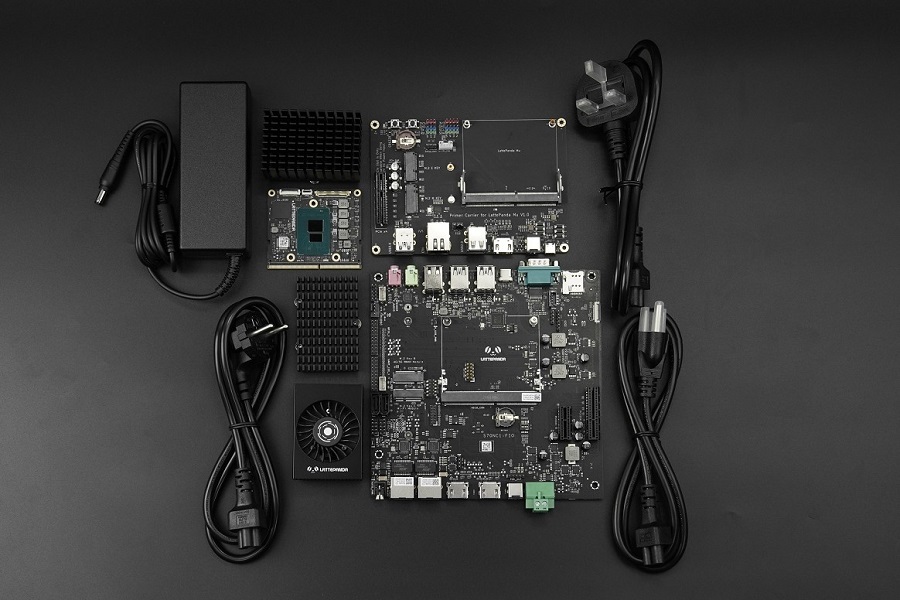

Lattepanda offers a?lite carrier board for the LattePanda Mu, providing a comprehensive development platform with various interfaces for swift design verification. Additionally,?a full-function evaluation carrier board?is available, exposing all pins of the LattePanda Mu for extensive hardware and software testing.

?

Note:?The PCIe slot of the lite carrier is available only when using a 12V power supply.

?

Making Carrier Simpler and Easier

LattePanda Mu x86 compute module offers?open-source carrier board files and libraries?as reference materials, enabling you to fine-tune the carrier board design to meet your specific needs, significantly reducing development time.

?

Multi-System Support

LattePanda Mu x86 computer-on-module supports multiple operating systems, including Windows 10, Windows 11, Ubuntu, ensuring that there is always one that suits your needs.

?

Applications
