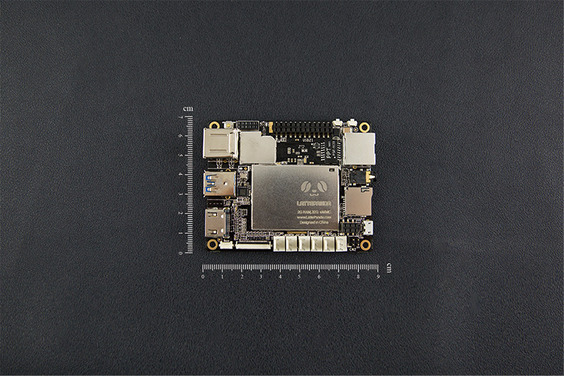

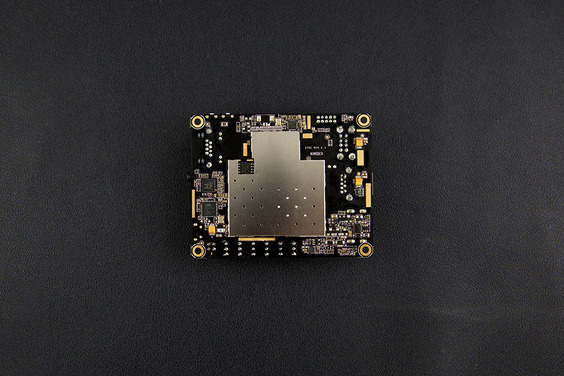

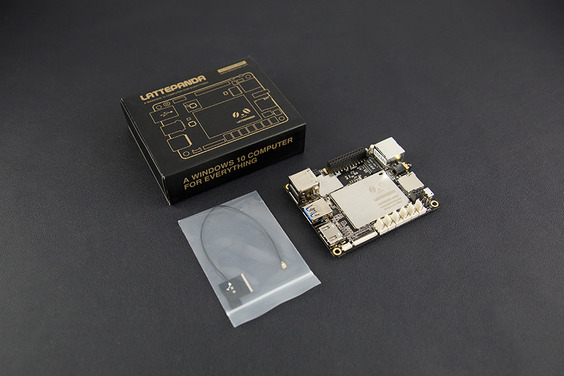

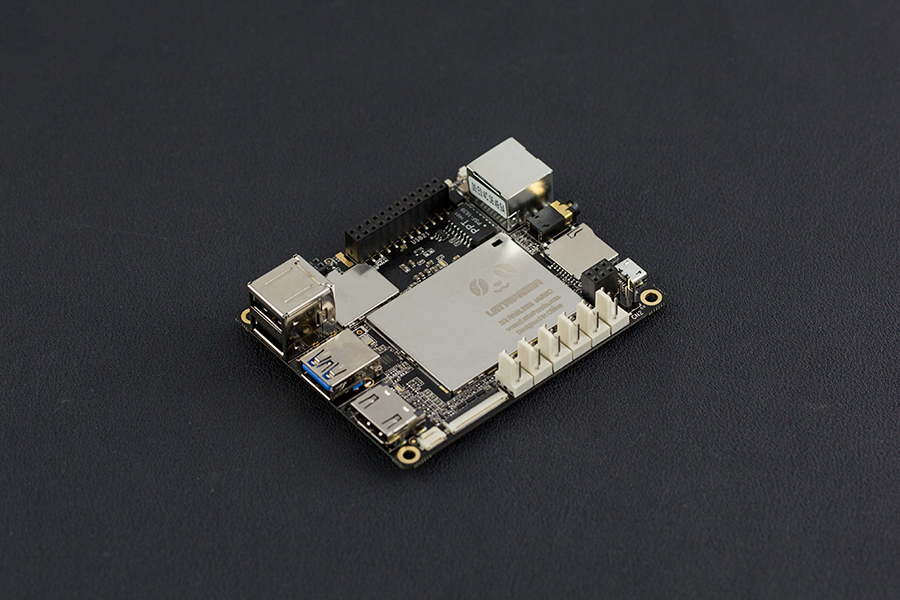

LattePanda V1 - The Smallest Windows 10 Single Board Computer with Win10 Home License

You are viewing a 2GB RAM LattePanda Windows 10 mini PC with 32GB eMMC memory. It does include a Windows 10 OEM activation key, which will activate on the initial boot.

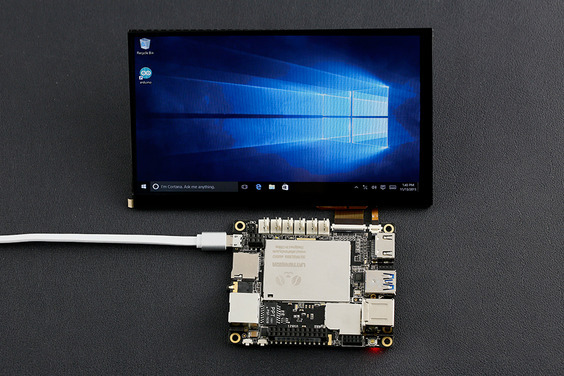

This embedded single board computer runs perfectly on the go. Creating documents with Microsoft Office, playing HD videos and running Windows apps on LattePanda is exactly the same experience as using a regular PC.

The Smallest X86 SBC

LattePanda V1(Unactivated, 2GB/32GB) with Win10 Home License is the smallest X86 SBC in LattePanda Family. It has everything a regular PC has and can do anything that a regular PC does.

Fast and Powerful

Integrated Arduino Compatible Processor

This smallest x86 single board computer is compatible with almost every gadget you know: printers, joysticks, cameras and more. Any peripherals that work on your PC will work on a LattePanda.


Complete Software Resources for Hardware Development

This embedded single board computer intel atom comes pre-installed with a full edition of Windows 10 Home Edition, so you can run powerful tools such as Visual Studio, NodeJS, Java, Processing, and more. And this SBC can compatible with more operating systems: Raspberry Pi Desktop, Ubuntu, Android x86, other Linux distributions.

With existing APIs, you can develop your own software and hardware projects on a LattePanda like you would on a normal PC - C#, Javascript, Ruby etc. Say goodbye to your bulky laptop!

Storage

This smallest single board comuter LattePanda V1 onboard onboard 32/64GB eMMC. eMMC is more reliable and has a longer lifespan than TF cards, saving you the trouble of finding TF cards.

Customize LattePanda

LattePanda offers a selection of standard product models to meet the most common application needs of our target market. For those customers who need different features, LattePanda offers customization services. LattePanda provides our customers with a variety of industrial specific product configurations and custom designs to suit customers’ specific applications.

The Best Raspberry Pi Alternative!

LattePanda V1 can achieve all the functions that Raspberry Pi 4B can achieve, not to mention that it also supports the Windows 10 operating system. In the current situation where Raspberry Pi 4B is out of stock and prices are soaring, LattePanda V1 is your best choice!

LattePanda V1 Selection Guide

APPLICATIONS

Data Research
Work as Regular PC
A Powerful Brain for Robot
Security Monitoring with Facial Recognition

SPECIFICATION

• Intel Cherry Trail Z8350 Quad-Core Processor
• Base Frequency: 1.44GHz (1.92GHz Burst Frequency)
• Operating System: Windows 10 Home Edition
• RAM: 2GB DDR3L
• Storage Capacity: 32GB
• GPU: Intel HD Graphics, 12 EUs @200-500Mhz, single-channel memory
• USB 3.0 x 1, USB 2.0 x 2
• Wi-Fi 802.11n 2.4G
• Bluetooth 4.0
• Integrated Arduino Co-processor: ATmega32u4 (Arduino Leonardo)
• Video output: HDMI and MIPI-DSI
• Onboard touch panel overlay connector
• Supports 100Mbps Ethernet
• Intel Processor GPIO x 6
• ATmega Processor GPIO x 20
• Gravity Interface Connectors x 6
• Voltage: 5V@2A
• Board Dimensions: 88 x 70mm / 3.46 x 2.76"
• Package Dimensions: 110 x 94 x 30 mm/4.33 x 3.70 x 1.18"
• NET Weight: 55g
• Gross Weight: 100g

PROJECTS

Introduction: Rasim Muratovic is a YouTube reviewer. He used the water to cool the LattePanda. We'd like to share this interesting project with all of you.

Introduction: This sample shows how to send data from a light sensor to Azure storage using a Node.JS app.

Introduction: This tutorial will tell you how to make a simplest GUI to control your arduino. Basicly, this post is about communication between C# and Arduino

Introduction: The MicroDot is a home-made Alexa 'button' designed to be connected to a LattePanda or a Raspberry Pi, with Alexa Sample App installed.
