ARM Cortex A53 quad-core@1.2GHz
32KB l-Cache, 32KB D-Cache

4GB DDR4

8GB eMMC

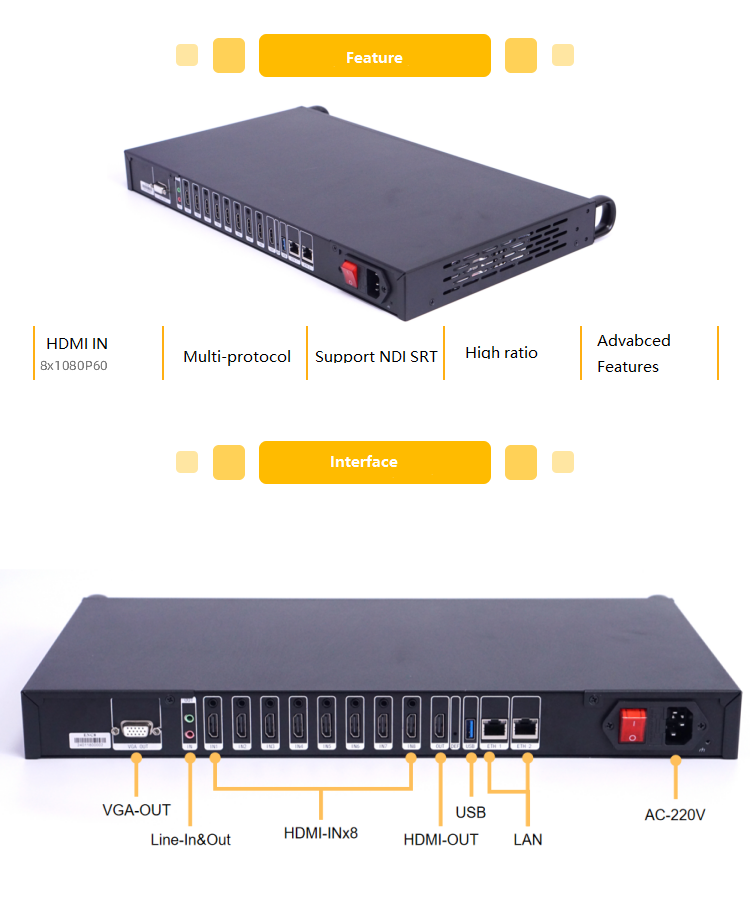

8x HDMI IN, HDMI 1.3 supports up to 1080P@60fps

supports up to 4K60

4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440x900, 1366×768,

1280×1024, 1024×768, 800×600, 640x480

H.264 Baseline profile

H.264 Main profile

H.264 High profile

H.265 Main profile

MJPEG/JPEG Baseline

H264, H264, MJPEG

Main:4K, 1080P, 720P, 360P

Sub: 720P, 360P

1~60 adjustable

Support SmartP, DualP

20Mbps

CBR/VBR/AVBR/FIXQP/QPMAP

HDMI, 3.5mm Line-In, audio can be used at the same time

48K, 44.1K, 32K, 16K, 8K

AAC, MP3, MPEG2, PMCA, PMCU

10/100/1000M RJ45 network port

Optional external wifi module

Support (Huawei E8372, LinkPi 5GCPE)

RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast

Support

Support

Support

Support

U disk

MP4, TS, FLV, MOV, MKV, AVI

AC-220V

<20w

442×243x45 ( mm L×W×H)

0~70°C

WEB configuration, parameter hot update, firmware upgrade, network setting, password management

Picture-in-picture, 4-split screen, 9-split screen, custom

Logo, watermark, subtitle, scrolling subtitle, mosaic, timestamp

Custom fonts, upload watermark Logo pictures
