Introduction
The MZB01 slow live broadcast system adopts the embedded solution of Huawei HiSilicon chip, which has the advantages of low power consumption and high reliability, and supports 7x24 hours of uninterrupted work. The system has the functions of file carousel, network streaming carousel, inserting background music, rich special effects, multi-platform streaming, etc. It is widely used in slow live broadcasts in scenic spots, kindergarten monitoring, live broadcasts on construction sites, live broadcasts in sunshine kitchens, live broadcasts on factory assembly lines and other occasions.
Product Features
|
Ultra clear input |
Multi-protocol live broadcast |
High compression ratio |
Advanced Features |
|
4K30 |
srt/ndi/rtsp/rtmp/http/hls |
H.265+smartP |
Watermark subtitles, video mixing |

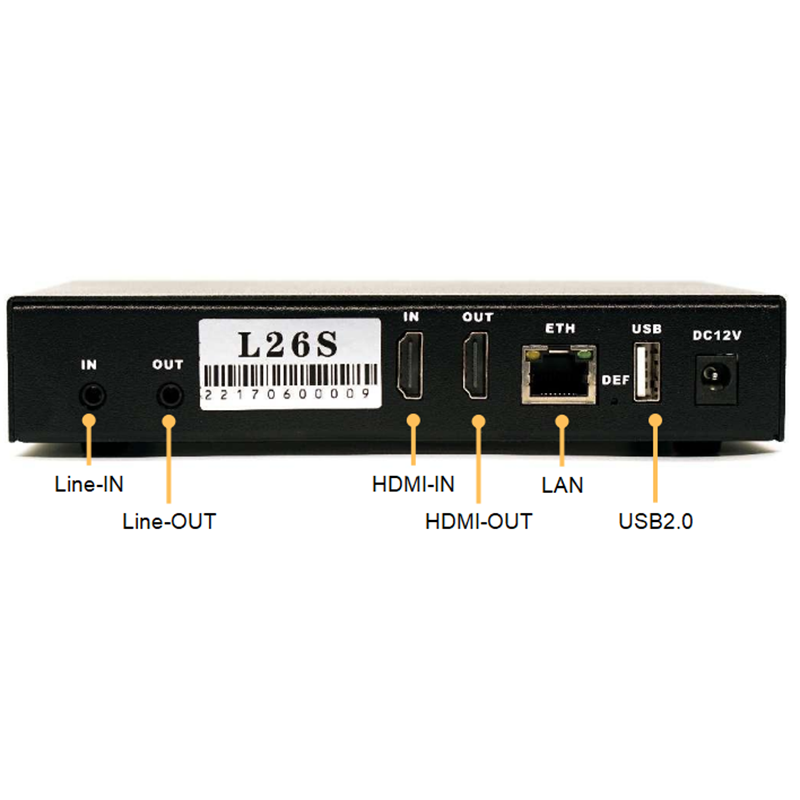

Interface definition
Performance parameters
|
Core performance |
|
|
Main chip: |
Hi3521DV100 |
|
CPU： |
|
|
|
32KB I-Cache，32KB D-Cache |
|
Memory: |
1GB DDR3 |
|
FLASH： |
128MB SPI Nand Flash |
|
Video parameters |
|
|
HDMI input: |
HDMI 1.4 supports up to 4K@30fps |
|
SDI input: |
3G-SDI, up to 1080P60 |
|
HDMI output: |
up to 4K60 |
|
SDI output: |
loop out SDI input video |
|
Resolution: |
4K30、1080P、720P、1080i、720i、1600×1200、1440×900、1366×768、1280×1024、1024×768、800×600、640×480 |
|
Encoding format: |
H.264 Baseline profile |
|
|
H.264 Main profile |
|
|
H.264 High profile |
|
|
H.265 Main profile |
|
|
MJPEG/JPEG Baseline |
|
Decoding format: |
H264、H265、MJPEG |
|
Encoding Resolution: |
Main：4K、1080P、720P、360P |
|
|
Sub：720P、360P |
|
Frame rate: |
1~60 adjustable |
|
Multiple reference frames: |
Support SmartP, DualP |
|
Maximum bit rate: |
40Mbps |
|
Rate Control: |
CBR/VBR/AVBR/FIXQP/QPMAP |
|
Audio parameters |
|
|
Input interface: |
HDMI, SDI, 3.5mm Line-In, audio can be used at the same time |
|
Output interface: |
HDMI, 3.5mm Line-Out, audio can be used at the same time |
|
Sampling rate: |
48K、44.1K、32K、16K、8K |
|
Encoding format: |
AAC、MP3、MPEG2、PMCA、PMCU |
|
Network parameters |
|
|
Wired interface: |
10/100/1000M RJ45 network port |
|
WIFI： |
Optional (link below) |
|
4G： |
Support (Huawei E8372) |
|
Transmission protocol: |
RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast |
|
ONVIF： |
support |
|
SRT： |
support |
|
NDI： |
support |
|
File storage |
|
|
Storage interface: |
U disk |
|
Recording formats: |
MP4、TS、FLV、MOV、MKV、AVI |
|
Basic parameters |
|
|
Power supply: |
DC 12V 2A |
|
Power consumption: |
<8W |
|
Working temperature: |
0~70℃ |
|
Size: |
170×110×30 (mm length x width x height) |

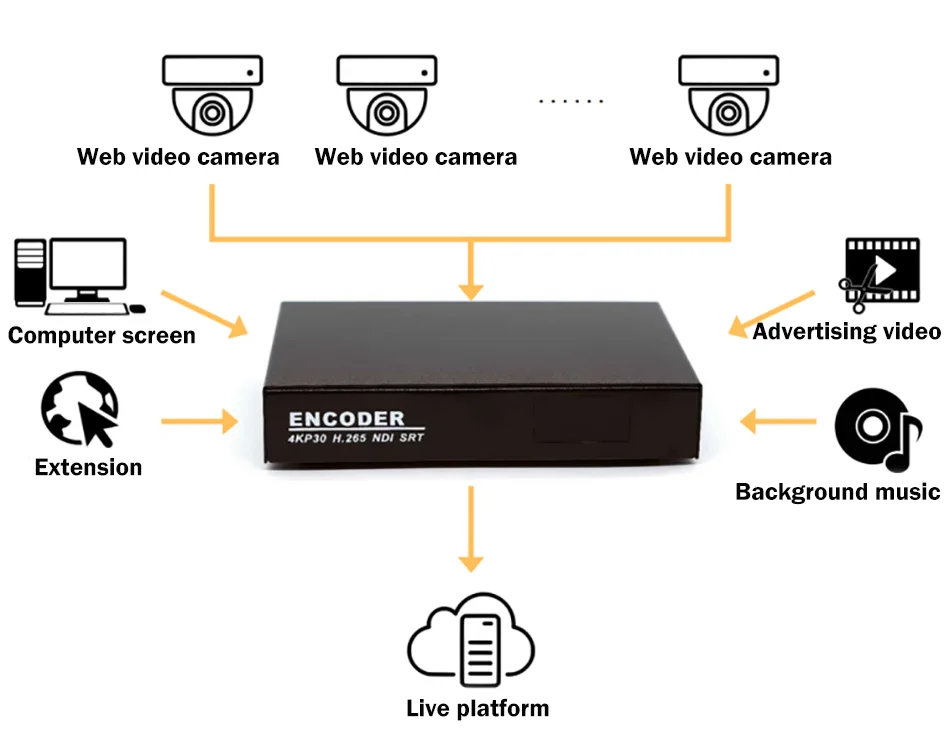

Scenes to be used
Supports multiple webcam inputs, supports HDMI input (the highest resolution is 4K@30), supports video files (such as advertising videos), supports MP3 files (can be used as background music), and supports various plug-ins (such as weather), These input signals are pushed to the live broadcast platform after certain processing (such as splicing and overlay), and multiple platforms are also supported to push streams at the same time.

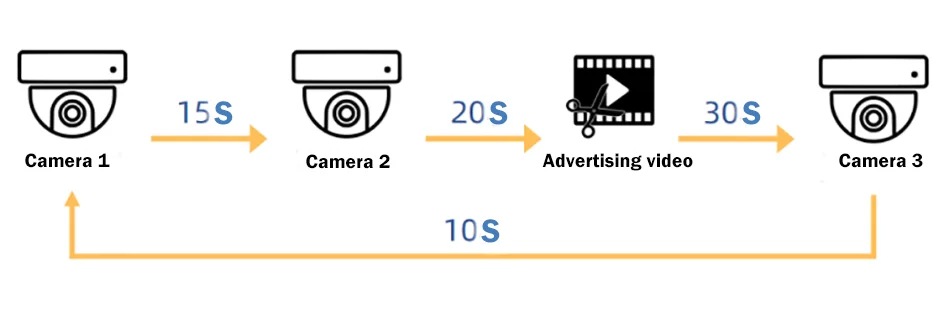

Custom carousel
Users can freely arrange the playback sequence and switching interval of the signal source
The signal source will not appear black field, freeze and other phenomena during the switching process

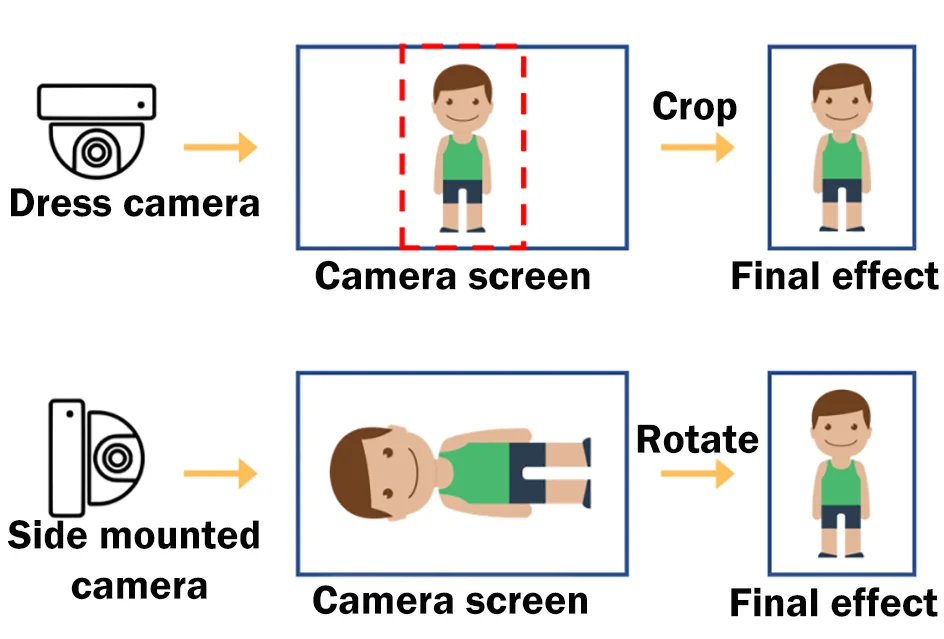

Vertical screen live
You can convert a landscape screen to a portrait screen by cropping, rotating, etc.
Make the final picture more suitable for mobile viewing, such as Douyin, WeChat video account, etc.
Extension
On the basis of the basic image, text, time and other video overlay functions, we also provide an extended plug-in overlay function based on h5 technology, which can realize functions such as weather information and calendar, and open user-defined development interfaces, allowing users to achieve More and richer functions.

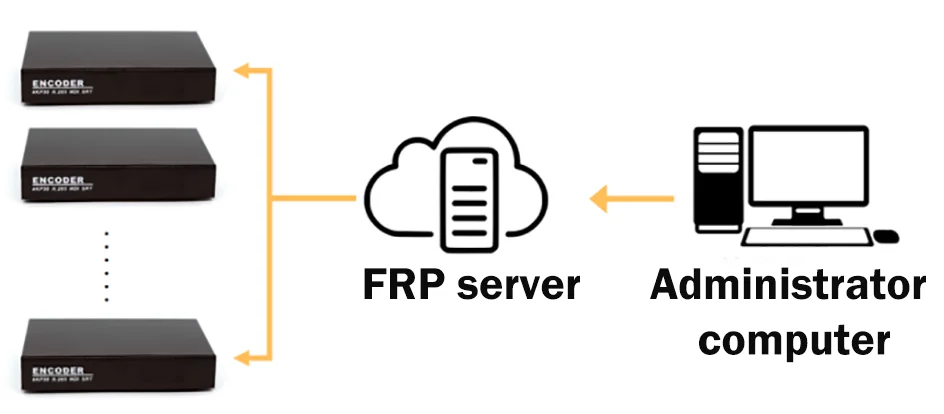

Remote maintenance
Remote unified management can be performed using the built-in FRP function of the device
Multi-platform live broadcast
Only one slow live device (MZB01) is needed to push live streams to any number of platforms at the same time.

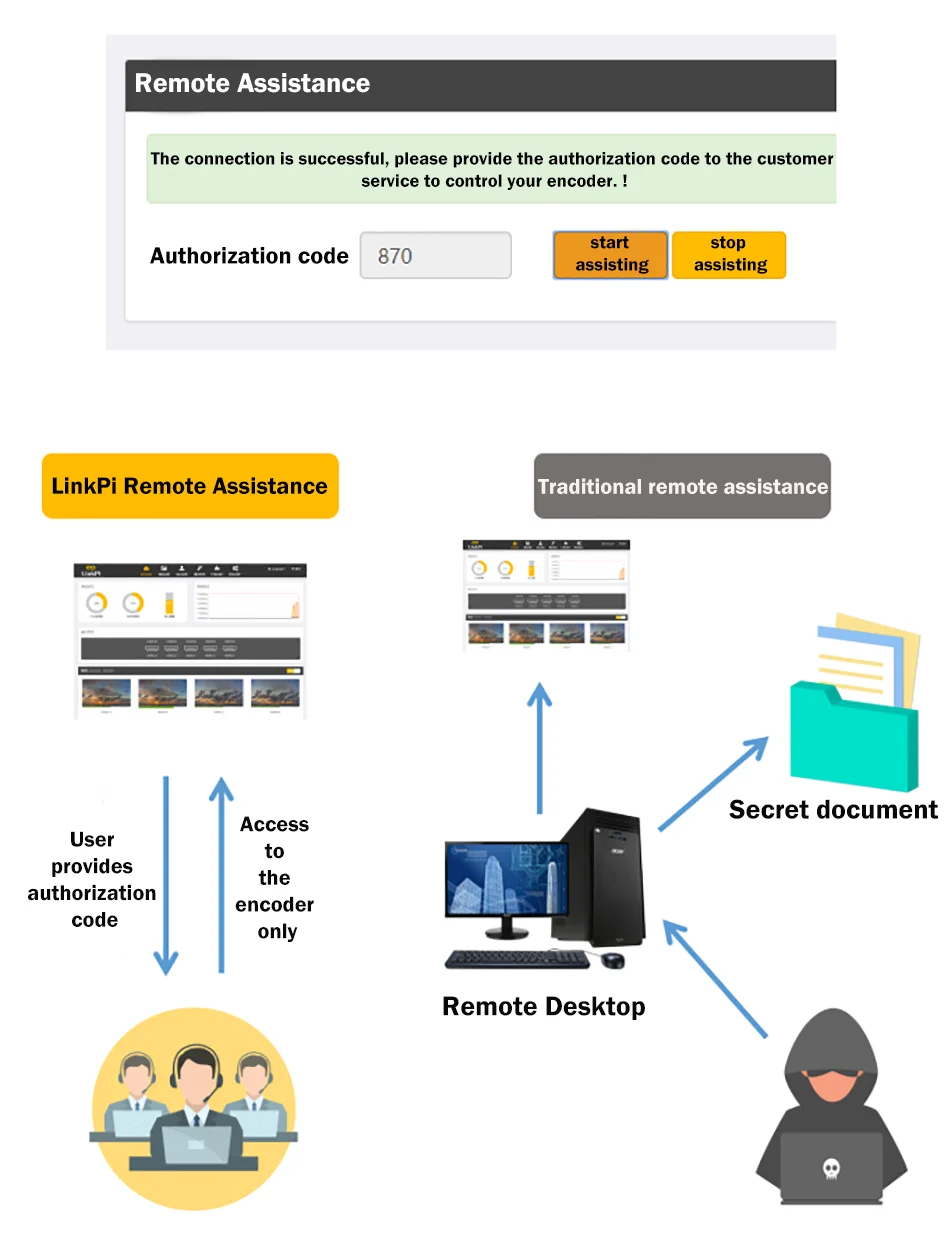

Remote Assistance
One-click remote assistance, no need to log in to the PC
Use on demand, convenient and fast, protect privacy and security
