Introduction
Product Features Full NDI 3G-SDI interface HDMI interface Tally POE other NDI 5 YUV422 up to 1080P60 with loop-out up to 4K30 two-way highlight Gigabit PTZ, call interface definition Product parameters Interface parameters HDMI IN: HDMI 1.4 supports up to 4K30, including audio SDI IN: 3G-SDI supports up to 1080P, including audio SDI Loop: Loop out, same as SDI IN Line-IN: 3.5mm
Product Features
|
Full NDI |
3G-SDI interface |
HDMI interface |
Tally |
POE |
Other |
|
NDI 5 YUV422 |
Up to 1080P60 with loop out |
Up to 4K30 |
Two-way highlighting |
Gigabit |
PTZ, call |

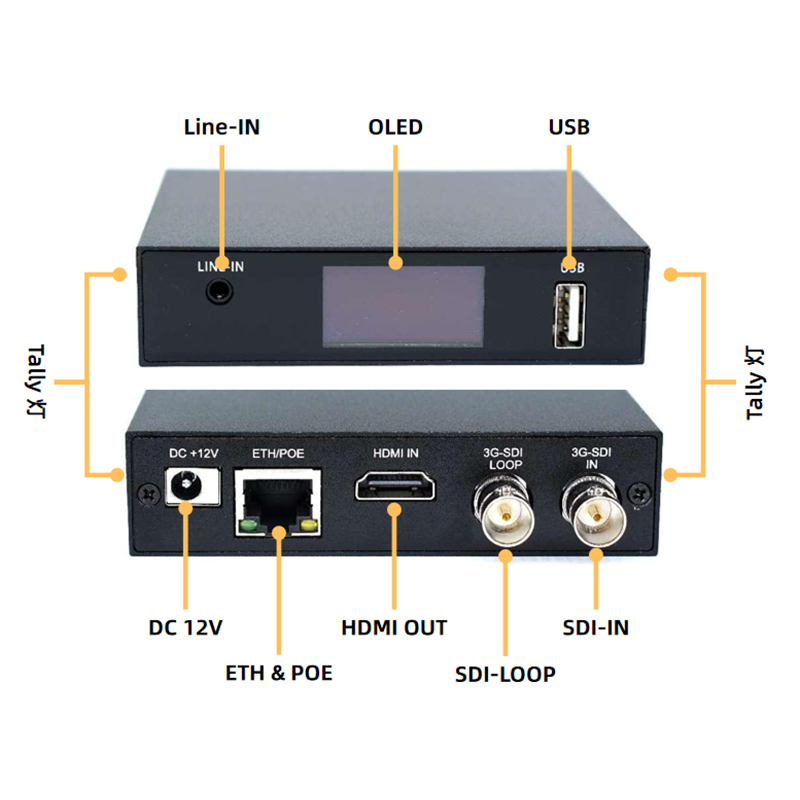

Interface definition
Performance parameters
|
Interface parameters |
|
|
HDMI IN： |
HDMI 1.4 supports up to 4K30 with audio |
|
SDI IN： |
3G-SDI supports up to 1080P, including audio |
|
SDI Loop： |
Loop out, same as SDI IN |
|
Line-IN： |
3.5mm, 48K stereo |
|
USB： |
USB2.0, expandable call headset, serial port, etc. |
|
ETH： |
10/100/1000M wired network, support POE |
|
Software parameters |
|
|
NDI version: |
NDI 5, backward compatible |
|
NDI mode: |
NDI(Full NDI) |
|
Encoding frame rate: |
25~60 adjustable |
|
Encoding Quality: |
Automatic, Manual |
|
Volume gain: |
-12DB~+12DB |
|
PTZ control: |
upport |
|
Network Protocols: |
Discovery, RUDP, TCP, Unicast, Multicast |
|
OLED： |
Display of working status (NDI name, IP, resolution, etc.) |
|
Tally light: |
bidirectional LED red and green two-color highlight |
|
Integrated call: |
Full duplex call with LinkPi's full range of encoder products |
|
Other parameters |
|
|
Power supply: |
DC 12V 1A |
|
Average power consumption: |
<5W |
|
Working temperature: |
-20℃~50℃ |
|
Dimensions: |
100x94x24mm (without SDI length) |
NDI® (English full name Network Device Interface) was developed by NewTek Corporation, an open protocol and standard for connecting video devices over a network.

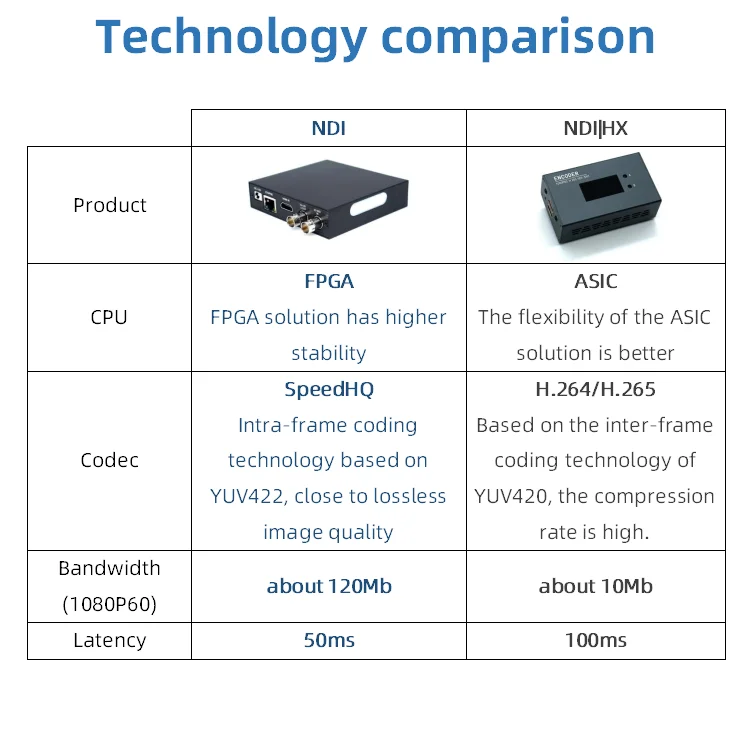

NDI® is mainly divided into two types, High Bandwidth NDI® (High Bandwidth NDI®, commonly known as Full NDI in China) and NDI®丨HX. All of them can transmit high-quality video over IP. High-bandwidth NDI® features high-quality video transmission over IP with low latency, while NDI®丨HX features support for efficient video transmission under limited bandwidth.
