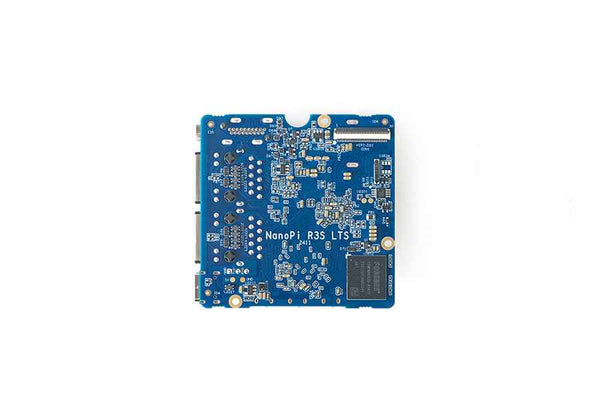

NanoPi R3S-LTS - A tiny IoT Router, Dual GbE

• Quick Start: WIKI
• Tips

  • Before starting to use your NanoPi R3S-LTS, get the following items ready

    • NanoPi R3S-LTS
    • MicroSD Card/TF Card: Class 10 or above, minimum 8GB SDHC
    • USB-C 5V/3A power adapter

Introduction

Features

1. Advanced Networking Capabilities: The NanoPi R3S-LTS is equipped with dual Gbps Ethernet ports, making it an excellent platform for IoT applications that require high-speed network connectivity.

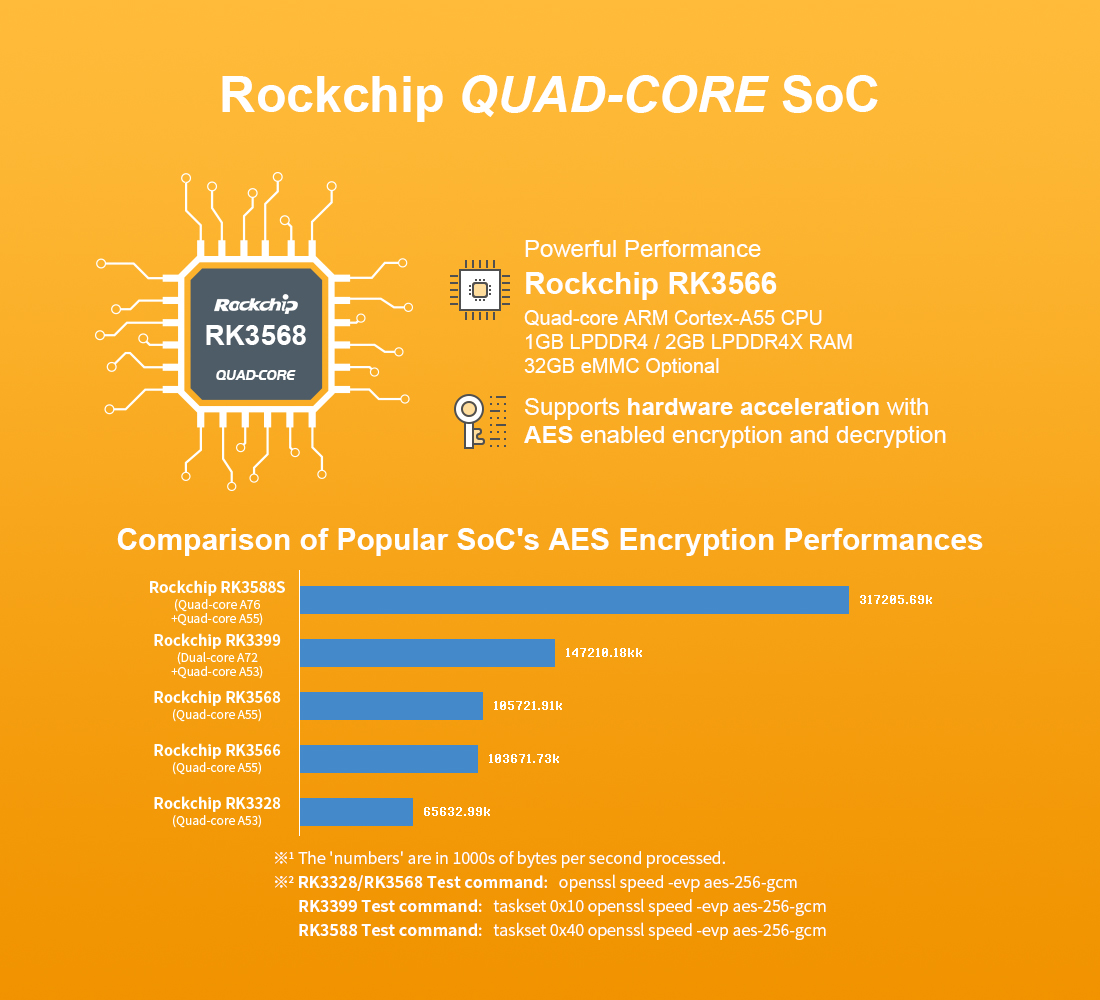

2. Powerful Processor and RAM: It is powered by the Rockchip RK3566 SoC, featuring a Quad-core Cortex-A55 CPU, 1GB/2GB LPDDR4X RAM, and an optional 32GB eMMC for storage, ensuring smooth operation and ample space for applications.

3. Versatile Operating System Support: The device supports a variety of operating systems including Debian, Ubuntu Core, OpenMediaVault, and OpenWrt, providing users with the flexibility to choose the OS that best fits their needs.

4. Rich Expansion Options: With one Native Gigabit Ethernet and one PCIe Gigabit Ethernet, USB 3.0 Host, and a MicroSD slot, the NanoPi R3S-LTS offers multiple options for expansion and connectivity.

5. Developer-Friendly Environment: FriendlyELEC has ported an OpenWrt system for it, which works with Docker CE, making it an ideal platform for developers working on IoT and NAS applications to test and deploy their solutions.

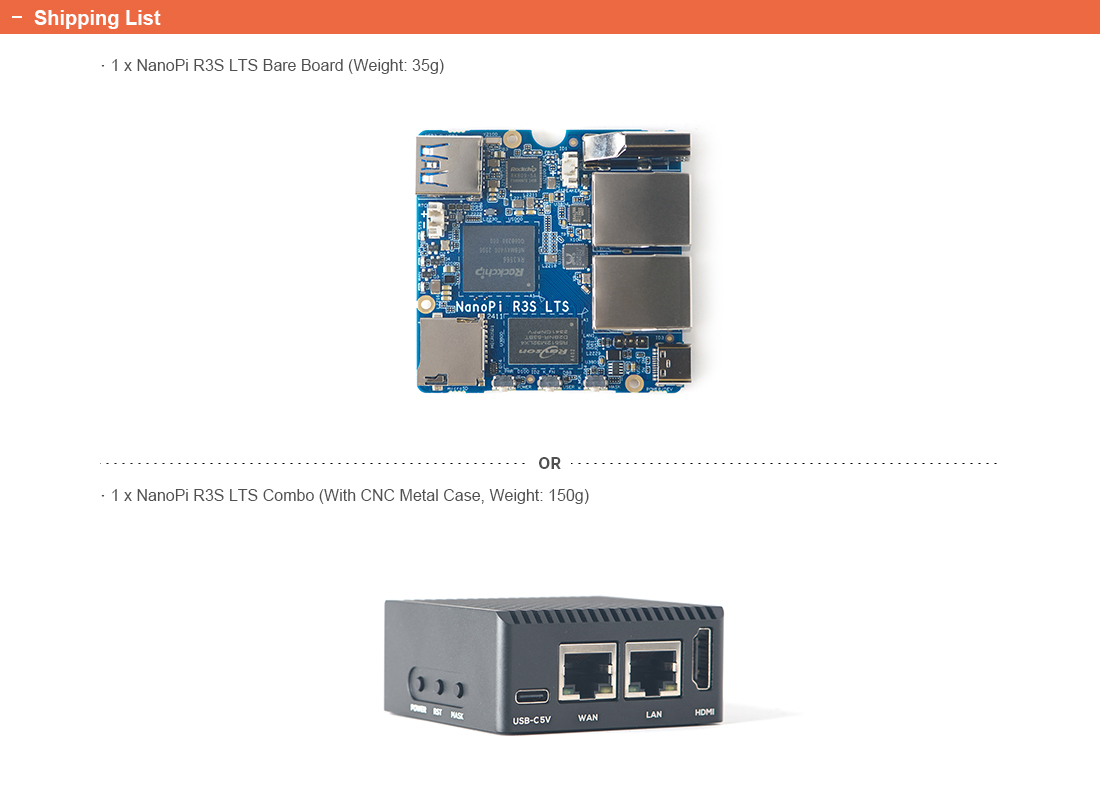

Shipping List

Base on your choice

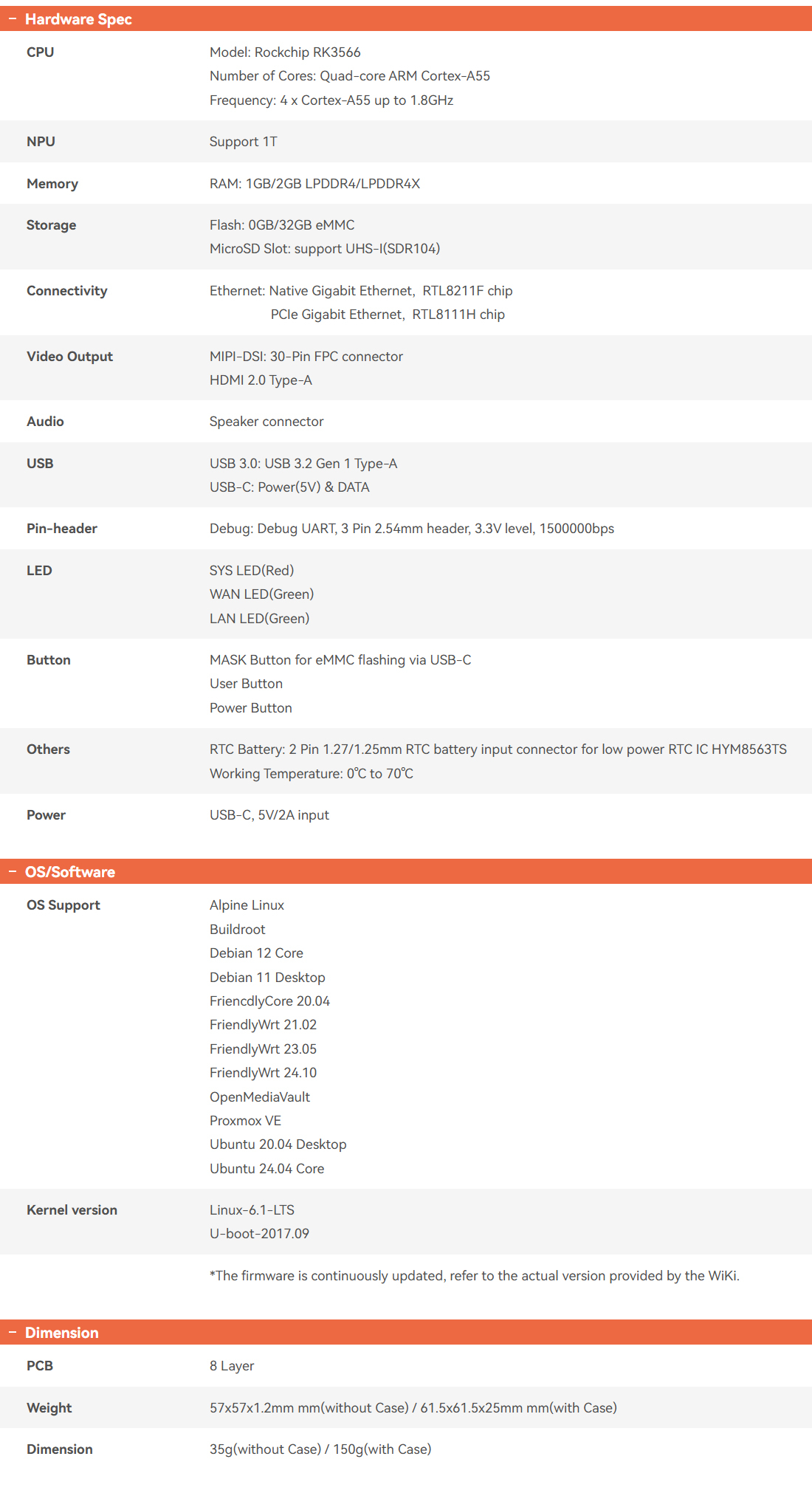

Specification

• CPU: Rockchip RK3566, Quad-core Cortex-A55
• RAM: 1GB/2GB LPDDR4X

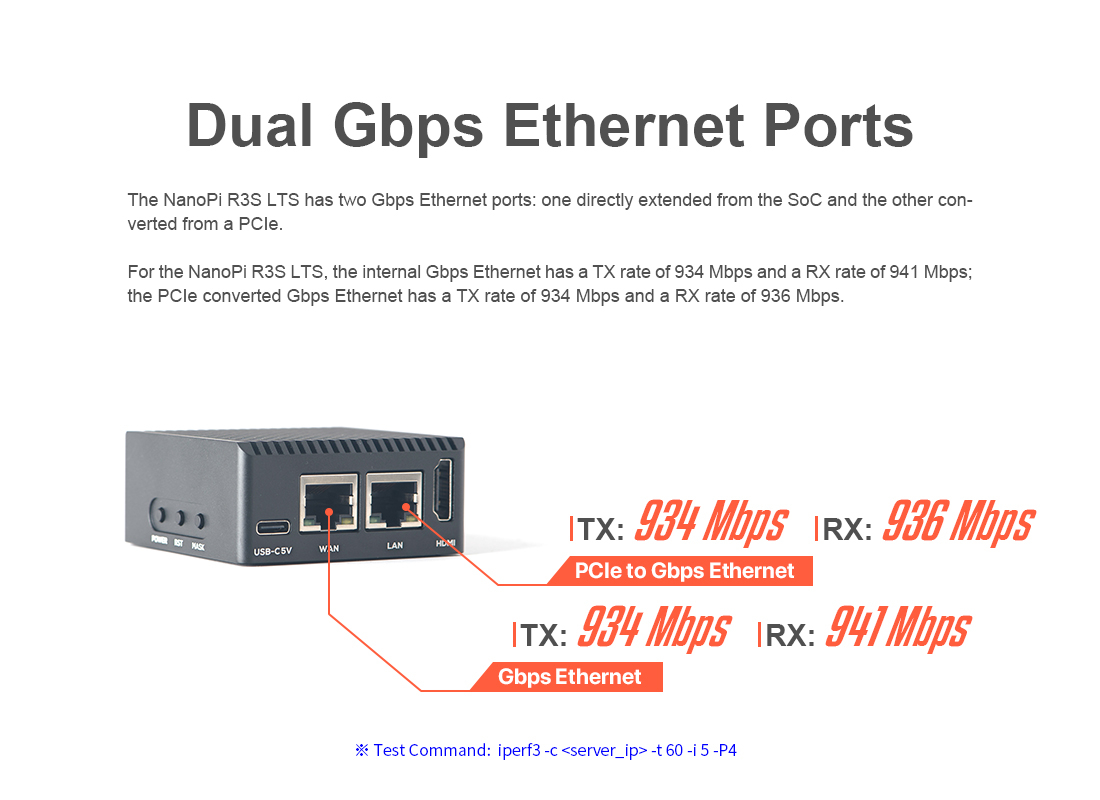

• Ethernet: one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet
• USB3.0 Host: Type-A x1
• Storage: MicroSD Slot x 1, and on-board 32GB eMMC(optional)
• Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds
• LED: LED x 3
• RTC: One low-power RTC, supports backup battery input
• Buttons: 1x User Button, 1x MASK button for eMMC flashing via USB-C
• Display: 1x MIPI-DSI 30-Pin FPC connector
• PCB Size: 57*57*1.2mm
• Power supply: USB-C 5V/2A input
• Temperature measuring range: 0℃ to 80℃

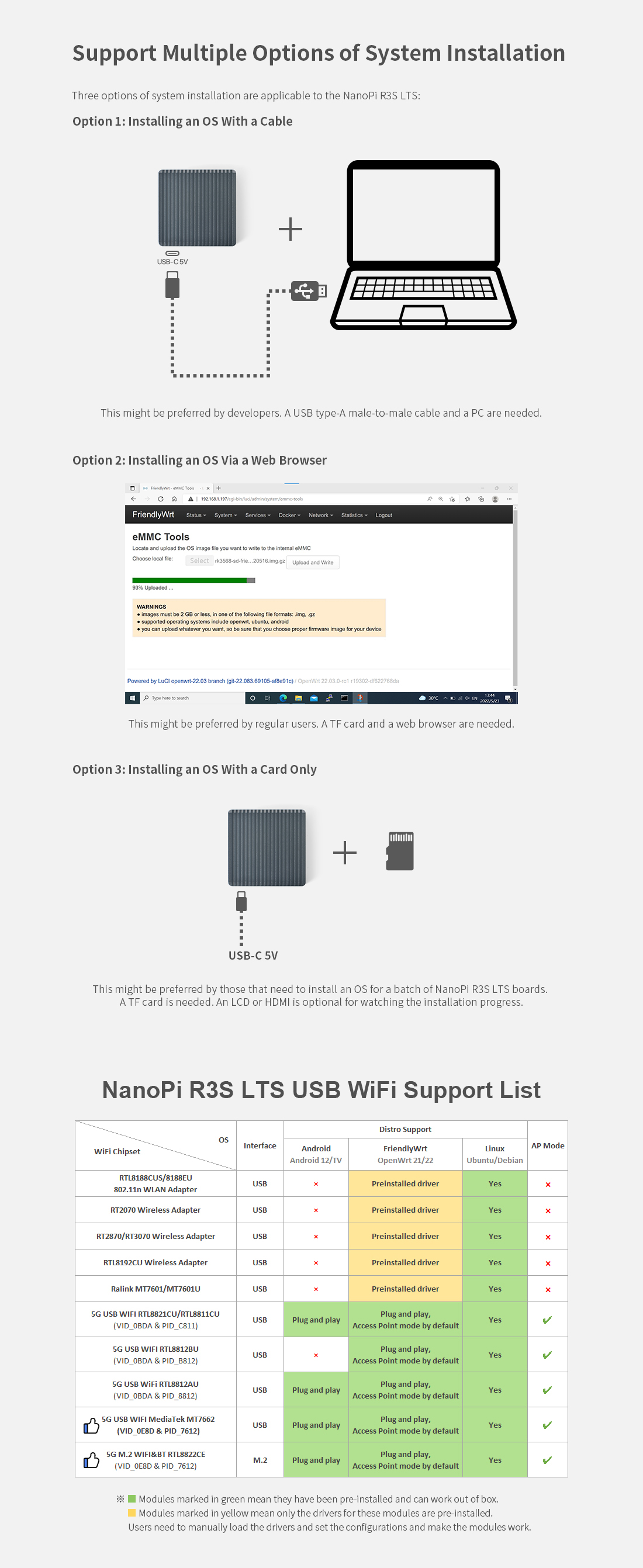

• OS/Software: U-boot, Ubuntu-Core, Debian-Core, OpenMediaVault, OpenWrt

Detailed Descriptions
