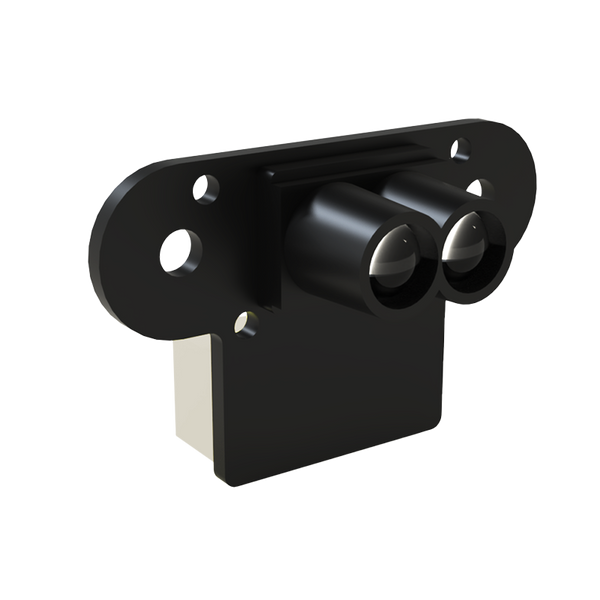

Nooploop TOFSense-F2 MINI 7.8m Micro dTOF Distance Sensor 1g 19mm for Tiny Drone, VR/AR, Wearable IoT

• Quick Start: Click here
• Tips

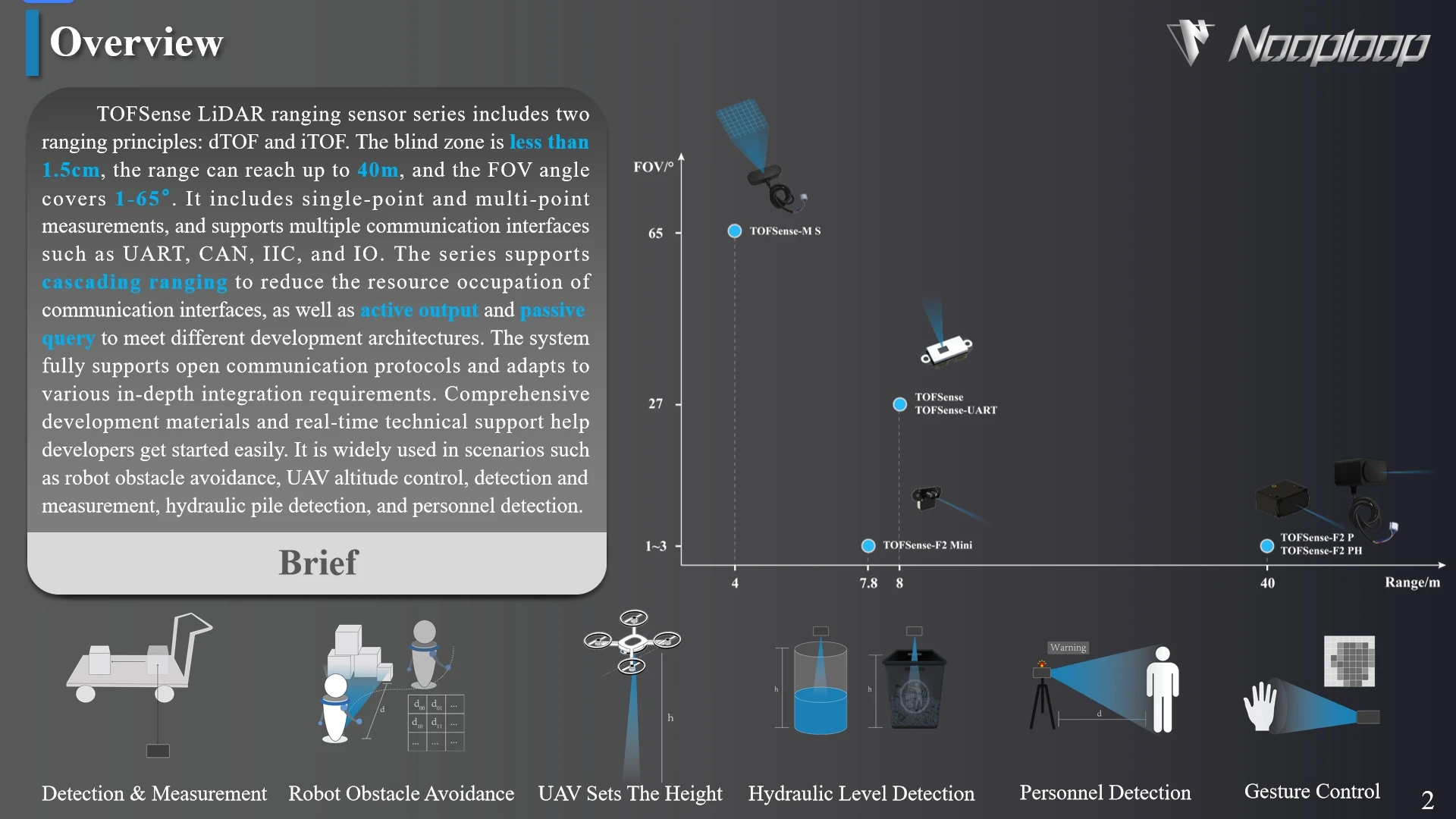

Introduction

Nooploop TOFSense-F2 family gives makers and engineers a plug-and-play direct-Time-of-Flight ranging solution that simply works—sun, rain, dust or dark. From the palm-size 40 m PH module down to the 1-gram 7.8 m MINI, every sensor outputs millimetre-resolution distance at up to 100 Hz through UART, I²C or logic-level I/O. No calibration tables, no complex drivers: send one command and you get stable, temperature-compensated data even when the laser is staring straight at the midday sky. Mount it on a drone for centimetre-perfect altitude hold, clip it to a robot base for 360° collision detection, or embed it inside a smart trash can to sense fill level. With reverse-polarity protection, 4.3-5.2 V supply and 3 mm standard-deviation accuracy, your prototype graduates to production without swapping hardware.

Features

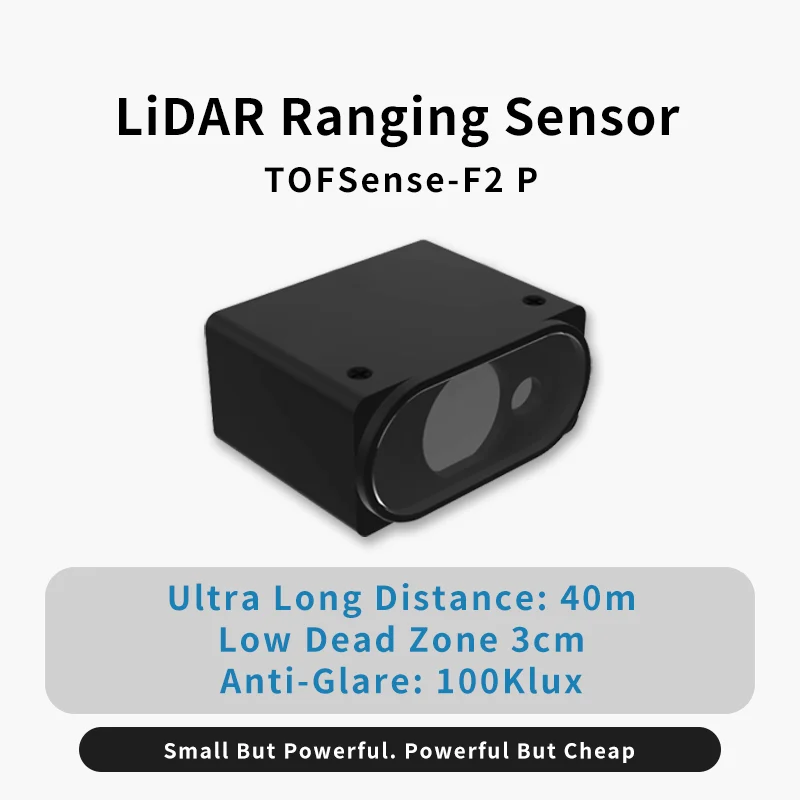

[True 40 m Range] PH & P versions deliver 0.05-40 m indoor/outdoor with 1 mm resolution—cover entire warehouse aisles or long corridors in one shot.
[Sunlight-Proof] 100 klux ambient-light immunity keeps readings stable under direct noon sun; no extra shade or cover needed.
[IP68 Waterproof] Dust-tight and submersible to 1 m for 30 min; mount on farm tractors, marine buoys or rainy rooftops without fear.
[Triple Interface] UART / I²C / I/O in one board; drop-in upgrade for Arduino, Raspberry Pi, STM32, ESP32 or Pixhawk autopilot.
[100 Hz Speed] Up to 100 Hz refresh on PH & P, 50 Hz on MINI—perfect for real-time obstacle avoidance or fast-moving AGVs.
[Class 1 Eye-Safe] 905 nm laser meets IEC 60825-1; no safety enclosure required for consumer or educational projects.

Shipping List

1× TOFSense-F2 sensor (PH, P or MINI as selected)

Applications

Perfect for drone altitude hold, AGV obstacle avoidance, fill-level monitoring and any outdoor IoT setup that needs reliable 40 m dTOF laser ranging.

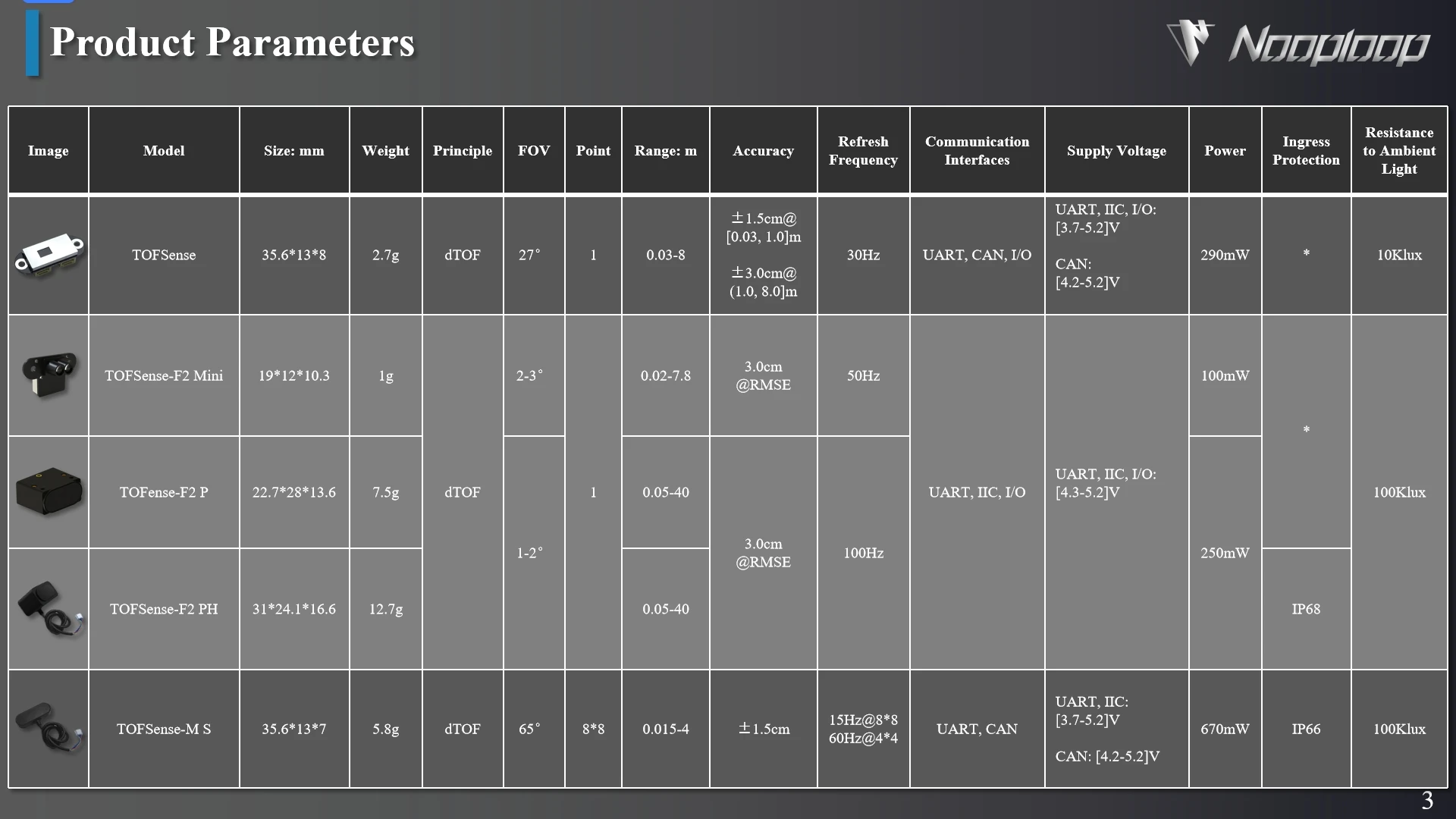

Specification

1. Range: PH & P reach 40 m; Mini stops at 7.8 m.

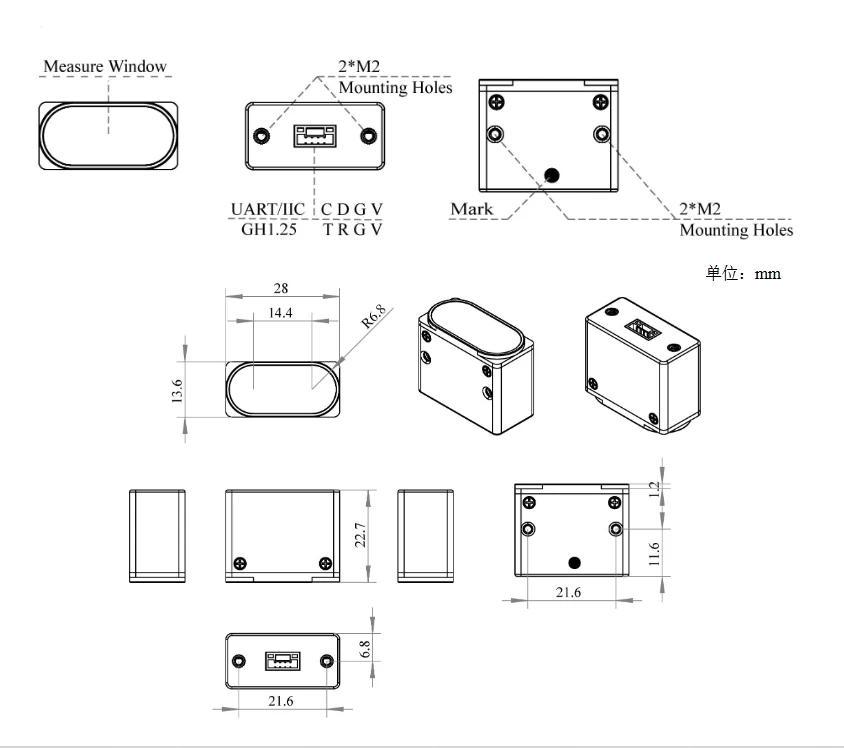

2. Size/Weight: Mini is the smallest & lightest (1 g); PH is the heaviest (12.7 g).
3. Refresh Rate: PH & P up to 100 Hz; Mini max 50 Hz.

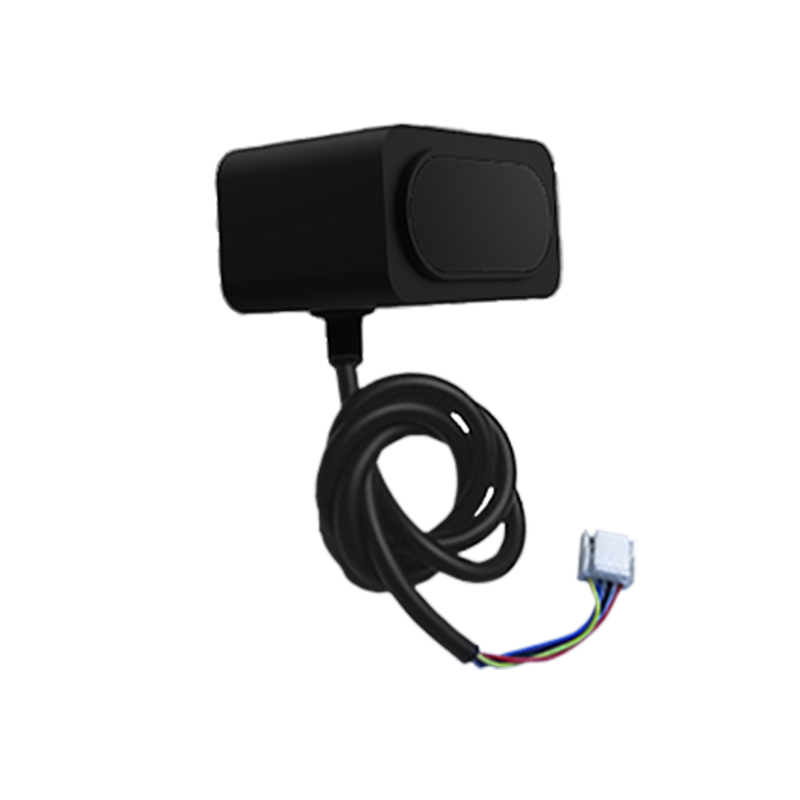

4. Protection: Only PH is officially IP68-rated for harsh outdoors.
5. Power: Mini draws the least (100 mW); PH needs 250 mW.

Detailed Descriptions
