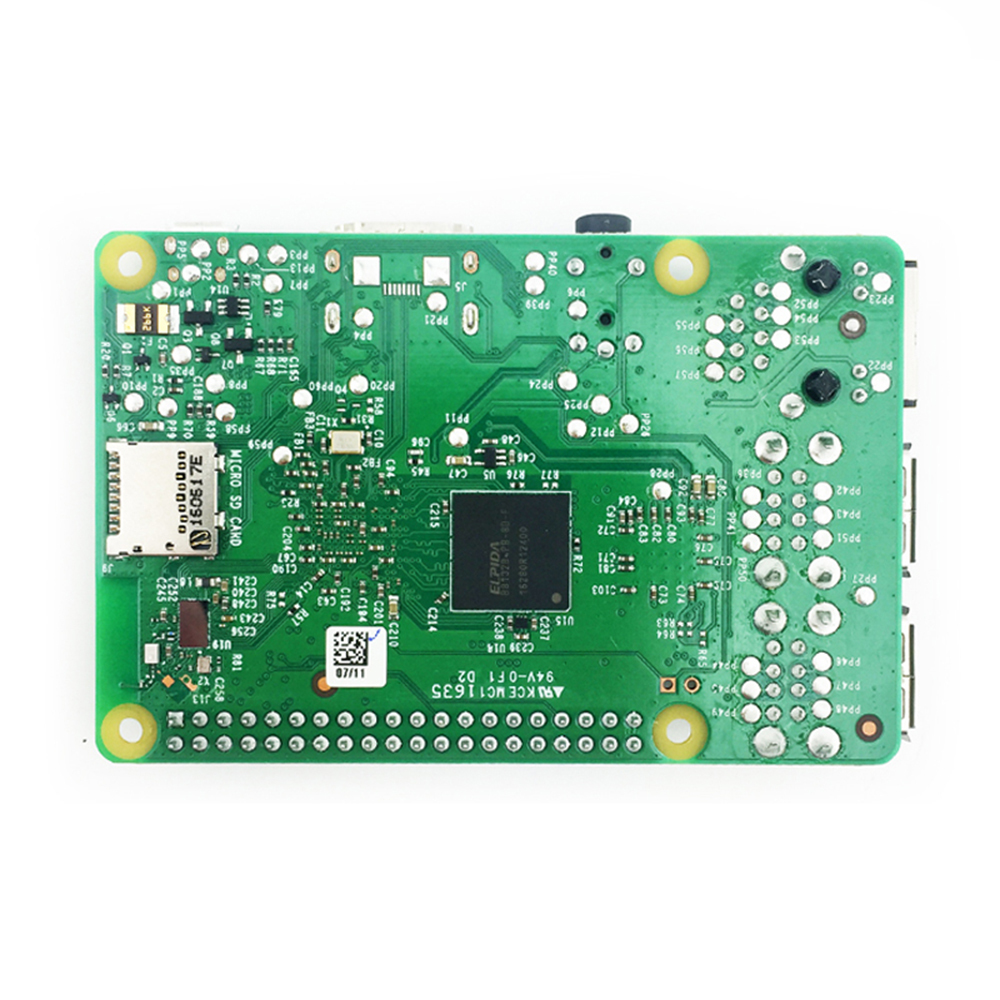

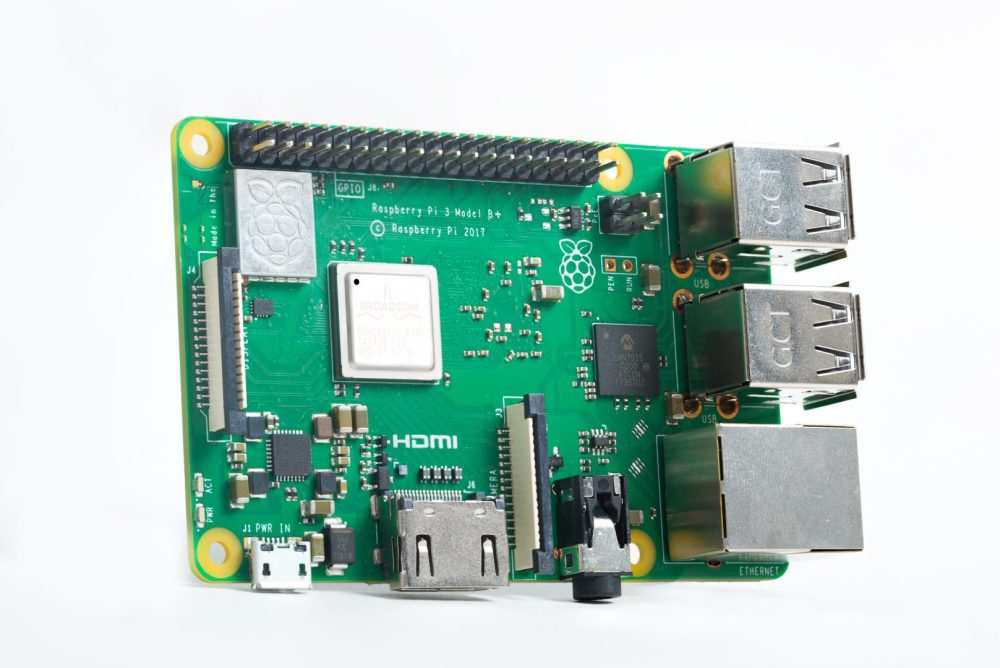

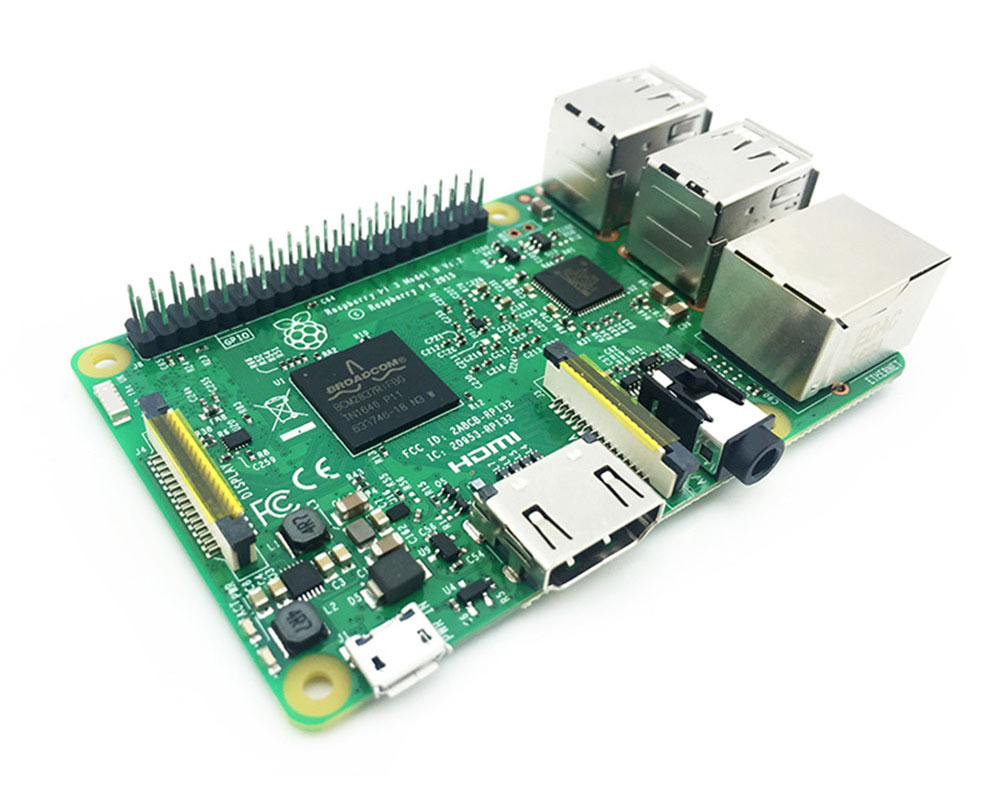

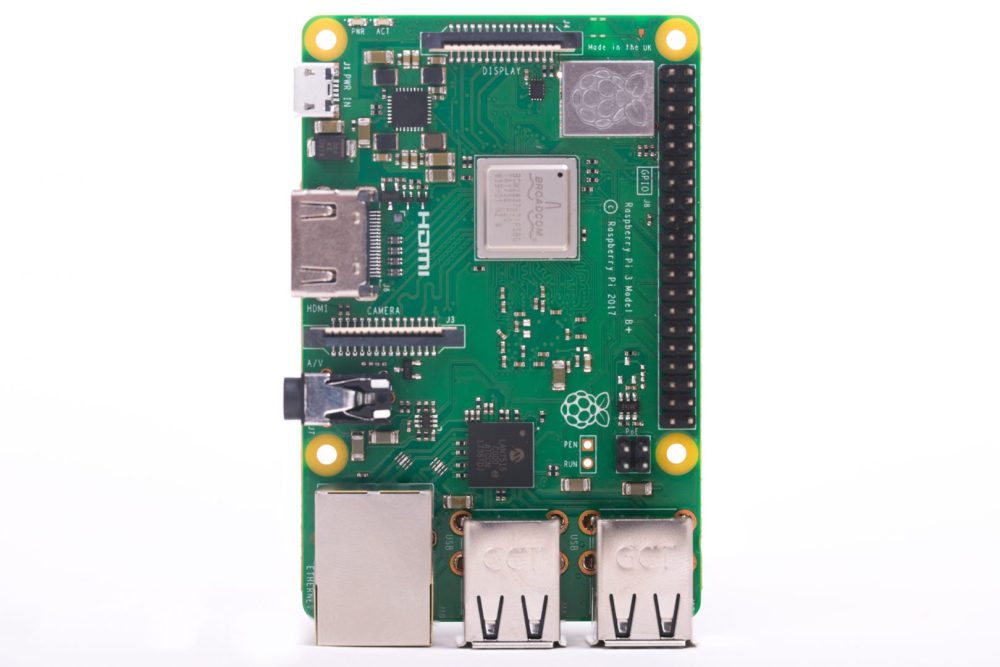

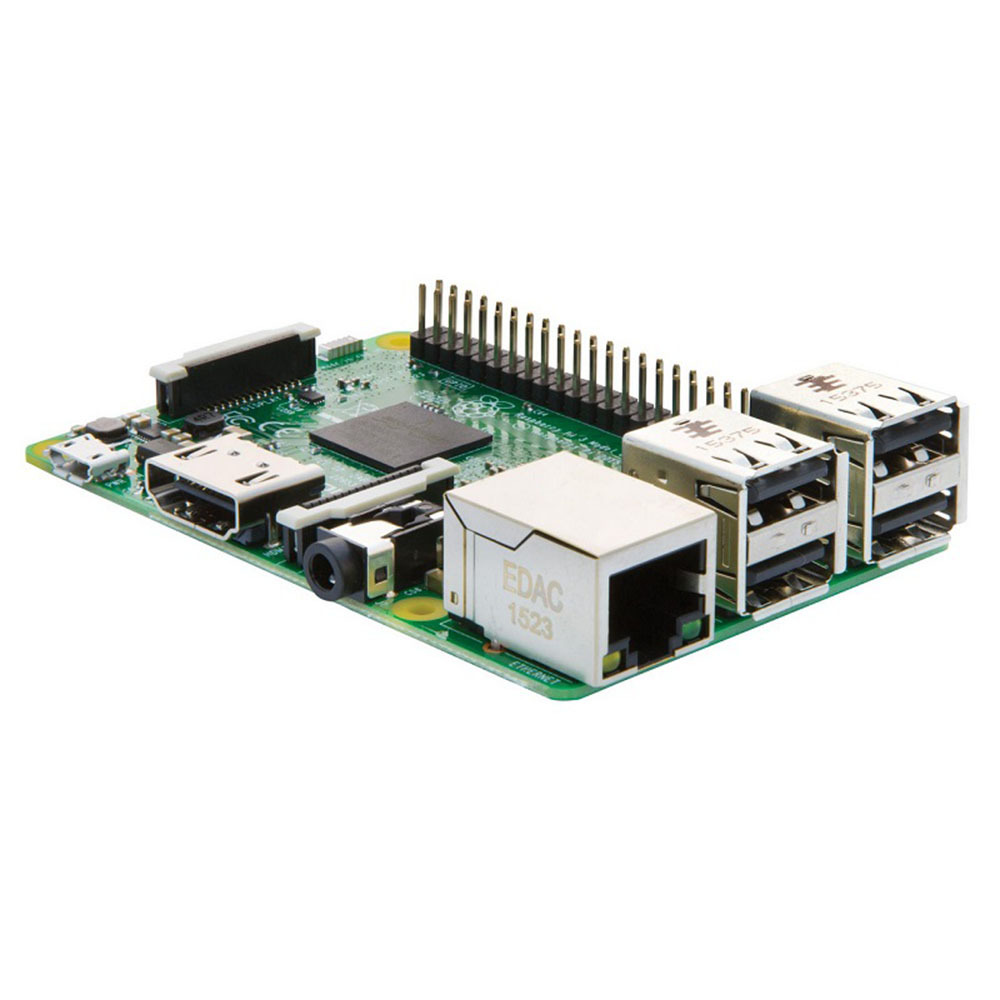

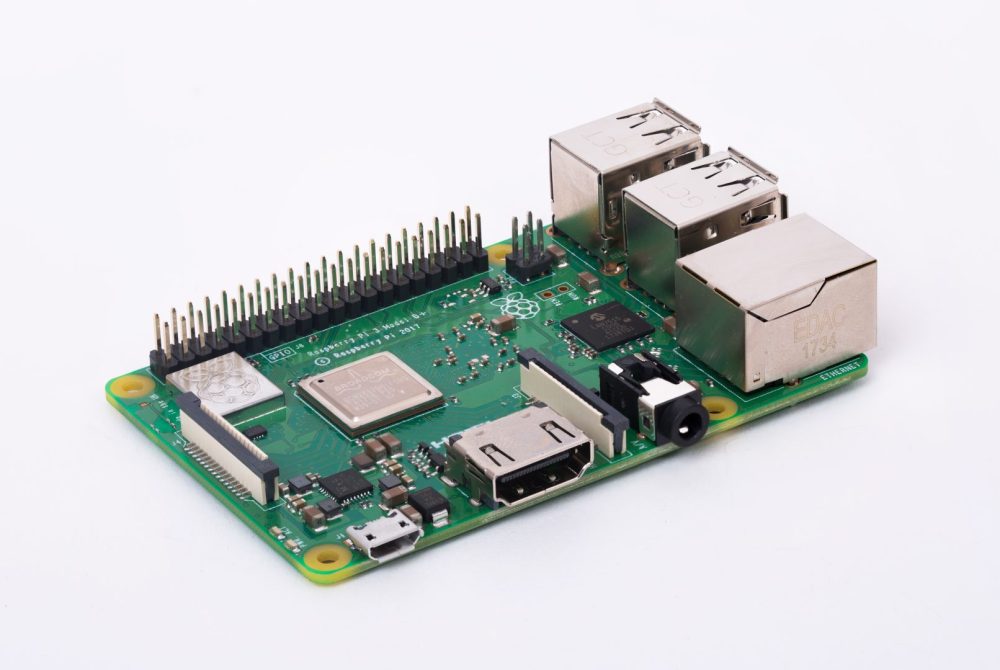

Raspberry Pi 3 Model B/B+

SKU:
The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad-core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.
0.0 (0 Reviews)
$0.00 $43.60
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    3B
    3B+
    Please select the information you wantX
Quantity
-
+
  • Raspberry Pi 3 Model B/B+
  • Raspberry Pi 3 Model B/B+
  • Raspberry Pi 3 Model B/B+
  • Raspberry Pi 3 Model B/B+
  • Raspberry Pi 3 Model B/B+
  • Raspberry Pi 3 Model B/B+
  • Raspberry Pi 3 Model B/B+
  • Raspberry Pi 3 Model B/B+
  • Raspberry Pi 3 Model B/B+
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews
The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad-core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.

The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduce on wireless LAN compliance testing, cost, and time resources. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

FEATURES

  • A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
  • Dual-band 802.11ac wireless LAN and Bluetooth 4.2
  • Faster Ethernet (Gigabit Ethernet over USB 2.0)
  • Power-over-Ethernet support (with separate PoE HAT)
  • Improved PXE network and USB mass-storage booting
  • Improved thermal management


SPECIFICATION

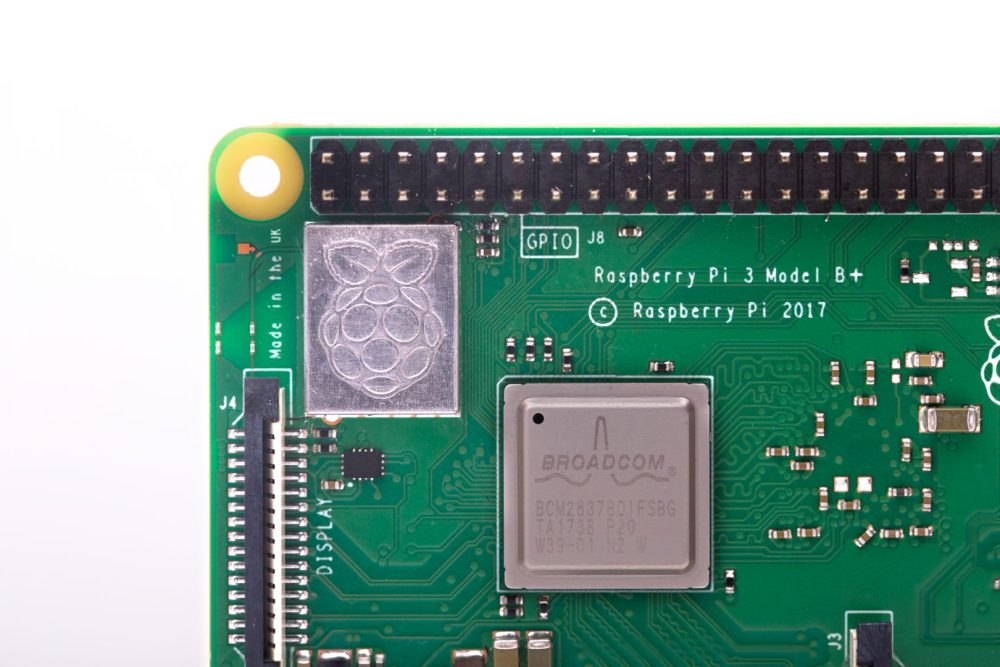

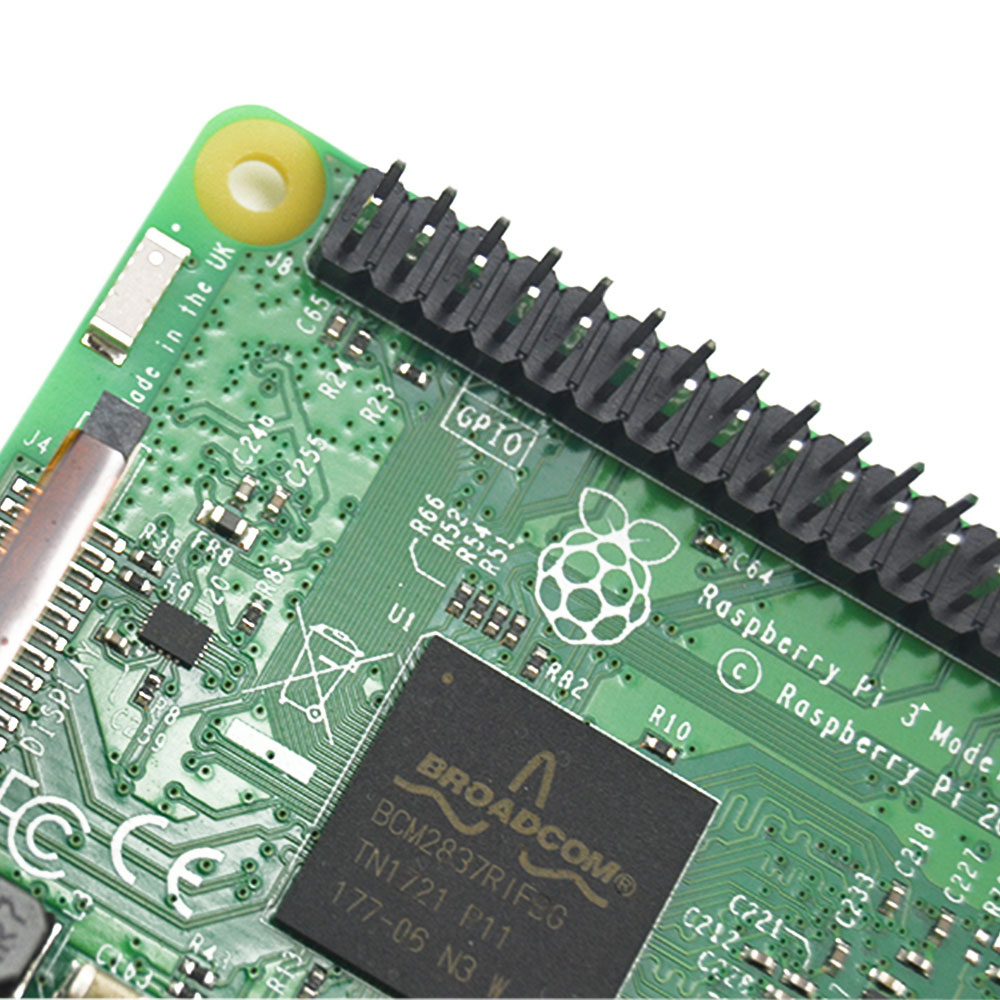

  • Processor: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
  • Memory: 1GB LPDDR2 SDRAM
  • Power Supply: 5V/2.5A DC power input (micro USB)
  • Wireless: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
  • Ethernet: Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
  • GPIOs: Extended 40-pin GPIO header
  • Video Output: Full-size HDMI
  • Audio Output: 4-pole stereo output and composite video port

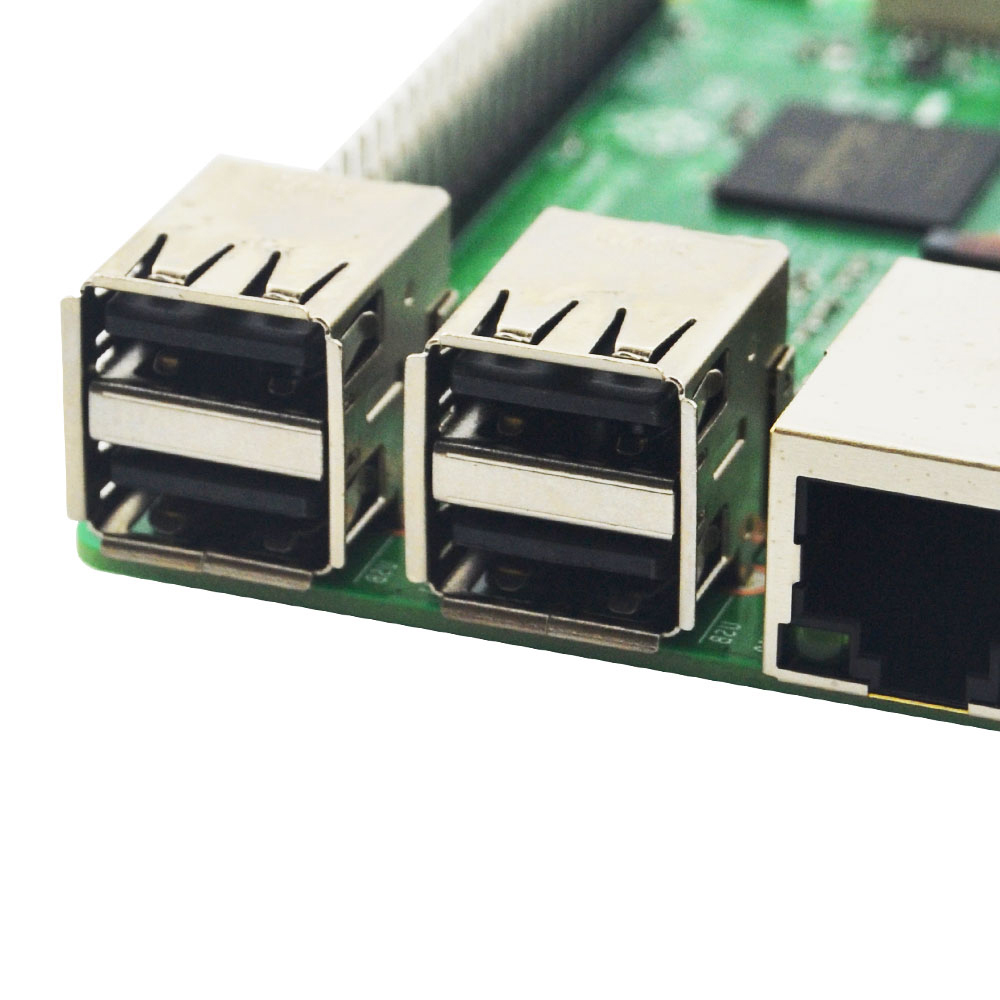

  • USB Port: 4 USB 2.0 ports
  • CSI camera port for connecting a Raspberry Pi camera
  • DSI display port for connecting a Raspberry Pi touchscreen display
  • Micro SD port for loading your operating system and storing data
  • Power-over-Ethernet (PoE) support (requires separate PoE HAT)
  • Operating Temperature: 0~50℃
  • Dimension: 120mm x 75mm x 34mm
  • Weight: 75g

Raspberry_Pi_3B+-1Raspberry_Pi_3B+-2
