Sipeed NanoKVM Cube - IP-KVM PiKVM

• Quick Start:
• Source code: https://github.com/sipeed/NanoKVM
• Tips

  • if you need PCIE version, Please check this link: CN warehouse PCIE version, Amazon US Link, Amazon DE Link Click here
  • If you need USB version, Please check this link: sipeed nanokvmusb, 4k kvm over usb solution

  •

    • Amazon DE Click Here,  | Amazon US Click Here

Introduction

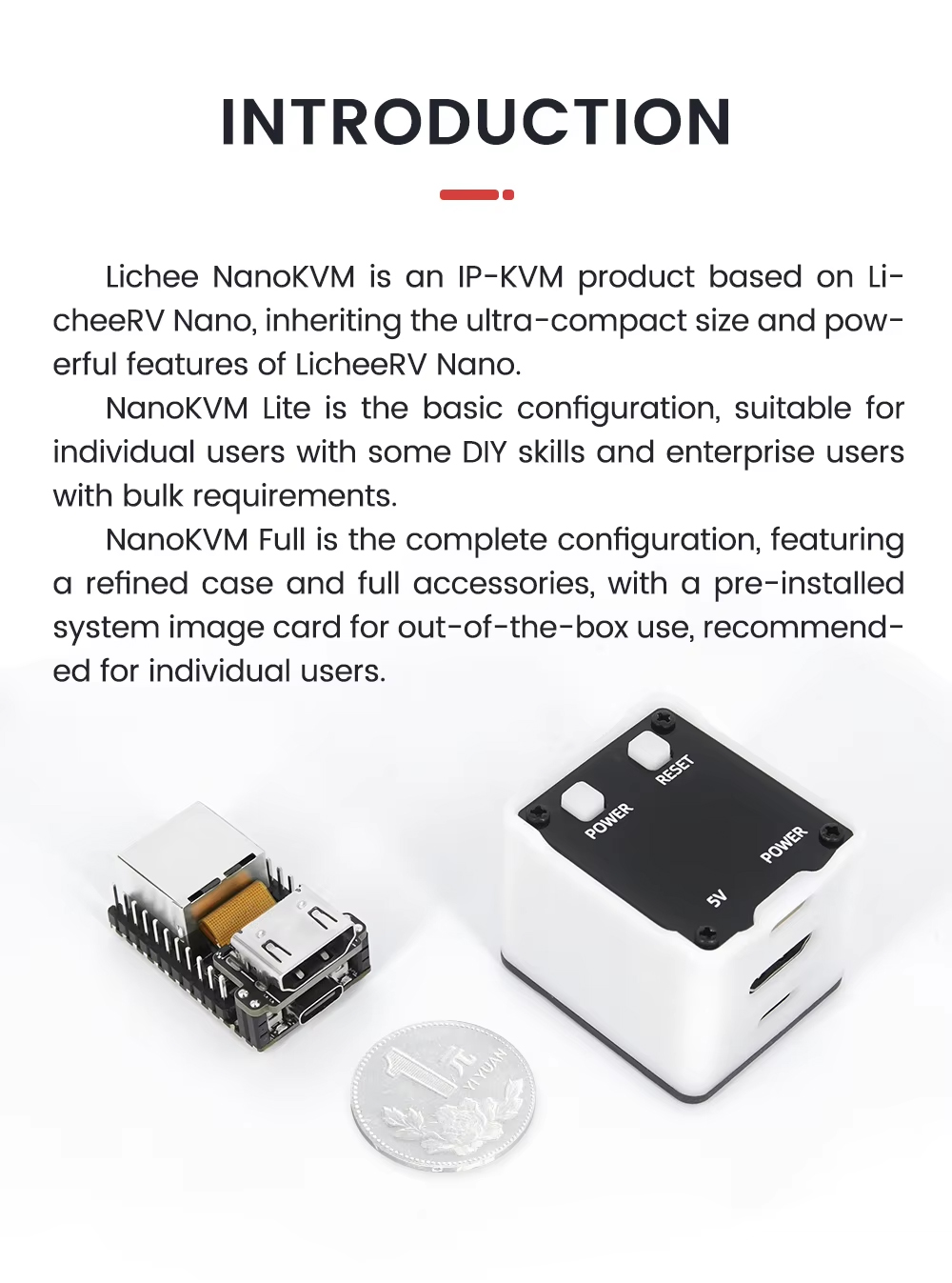

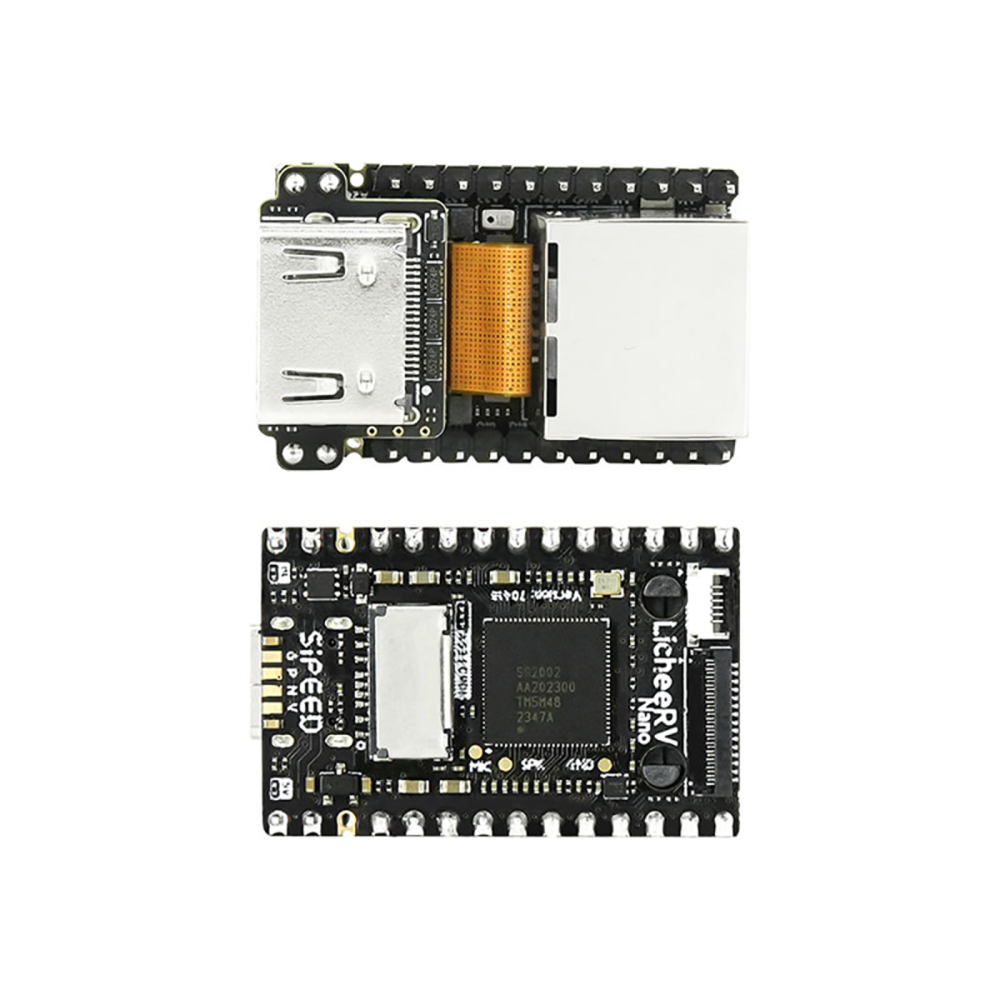

The Lichee NanoKVM is an IP-KVM product based on the LicheeRV Nano, inheriting its compact size and powerful features.

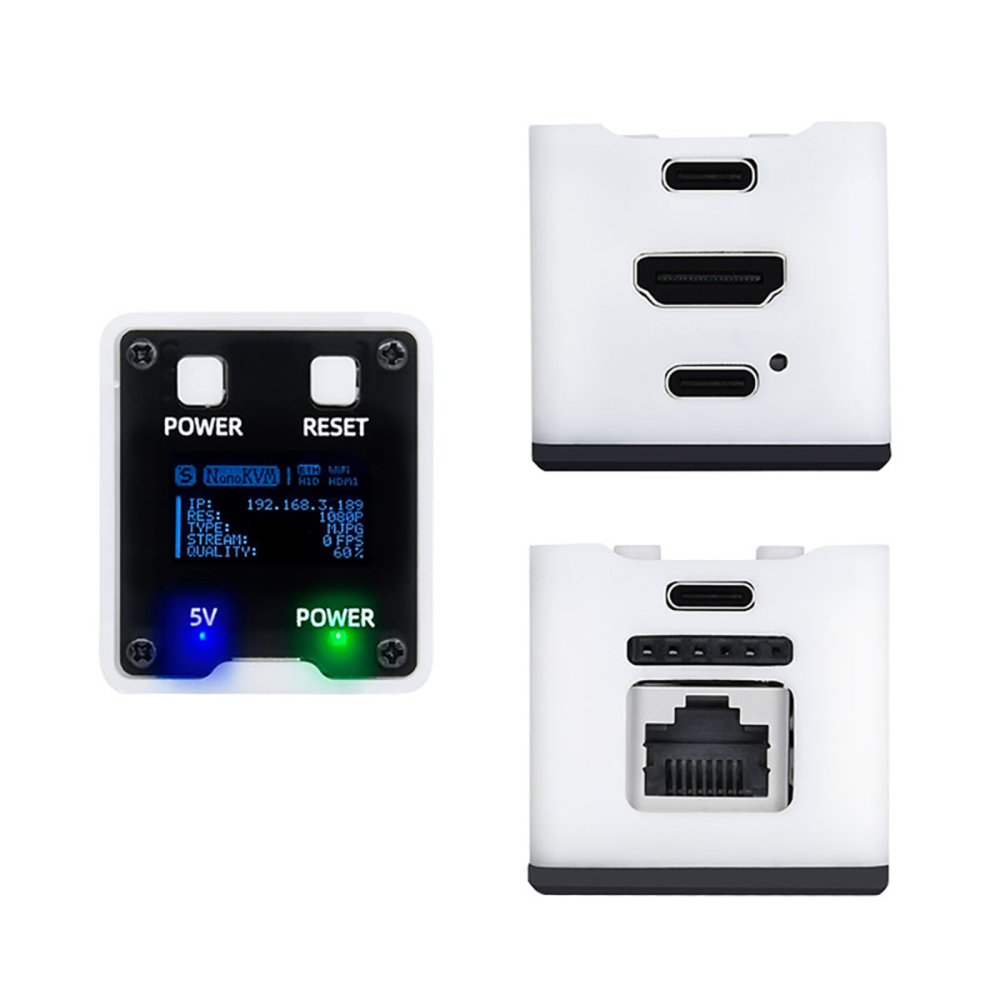

NanoKVM includes an HDMI input interface that can be recognized as a monitor by a computer, capturing the computer's screen. It has a USB 2.0 interface to connect to the computer host, is recognized as an HID device like a keyboard, mouse, and touchpad, and uses extra storage space on the Micro SD card, mounted as a USB flash drive. It comes with a 100 Mbps Ethernet port for video and control signal transmission. Additionally, the Full version features an ATX power control interface (USB-C form) for remote control and monitoring of the host's power status. Under the full version's shell, there is an OLED display showing the device's IP and KVM-related status.

Features

• Server Management: For real-time monitoring and control of servers.
• Remote Desktop and Power Control: Provides remote control functionality without requiring the host to be networked or run specific software.
• Remote Installation: Simulates a USB flash drive to mount installation images and set up the system, also allows BIOS access.
• Remote Serial Port (Not exposed in Full beta version): Provides two serial ports for IPMI use or connecting other development boards for web-based serial terminal interaction. More features are coming soon (e.g., live streaming), stay tuned.

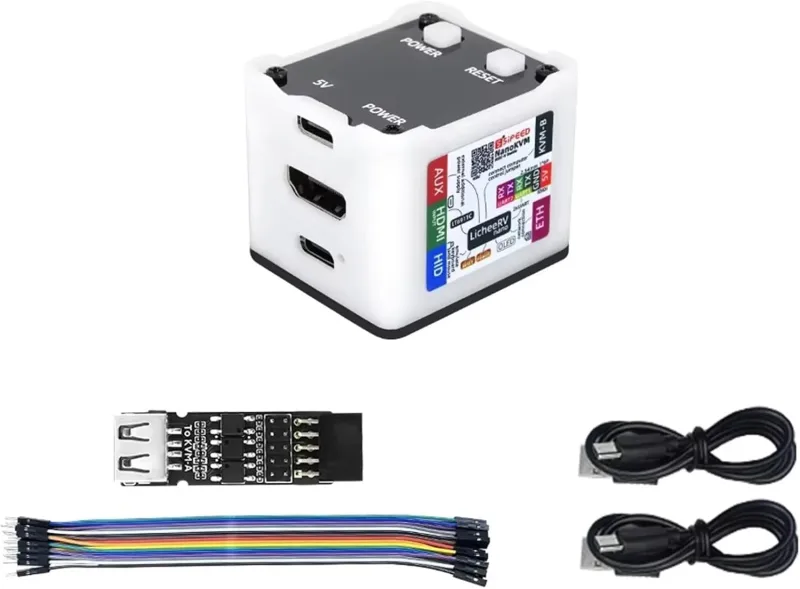

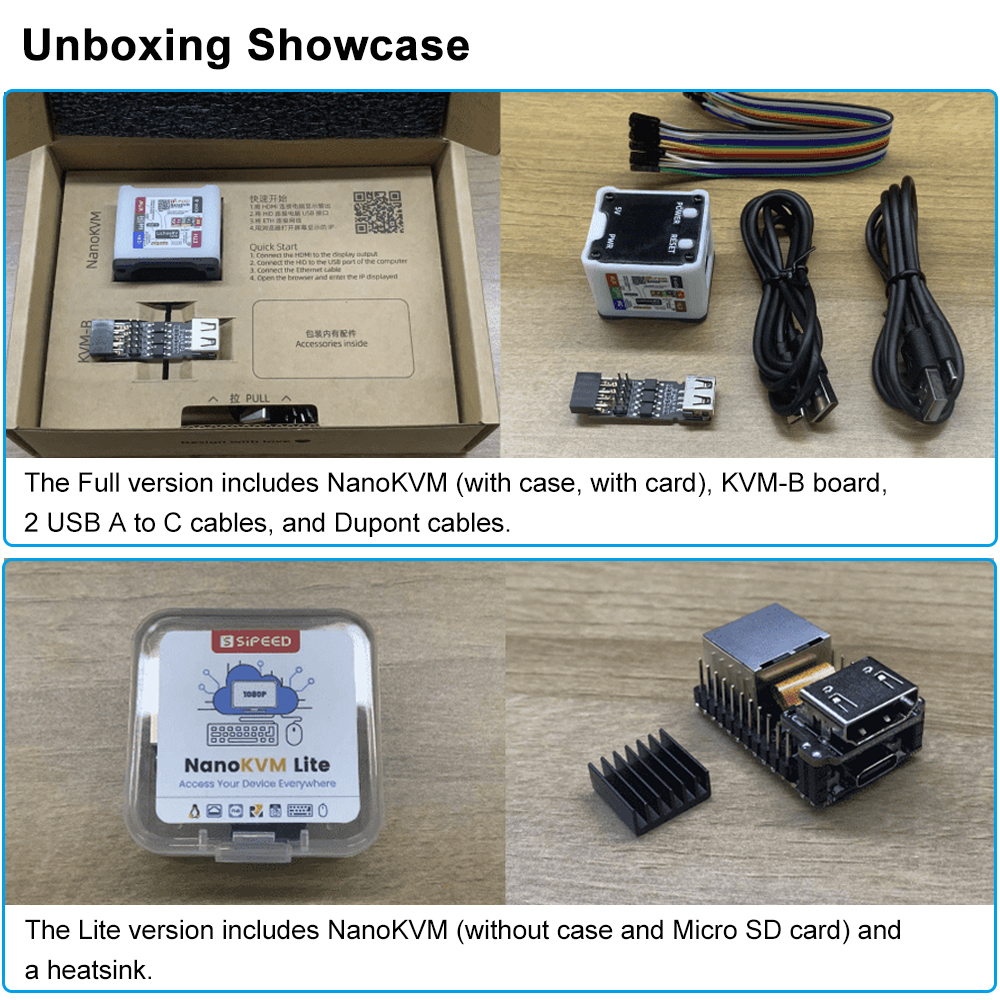

Shipping List

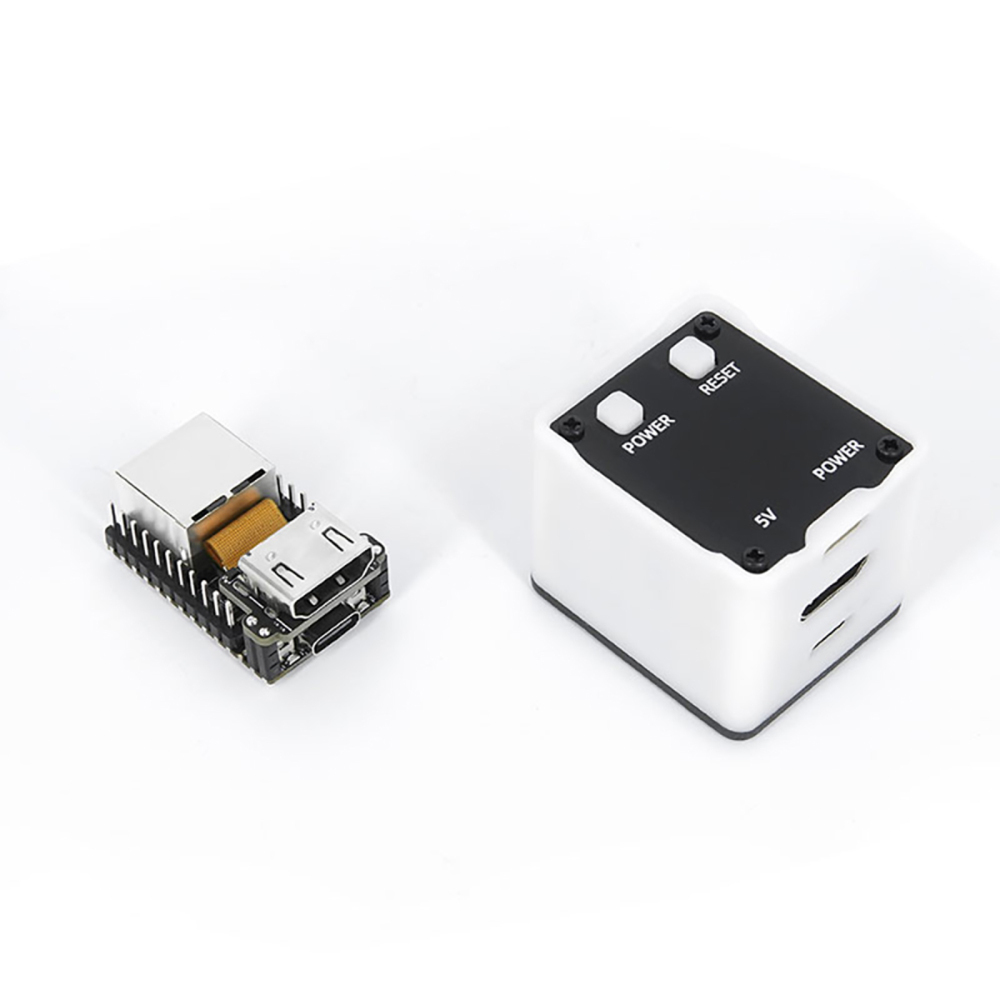

• NanoKVM Lite: Basic version suitable for DIY enthusiasts and enterprises with bulk requirements.
• NanoKVM Full: Complete version with a sleek shell and full accessories, including a pre-installed system image card, recommended for individual users.

Specification

Detailed Descriptions
