Sipeed Tang Mega 138K Pro Dock GOWIN GW5AST RISC-V FPGA Development Board

SKU: SPDP138K0002
Tang Mega 138K uses the 22nm process GW5AST-LV138FPG676A FPGA chip, which has 138240 lookup table units and nearly 300 DSP units.
Includes eight high-speed transceivers with speeds from 270Mbps to 12.5Gbps, suitable for transferring data via high-speed ports such as fiber optic or PCIE.
In addition, the chip includes hardcore PCI, which consumes more resources when using PCIE and achieves better performance.
Suitable for high-speed communication, protocol conversion, high-performance calculator and other occasions.
0.0 (0 Reviews)
$222.62 $192.67
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • MODEL:
    138K Basic Package
    138k LCD Kits
    Please select the information you wantX
Quantity
-
+
  • Sipeed Tang Mega 138K Pro Dock GOWIN GW5AST RISC-V FPGA Development Board
  • Sipeed Tang Mega 138K Pro Dock GOWIN GW5AST RISC-V FPGA Development Board
  • Sipeed Tang Mega 138K Pro Dock GOWIN GW5AST RISC-V FPGA Development Board
  • Sipeed Tang Mega 138K Pro Dock GOWIN GW5AST RISC-V FPGA Development Board
  • Sipeed Tang Mega 138K Pro Dock GOWIN GW5AST RISC-V FPGA Development Board
  • Sipeed Tang Mega 138K Pro Dock GOWIN GW5AST RISC-V FPGA Development Board
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

Sipeed Tang Mega 138K Pro Dock


  • Quick?Start:WIKI
  • Tips

Introduction

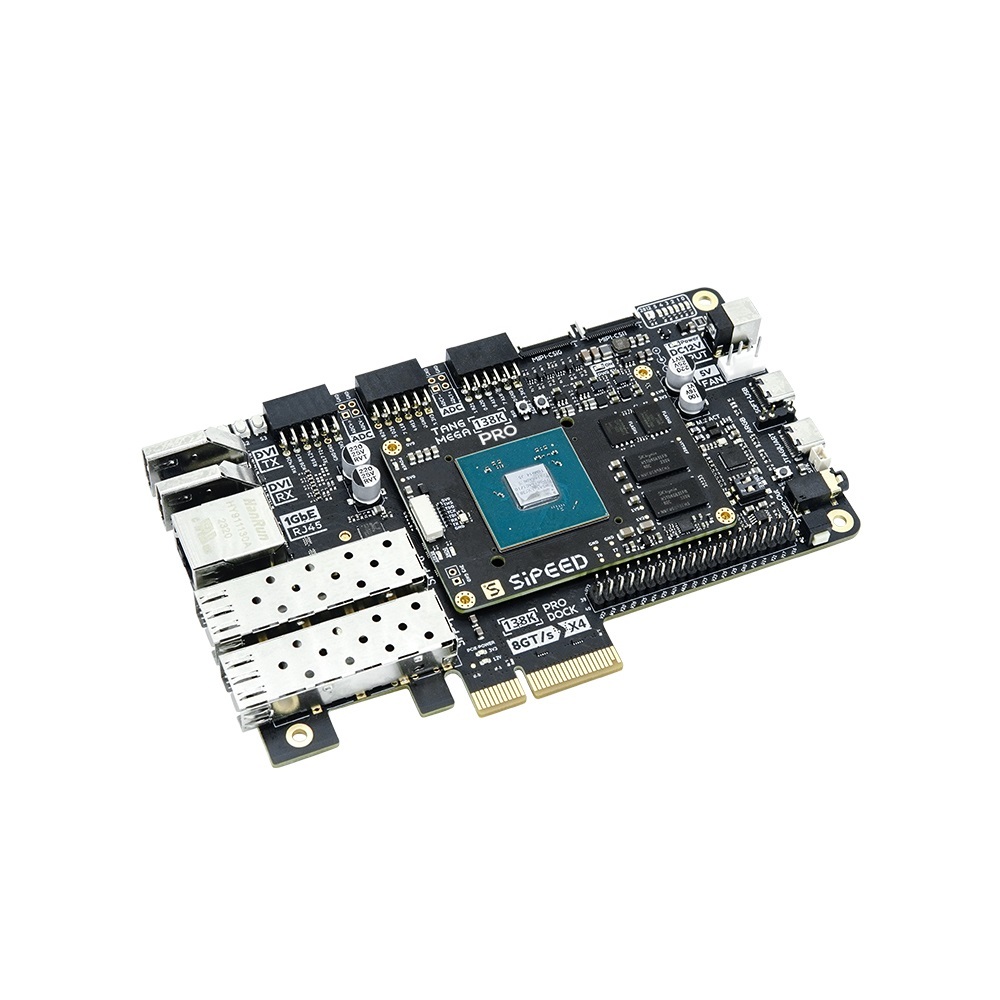

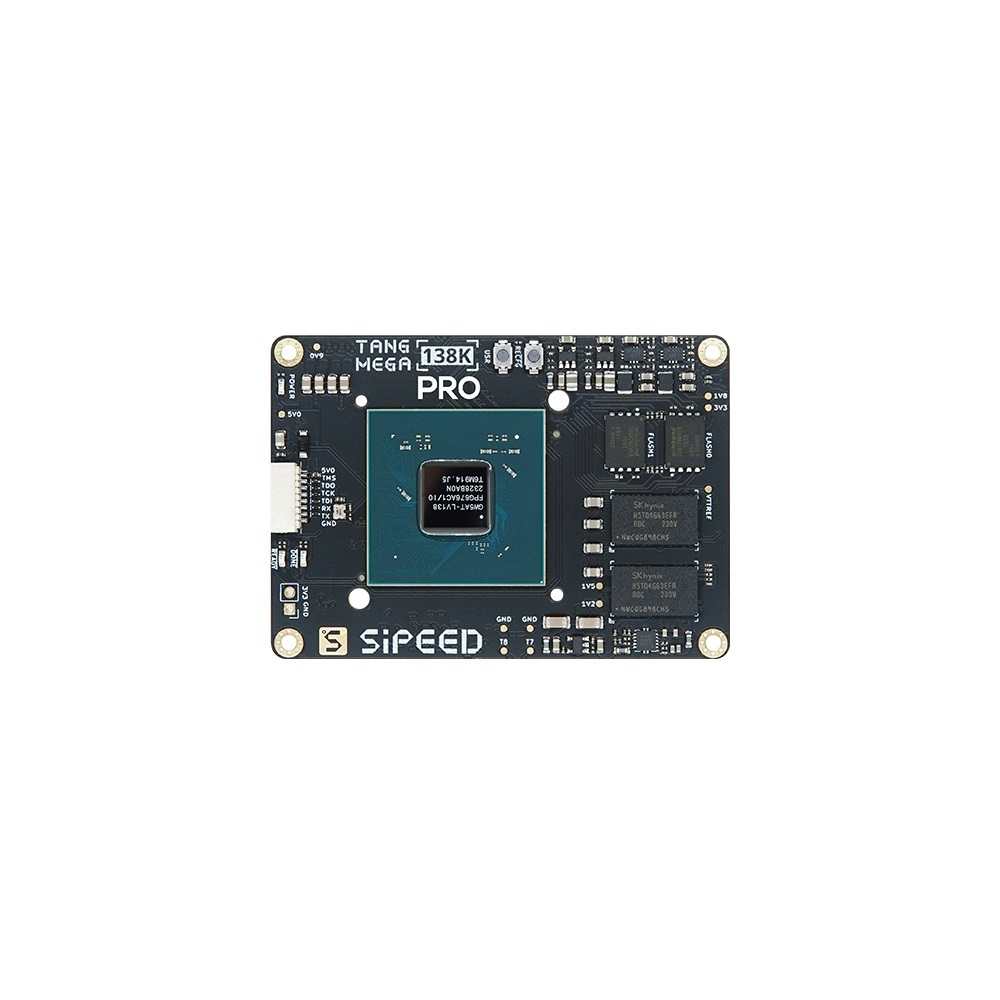

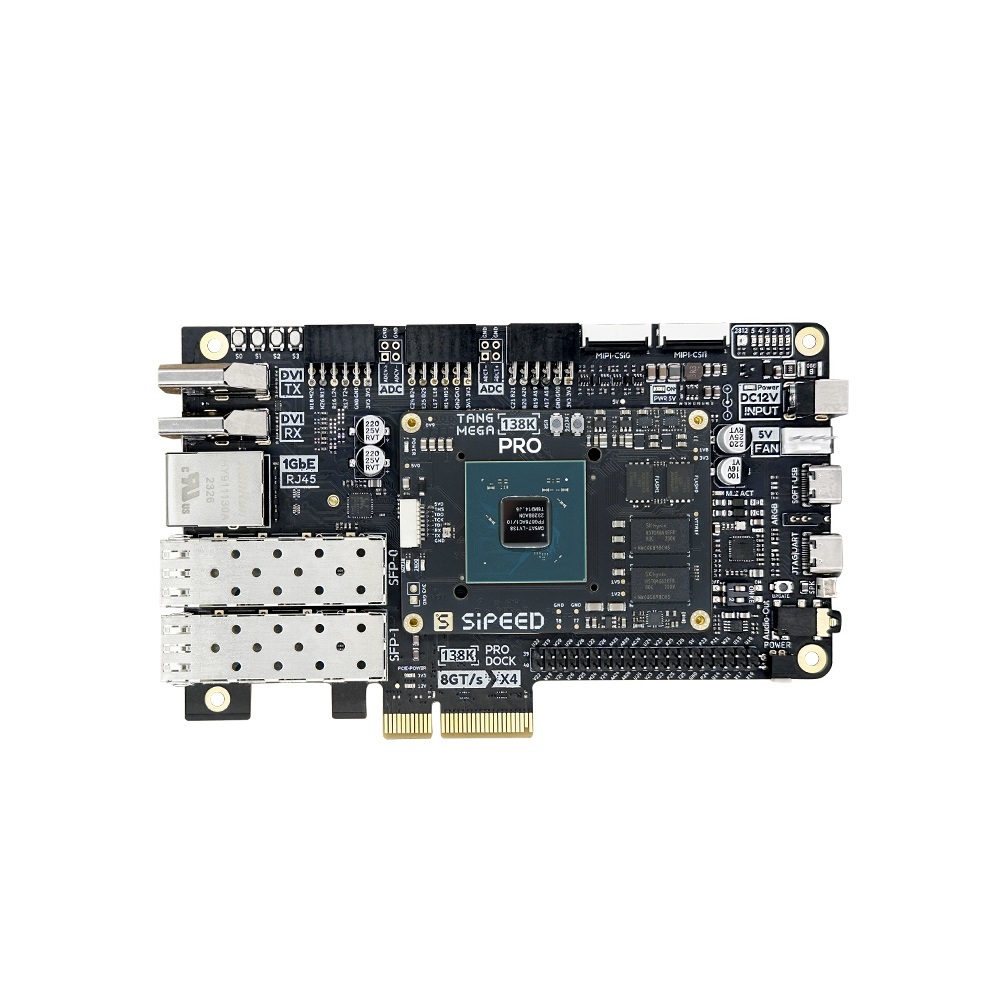

Tang Mega 138K Pro SoM uses GW5AST-LV138FPG676A FPGA as the main chip. The chip has 138240 LuT4 and REGs and 12 integrated PLLs. lt also has a series of resources to meet various functional needs. The SoM board size is 50mm x70mm and use 3 BTB connector to connect the dock board.Tang Mega 138K Pro Dock board has Gigabit Ethernet,SFP+ and PCle interfaces. lt is suitable for learning and verifying FPGA high-speed communication. Meanwhile,multiple camera interfaces and display interfaces can be easily used for image collection and display.

Features


  • Large capacity LUT
    Large capacity memory
    PCIE3.0 x 4
    SFP+ x 2
    RISCV hard core

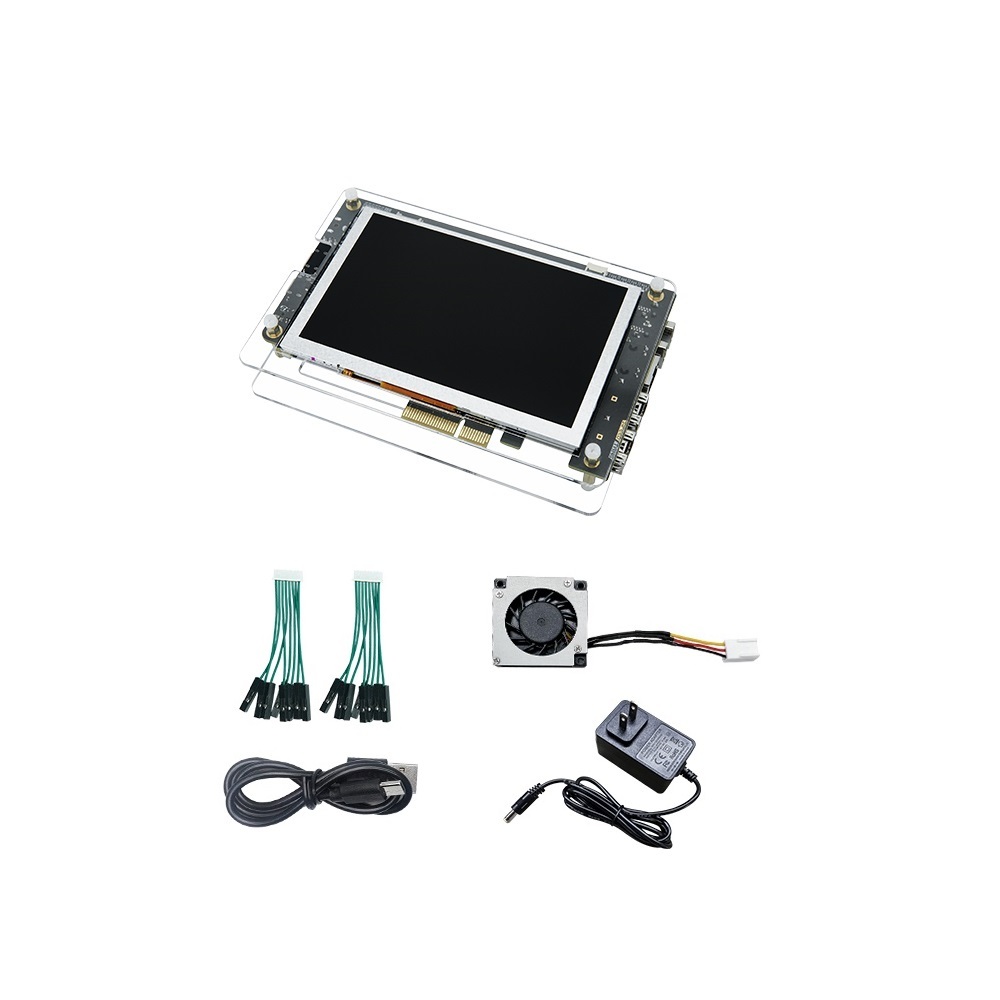

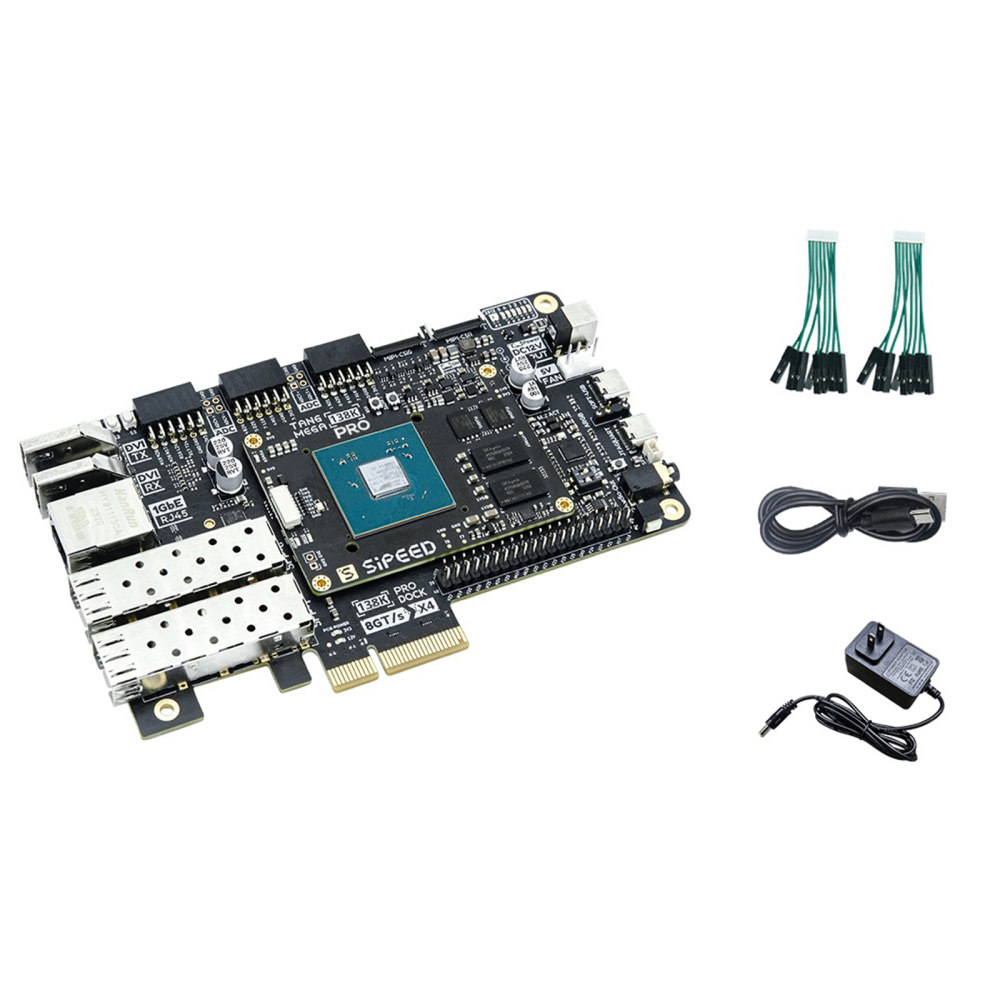

Shipping List


check below detail
