Synexens CS30, RGBD Depth Camera with ToF Tech, High Precision & Wide FOV for 3D Modeling/Robotic Applications

• Quick Start
• Tips

Introduction

The Synexens CS30 is a high-performance RGBD depth camera designed for industrial and robotic applications. Utilizing advanced ToF technology, it provides accurate and reliable depth sensing capabilities. The camera delivers synchronized depth and color images with high resolution and wide FOV, making it suitable for 3D modeling, obstacle avoidance, industrial inspection, and more. Its user-friendly design with a USB Type-C interface and supported SDK allows for easy integration and development. The low power consumption and compact size make it an ideal choice for a variety of applications. Whether you are developing robotic vision systems, industrial automation solutions, or 3D modeling projects, the Synexens CS30 offers the depth sensing performance you need.

Features

• [High-Precision Measurement] Equipped with ToF technology and a 640×480 depth image sensor, the Synexens CS30 delivers precise depth data with a typical measurement range of 0.1–5 meters. It offers high accuracy of ±2.5cm at 0.1–0.5m and ±1% at 0.5–5m (at 90% reflectivity), ensuring reliable results for industrial and robotic applications.
• [Wide Field of View] Features a depth image FOV of H100°×V75° and a color image FOV of H97°×V59.5°, allowing for broad coverage in a single frame. The RGBD fusion FOV of H91.5°×V59° makes it ideal for 3D modeling and environmental perception tasks.
• [Depth and Color Image Synchronization] Provides synchronized output of depth and color images. With a depth image resolution of 640×480 and a color image resolution of 1920×1080, it captures rich details, enhancing the depth and color information available for each scene.
• [User-Friendly Design] Powered and transmits data via a USB Type-C interface, supporting plug-and-play functionality. It also includes an SDK that supports multiple platforms such as Windows and Linux, enabling quick integration and development for users.
• [Low Power Consumption and Compact Size] With an average power consumption of just 3W, it is energy-efficient and suitable for battery-powered devices. Its compact dimensions of 90mm×25mm×25mm and lightweight design make it easy to integrate into various devices and systems.

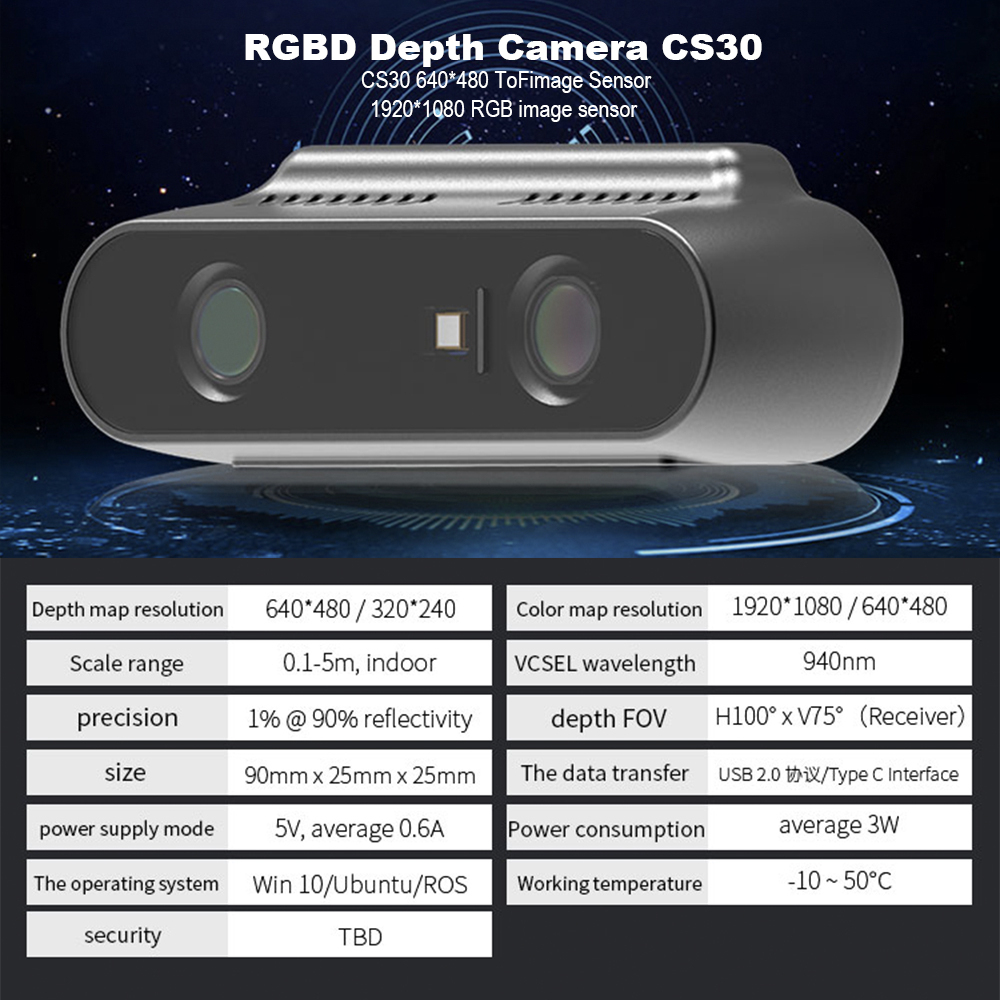

Specification

Detailed Descriptions
