12V PoE module for youyeetoo X1 - 30W/ 60W / 72W

SKU: TDDPPOE00002
12V PoE module for youyeetoo X1
By default, a 4mm high converter chip is used. Only support 30W module-12V2A.
If you need to use 60W/72W module, need to customize it separately. Use 8mm high conversion chip.
0.0 (0 Reviews)
$0.00 $13.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • PoE Module:
    30W
    30W
    60W
    60W
    72W
    72W
Quantity
-
+
  • 12V PoE module for youyeetoo X1 - 30W/ 60W / 72W
  • 12V PoE module for youyeetoo X1 - 30W/ 60W / 72W
  • 12V PoE module for youyeetoo X1 - 30W/ 60W / 72W
  • 12V PoE module for youyeetoo X1 - 30W/ 60W / 72W
  • 12V PoE module for youyeetoo X1 - 30W/ 60W / 72W
  • 12V PoE module for youyeetoo X1 - 30W/ 60W / 72W
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

12V PoE module for youyeetoo X1


WIKI: https://wiki.youyeetoo.com/en/x1/FAQ/PoE

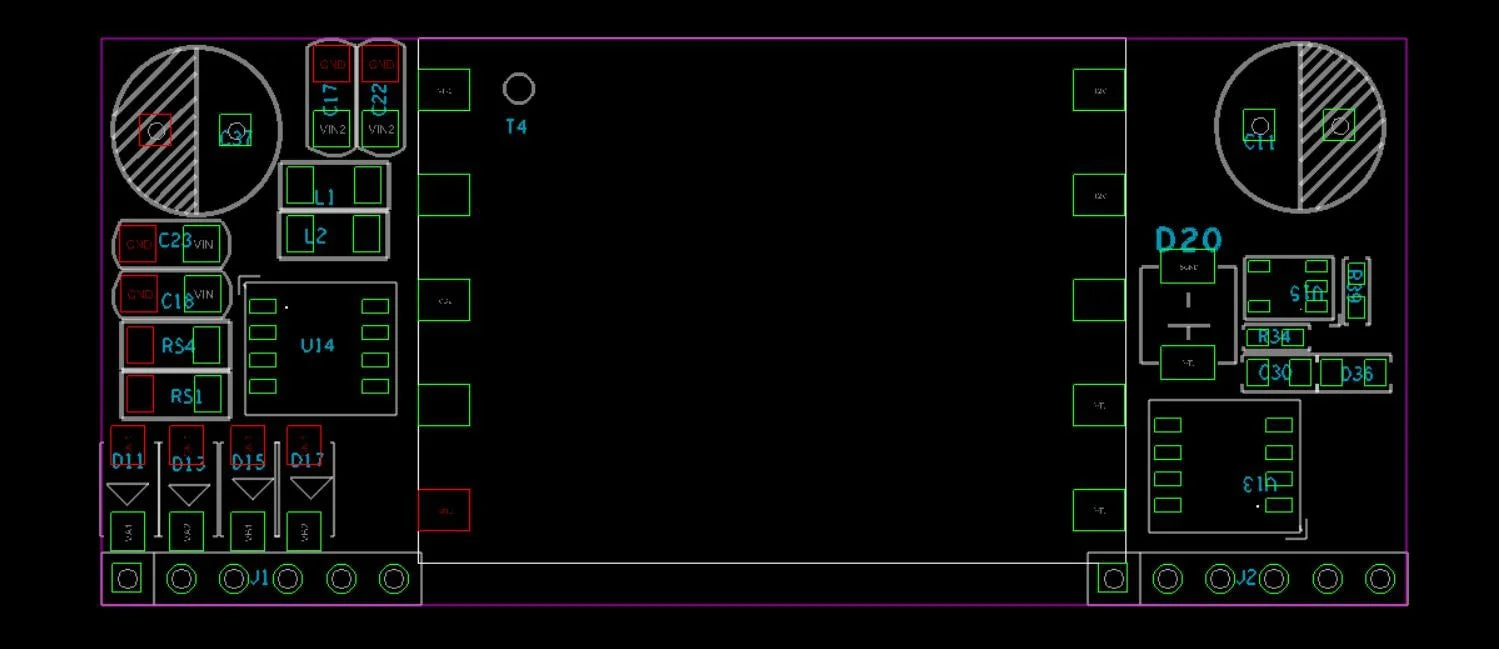

TIPS:

By default, a 4mm high converter chip is used. Only support 30W module-12V2A.

If you need to use 60W/72W module, need to customize it separately. Use 8mm high conversion chip.


1. 30W Datasheet click here
2. 60W Datasheet click here
3. 72W Datasheet click here


DESCRIPTION

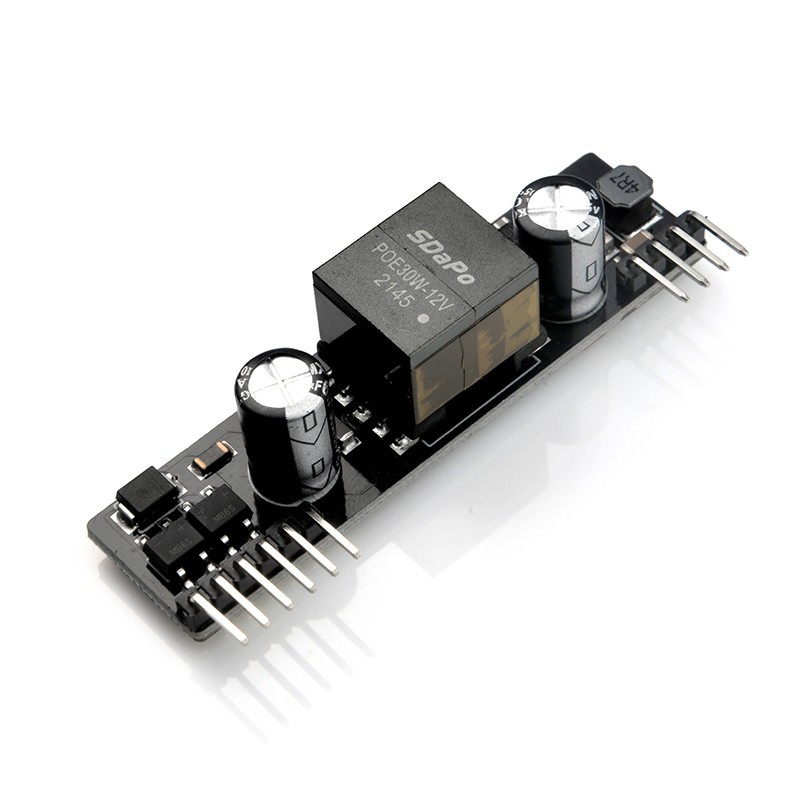

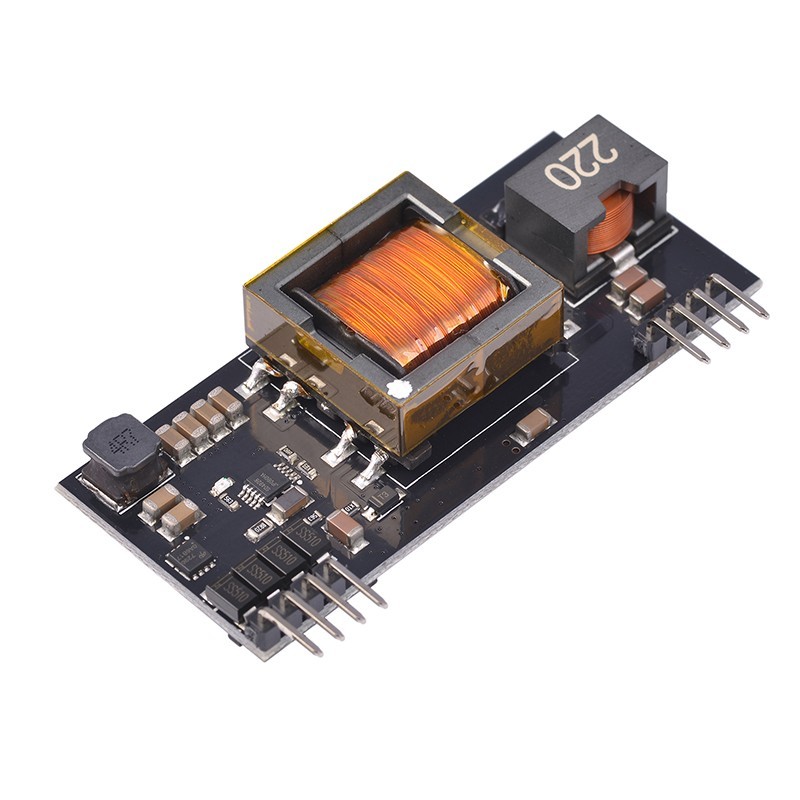

12V, 30W PD(Powered Device) Integrated Module (Isolation Type)




FEATURES
- Fully supports IEEE802.3af Standard and IEEE802.3at Standard
- Input Voltage Range 44V to 57V
- Short Circuit Protection
- In-rush Current Limit
- Over-temperature Protection
- Programmable Classification (Default: Class 4)
- High Efficiency
- Easy Installation and Low Cost (Isolation Type, Minimum External Devices required)
- Low Output Ripple and Noise
- Adjustable Output Voltage
1500Vrms Isolation (Input-Output)

1. PIN ASSIGNMENT

Pin #

Name

Description

 1.2

NC

Do Not Connect

 3

 VA 1  Input (1). This input pin connects to the centre tap of the transformer

connected   to pins 1&2 of the RJ45 connector. It is not polarity sensitive

 4  VA 2

Input (2). This input pin connects to the centre tap of the transformer

connected to pins 3&6 of the RJ45 connector. It is not polarity sensitive

 5

 VB 1

Direct Input (1). This input pin connects to pin 4&5 of the

connector(or centretap of 7&8). It is not polarity sensitive

 6

 VB 2

Direct Input (2). This input pin connects to pin7&8 of the

Connector(or centretap of 7&8).lt is not polarity sensitive.

 7.8

 -VDC

Negative DC Output. This pin provides the -VDC output.

 9.10

 +VDC

Positive DC Output. This pin provides the +VDC output.

(1) Is typically 25 ℃, measured under the 48V power supply environment, only for reference design
(2) Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments

ELECTRICAL SPECIFICATIONS

NO.

Item

Specification

1

Input Voltage

44~57V

2

Output Voltage

12V

3

Output Current (Vin=56V)

2.5A Max.

4

Line Regulation

2%

5

Load Regulation

2%

6

Ripple & Noise

200mVp-p max.

7

Efficiency

88% min.

8

Input to Output Isolation

1500 Vrms

9

Type of DC/DC Converter

Flyback Type

10

Operating Temperature

-40 ~ +85 ℃


SDAPO PM1202  12v poe ModeA or ModeB DC to DC power module



DESCRIPTION

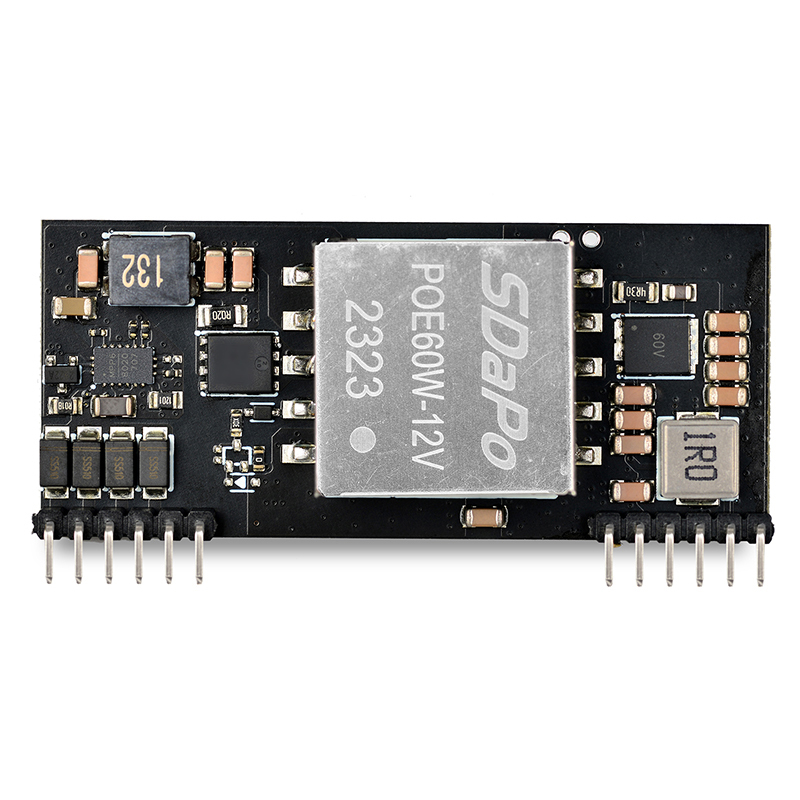

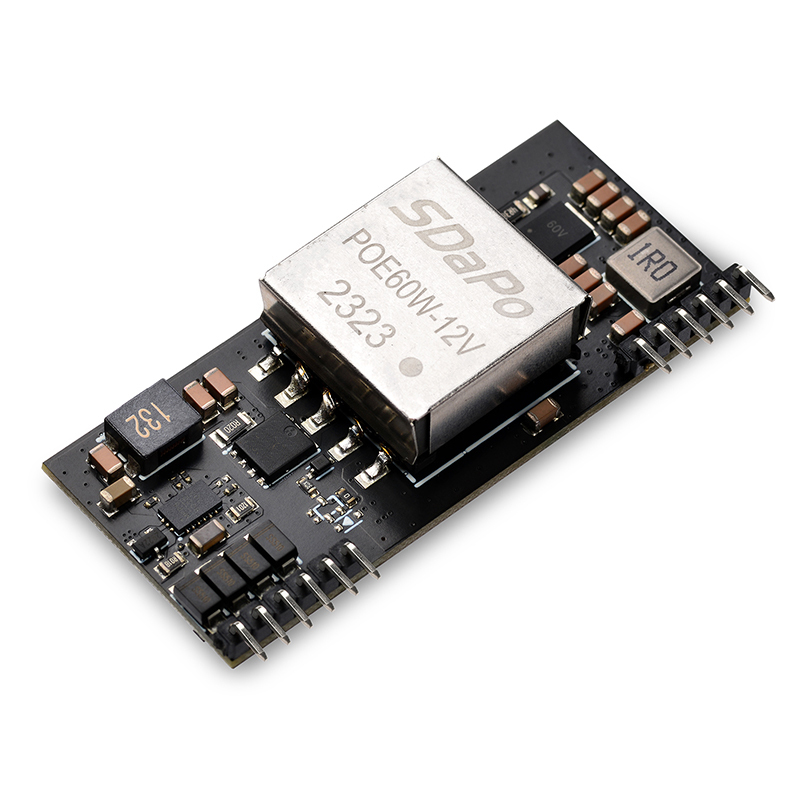

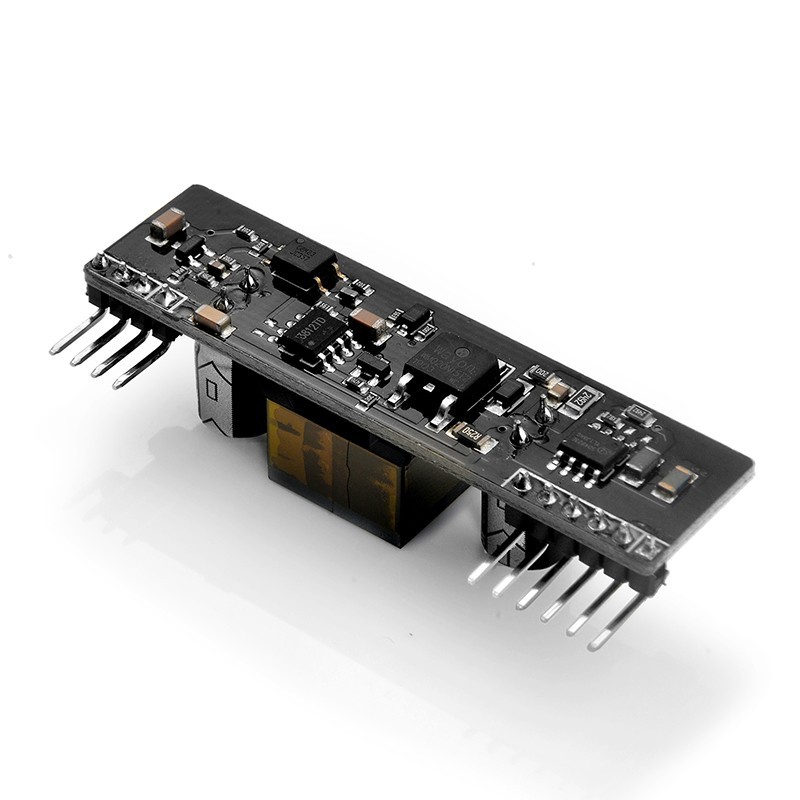

12V, 60W PD(Powered Device) Integrated Module (Isolation Type)

FEATURES
* Fully supports3af/at/bt
* InputVoltage Range 44V to 57V
* Short CircuitProtection
* Over-temperature Protection
* Programmable Classification(Default : Class 8)
* High Efficiency
* Easy Installationand Low Cost (Isolation Type, Minimum External Devices required)
* LowOutput Ripple and Noise
* AdjustableOutput Voltage
* 1500VrmsIsolation (Input-Output)

PIN ASSIGNMENT

PM1205S

Pin #

Name

Description

1,2

VIN+

POE Direct Input +. This pin connects to the positive (+) output of the
POE input bridge rectifiers.

3,4

VIN-

POE Direct Input -. This pin connects to the negative (-) output of the
POE input bridge rectifiers.

5,6

NC

Do Not Connect.

7,8

-VDC

Negative DC Output. This pin provides the -VDC output.

9,10

+VDC

Positive DC Output. This pin provides the +VDC output.

11,12

NC

Do Not Connect.

PM1205B

Pin #

Name

Description

1

VA1

Input (1). This input pin connects to the centre tap of the transformer connected to pins 1&2 of the RJ45 connector. It is not polarity sensitive.

2

VA2

Input (2). This input pin connects to the centre tap of the transformer
connected to pins 3&6 of the RJ45 connector. It is not polarity sensitive.

3

VB1

Direct Input (1). This input pin connects to pin 4&5 of the RJ45
connector(or centretap of 4&5). It is not polarity sensitive.

4

VB2

Direct Input (2). This input pin connects to pin 7&8 of the RJ45
connector(or centretap of 7&8). It is not polarity sensitive.

5,6

NC

Do Not Connect.

7,8

-VDC

Negative DC Output. This pin provides the -VDC output.

9,10

+VDC

Positive DC Output. This pin provides the +VDC output.

11,12

NC

Do Not Connect.

ELECTRICAL SPECIFICATIONS

No

Item

Specification

1

Input Voltage

44~57V

2

Output Voltage

12V Typ.

3

Output Current (Vin=56V)

5A Max.

4

Line Regulation

5%

5

Load Regulation

5%

6

Ripple & Noise

200mVp-p max.

7

Efficiency

93% max.

8

Input to Output Isolation

1500 Vrms

9

Type of DC/DC Converter

Flyback Type

10

Operating Temperature

-20 ~ +50 ℃



DESCRIPTION

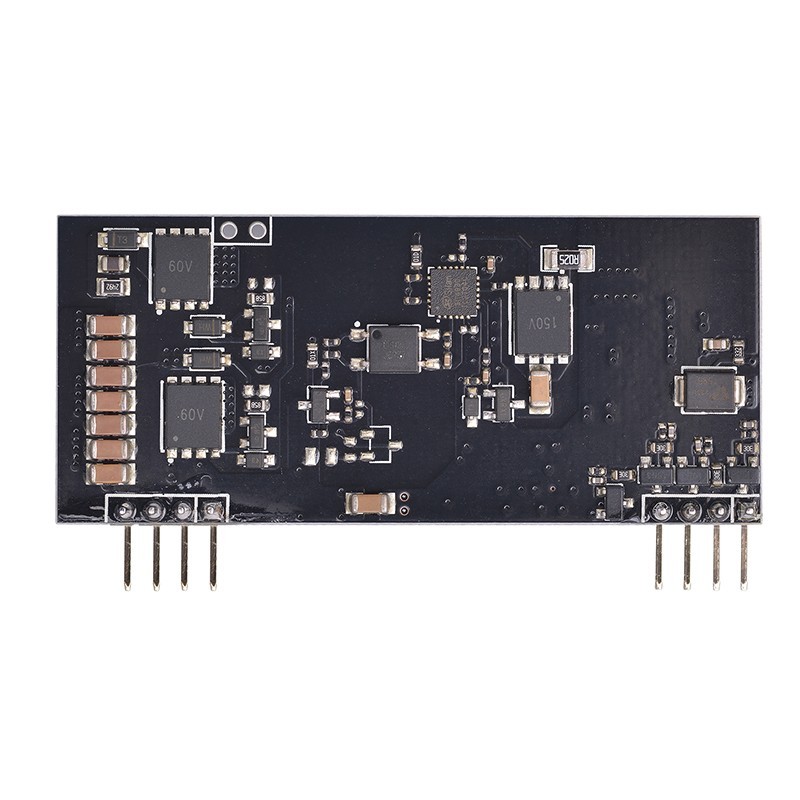

12V6A, 72W PD(Powered Device) Integrated Module (Isolation Type)

FEATURES
* Fully supports3af/at/bt
* InputVoltage Range 44V to 57V
* Short CircuitProtection
* Over-temperature Protection
* Programmable Classification(Default : Class 8)
* High Efficiency
* Easy Installationand Low Cost (Isolation Type, Minimum External Devices required)
* LowOutput Ripple and Noise
* AdjustableOutput Voltage
* 1500VrmsIsolation (Input-Output)
PIN ASSIGNMENT

PM1206B

Pin #

Name

Description

1

VA1

Input (1). This input pin connects to the centre tap of the transformer connected to pins 1&2 of the RJ45 connector. It is not polarity sensitive.

2

VA2

Input (2). This input pin connects to the centre tap of the transformer
connected to pins 3&6 of the RJ45 connector. It is not polarity sensitive.

3

VB1

Direct Input (1). This input pin connects to pin 4&5 of the RJ45
connector(or centretap of 4&5). It is not polarity sensitive.

4

VB2

Direct Input (2). This input pin connects to pin 7&8 of the RJ45
connector(or centretap of 7&8). It is not polarity sensitive.

5,6

-VDC

Negative DC Output. This pin provides the -VDC output.

7,8

+VDC

Positive DC Output. This pin provides the +VDC output.

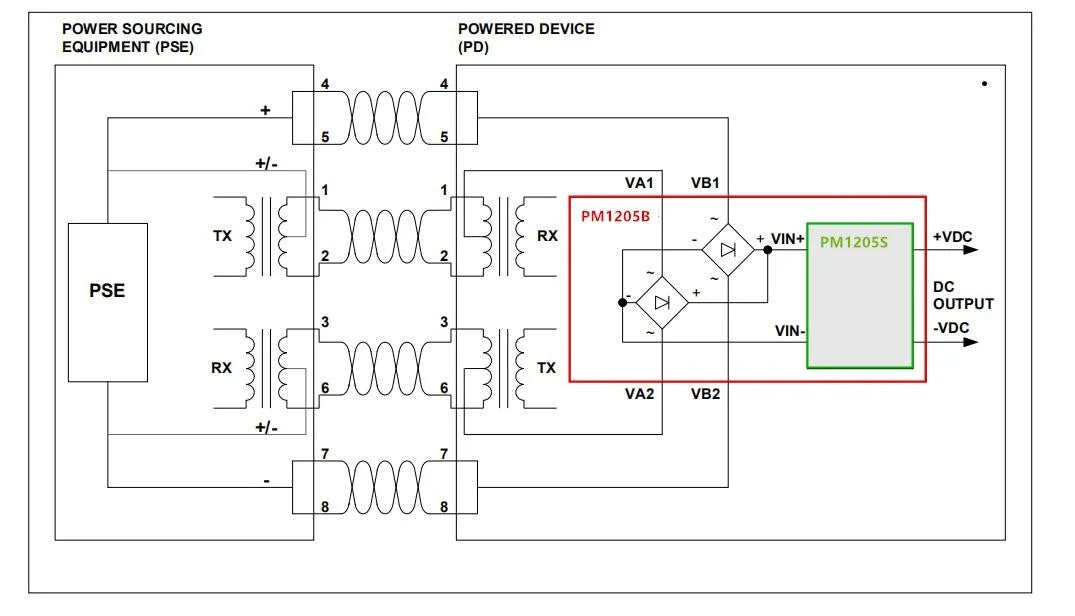

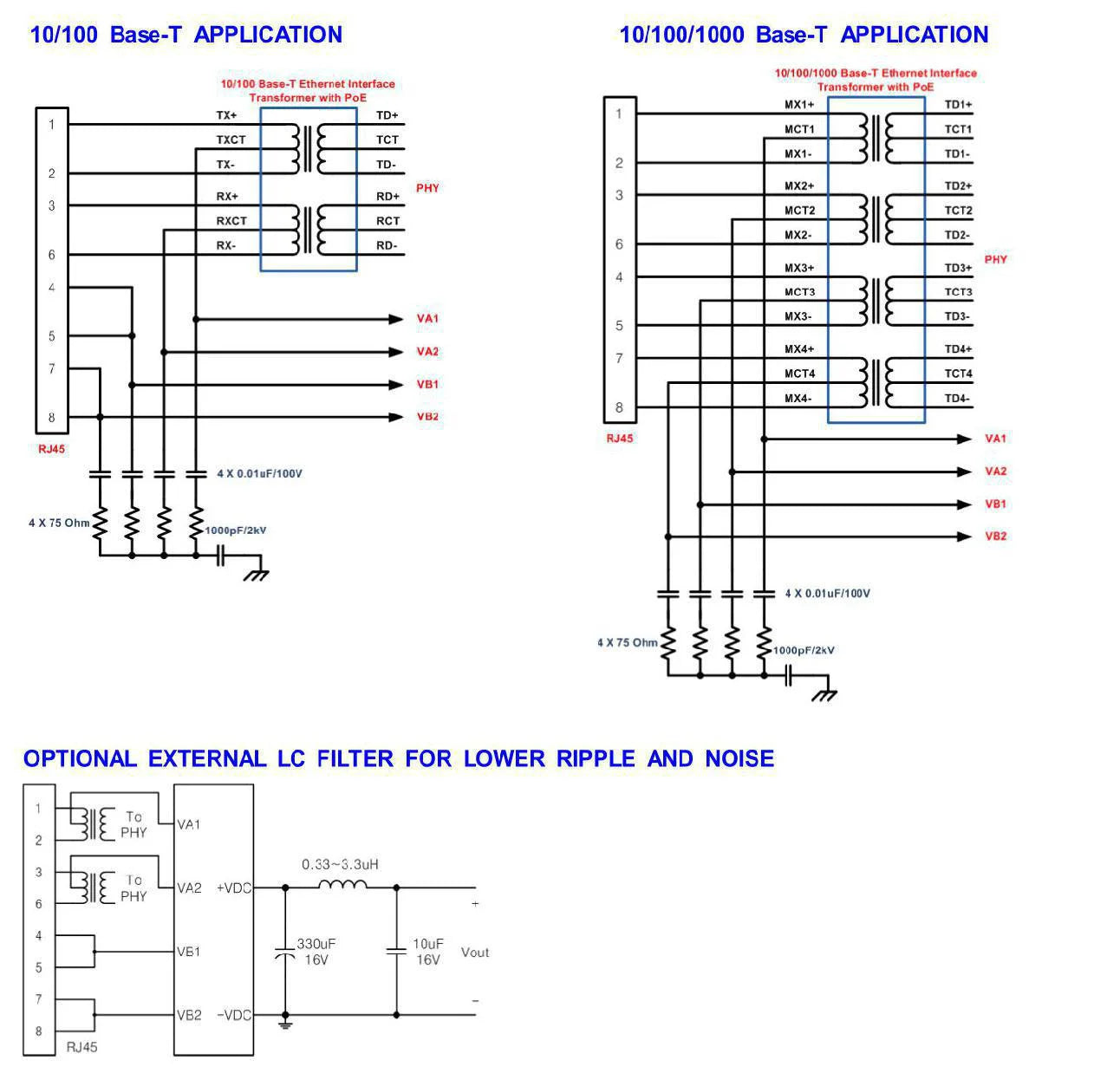

Typical System Diagram

ELECTRICAL SPECIFICATIONS

No

Item

Specification

1

Input Voltage

44~57V

2

Output Voltage

12V Typ.

3

Output Current (Vin=56V)

6A Max.

4

Line Regulation

1%

5

Load Regulation

1%

6

Ripple & Noise

200mVp-p max.

7

Efficiency

94% max.

8

Input to Output Isolation

1500 Vrms

9

Type of DC/DC Converter

Active-Clamp Forward

10

Operating Temperature

-20 ~ +50 ℃
