Banana Pi BPI-R64 - MT7615 Module R64 Metal Case MediaTek MT7622 8G eMMC flash 1G DDR3 Support Wifi Bluetooth POE 4G Module

SKU: BP0023

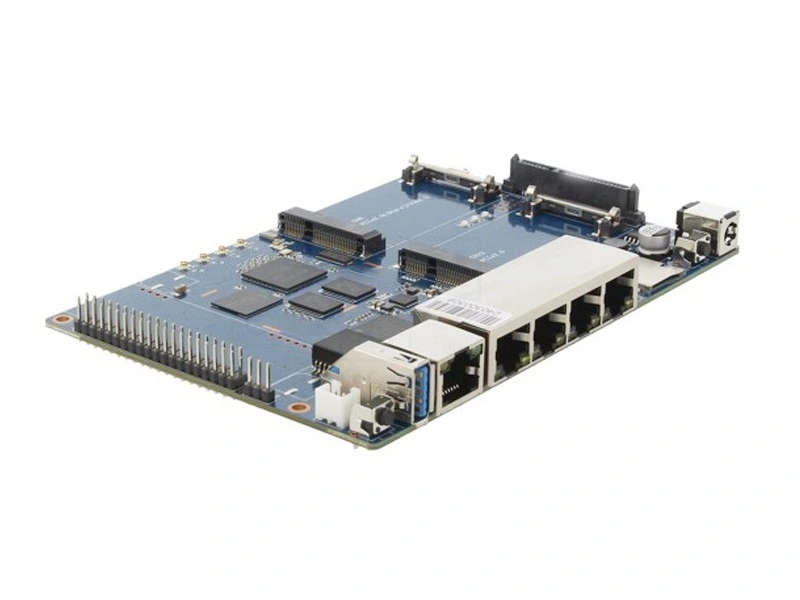

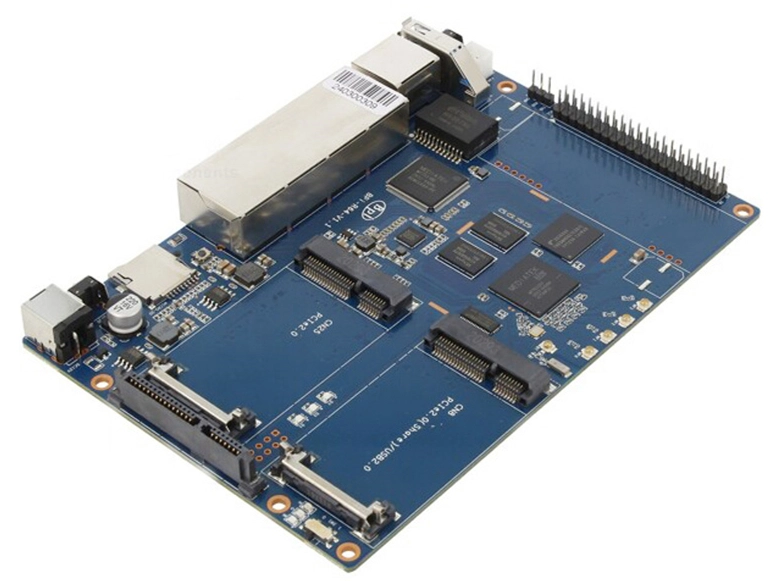

The Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt,Linux. It has 4 Gigabit LAN ports, 1 Gigabit WAN, and AC wifi AP function. use 64 bit chip design.
Shopping list : 1 BPI-R64
0.0 (0 Reviews)
$117.48 $90.70
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • YOUYEETOO Banana Pi BPI-R64 With MT7615 Module R64 Metal Case MediaTek MT7622 8G eMMC flash 1G DDR3 Support Wifi Bluetooth POE 4G Module
  • YOUYEETOO Banana Pi BPI-R64 With MT7615 Module R64 Metal Case MediaTek MT7622 8G eMMC flash 1G DDR3 Support Wifi Bluetooth POE 4G Module
  • YOUYEETOO Banana Pi BPI-R64 With MT7615 Module R64 Metal Case MediaTek MT7622 8G eMMC flash 1G DDR3 Support Wifi Bluetooth POE 4G Module
  • YOUYEETOO Banana Pi BPI-R64 With MT7615 Module R64 Metal Case MediaTek MT7622 8G eMMC flash 1G DDR3 Support Wifi Bluetooth POE 4G Module
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews


The Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt,Linux. It has 4 Gigabit LAN ports, 1 Gigabit WAN, and AC wifi AP function. use 64 bit chip design

MTK MT7622:

Highly integrated 4x4 802.11n and Bluetooth 5.0 platform with dedicated Network Accelerator MediaTek MT7622 is the world’s first with 4x4n 802.11n/Bluetooth 5.0 system-on-chip designed and built for premium networking devices across several applications including routers/repeaters, home automation gateways, wireless audio, and wireless storage. The highly versatile chipset provides a single platform for popular 4X4 dual-band and tri-band routers/repeaters, providing maximum flexibility for manufacturers looking to build top-tier networking devices. The platform pairs high performance and extensively integrated functionality with a cost-effective approach.

The MT7622 contains MediaTek’s Adaptive Network technology that allows for easy setup, network self-healing, roaming, band steering, Smart quality of service, advanced security and more. For audio and voice control applications, essential audio interfaces such as I2S, TDM and S/PDIF are included. And for Home Automation Gateways there is a rich array of slow I/O in addition to the integrated Wi-Fi, Bluetooth and Zigbee co-existence.

Powered by a 64-bit dual-core ARM Cortex-A53 processor clocked at 1.35GHz, the MT7622 provides a host of advanced connectivity options like SGMII/RGMII, PCIe, and USB, and 4X4 802.11n FEM integration. Extending the platform with 802.11ac to meet additional markets is simply done via MT7615 SoC.

The MT7622 introduces several best-in-class features such as Bluetooth 5.0 and a dedicated Network Accelerator engine with the MediaTek Wi-Fi Warp Accelerator, storage accelerator (SATA 3.0/eSATA Gen2) and HNAT HQoS calculations are offloaded from the CPU, lowering overall power-use and freeing up resources to avoid any potential slow-downs.

The advantage of the MediaTek Wi-Fi Warp Accelerator is two-fold. Firstly it connects the Gigabit+ class 802.11ac networking through to the Gigabit switch/WAN connection via multi-Gigabit internal pathways, ensuring no bottleneck. Secondly, its specialized design not only offloads the CPU from many-user throughput and QoS calculations, it does so at lower power. The result is the MediaTek Wi-Fi Warp Accelerator maintains a sustained high-performance when even supporting multiple, simultaneous heavy users.

Integrated Bluetooth allows for a direct, local wireless connection via App for easy configuration of the router/Wi-Fi settings. The latest Bluetooth 5.0 quadruples range and doubles speed versus previous 4.x technologies, allowing new and innovative possibilities.

Hardware inerface:

Hardware spec:

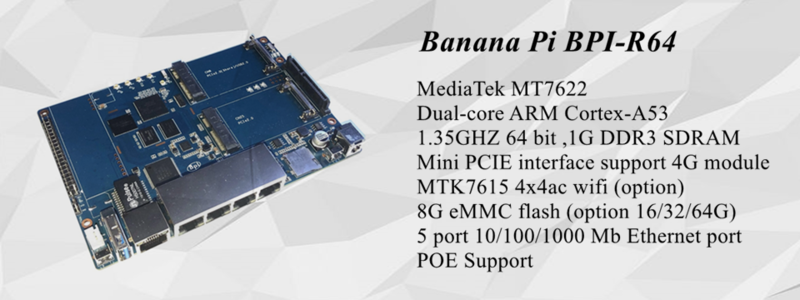

HardWare Specification of Banana pi BPI-R64
CPU MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53
SDRAM 1 GB DDR3
SATA support 1 SATA interface
GPIO 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
On board Network 5 10/100/1000Mbps Ethernet
Wifi built-in 4x4n 802.11n (800Mbps) sysem-on-chip and MTK7615 4x4ac wifi Module (1733Mbps) (option)
Bluetooth Bluetooth 5.0 system-on-chip
On board Storage MicroSD (TF) card,8GB eMMC onboard
mini PCIE 1 mini pcie interface for 4G
USB 1 USB 3.0 host
Buttons Reset button
Leds Power status Led and RJ45 Led
IR PIN defined with GPIO
DC Power 12V/2A with DC in
POE support POE module interface, can add POE module
Sizes 148 mm × 100.5mm
Weight 100g

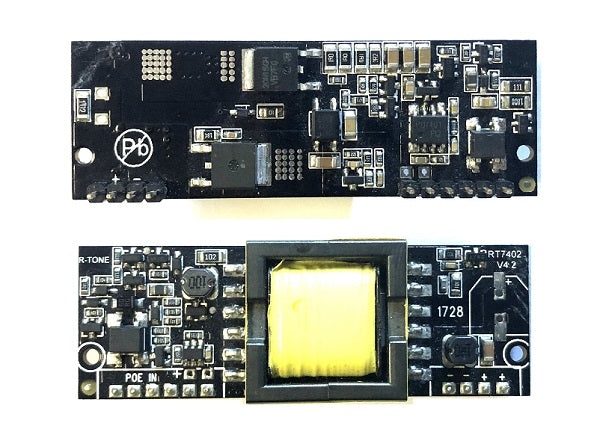

we designed the PoE function for BPI-R64, so easy to add a PoE module to support the PoE function, PoE modue can support 12V/3A to power BPI-R64

BPI-MT7615 802.11 ac wifi 4x4 dual-band:

we have designed an MT7615 802.11 ac wifi module, that can be used on BPI-R64.MT7615 is a highly integrated Wi-Fi single chip that supports a 1733 Mbps PHY rate, It fully complies with IEEE 802.11ac and IEEE802.11 a/b/n standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.
