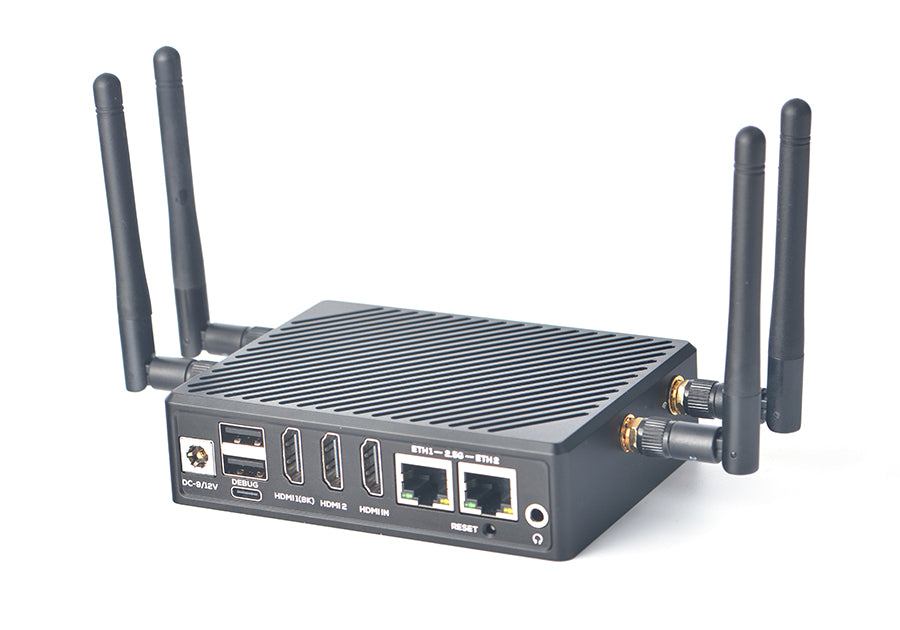

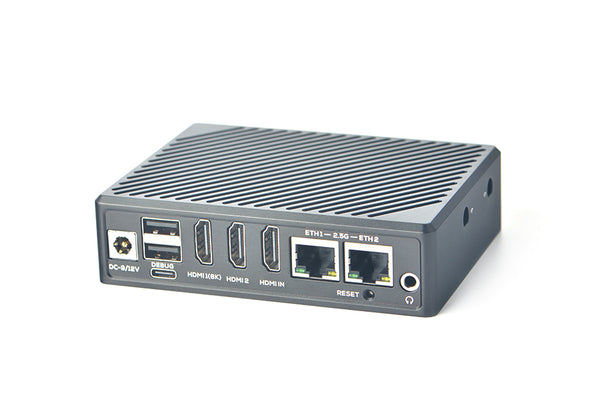

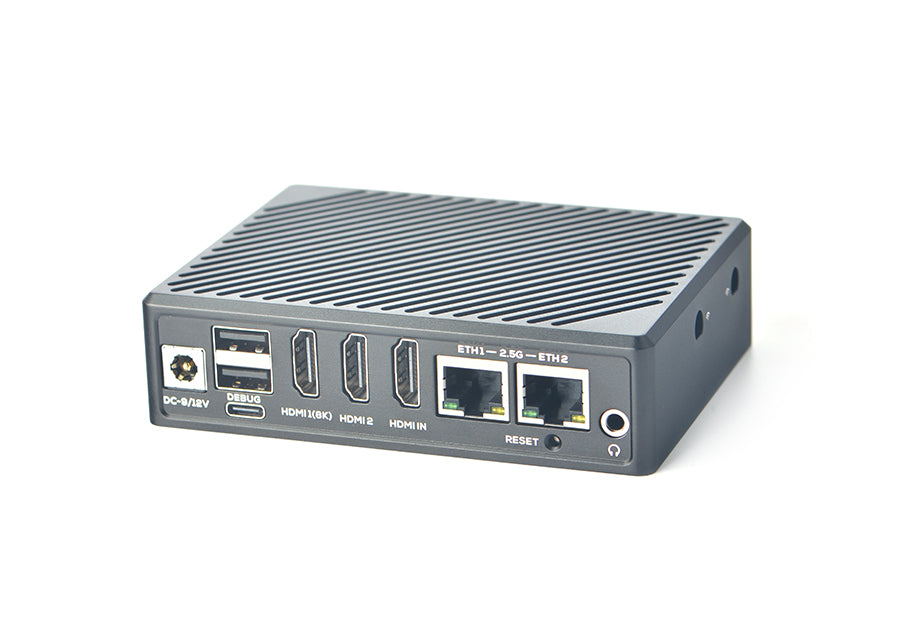

youyeetoo NanoPC-T6 with Metal Case, Powered by RK3588 - 8K@60fps Dual 2.5G Ethernet, HDMI In/Out

SKU: YSDPNANOT6B

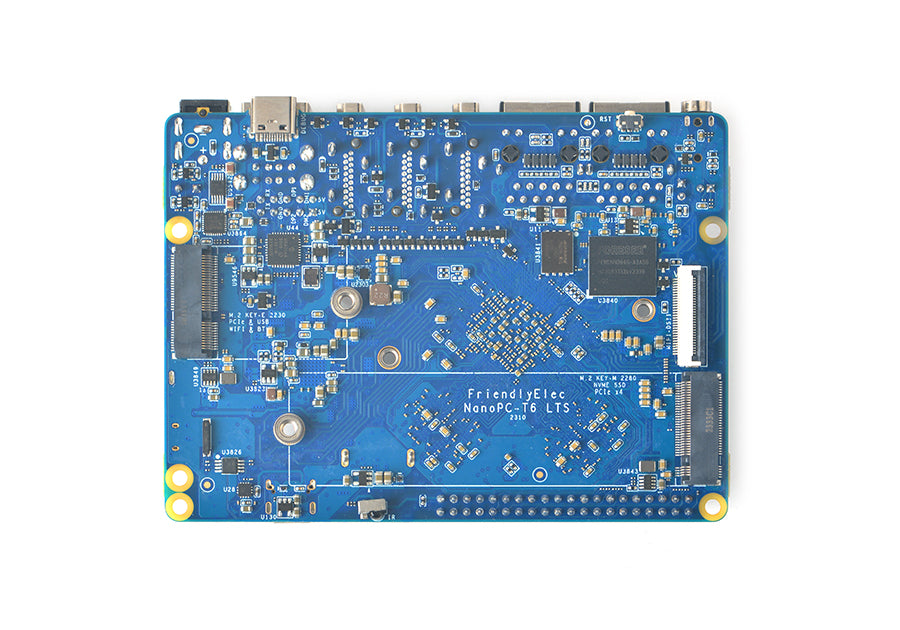

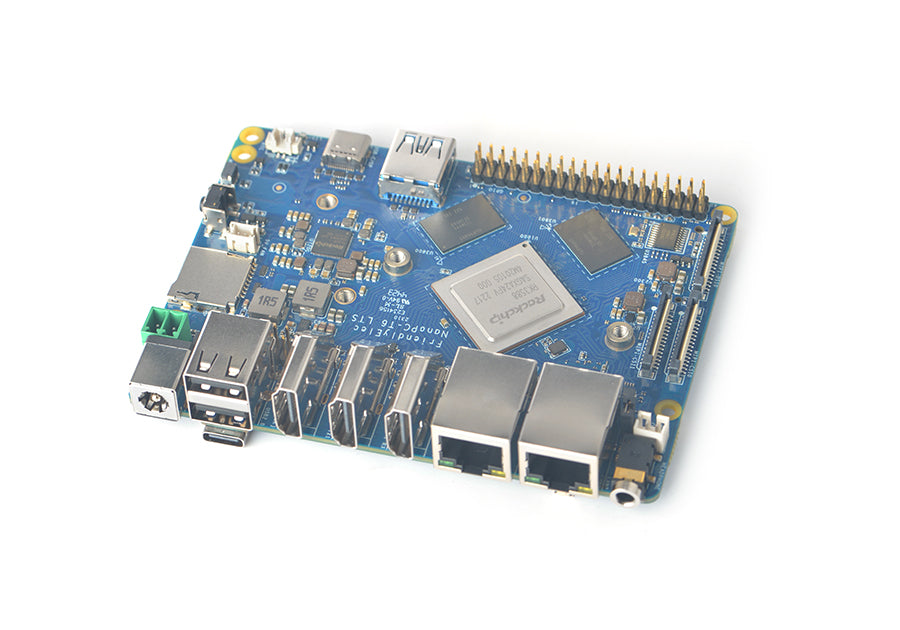

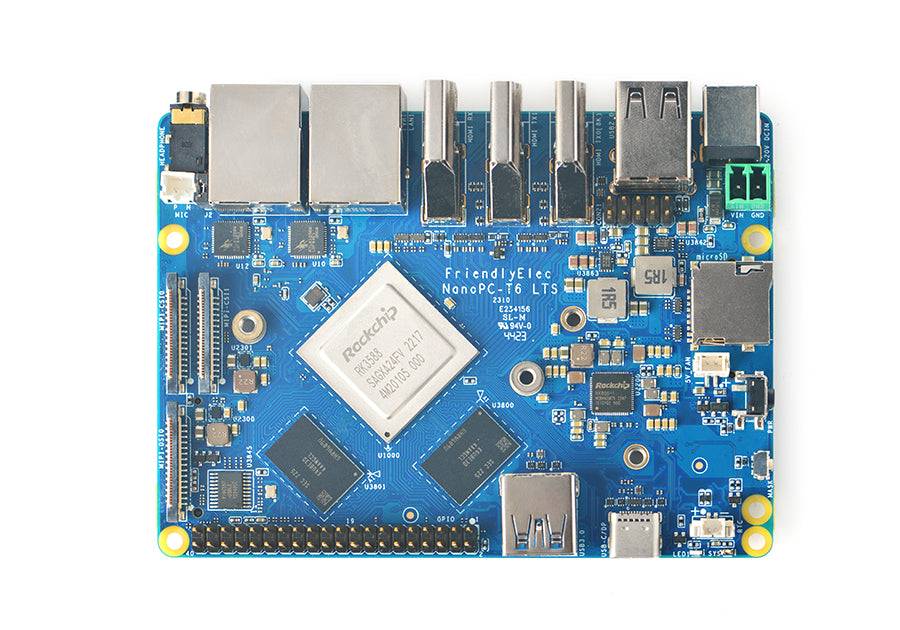

youyeetoo NanoPC-T6 . It is based on Rockchip's RK3588, and has 4GB/8GB/16G LPDDR4x RAM and an optional 32GB/64GB/256GB eMMC flash. It works with systems including FriendlyWrt, Android, Debian, Ubuntu etc. It supports GPU and VPU acceleration.
4 (1 Reviews)
$989.68 $138.50
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Choose different styles:
    4GB RAM - 32GB eMMC
    8GB RAM - 64GB eMMC
    16GB RAM - 256GB eMMC
    4/32 - LTS Version
    8/64 - LTS Version
    16/256 - LTS Version
    Please select the information you wantX
Quantity
-
+
  • youyeetoo NanoPC-T6 with Metal Case, Powered by RK3588 - 8K@60fps Dual 2.5G Ethernet, HDMI In/Out
  • youyeetoo NanoPC-T6
  • youyeetoo NanoPC-T6
  • youyeetoo NanoPC-T6
  • youyeetoo NanoPC-T6
  • youyeetoo NanoPC-T6 with Metal Case, Powered by RK3588 - 8K@60fps Dual 2.5G Ethernet, HDMI In/Out
Frequently Bought Together
  • NanoPC-T6 WIFI Bundle
more
Frequently Bought Together
  • Description
  • Reviews

NanoPC-T6

Shipping List;
NanoPC - T6 with Meatl Case x1  (No wifi antenna)

Bare Board Link :https://youyeetoo.com/products/nanopc-t6

Quick Start


Tips:
The 4/32 and 8/64 models (version 2301) are still in stock in small quantities, so choose the version you need: version 2301 or version 2310-LTS.


















CPU Model: Rockchip RK3588
Number of Cores: Quad-core ARM Cortex-A76 + Quad Core Cortex-A55
Frequency: Cortex-A76(up to 2.4GHz), Cortex-A55(up to 1.8GHz)
GPU Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU 6TOPs, supports INT4/INT8/INT16/FP16
Memory RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz
Storage eMMC:0GB/32GB/64GB/256GB, at HS400 mode
1 x MicroSD Slot: support up to SDR104 mode
PCle 3.0: 1 x M.2 M-Key, PCle 3.0 x4 for NVMe SSDs up to 2,500 MB/s
Onboard M3 PCB nut for mounting M.2 2280 module
Connectivity Ethernet: 2 x PCle 2.5G Ethernet, RTL8125BG chip
PCle 2.1: 1 x M.2 E-Key, PCle 2.1 x 1 and USB2.0 Host, supports M.2 WiFi and Bluetooth Module
Onboard M3 PCB nutfor mounting M.2 2230 module
Audio Audio Out: 3.5mm jack for stereo headphone output
Audio ln: 2.0mm PH-2A connector for analog microphone input
Video Input 1 x Standard HDMI input port, up to 4Kp60
2 x 4-lane MIPI-CSI, compatible with MIPI V1.2
Video Output 2 x Standard HDMI output ports:
compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
one support displays up to 7680x4320@60Hz, another one support up to 4Kp60
Support RGB/YUV(up to 10bit) format
2 x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
USB 2 x USB 2.0,Type-A
1 x USB 3.0,Type A
1 x USB-C: Full function USB Type-C™ port, support DP display up to 4Kp60, USB 3.0
Pin-header GPIO: 40-pin 2.54mm header connector
up to 2 x SPIs,6x UARTs,1 x 12Cs,8x PWMs,2 x 12Ss,28 x GPIOs
GPI02: 10-pin 2.54mm header connector including Debug UART(3.3VTTL) and 2 x USB 2.0 Host
User Key 1 x MASK Button for eMMC update
1 x Reset Button
1 x Power Button
LED 1 x SYS LED(Red)
1 x LED1(Green)
Others IR receiver: Onboard IR receiver, Acceptes 38KHz carrier frequency
RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Fan: 5V Fan connector
Working Temperature: 0℃ to 70℃
Power 5.5*2.1mm DC Jack & 2-Pin 3.5mm pitch connector, 12VDC input

OS Support FriendlyWrt 21.02
FriendlyWrt 22.03
Android 12 Tablet
Android 12 TV
FriendlyCore Lite 20.04
Debian 10 Desktop
Debian 11 Desktop
Ubuntu 22.04 Desktop
OpenMediaVault
Kernel version Linux-6.10-LTS
U-boot-2017.09

PCB 8 Layer
Weight 91.5g(without Case) / 390g(with Case)
Dimension 110x80x1.6mm(without Case)/ 86x114.5x30mm(with Case)
