youyeetoo TC-RV1126B/TC-RV1109B AI Vision Board - Stamp Hole Core Board - 2.0 Tops NPU, 3 Camera Input Supports Buildroot+QT OS

For downloading the Tools, Driver and Firmware use the following link:

https://youyeetoo.com/blog/rv1126-hole-boardtkdp1126cor1-143

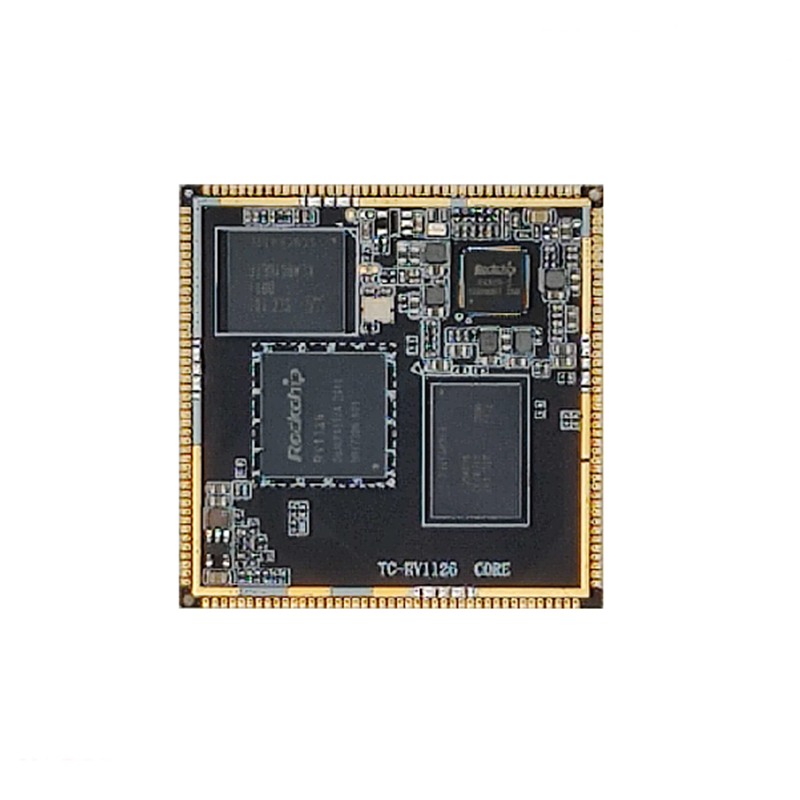

RV1126/RV1109  AI Vision Board  - Stamp Hole Core Board

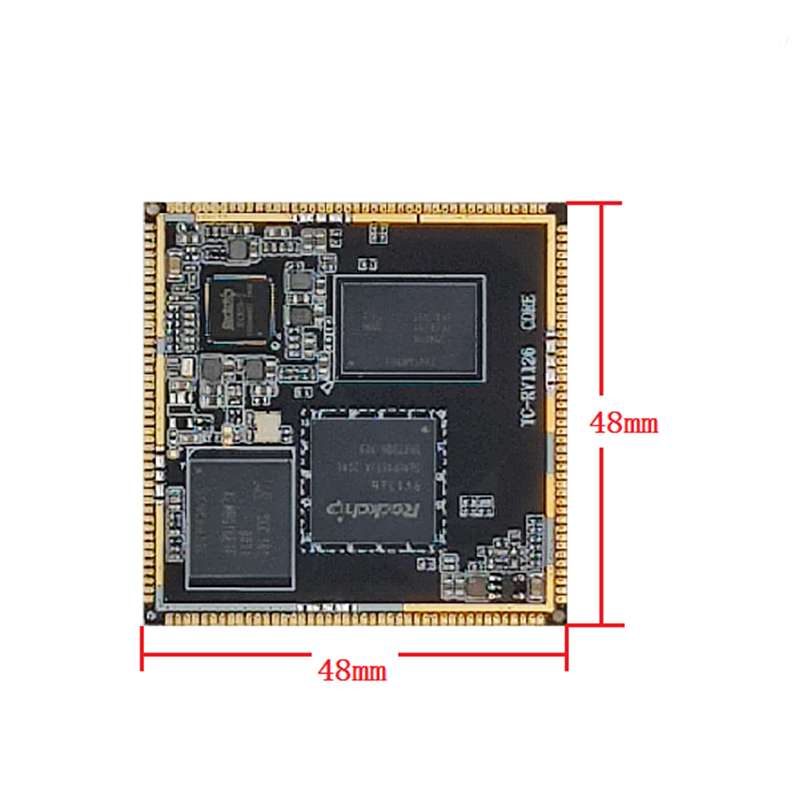

Size: 48mm x 48mm

Low-consumption AI vision processor Rockchip RV1126, with 2.0 Tops NPU

Supports 4K H.254/H.265@30FPS and multi-channel video encoding and decoding

Ups to 172pin, rich interfaces

Supports Buildroot+QT OS — occupies small space, starts fast

1GB/2GB LPDDR4, 8GB/16GB eMMC storage

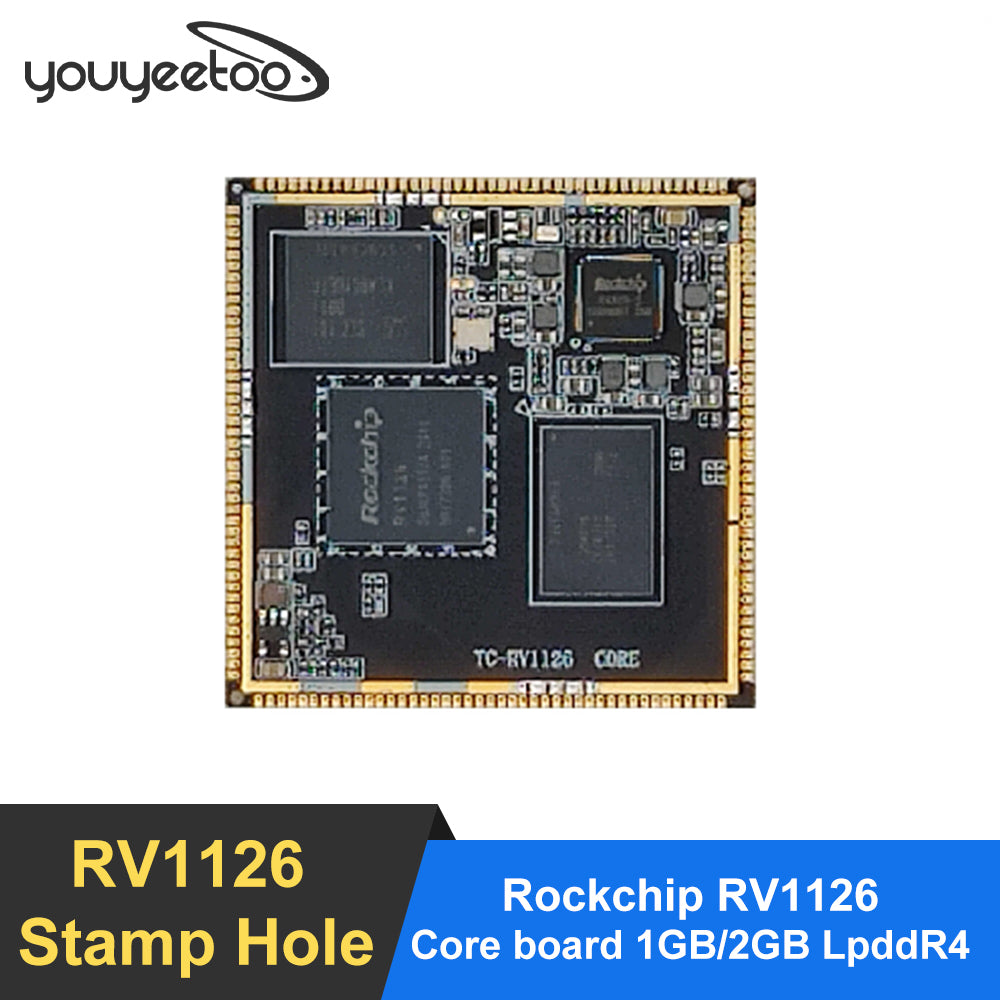

TC-RV1126 Stamp Hole system on module takes Low-consumption Al visionprocessor Rockchip RV1126, with 14nm lithography process and quad-core32-bit ARM Cortex-A7 architecture, integrates NEON and FPU — the frequencyis up to 1.5GHz.It supports FastBoot, TrustZone technology and multiple cryptoengines.

Built-in neural network processor NPU with computing power up to 2.0 Topsrealizes that the power consumption of Al computing is less than 10% of thepower required by the GPU. With tools and supporting Al algorithms provided,it supports direct conversion and deployment of Tensorflow,PyTorch,Caffe,MxNet, DarkNet,ONNX, etc.

With multi-level image noise reduction，3F-HDR and other technologies,RV1126 not only ensures the dynamic range of the scene, but also meets theneeds of outputting full color in darkness, making "clearly visible" a reality 一more conforms to the actual demands in the security field.

Built-in Video CODEC supports 4K H.254/H.265@30FPS and multi-channelvideo encoding and decoding,meeting the needs of low bit rate,low-latencyencoding, perceptual encoding and making the video occupancy smaller.

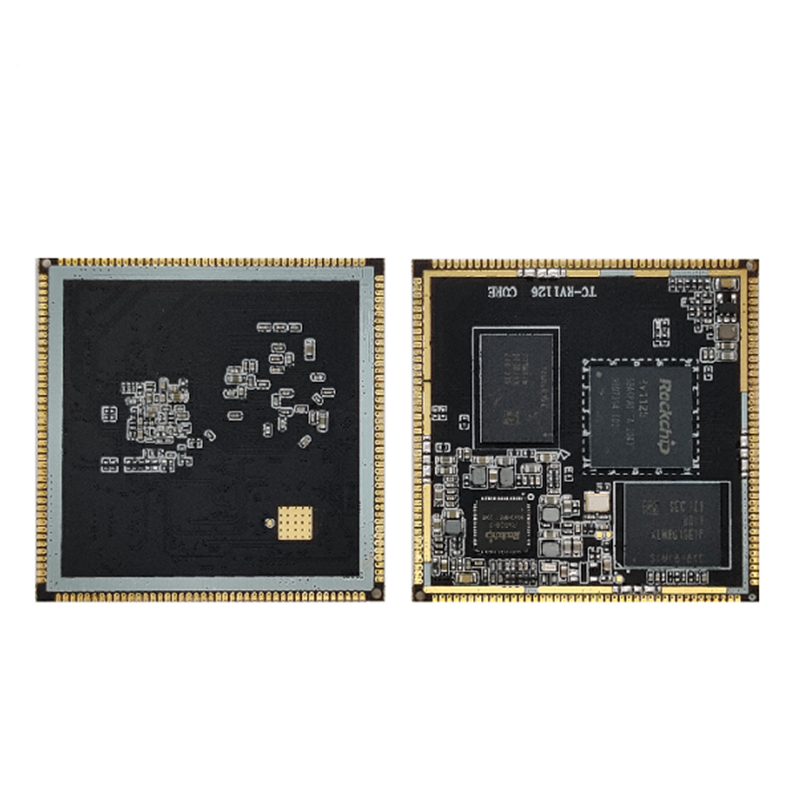

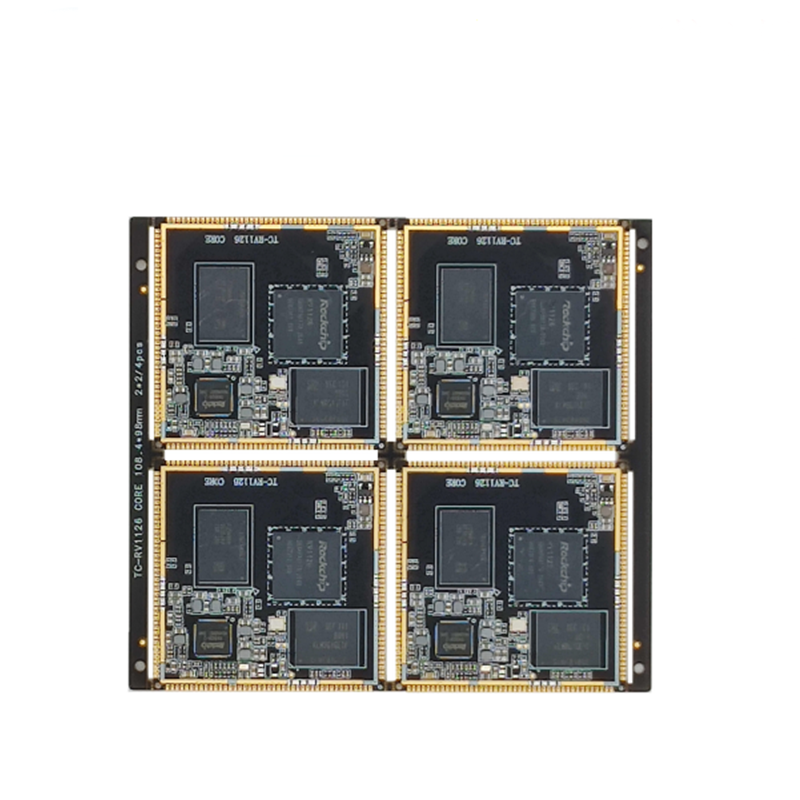

TC-RV1126 SOM takes Stamp Hole designed,its PCB takes 6-layersimmersion gold designed,which is of strong scalability. The sizeis only 48mm 48mm , ups to 172PIN. Includes I2C,SPI，UART,ADC，PWM, GPI0，USB2.0，SDIO，I2S，MIPI-DSI，MIPI-CSI，CIF，PHYand other interfaces are equipped，meeting needs of more usagescenarios.

lt supports Buildroot+QT os - occupies small space, starts fast, and providesstable and reliable operation.Source codes are open.

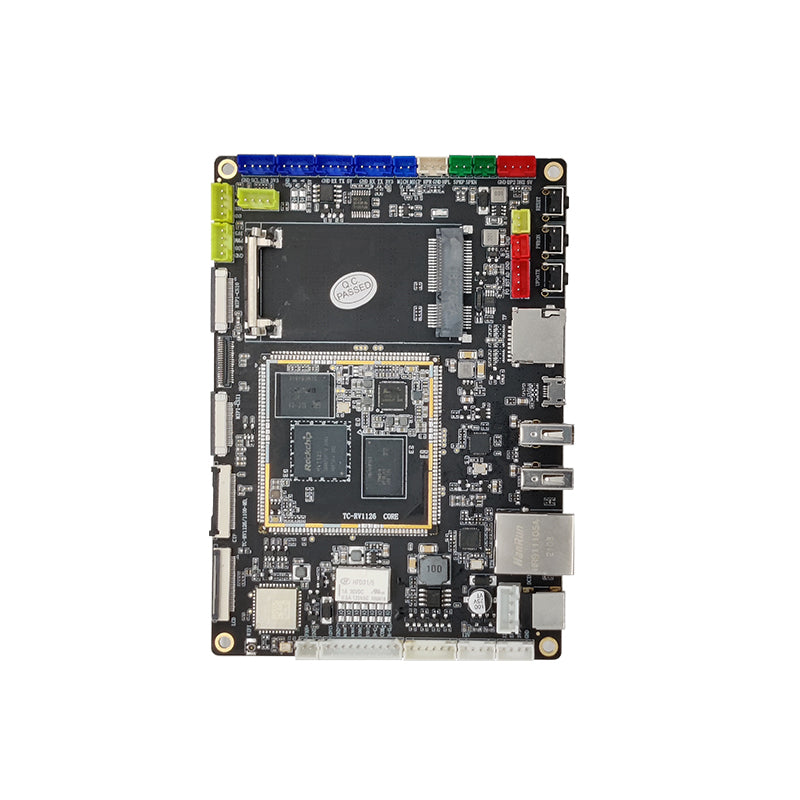

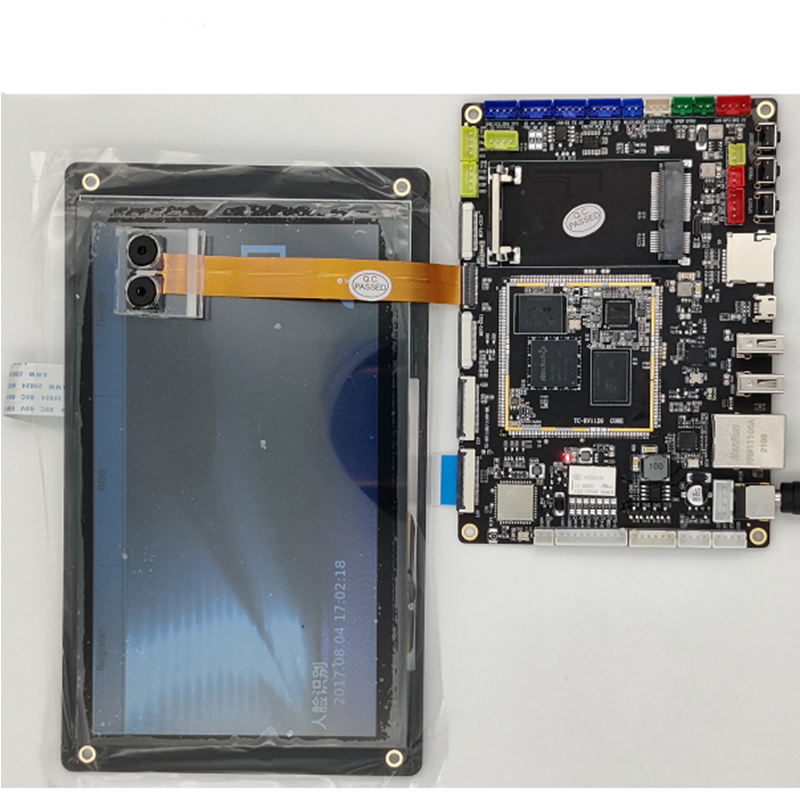

TC-RV1126 development board includes TC-RV1126 som and carrier baord.

​

TC-RV1126-Y Features

1)Size: 48MM *48MM .

2)Low-consumption Al vision processor Rockchip RV1126, with 2.0Tops NPU.

3)Supports 4K H.254/H.265@30FPS and multi-channel video encodingand decoding.

4)Ups to 172pin，rich interfaces.

5)Supports Buildroot+QT 0s — occupies small space,starts fast.

Application

It is widely used in face recognition，gesture recognition，gateaccess control，smart security，smart IP camera，smart doorbell/peephole，self-service terminals，smart finance，smartconstruction,smart travel and other industries.

​
