Interfaces can be selected from DC5.5*2.1, DC5.5*2.5, Mirco USB, TYPE-C, etc. Please contact: [email protected]

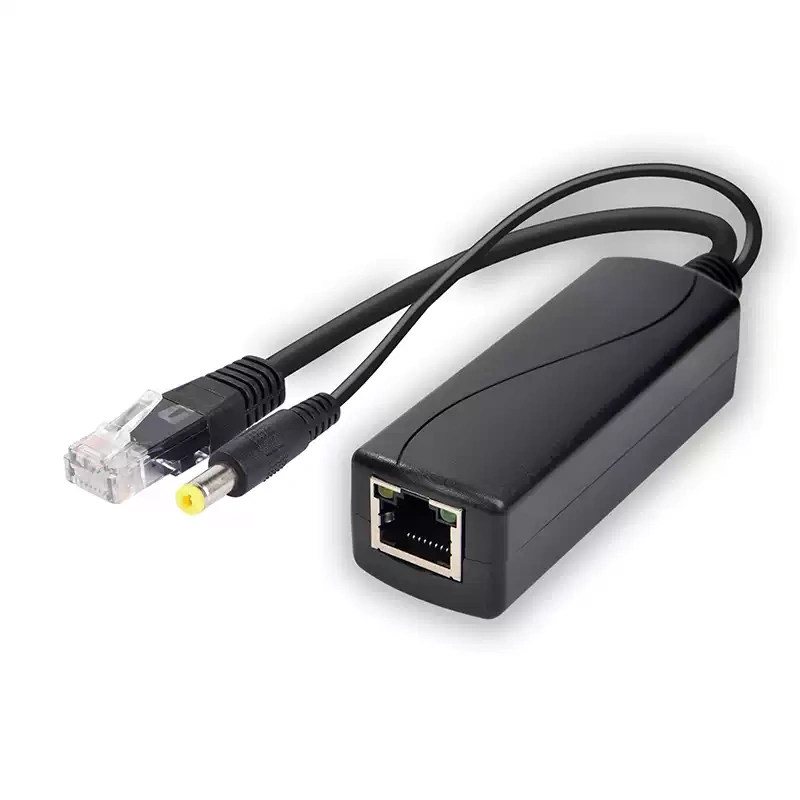

The PS5712TG splitter is a POE splitter crafted by SDAPO, which complies with the IEEE 802.3af standard and can provide a DC 12V power supply for network terminals under 25.5W, with a transmission bandwidth of 100/1000M.
The PS5712TG splitter separates the power and data signals transmitted through the network cable and can be used with IEEE 802.3af/at-compliant power supply devices (e.g., PoE-powered switches, PoE-powered centralized power supplies, PoE-powered transceivers, etc.) to provide both data and power for network devices that do not support PoE. The PS5712TG splitter can output 12V, which can be used with power supply equipment to flexibly expand home and office networks without being restricted by the layout of power lines.
◆ 1 x 100/1000Mbps RJ45 port
◆ Support IEEE 802.3af/at Power over Ethernet standard
◆ Support 100/1000M data transmission
◆12V DC voltage, adapt to various small network devices
◆1.5KV isolation protection, effectively protect the power equipment
◆ High-quality design effectively ensures the stable and reliable working of the equipment
1x 12V2A Gigabit PoE Splitter （Line length: 18CM）
| PoE Feature | Details |
|---|---|
| Supports | IEEE802.3af/at power supply standards (25.5W) |
| Power Supply Method | Supports 1/2(+),3/6(-);4/5(+),7/8(-) power supply methods |
| PoE Input Voltage | 44-57V |
| DC Jack Voltage Output | 12V |
| DC Jack Current Output | 2A (MAX) |
| Electrical Interface Params | One input RJ45 interface, one output RJ45 crystal head, one DC output plug |
| Cable Type | Category 5 unshielded twisted pair (UTP) or higher level |
| Protocol Standard | IEEE 802.3 af/at Power over Ethernet |
| Rate | 100/1000M |
| LED Indicator Light | PoE input power supply indicator light |
| Dimensions | 81x28x24mm (length x width x height) |
| Weight | 0.5Kg |
| Environmental Temperature | Operating temperature: 0~55℃; operating humidity: 90%, no condensation; Storage temperature: -20~70℃; storage humidity: 95%, no condensation; |
| Warranty | 1 year |
