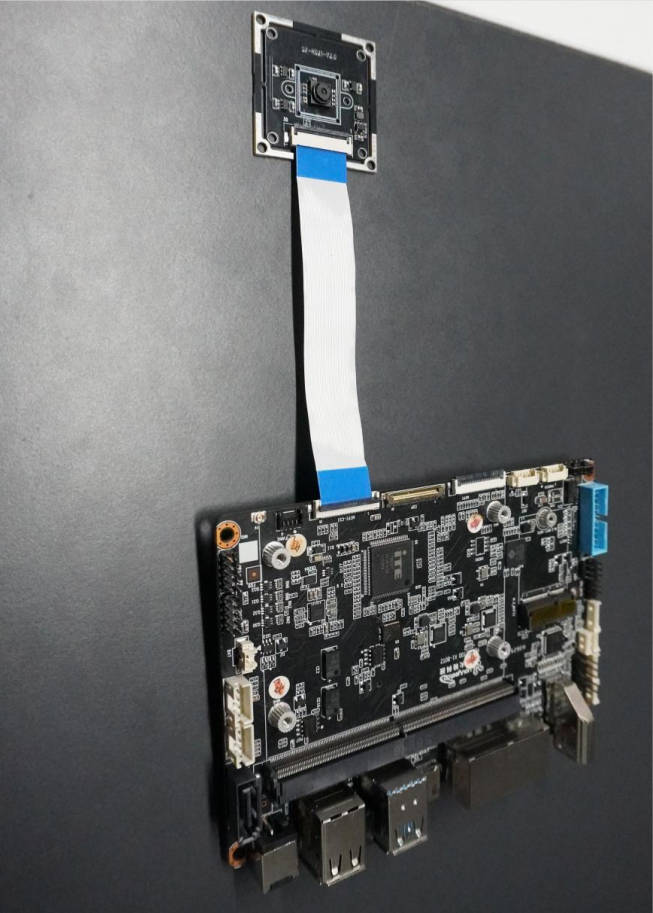

GC5035 5MP BSI CMOS Image Sensor - MIPI RAW Output

Name: GC5035 5MP BSI CMOS Image Sensor - MIPI RAW Output
Brand: youyeetoo geeker shop
Price: 29.16 USD
Availability: InStock

Upgrade your mobile or digital imaging solutions with the GC5035, a high-performance 5 Mega-pixel CMOS image sensor. Featuring 1.12µm BSI pixels and a MIPI interface, this sensor delivers superior low-light sensitivity and power efficiency, making it the ideal choice for compact mobile phone cameras and portable digital devices.

0.0 (0 Reviews)

$199.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Reviews

Quick Start:
https://wiki.youyeetoo.cn/zh/youyeetooK1/MIPICamera

📄 General Description

The GC5035 is a high-quality 5 Mega-pixel CMOS image sensor designed for mobile phone camera applications and digital camera products.

The GC5035 incorporates a 2592H x 1944V pixel array, an on-chip 10-bit ADC, and an image signal processor. The full-scale integration of high-performance and low-power functions makes the GC5035 suitable for compact designs, reduces the implementation process, and extends the battery life of cellphones, PDAs, and a wide variety of mobile applications.

It provides RAW10 and RAW8 data formats via a MIPI interface. It features a commonly used two-wire serial interface for the host to control the operation of the entire sensor.

⚙️ Functions and Features

Optical & Sensor Specifications

Optical Format: Standard 1/5 inch
Pixel Size: 1.12 µm x 1.12 µm (BSI - Backside Illumination)
Resolution: 5 Mega-pixels (2592 x 1944)

Interface & Output

Output Formats: Raw Bayer 10-bit / 8-bit
Interface: MIPI (supports 2-lane)
Control Interface: Two-wire serial interface (SCCB/I2C)

Power Supply Requirements

AVDD (Analog): 2.7V ~ 3.0V
DVDD (Digital): 1.15V ~ 1.3V
IOVDD (I/O): 1.7V ~ 3.0V

Advanced Features

PLL Support: Integrated Phase Locked Loop
Binning Mode: Supported for improved low-light sensitivity
Image Manipulation: Horizontal / Vertical Mirror support
Image Processing: Built-in Image Processing Module (ISP)
OTP Support: 4K bits available for customer use (Module information / WB calibration)
