youyeetoo X1 - X86 Mini PC, SBC - Proxmox, Home Assistant, Server, NAS Kit - Provide Intel native IIC SPI UART use tutorials - Intel 11th N5105, 4K, 10W TDP

SKU: FHLDPX104G01
Key features:
CPU: 11th Gen 4 Core Intel Celeron N5105(Up to 2.9 GHz), 10nm, 10 TDP
Graphics :Intel® UHD Graphics
RAM: Up to 16GB LPDDR4
Video:  Support Dual 4K HDR and 3-Way Video Output.
Networking: 1 GbE LAN. , WIFI 5 + BT 5.0 / WIFI 6 + BT 5.2 / 4G LTE via  M.2 2230 E key,
Other: USB3.0, USB2.0, UART, GPIO, IIC, SPI, RTC,NFC
OS: Linux, Windows 10 Pro / 11 Pro
Size : 115mm x 75mm x 20 mm
Limited Offer!
2 sold
4.8 (4 Reviews)
$0.00 $109.99
-0%
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model::
    4GB/No eMMC
    8GB/No eMMC
    16GB/No eMMC
    4GB/64GB
    8GB/64GB
    8GB/128GB
    8GB/256GB
    16GB/256GB
    Activated Win OS
    Please select the information you wantX
Quantity
-
+
  • youyeetoo X1 - 4K X86  Single board computer - N5105 - Windows Linux Server
  • youyeetoo X1 - 4K X86  Single board computer - N5105 - Windows Linux Server
  • youyeetoo X1 - 4K X86  Single board computer -Intel 11th N5105 - Windows Linux Server - Provide Intel native IIC SPI UART use tutorials
  • youyeetoo X1 - 4K X86  Single board computer - N5105 - Windows Linux Server
  • youyeetoo X1 - 4K X86  Single board computer -Intel 11th N5105 - Windows Linux Server - Provide Intel native IIC SPI UART use tutorials
  • youyeetoo X1 - 4K X86  Single board computer -Intel 11th N5105 - Windows Linux Server - Provide Intel native IIC SPI UART use tutorials
  • youyeetoo X1 - 4K X86  Single board computer - N5105 - Windows Linux Server
  • youyeetoo X1 - 4K X86  Single board computer - N5105 - Windows Linux Server
  • youyeetoo X1 - 4K X86  Single board computer - N5105 - Windows Linux Server
  • youyeetoo X1 - 4K X86  Single board computer - N5105 - Windows Linux Server
Frequently Bought Together
  • X1 - NAS DIY Kit - 2 x SATA3.0
  • youyeetoo x1 - Case kit
  • youyeetoo x1 4G module
  • youyeetoo x1 - 7inch display
  • youyeetoo x1 - wifi
more
Frequently Bought Together
  • Description
  • X1 - Tutorial Video
  • X1 - Ecosystems
  • Reviews

youyeetoo X1

4K X86  Single board computer - N5105 - Windows Linux Server

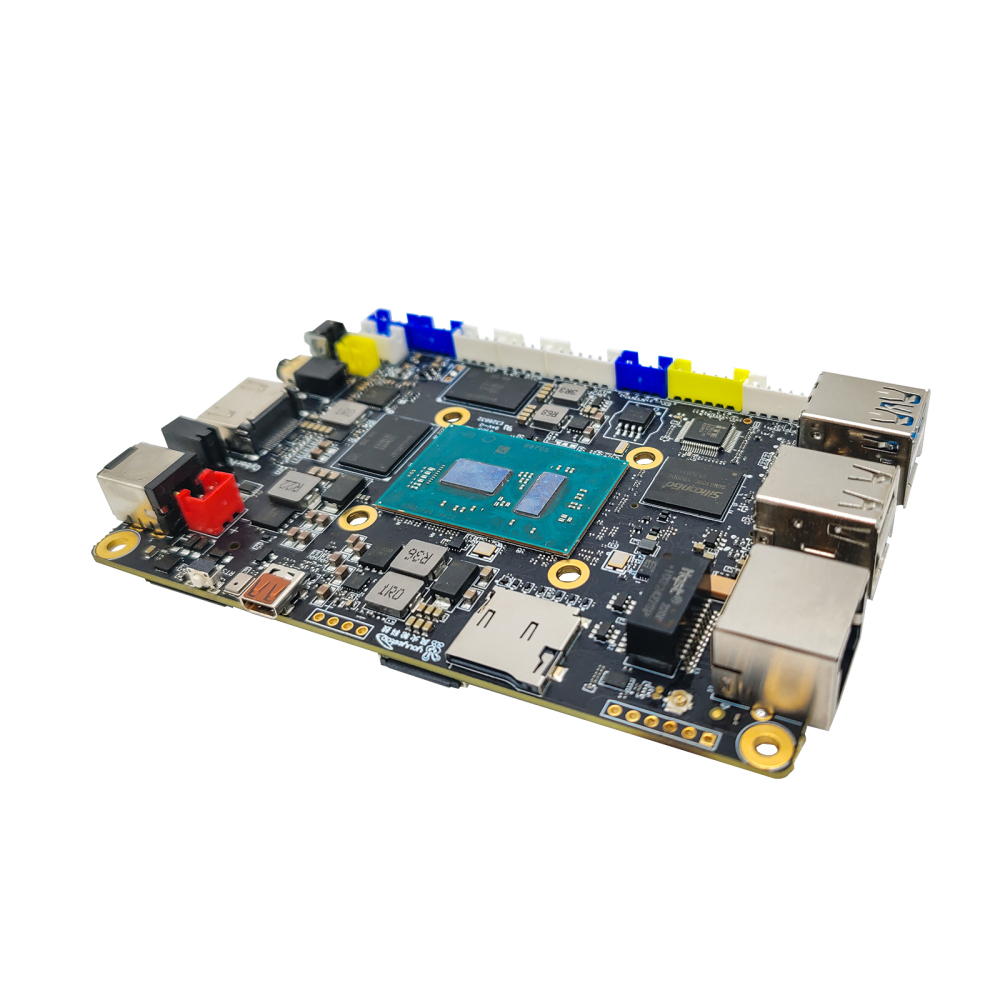

Introduction



The youyeetoo X1 is a single-board computer with an 11th Gen 4 Core Intel Celeron N5105. The N5105 is a quad-core, quad-threaded SoC from the Jaser Lake family. four Tremont CPU cores are clocked between 2 and 2.9 GHz (single-core Burst). Uses 1.5 MB L2 and 4 MB L3 caches.
Multiple RAM and storage sizes are available, with support for M.2 extended wifi, 4G LTE, and SSD. The right configuration can be matched to your project needs.
Whether you are a DIY manufacturer, IoT developer, system integrator or solution provider, you can always find what you want.
Mainly for industrial, IoT, automation, robotics, and other industries.

Standard MINI PC purchase link:

SKU CPU Link
BY50 [Intel N5105] [Click Here]
BY51  [Intel N100]  [Click Here]
BY52 [Intel N100] [Click Here]

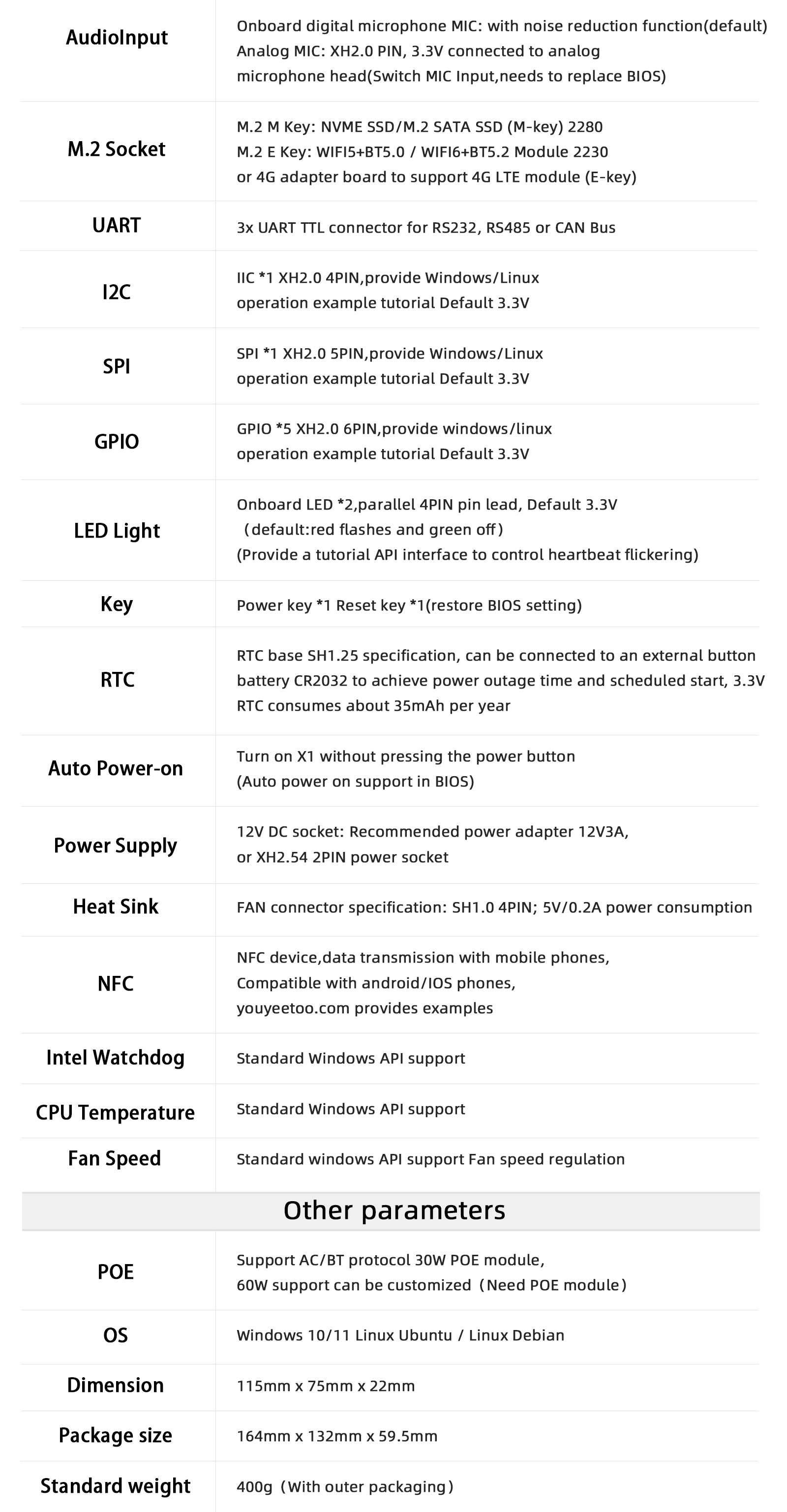

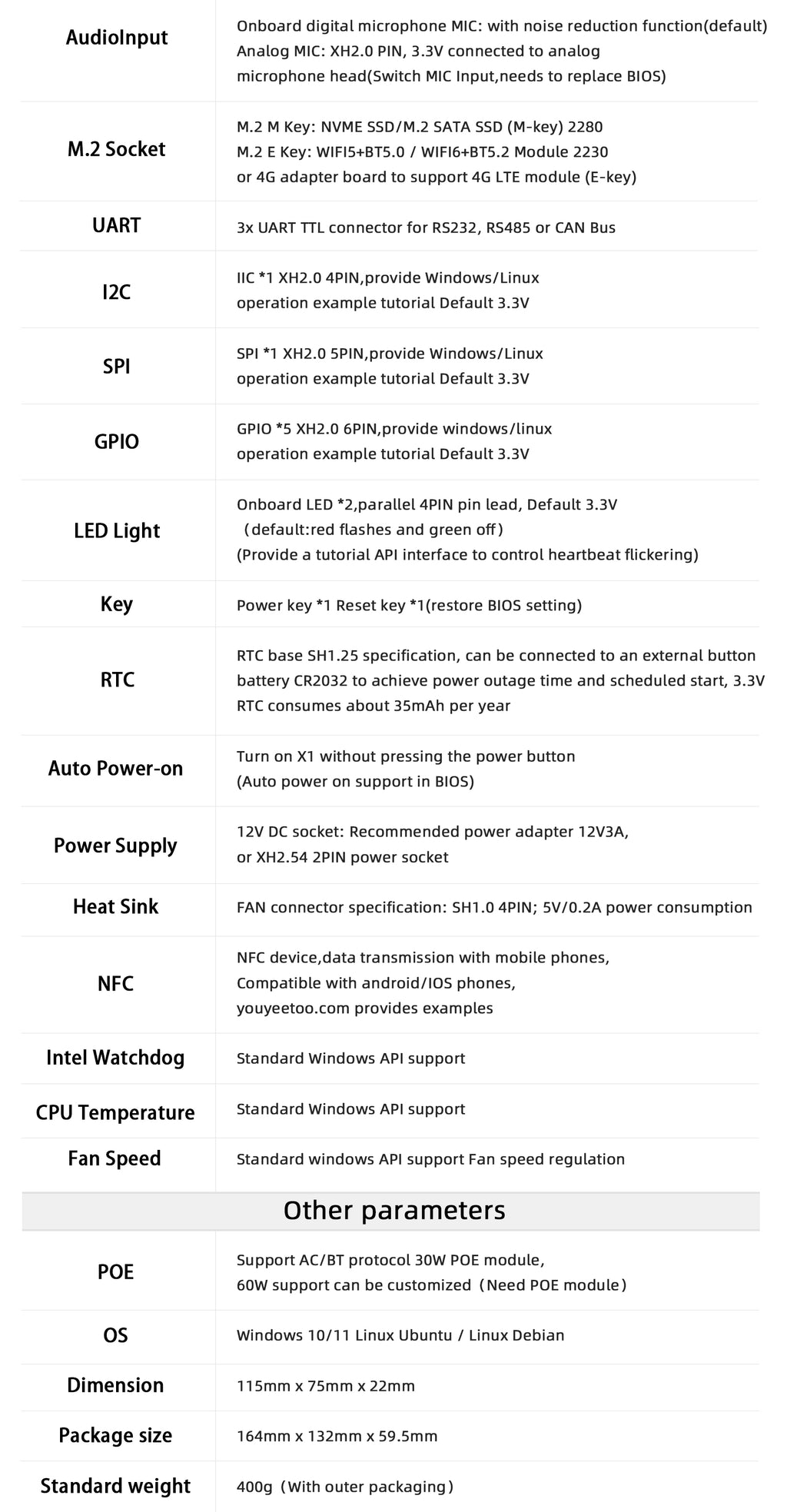

Features

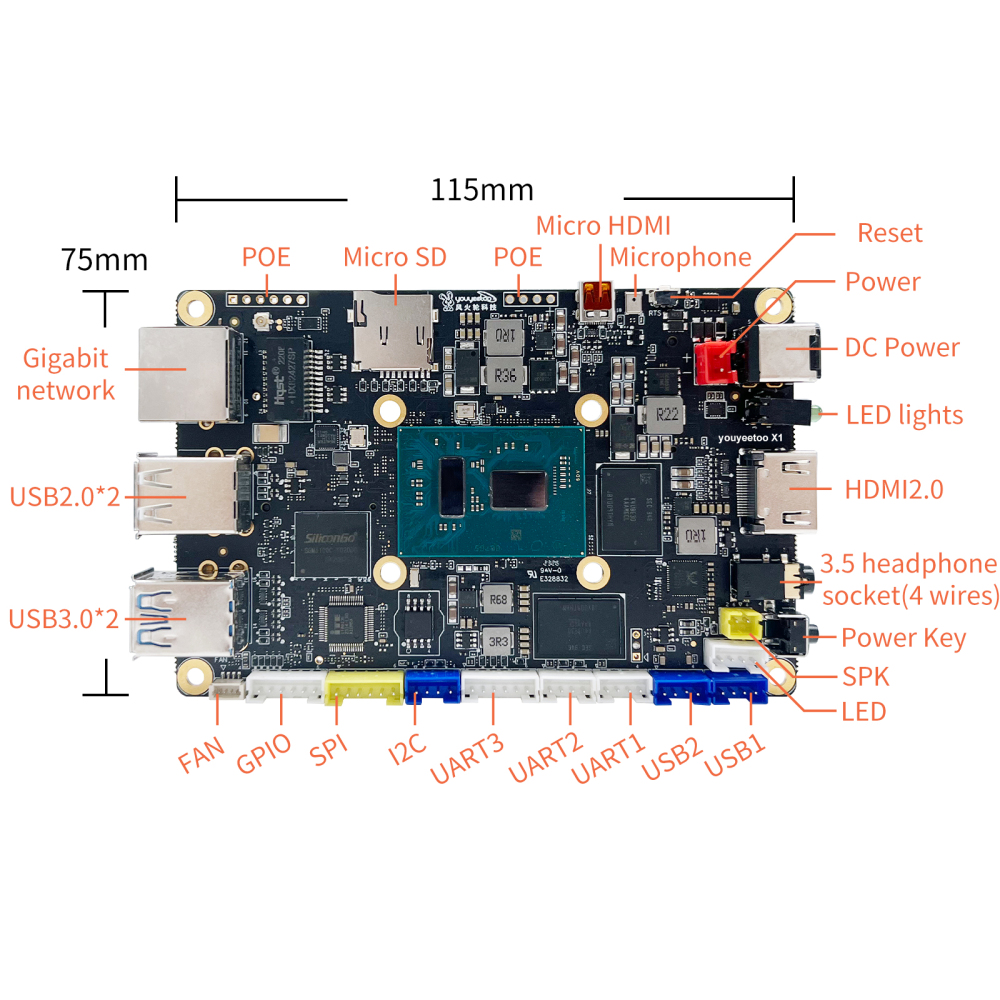

  • CPU: 11th Gen 4 Core Intel Celeron N5105(Up to 2.9 GHz), 10nm, 10 TDP
  • Graphics: Intel® UHD Graphics
  • RAM: Up to 16GB LPDDR4

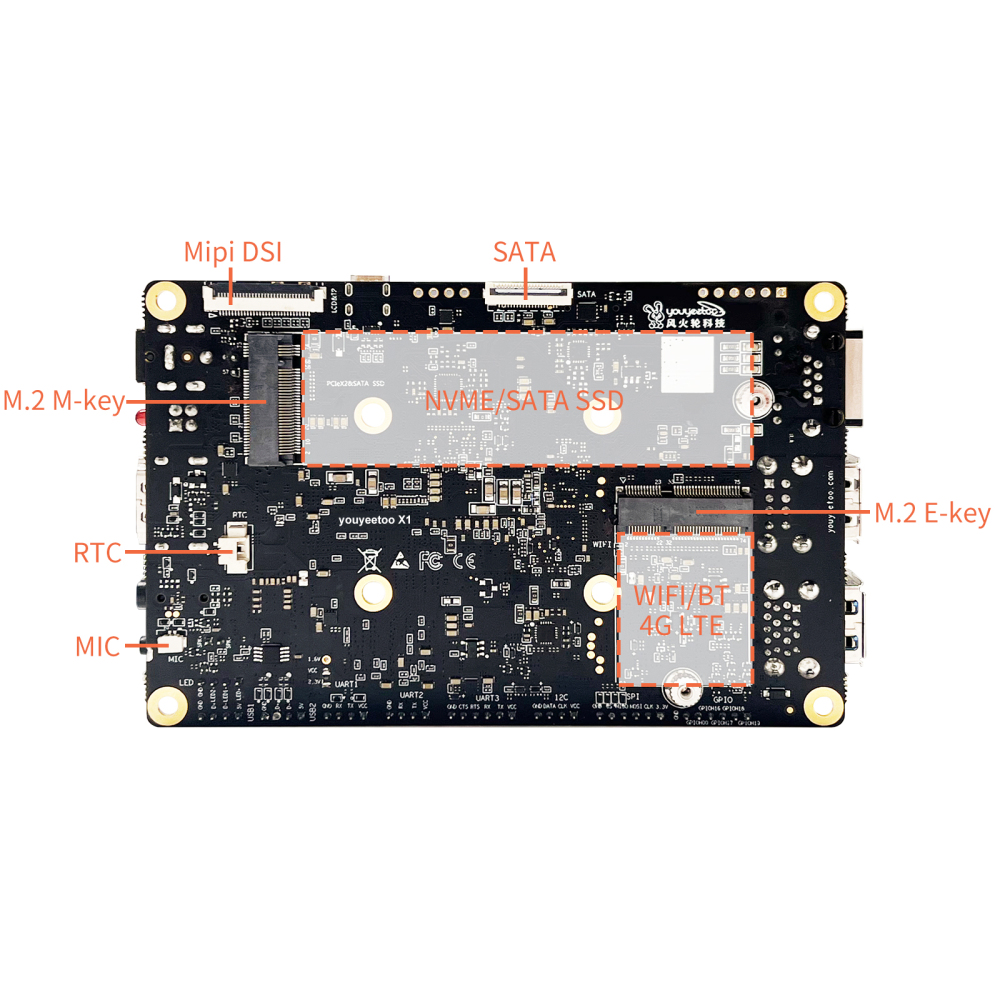

  • Storage: Support EMMC, TF Card, NVME SSD, SATA3.0.
  • Video:  Support Dual 4K HDR and 3-Way Video Output.
  • Networking: 1 GbE LAN. , WIFI 5 + BT 5.0 / WIFI 6 + BT 5.2 / 4G LTE via  M.2 2230 E key,
  • Other: PoE, USB3.0x2, USB2.0x4, UART, GPIO, IIC, SPI, RTC, NFC
  • Support Wake On LAN,  Automatically start.
  • OS: Linux, Windows 10 Pro / 11 Pro

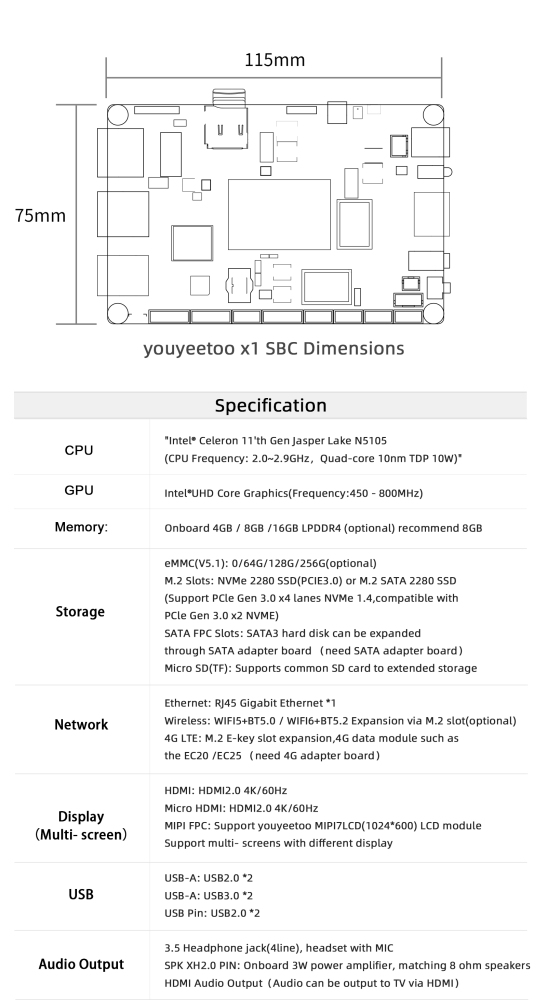

  • Size : 115mm x 75mm x 20 mm

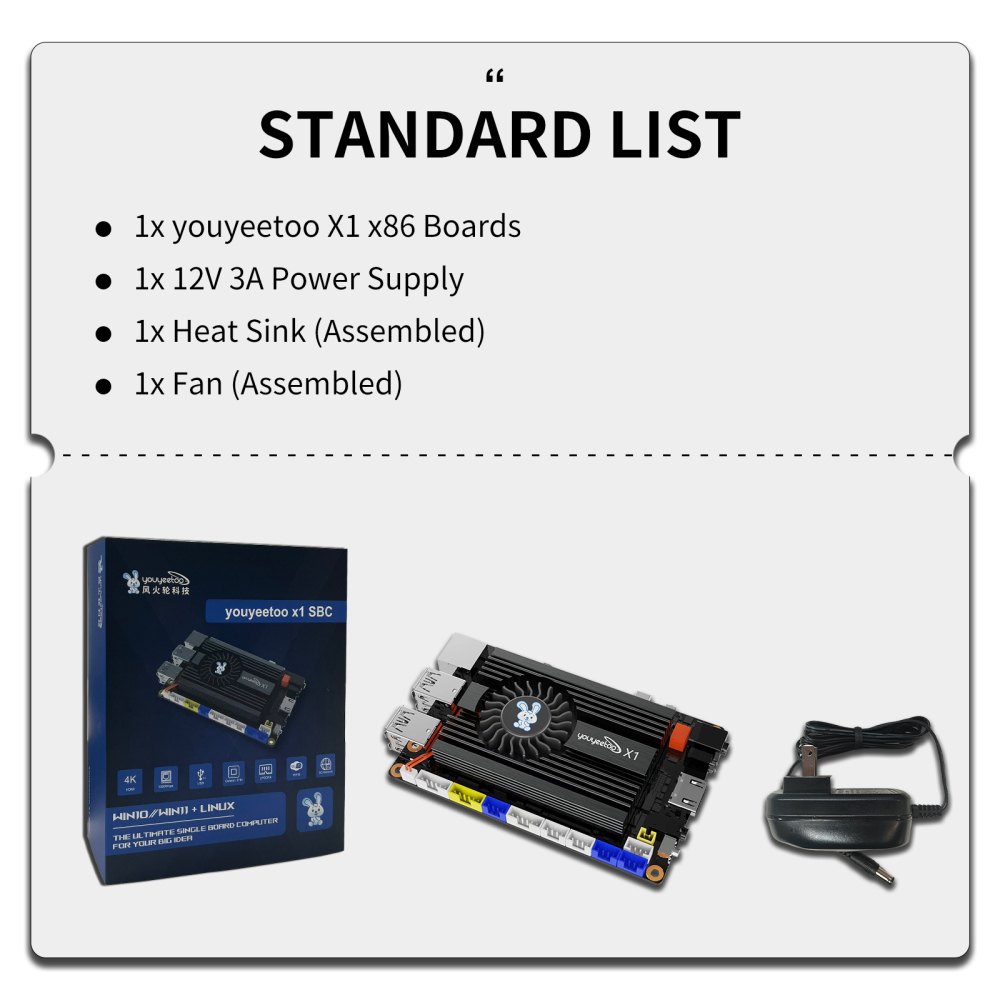

Shipping Listing:


x1 youyeetoo X1 X86 Single board computer
x1 12V 3A DC Power

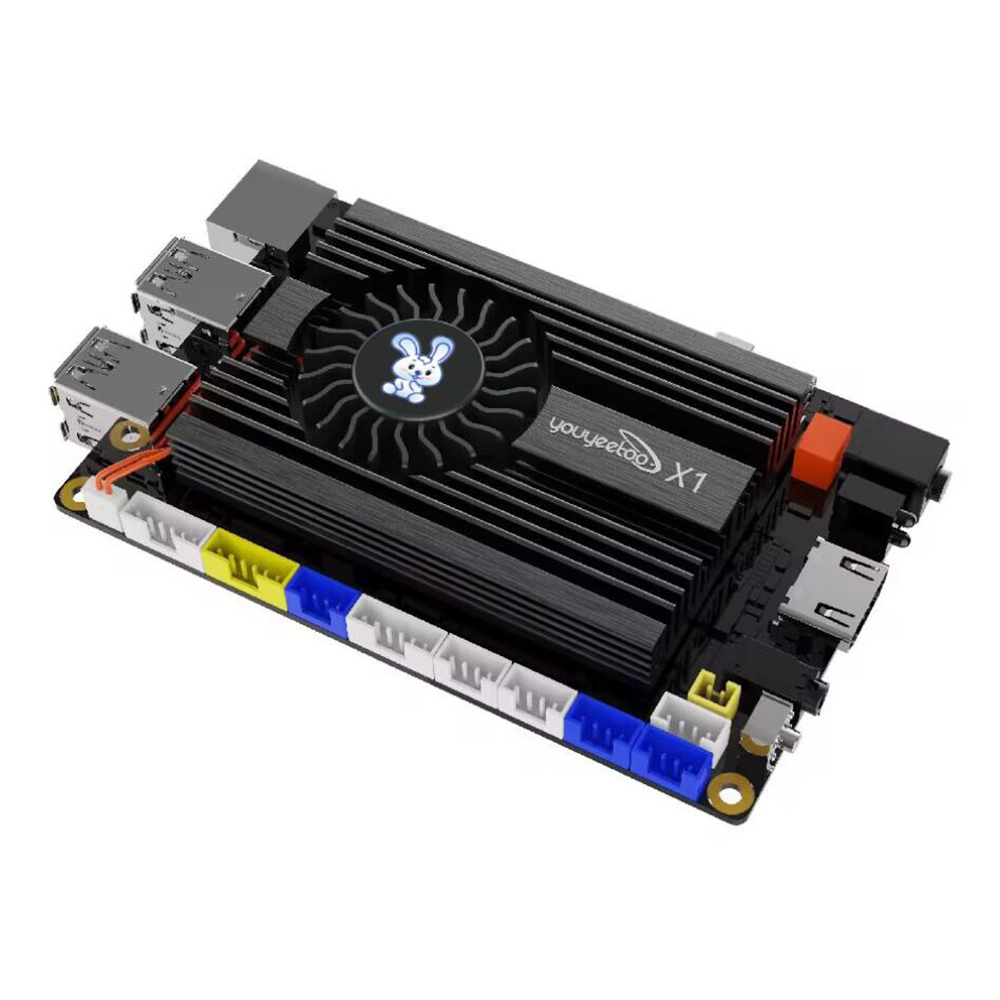

x1 Active Cooling Fan (Assembled)


Applications


Intel development board
Server
NAS Kit
Home Assistant

Detailed Descriptions











youyeetoo x1 ecosystems

All Accessories Link:https://www.youyeetoo.com/collections/youyeetoo-ecosystem
Tips: You can find the accessories supported in the wiki here.
If you can't find a tutorial on the wiki, you can feedback:

Forum: https://forum.youyeetoo.com/c/youyeetoo-x1-sbc-x64/32

youyeetoo x1 ecosystems
Categories Model Description  Purchase links How to use
Network WIFI 6 rtl8852ce, WIFI6+BT5.2 wiki link
  WIFI 5 rtl8822ce, WIFI5+BT5.0 wiki link
  4G LTE module EC20
(Tips:Requires use with a 4G adapter board.)
wiki link

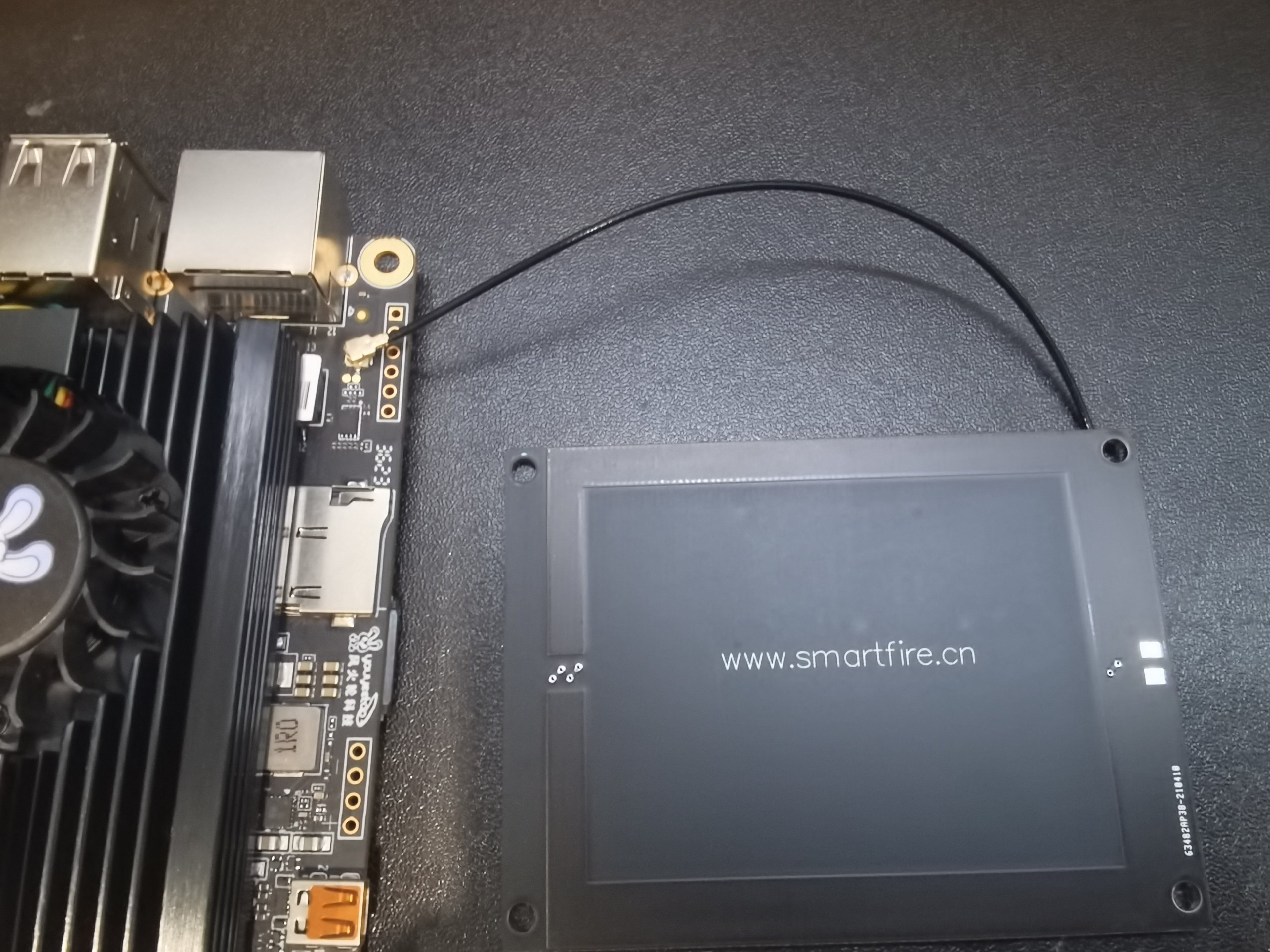

NFC antenna  NFC antenna  wiki link
Display 7 inch LCD Touch Screen, 5point, 1024x600 wiki link
Debug Debug Module 6 in 1 USB Adapter Module - USB to UART SPI IIC Master Slave PWM IN/OUT wiki link

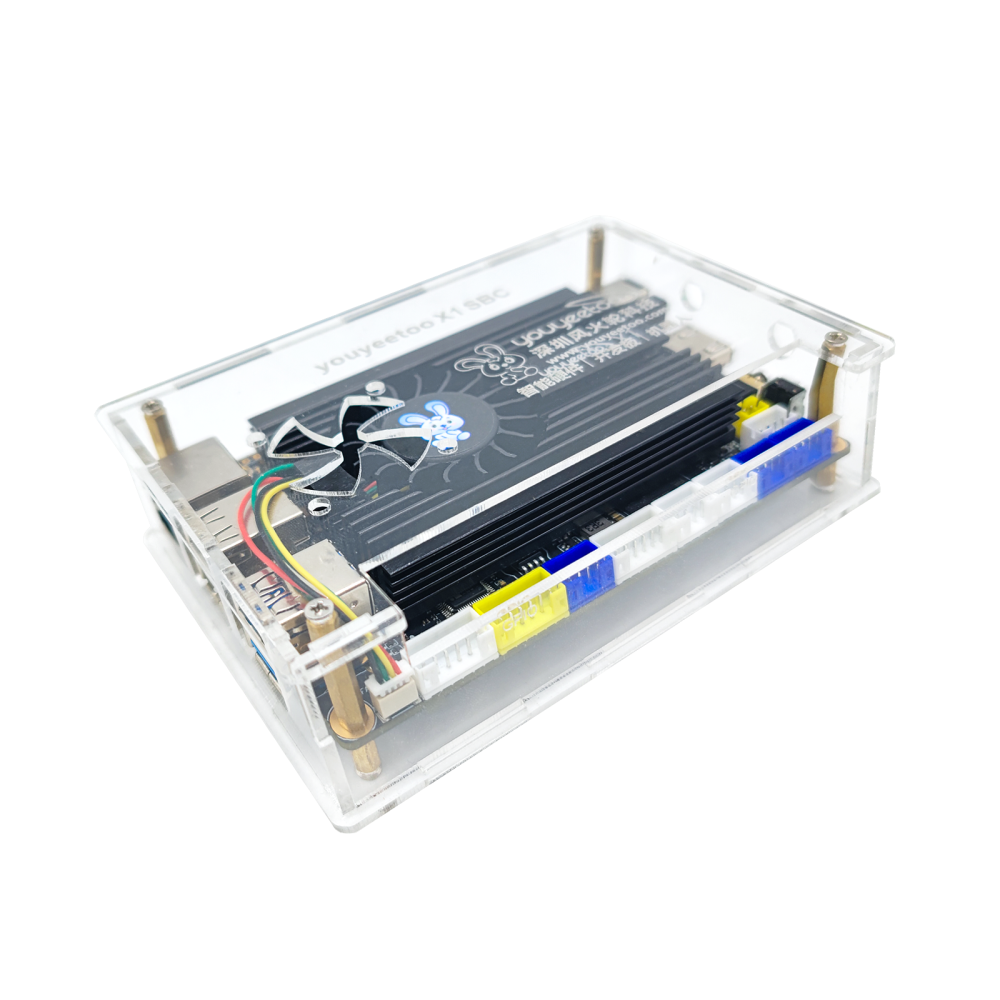

Case Acrylic shell Acrylic shell (coming soon) wiki link

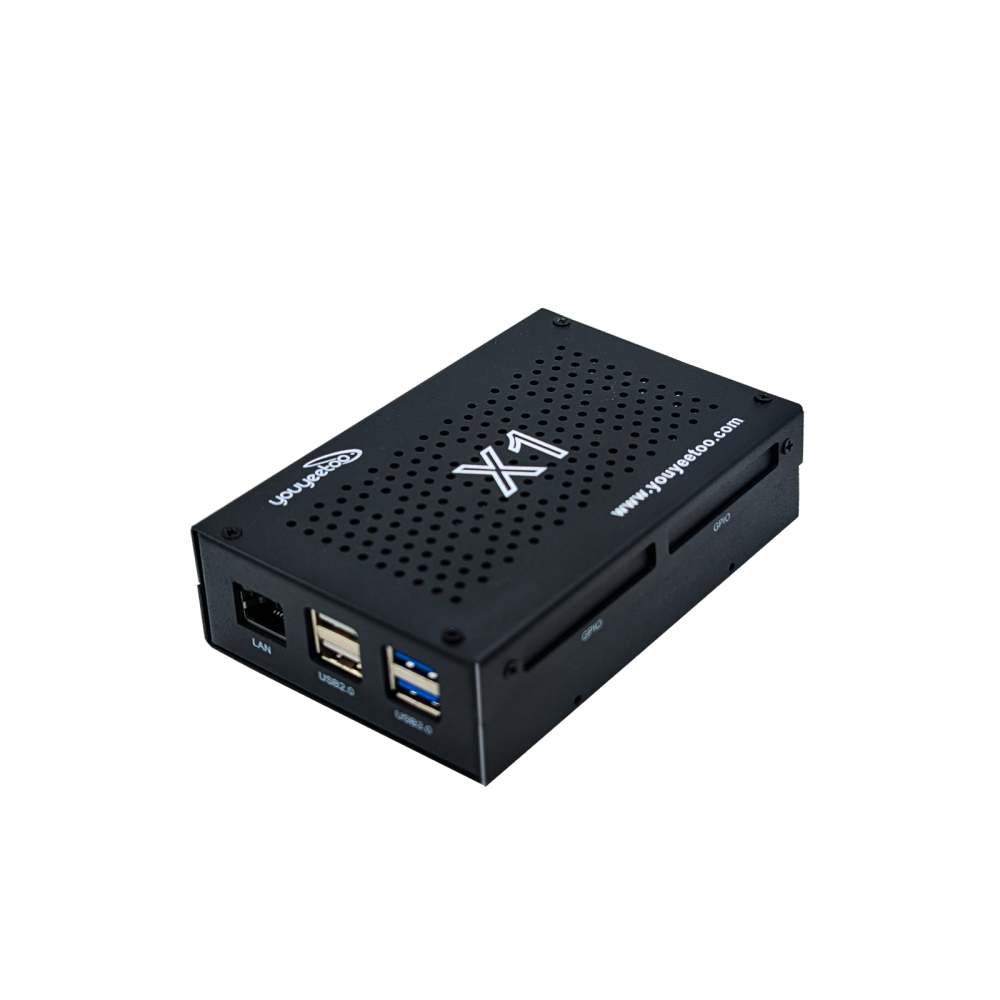

  Metal CNC case Metal CNC case  Assembly Video Link
Adapter  SATA adapter  SATA3.0 adapter  wiki link
  M.2 to MINI-PCIe  4G module adapter for youyeetoo x1 wiki link
Power 12V3A DC Power DC jack, 5.5*2.5mm, US/EU/UK Standard wiki link
  PoE moduel 12V PoE module.
Provide 30W, 60W, 72W
wiki link
Storage SSD mSATA, NVME, 256GB, 512GB, 1TB, 2TB wiki link
BAT RTC BAT RTC BAT, SH1.0 connector wiki link
