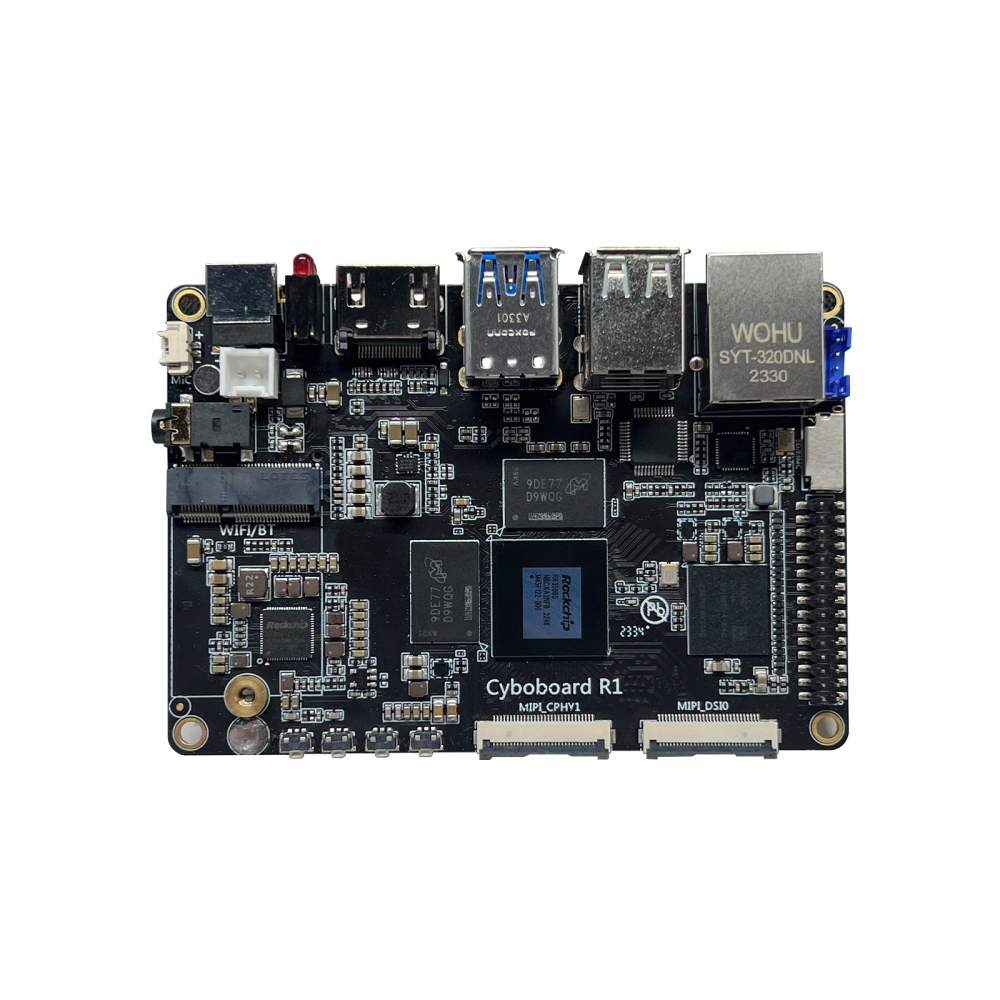

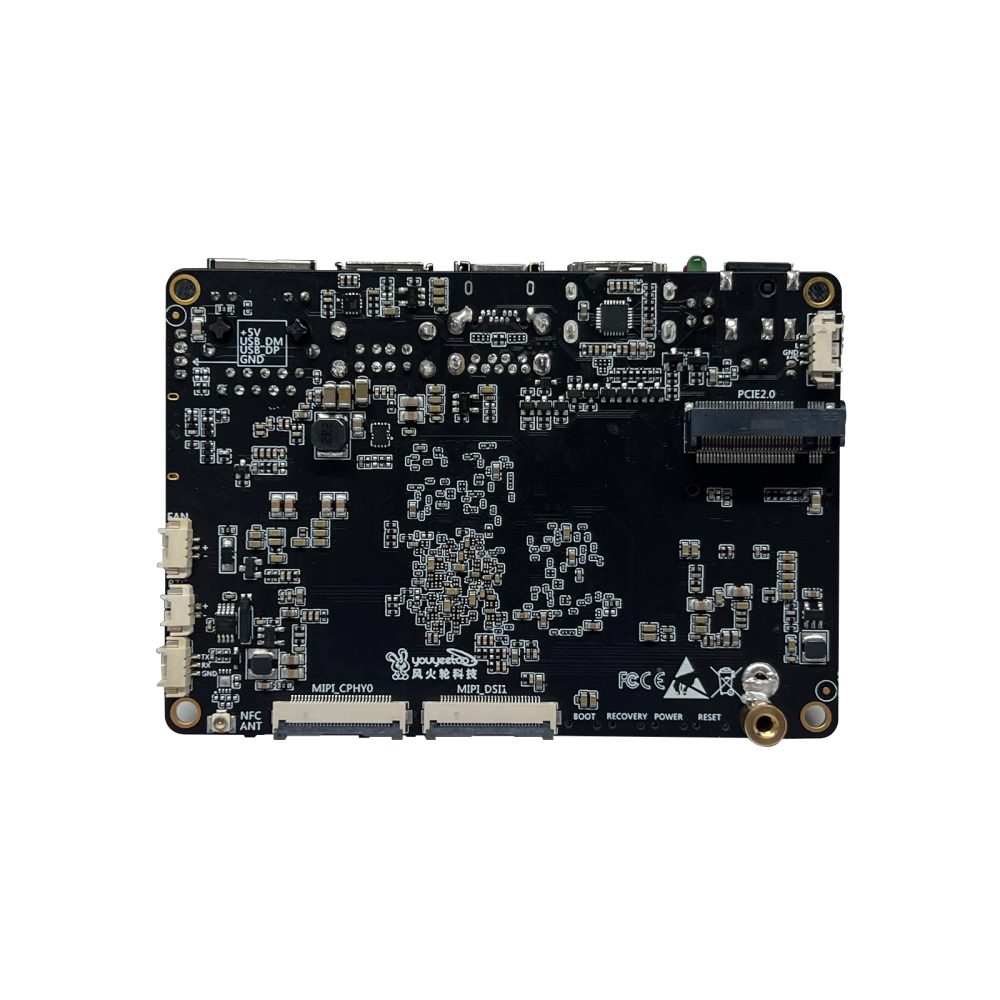

youyeetoo R1 - Card Size SBC with 6 Tops NPU & 8K Display - Extra support HDMI IN NFC - Support Ubuntu/ Android / Debian

Name: youyeetoo R1 - Card Size SBC with 6 Tops NPU & 8K Display - Extra support HDMI IN NFC - Support Ubuntu/ Android / Debian
Brand: youyeetoo geeker shop
Price: 99 USD
Availability: InStock

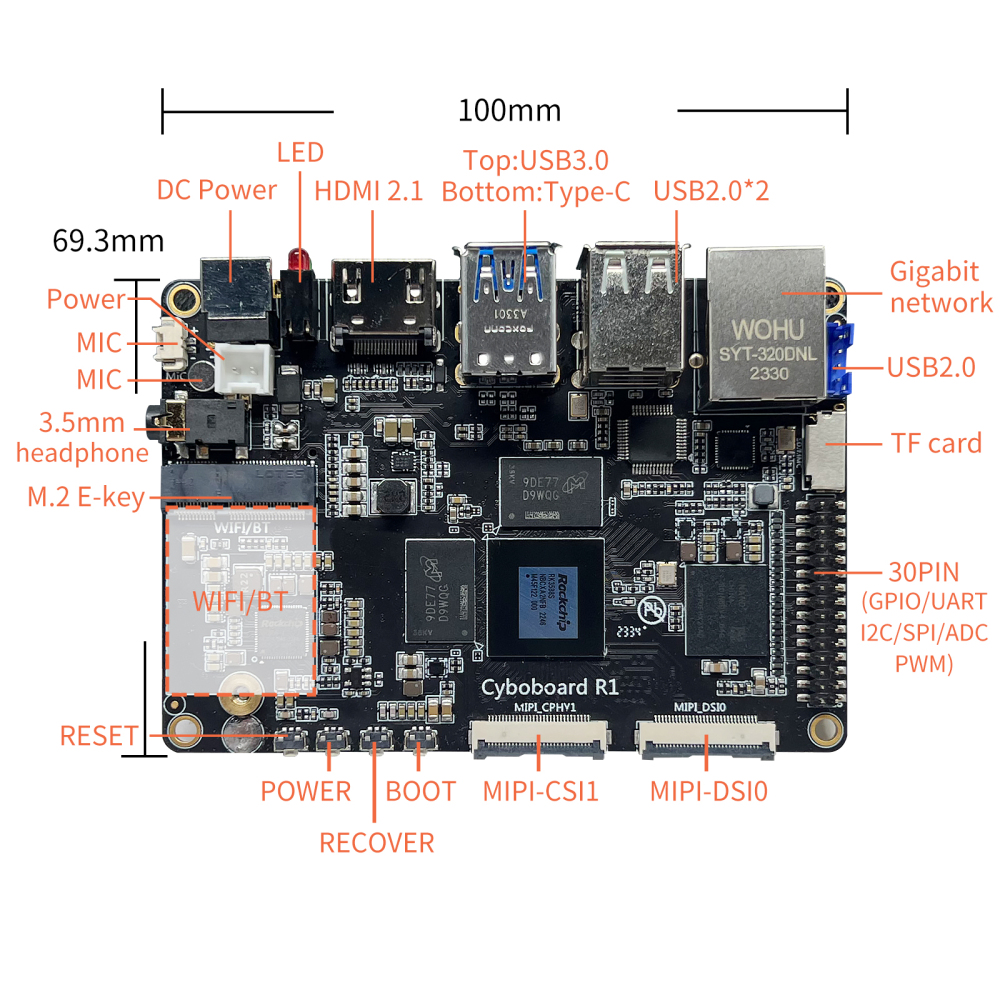

CPU: Rockchip RK3588S ,8-core 64-bit,Up to 2.4GHz frequency
NPU: 6TOPS , ARM Mali-G610 MP4 “Odin”GPU
RAM: Up to 32GB
EMMC: Up to 256GB
Network: GbE, WIFI/BT, 4G/5G
Display: HDMI2.1, MIPI-DSI, DP
Camera: MIPI-CSI,USB
Expanded Interface: Onboar NFC, 30PIN (IICx3, SPIx1, UARTx3, PWMx1, ADCx2, GPIOx1)[Pin multiplexing], HDMI-IN(via MIPI-CSI)
Power: 12V DC Jack 5521, 2Pin 2.54 pitch
OS Support: Android 13/ Debian 11/ Ubuntu 22.04 (kernel 5.10)
Size: 100 x 69.3mm
Gross weight:

0.0 (0 Reviews)

$99.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Model:

4GB RAM / 32GB EMMC

8GB RAM / 64GB EMMC

16GB RAM / 128GB EMMC

32GB RAM / 256GB EMMC
Option:

Basic Kit

Standard Kit - Optional Power (US/EU/UK)

Metal Case Kit

Acrylic Shell Kit

Quantity

Add to Favorites (0)

Description
Reviews

youyeetoo R1
Card Size SBC with 6 Tops NPU & 8K Display

Warm reminder:

youyeetoo R1 v3.0 (New Version)

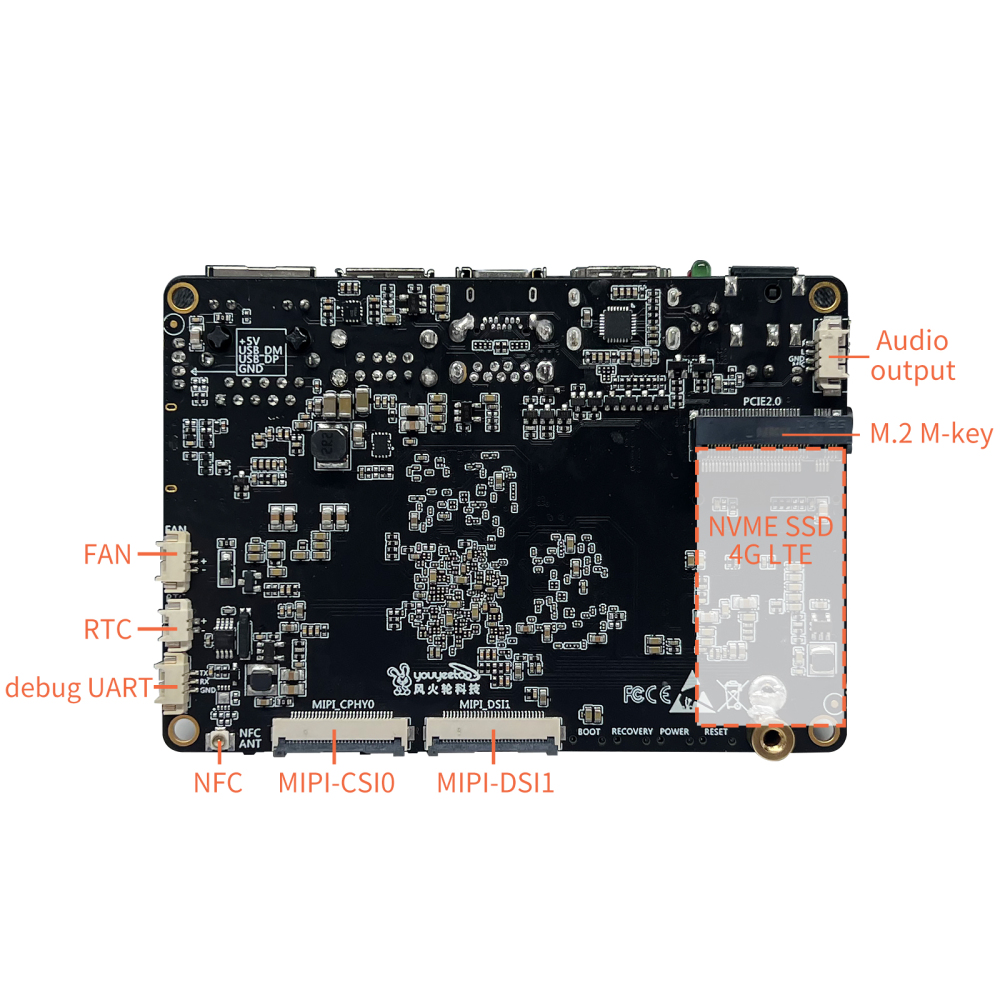

1. The M.2 seat can be installed with 2280 SSDs at the bottom(More friendly for large storage)

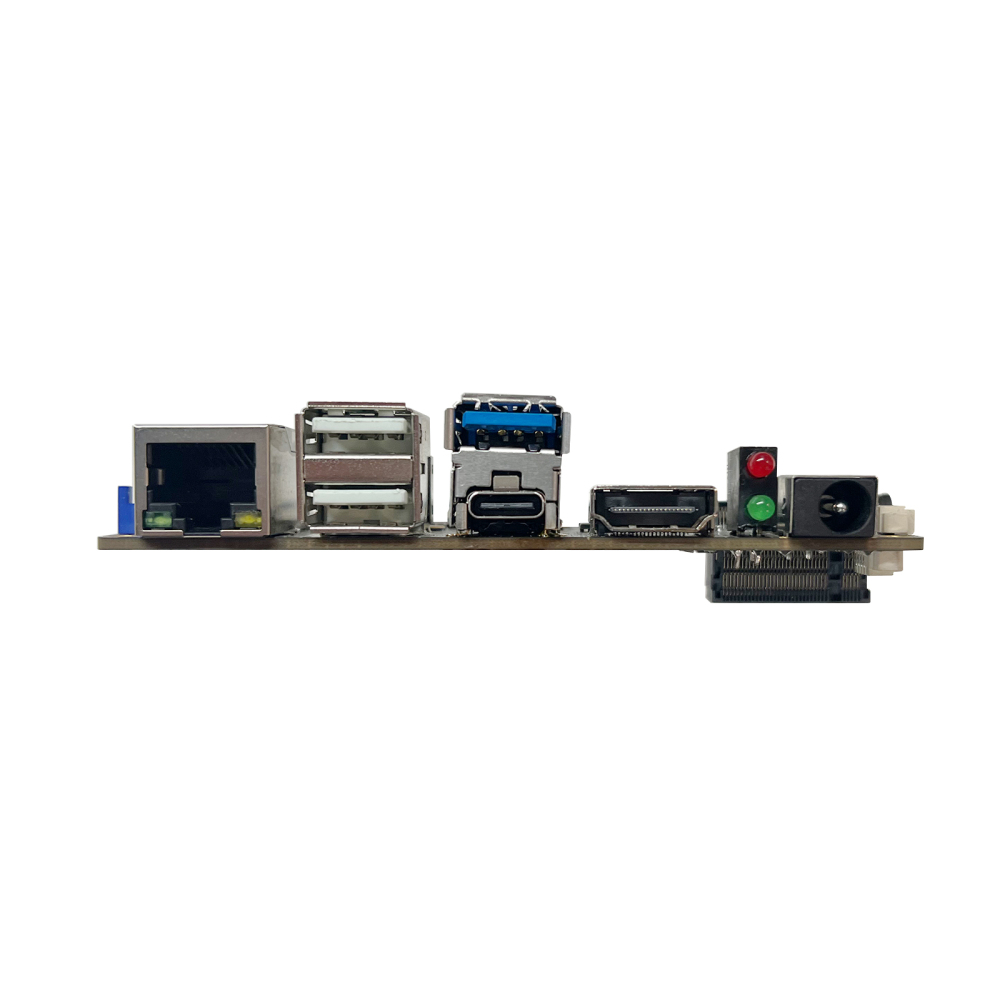

2. There are 4 USB-A Ports(3 USB2.0 1 USB3.0) No USB-C port
(the USB3.0 can work on HOST/Device Mode)
3. Add a DIP switch to switch the working mode of USB 3.0(HOST/Device Mode)
youyeetoo R1 For versions before V3, it is not possible to use the USB3.0 and M.2 M KEY 2242 interfaces at the same time due to pin sharing. Please be aware of this.

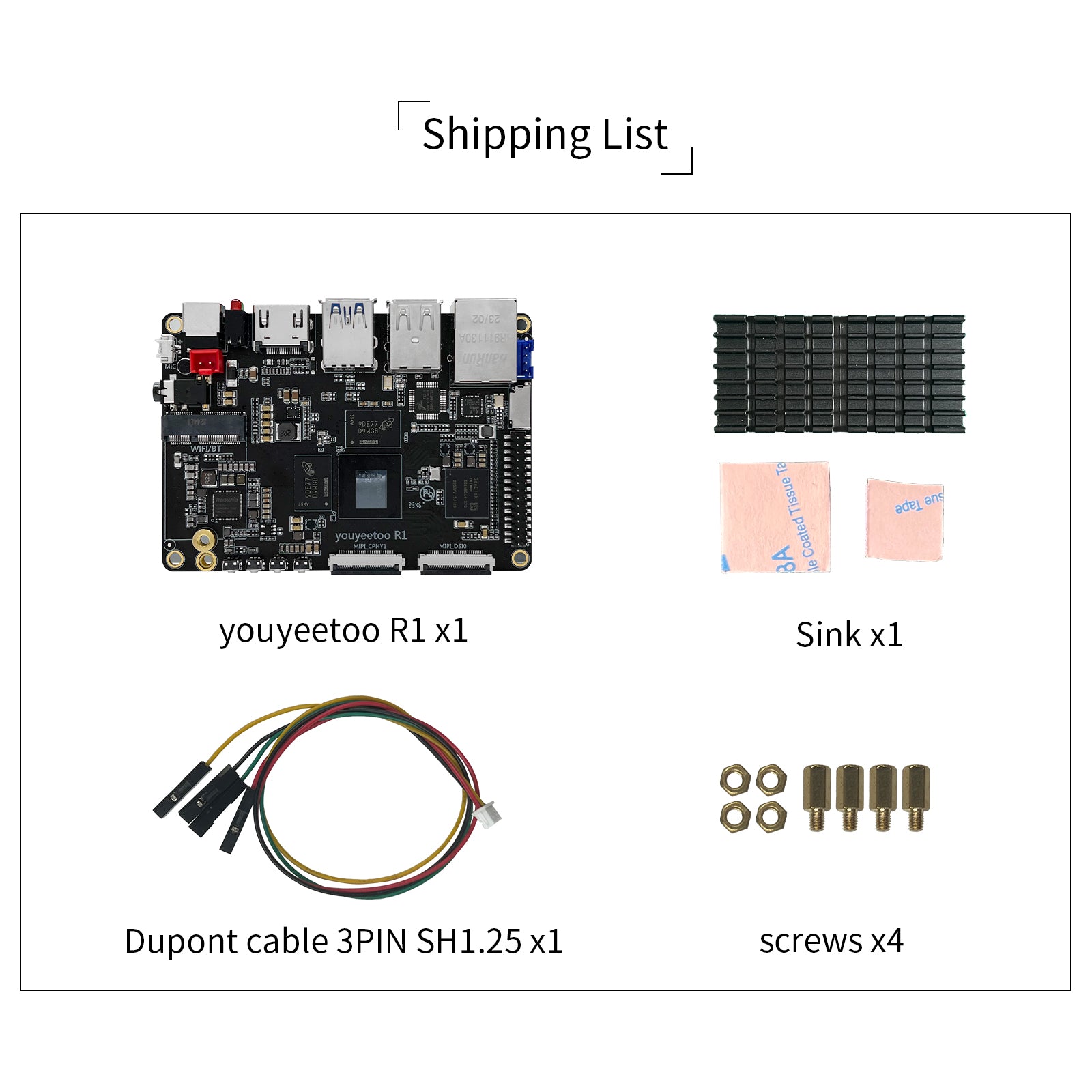

Shipping List:

Basic Kit:

youyeetoo R1 x1 (With Heat Sink)

Standard Kit :

youyeetoo R1 x1 (With Heat Sink)
12V DC Power x1 Optional power supply (US/EU/UK)
Debug Kit (USB To TTL adapter , SH1.25 3PIN Cable) x1 [ USB To TTL adapter Shop Only]

youyeetoo R1 Ecosystem - Mostly compatible with YY3568

>>>Check out the wiki: how to use these accessories. <<<

ALL Accessories : https://www.youyeetoo.com/collections/youyeetoo-ecosystem

Acrylic Shell : https://www.youyeetoo.com/products/acrylic-case-for-youyeetoo-r1
7inch LCD : https://www.youyeetoo.com/products/7inch-touch-screen-dsi-interface
4G LTE Adapter : https://www.youyeetoo.com/products/m2ngff-key-m-to-mini-pcie-adapter
HDMI IN to MIPI-CSI : https://www.youyeetoo.com/products/rk628-hdmi-to-mipi-csi-adapter
CAN to TTL Module: https://youyeetoo.com/products/ttl-to-can-adapter-vp230-chip
