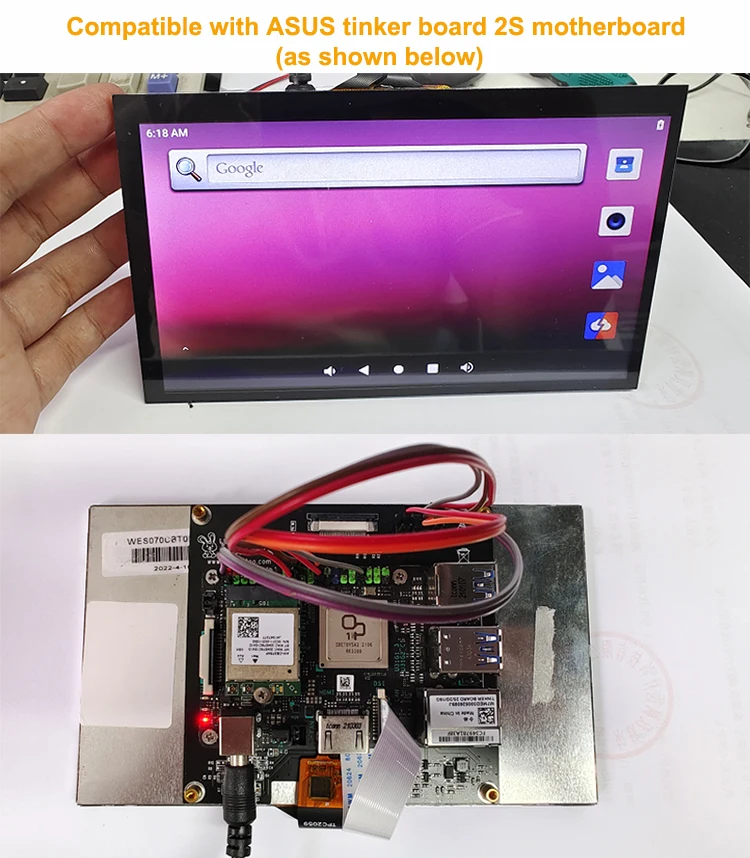

The screen is compatible with the following products, click on the model number to see how to use it:

 youyeetoo series

Tips:
Support for driver customization.
Any problem, please feedback to forum.youyeetoo.com



Product introduction



YT-MIPI7LCD 2203 is a 5-point capacitive touch, 7-inch color TFT-LCD module. The module consists of the following parts, a TFT LCD panel, driving circuit, 5-point capacitive touch, and backlight. Among them, the 5-point capacitive touch has 26 driving channels and 14 sensing channels, which can meet higher touch accuracy requirements. It can identify the real-time accurate position, movement trajectory, and touch area of 5 touch points at the same time. According to the master control requirements, read the touch information of the corresponding points.





Features:

  • Built-in capacitance detection circuit and high-performance MPU

  • Touch scan frequency: 100Hz

  • Real-time output of touch point coordinates

  • Unified software version for capacitive screens of various sizes

  • Single power supply, built-in 1.8VLDO

  • Flash process, support online programming

Capacitive screen sensor

  • Detection channel: 26 (drive channel) * 14 (sensing channel).

  • Capacitive screen size range: 7"~8"

  • Support ITO glass

  • Cover Lens thickness support: 0.7mm≤glass≤2mm, 0.5mm≤acrylic≤1.2mm

  • Built-in frequency hopping function

Response time

  • Green mode: <48ms

  • sleep mode: <200ms

  • Initialization: <200ms

voltage

  • Single power supply: 2.8V~3.3V

  • Power supply ripple: Vpp≤50mV

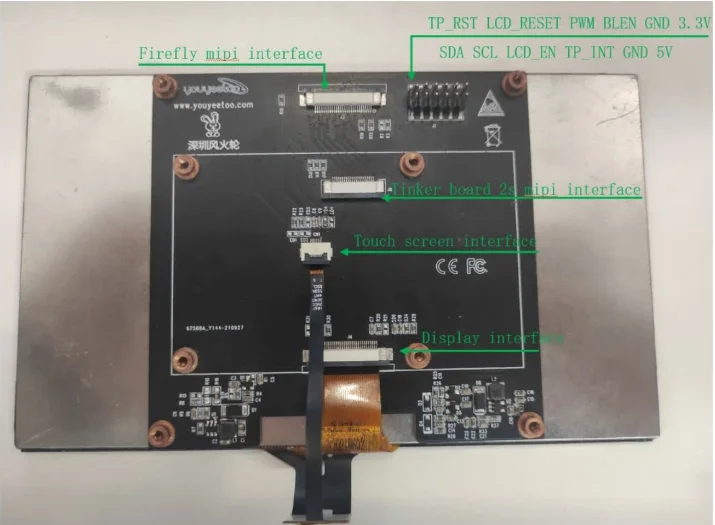

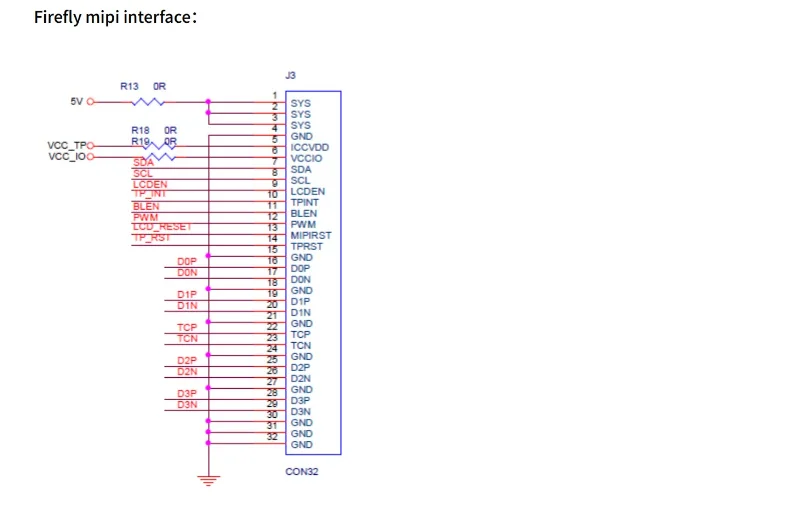

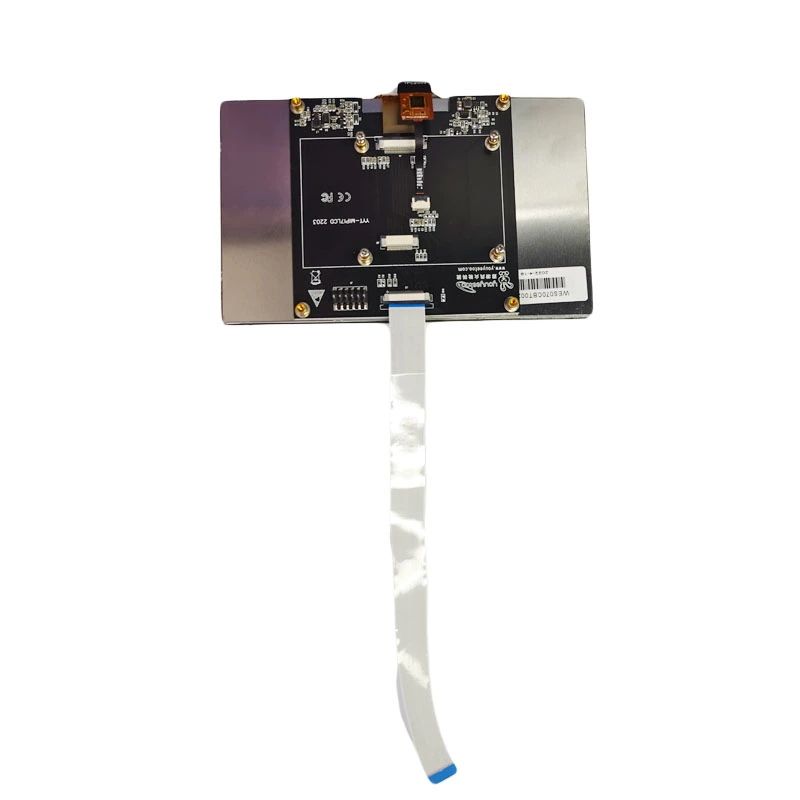

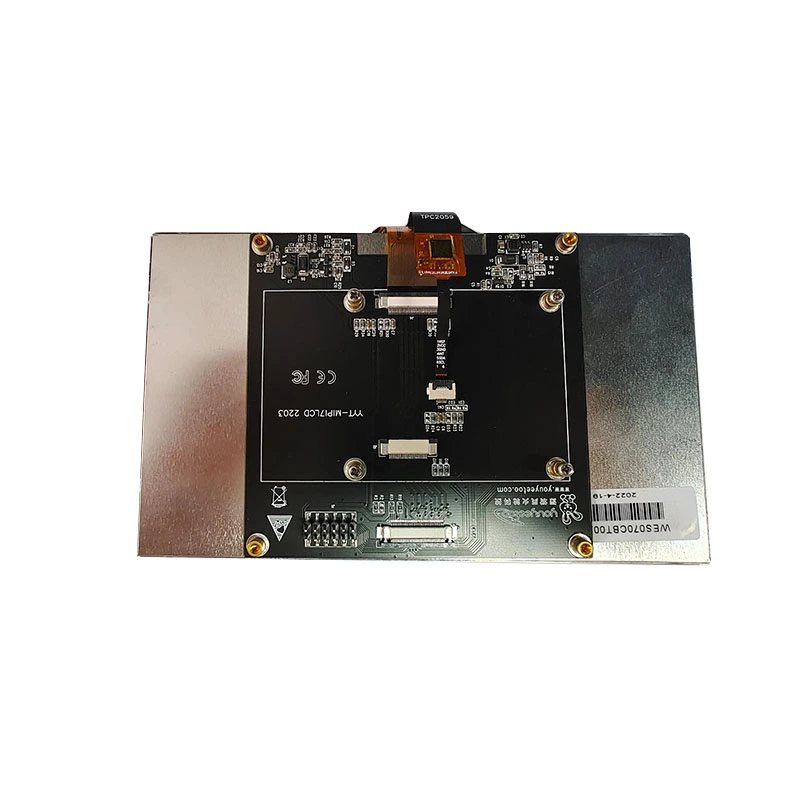

Interface definition

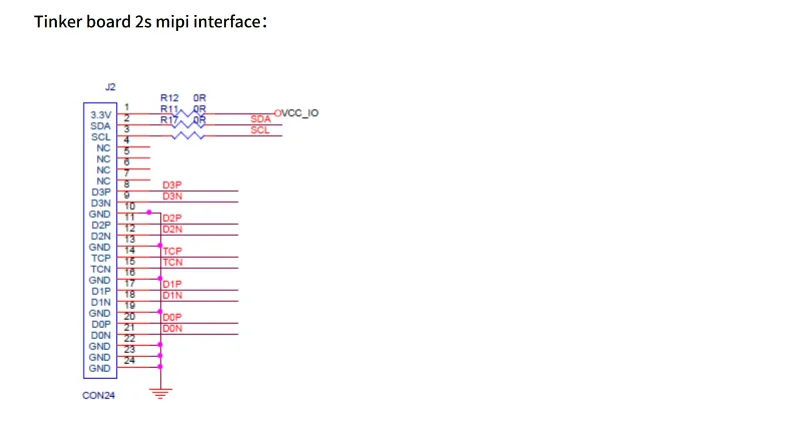

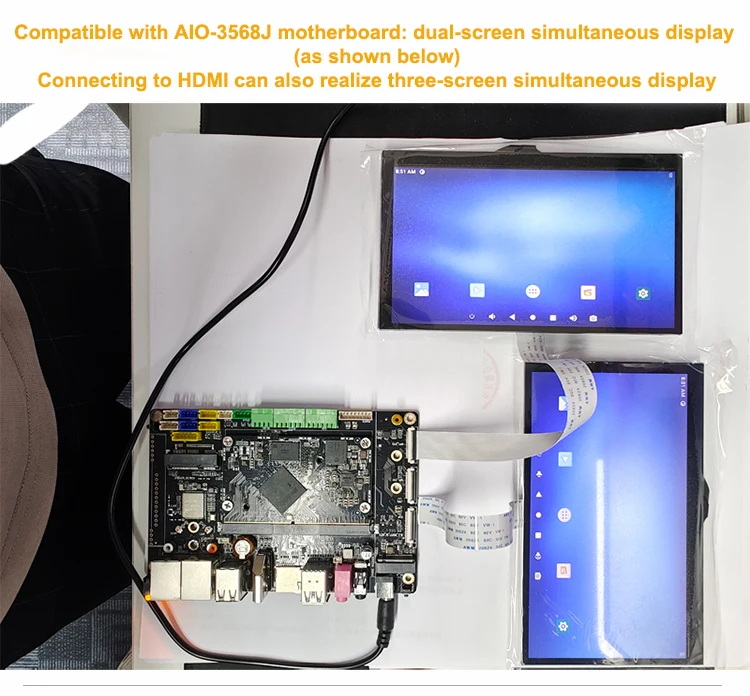

Note: This module supports the 30Pin mipi display interface (DSI) of the ASUS Tinker series and Firefly series. When using, either connect to the ASUS mipi interface or firefly mipi interface and cannot be used at the same time. Simultaneous use will cause blurry screen, distortion, etc. problems, and serious damage.

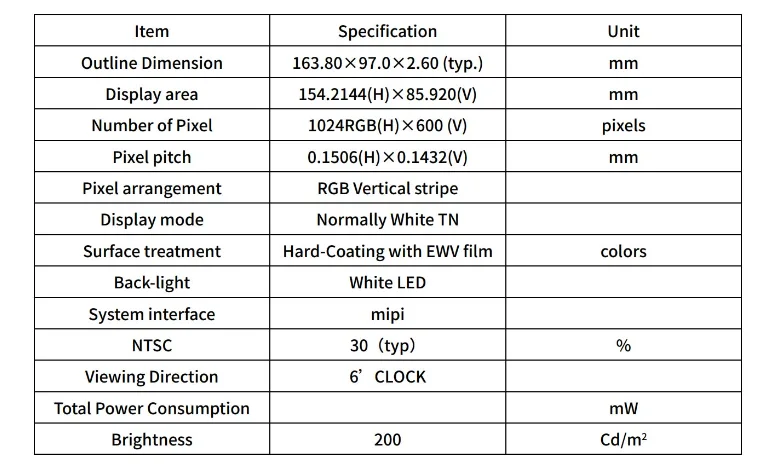

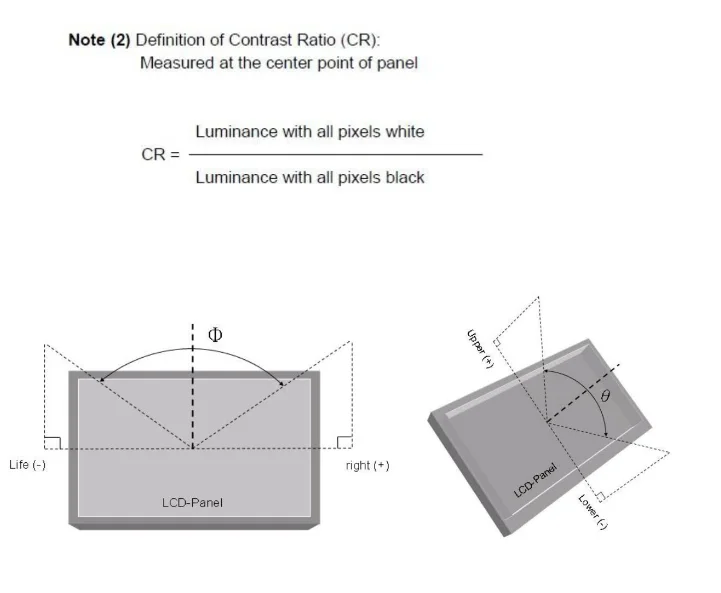

Specifications

Electrical properties

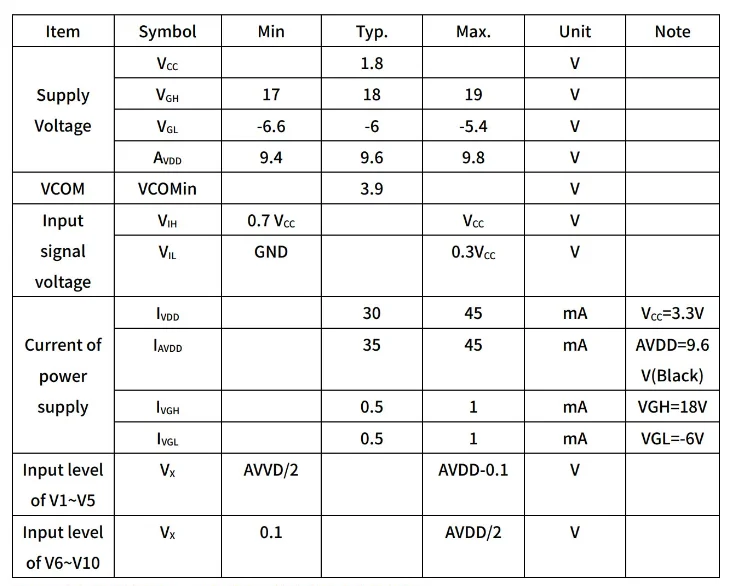

Note:If this range is exceeded, permanent damage to the LCD module may occur
