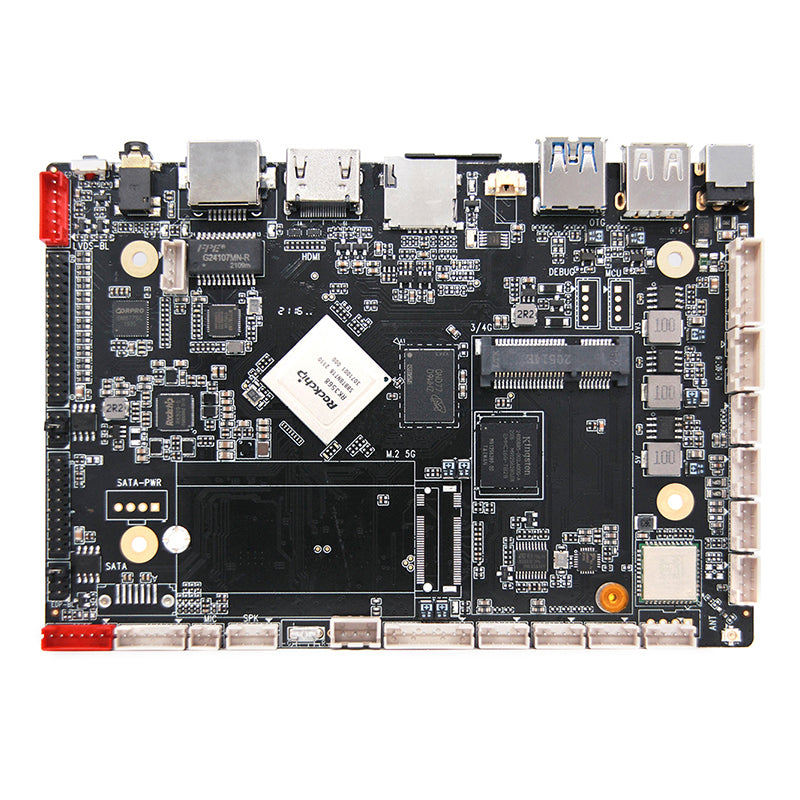

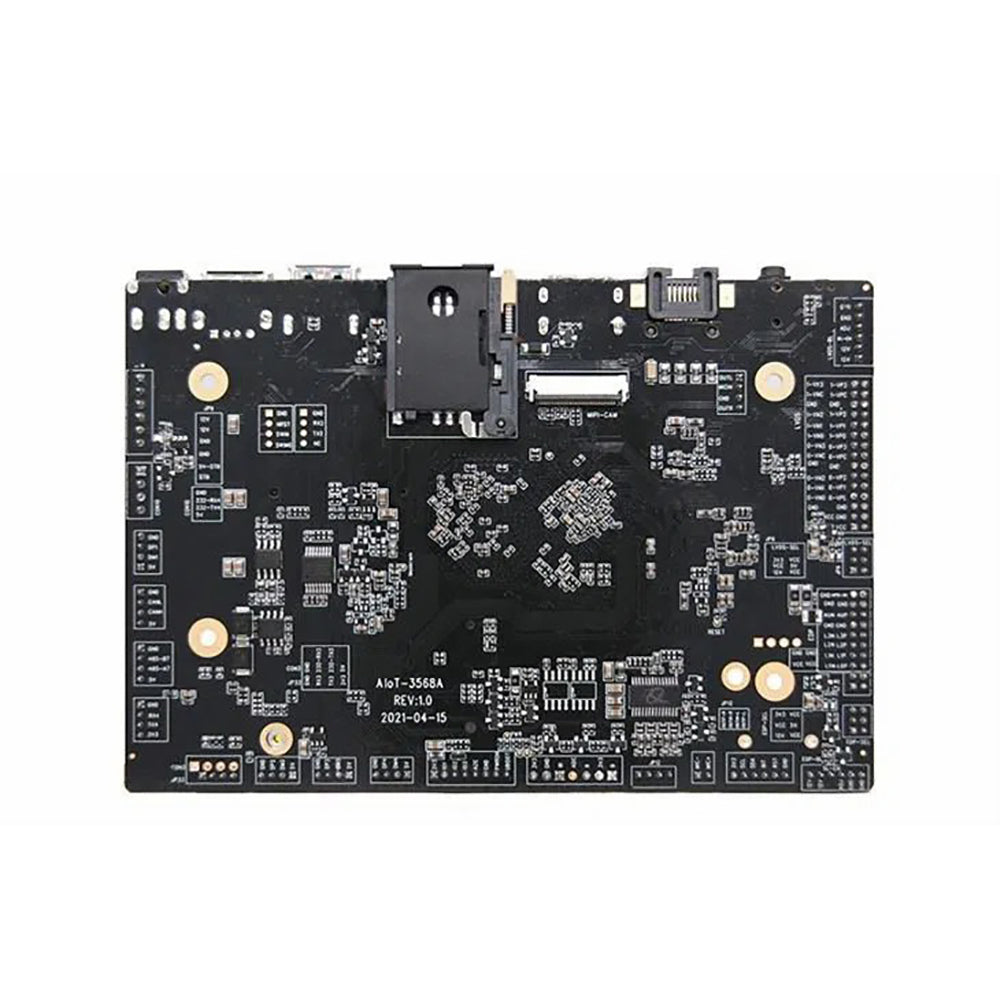

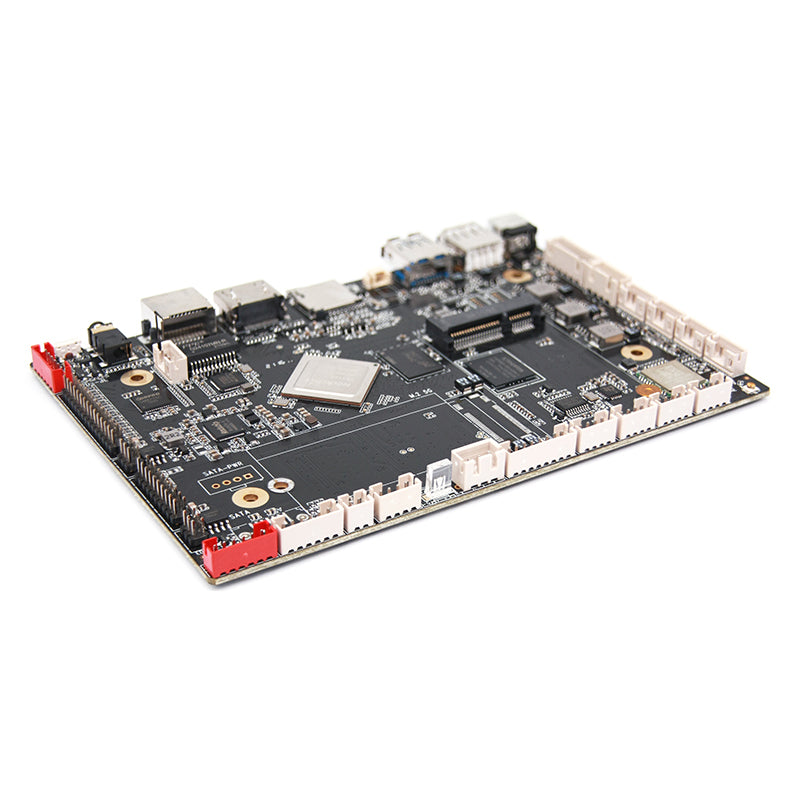

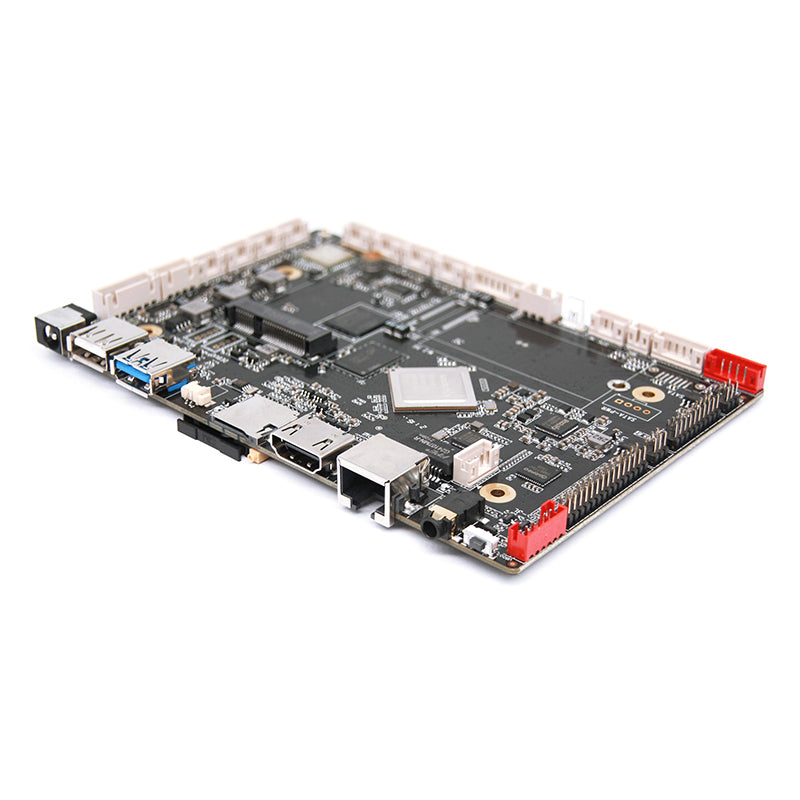

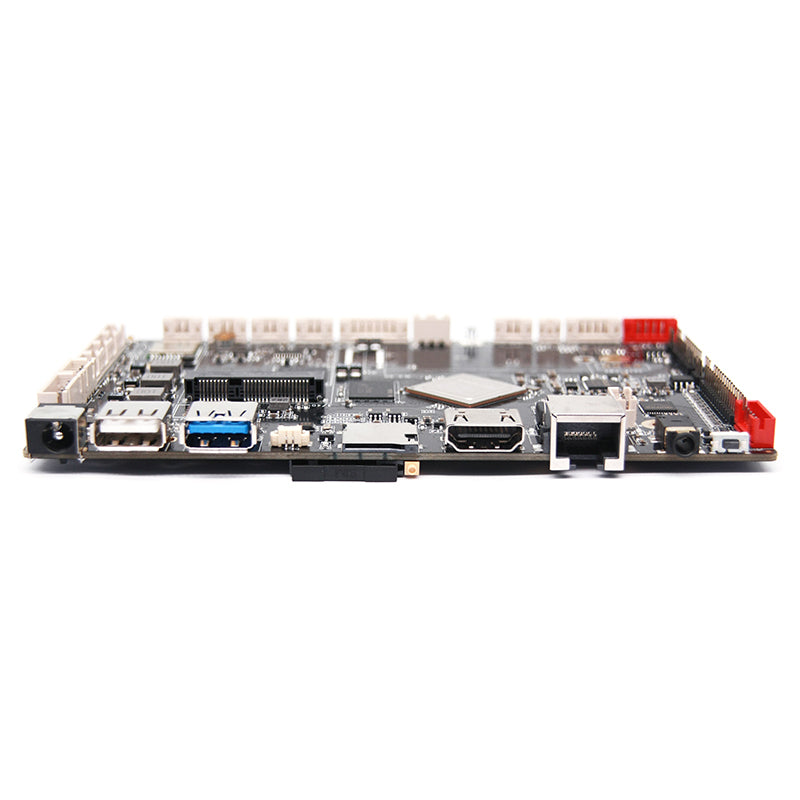

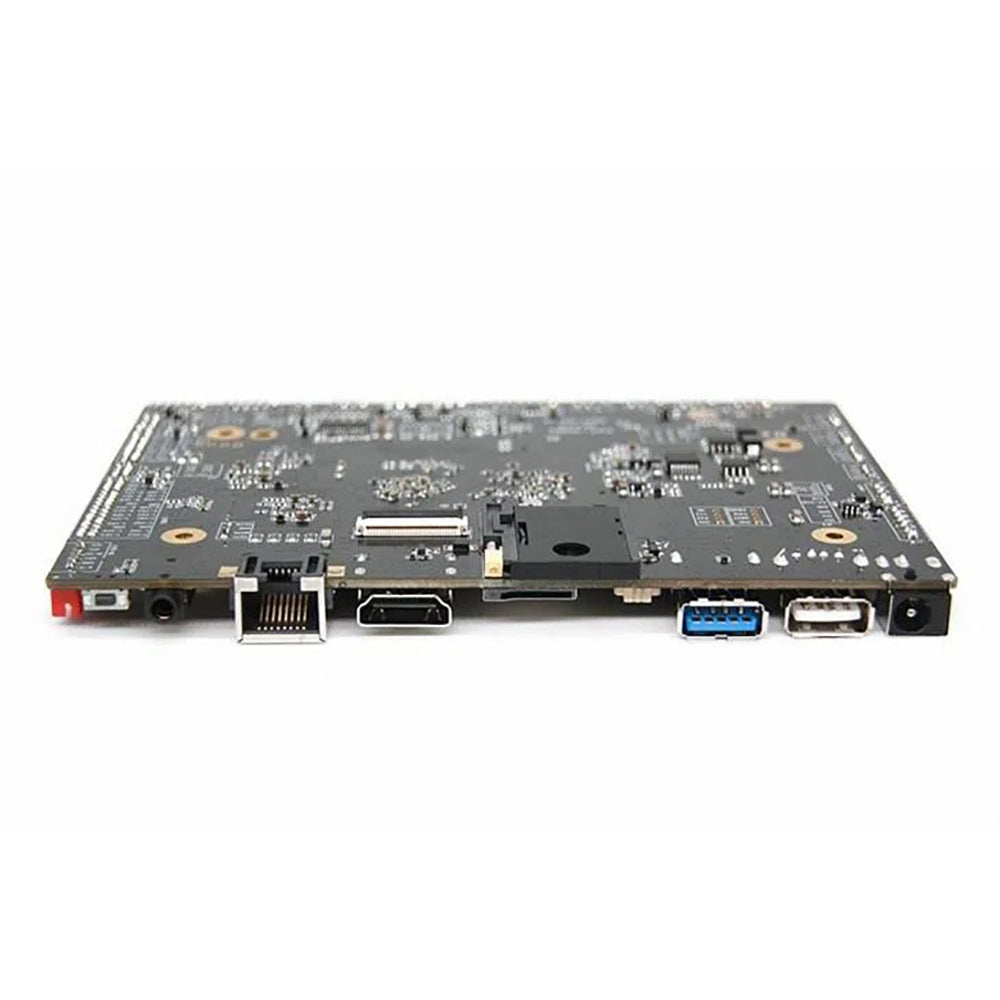

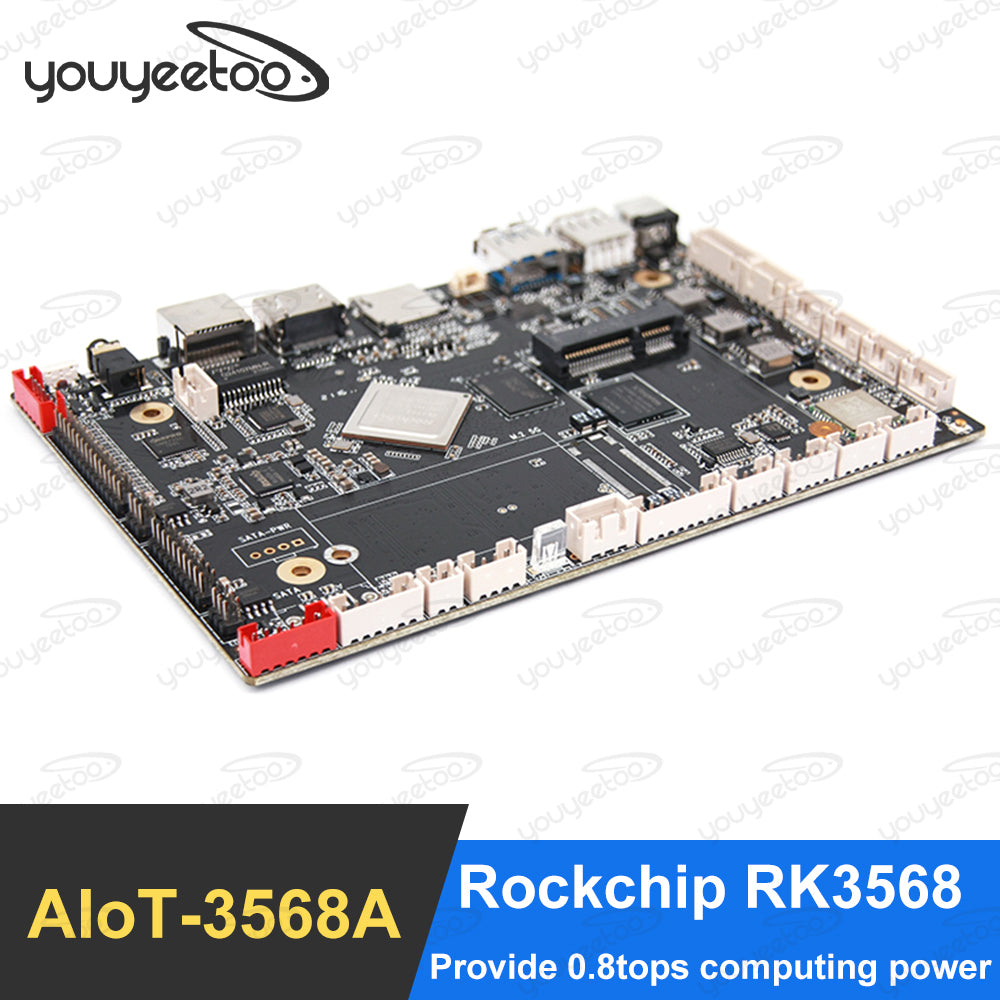

AIoT-3568A is an intelligent commercial display motherboard based on the Rexchip RK3568 quad-core processor. Since its introduction to the market, this motherboard has been favored by users for its outstanding performance and high application flexibility.With rich interfaces and powerful processing capabilities, the AIoT-3568A motherboard is able to meet the needs of a wide range of intelligent self-service terminals, such as advertising machines, self-service terminals, and vending machines. In addition, it supports deep learning and edge computing, which is suitable for many fields such as intelligent education, intelligent community, intelligent buildings, etc.
Ultra-slim design integrates HDMI, LVDS, EDP, Ethernet, WiFi, and Bluetooth, simplifying connections and excelling in integration.
Incorporates PCI-E 3/4G module interface compatible with multiple vendors (e.g., Huawei, Longshang) for internet access.
Equipped with M.2 5G module interface supporting numerous 5G modules (e.g., Huawei, Gosuncn, Guanghetong) for internet connectivity.
Abundant expansion options include 6 USBs (4 pin, 2 standard), 4 serials (2 TTL, 1 RS232, 1 RS485), GPIO/CAN/ADC, catering to diverse peripherals.
Dual-screen capability supports separate displays: LVDS up to 19201200, EDP up to 25601600.
SATA HDD interface enables storage expansion to meet user needs.
Main functional parameters |
|
Size |
146*100mm |
CPU |
RK3568A, quad-core, highest frequency 2.0GHz |
Operating system |
Android 11.0 |
RAM/Storage |
Default 2GB (4GB/8GB) / Default 16GB |
Built-in ROM |
2KB EEPROM( (4G optional) / Standard ) |
HDMI output |
1, standard Type-A female socket, up to 4Kx2K@60Hz resolution |
LVDS output |
1, support single/dual 8-bit, can directly drive 50/60Hz LCD screen |
eDP output |
Can directly drive multiple resolution eDP interface LCD screens |
Video format |
Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. |
Image format |
Support BMP、JPEG、PNG、GIF |
Audio input/output |
Speaker output(Support left and right channel output, maximum support double 20W / 4R, 10W / 8R)、MIC IN*1 |
Headphone output |
Support one-way three/four-segment headphone insertion |
USB port |
1 USB3.0 OTG、5 USB HOST |
Serial port |
4: 1*232, 2*TTL, 1*485 (One of the TTL can be optional RS232 interface) |
CAN |
1 |
TP port |
1, can be connected to I2C interface TP screen |
Network support |
1. Support 10/100/1000M adaptive Ethernet 2. Built-in WiFi, support Bluetooth 4.2 3. Built-in 4G, can support Internet |
Storage card |
Support TF card |
RTC real-timeclock |
Support |
System upgrade |
Support local USB upgrade |
