Product description

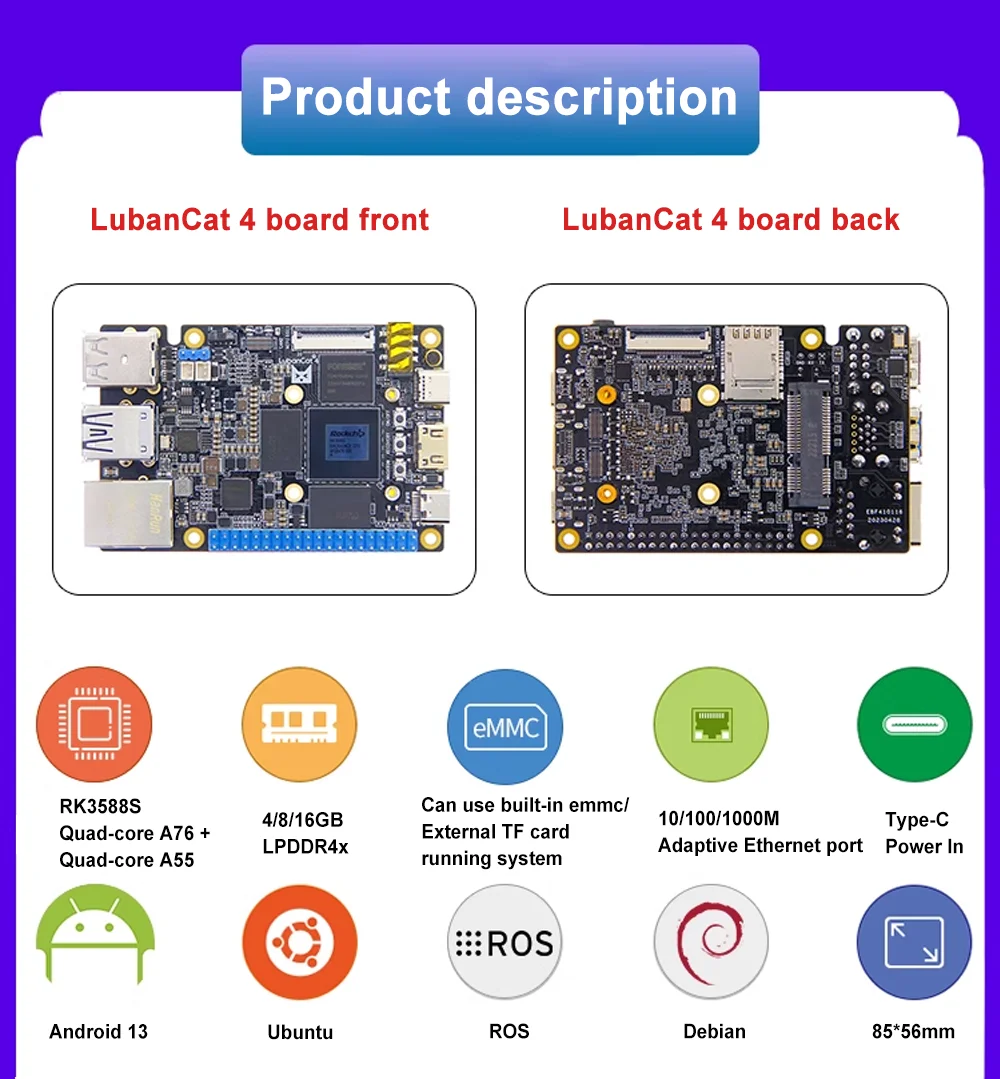

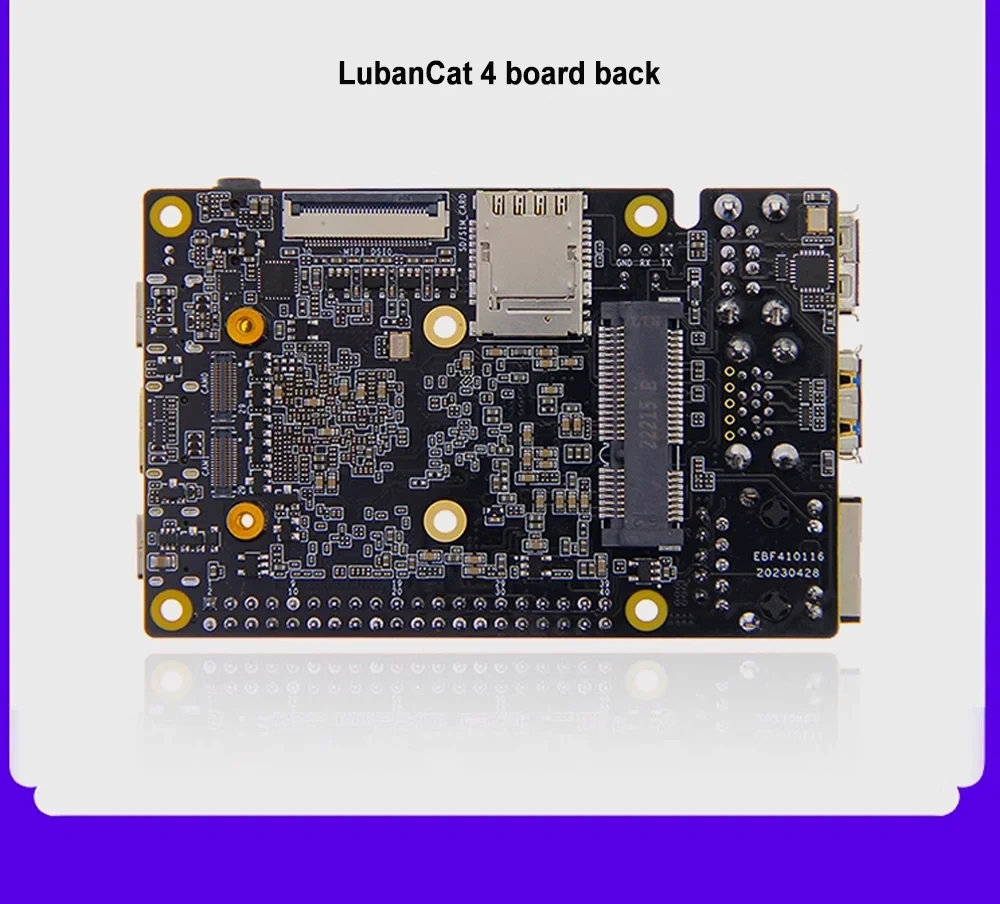

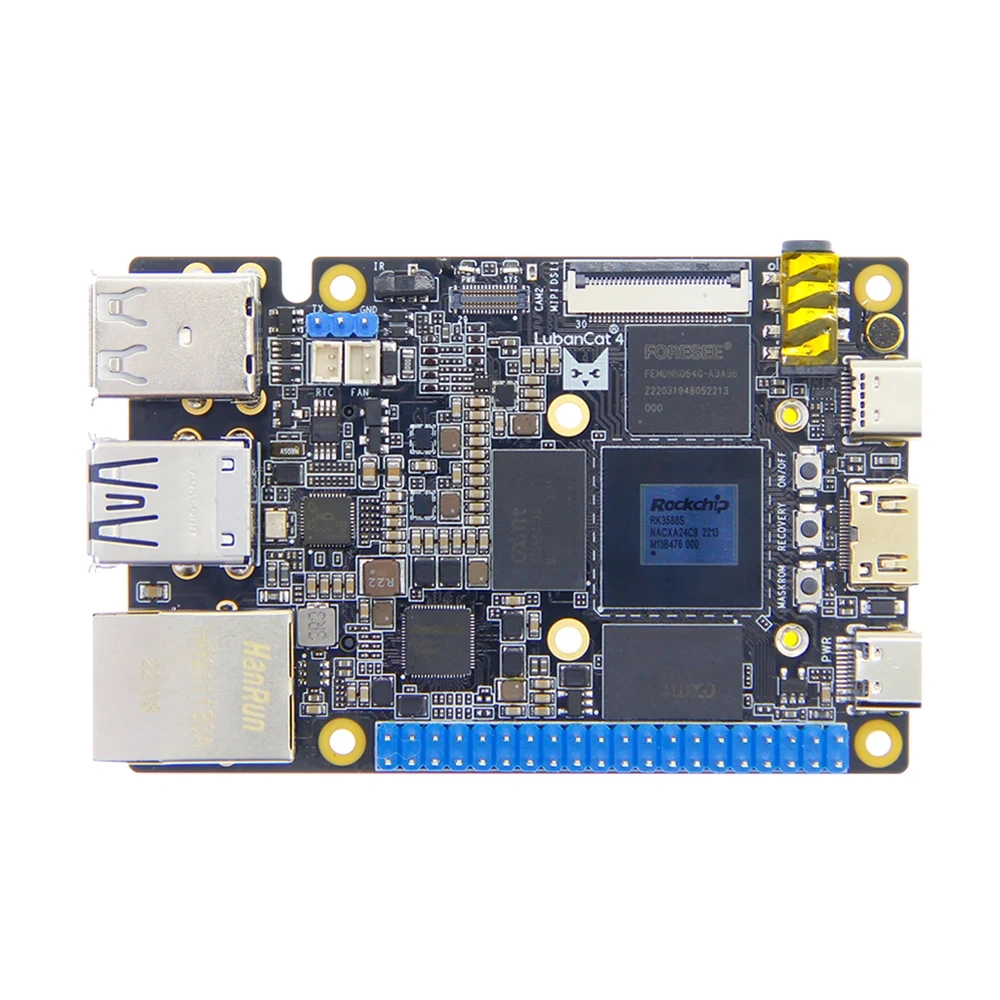

LubanCat-4 is a low-power, high-performance single-board computer designed by Wildfire Technology based on RockChip RK3588s.

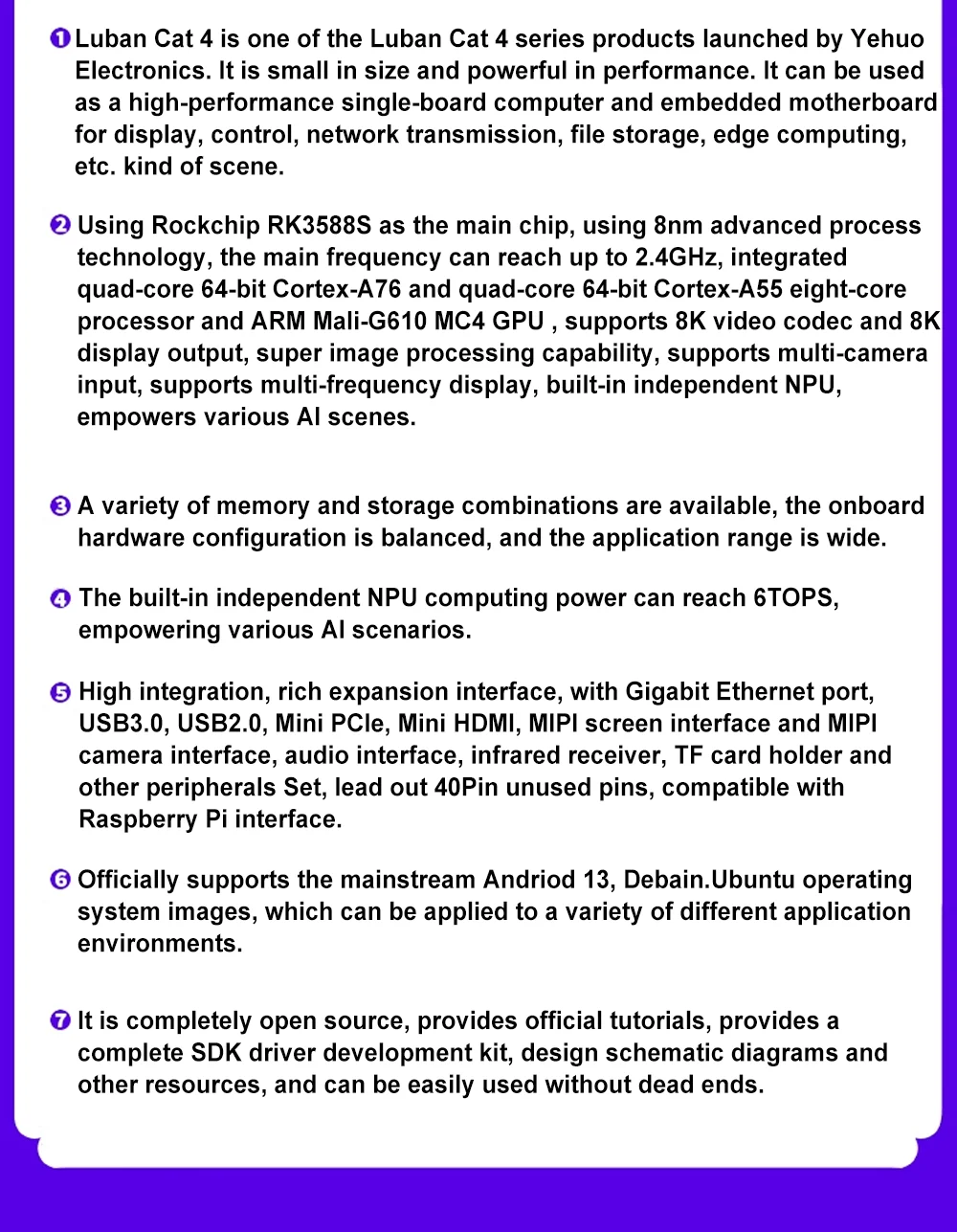

LubanCat-4 is equipped with a quad-core A76+quad-core A55 eight-core CPU and a powerful Arm high-performance GPU, and has a built-in NPU with 6T computing power. Equipped with a Gigabit network port, mini-HDMI, USB3.0, MINI PCI-E interface, MIPI and other peripherals. While introducing high-usage interfaces, some low-usage interfaces and peripherals are deleted, significantly reducing the board area, and the reserved universal interfaces such as USB and MINI PCI-E are further expanded. By understanding the usage scenarios of the board, the small body can still burst out with great performance.
This allows LubanCat-4 to be used not only as a high-performance single-board computer, but also as an embedded motherboard for display, control, network transmission, file storage, edge computing and other scenarios.
The LubanCat-4 board provides a complete SDK driver development package, design schematics and other resources, which helps users further apply the board while greatly reducing the secondary development time based on this board and accelerating product launch.
Examples of application scenarios for LubanCat-4 boards:
Intelligent stand-alone small computer with functions such as office, education, programming development, and embedded development
Personal git warehouse, server, nas, soft routing, private cloud
Robots, drones and other projects
TV boxes, smart home hubs, home security monitoring, smart speakers and other smart devices

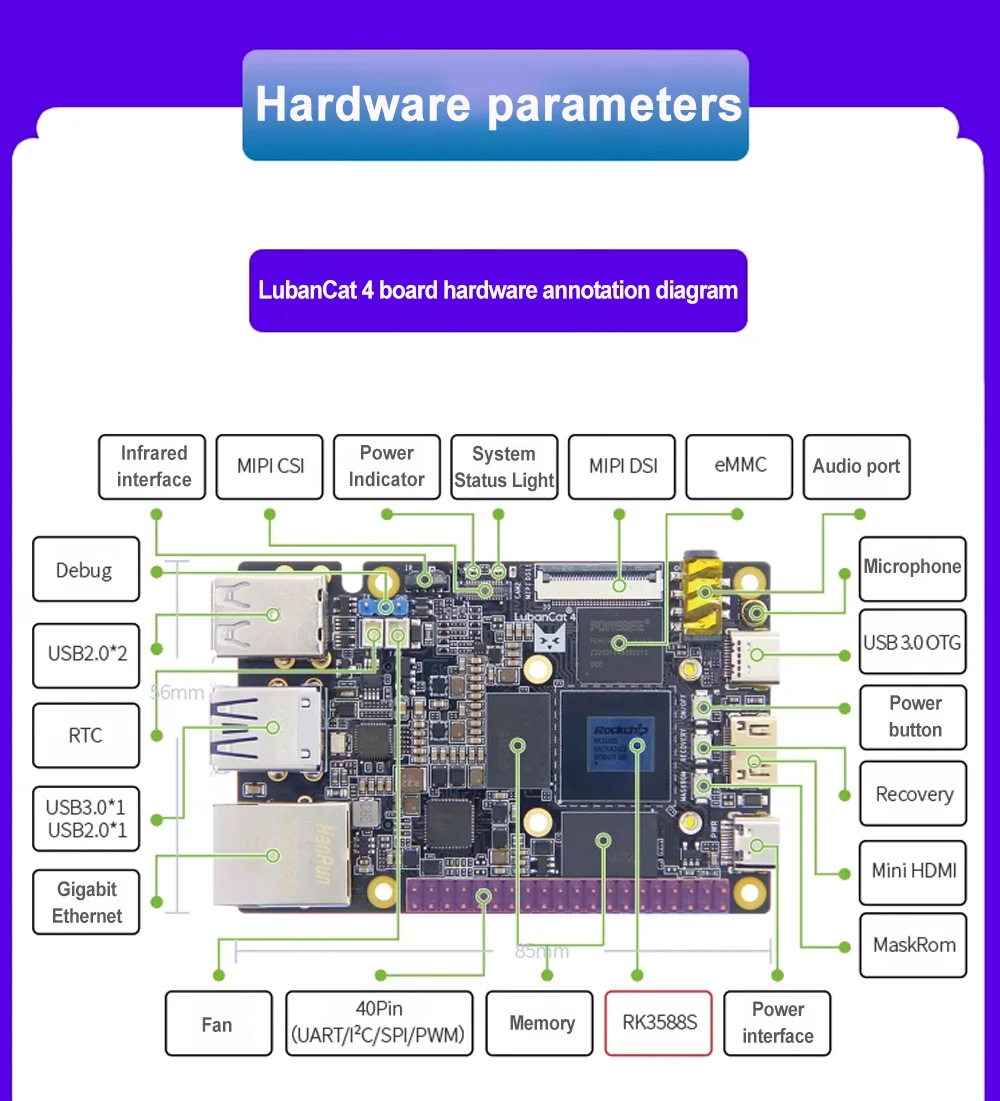

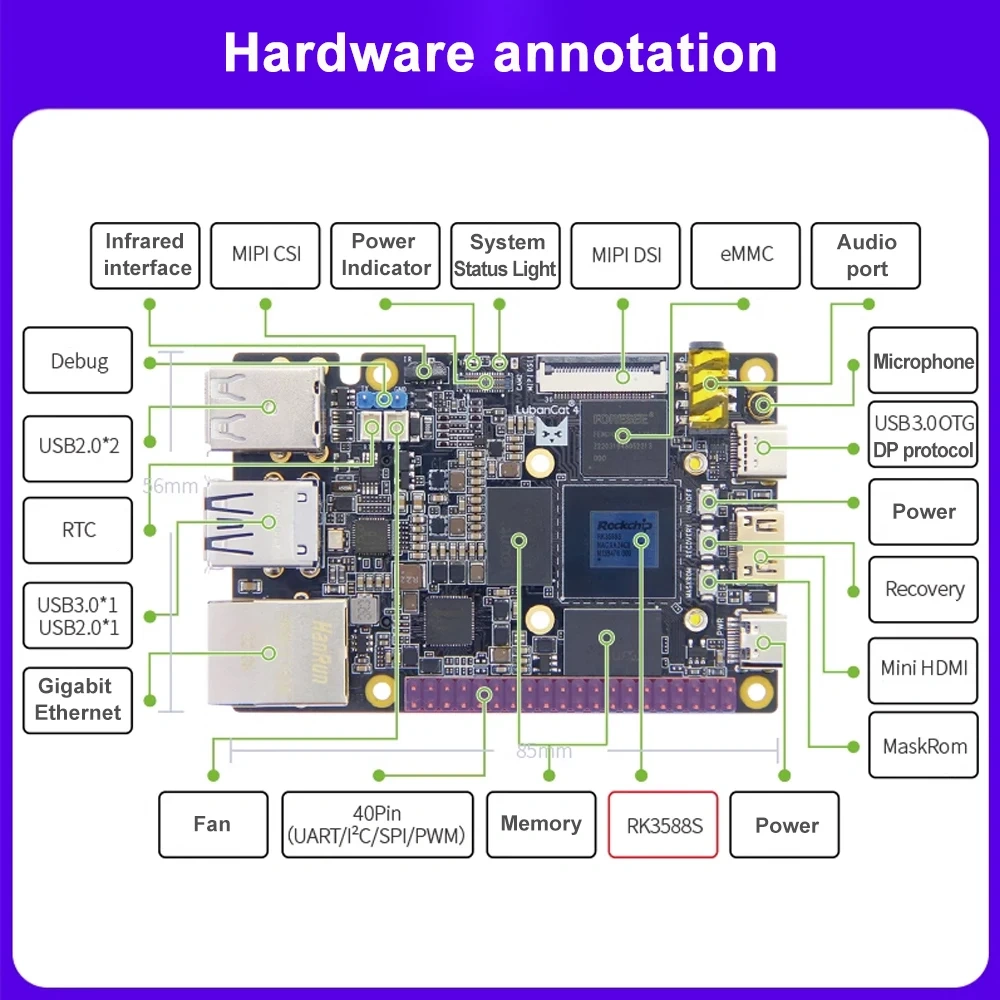

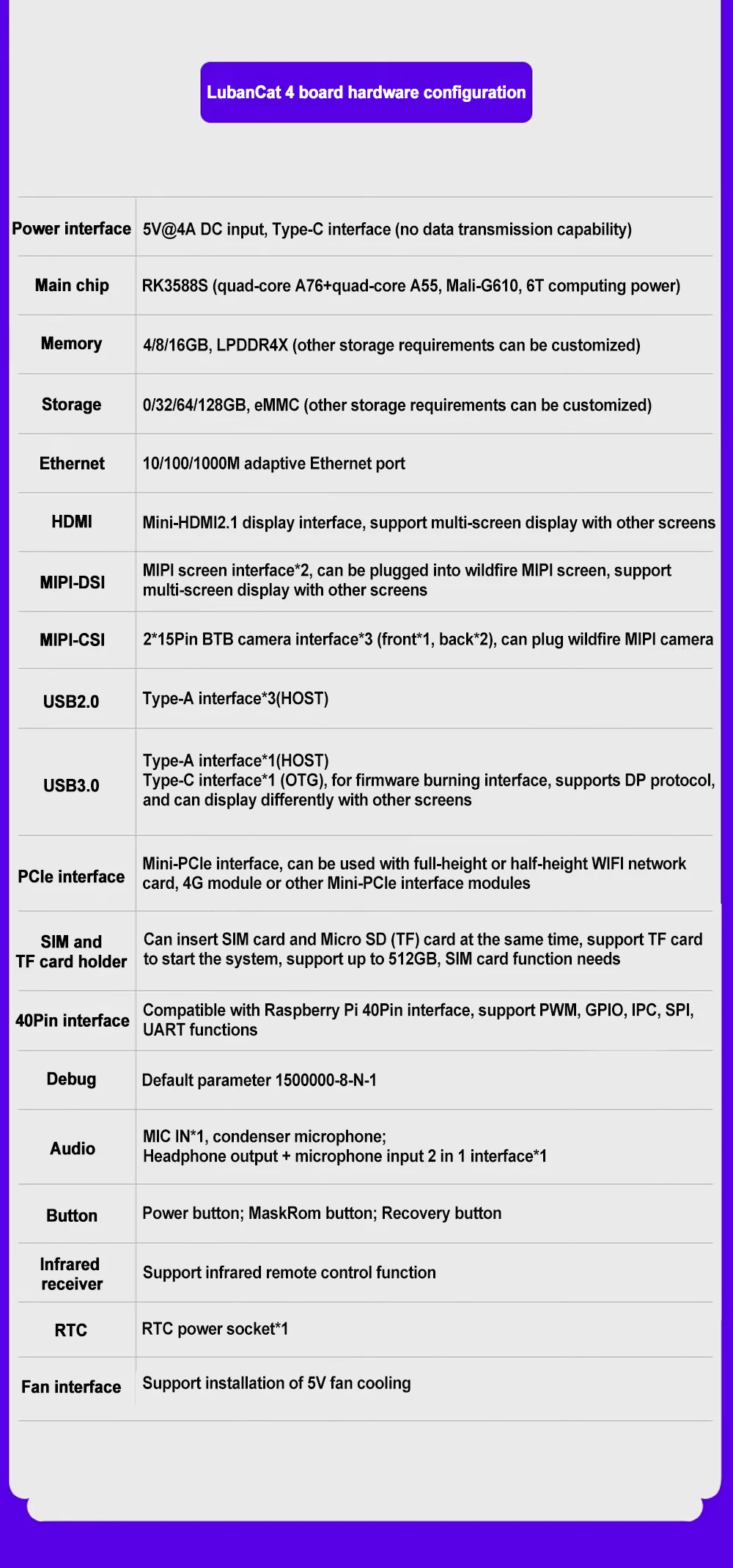

LubanCat-4 board hardware resource table:
Board name |
LubanCat-4 |
Power interface |
5V@4A DC input, Type-C interface (no data transmission capability) |
Main chip |
RK3588S (quad-core A76+quad-core A55, Mali-G610, 6T computing power) |
Memory |
4/8/16GB, LPDDR4X (other storage requirements can be customized) |
Storage |
0/32/64/128GB, eMMC (other storage requirements can be customized) |

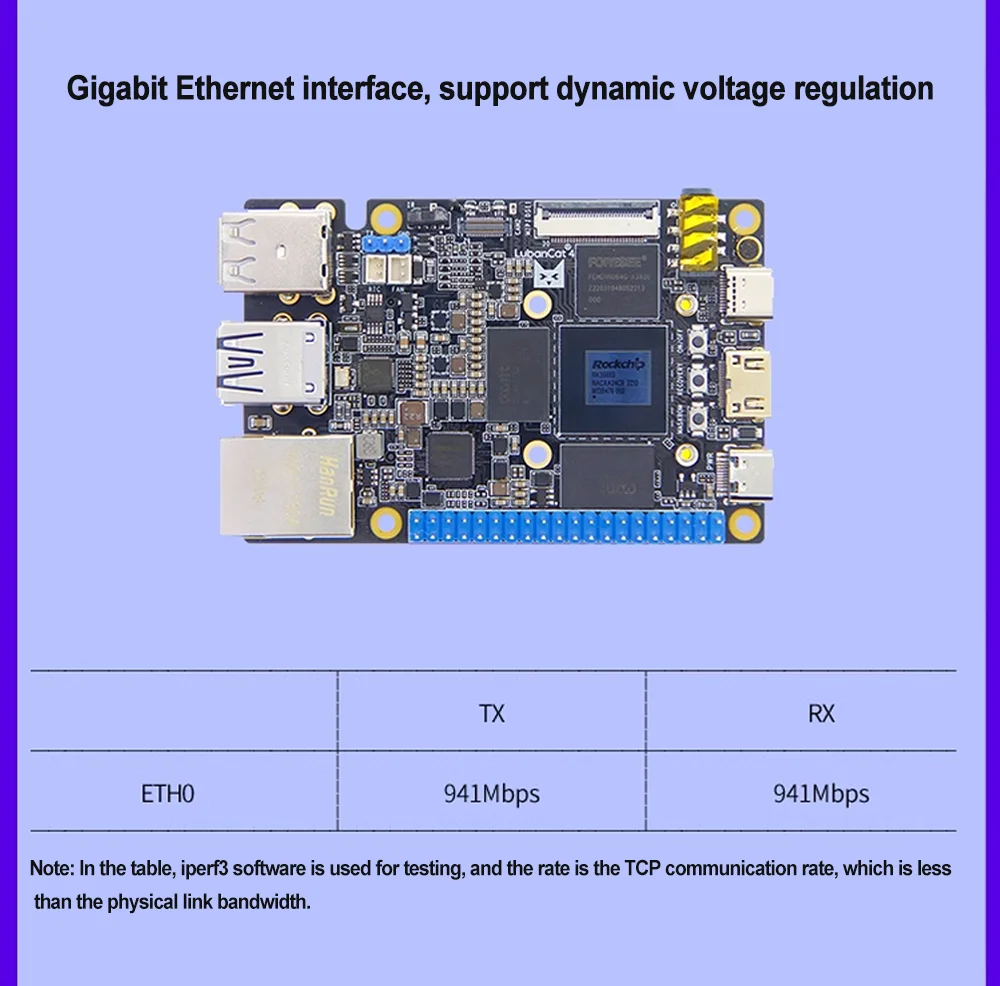

Ethernet |
10/100/1000M adaptive Ethernet port |
USB2.0 |
Type-A interface*3(HOST) |
USB3.0 |
Type-A interface*1(HOST) |
USB3.0 |
Type-C interface*1 (OTG), for firmware burning interface, supports DP protocol, |
Debug |
Default parameter 1500000-8-N-1 |
Button |
ON/OFF(Power button)、MR(MaskRom)、REC(Recovery) |
Audio |
MIC IN*1, condenser microphone; |
40Pin |
Compatible with Raspberry Pi 40Pin interface, support PWM, GPIO, lPC, SPI, |
MINI-PCIE |
Mini-PCle interface, can be used with full-height or half-height WlFI network |
HDMI2.1 |
Mini-HDMI2.1 display interface, support multi-screen display with other screens |

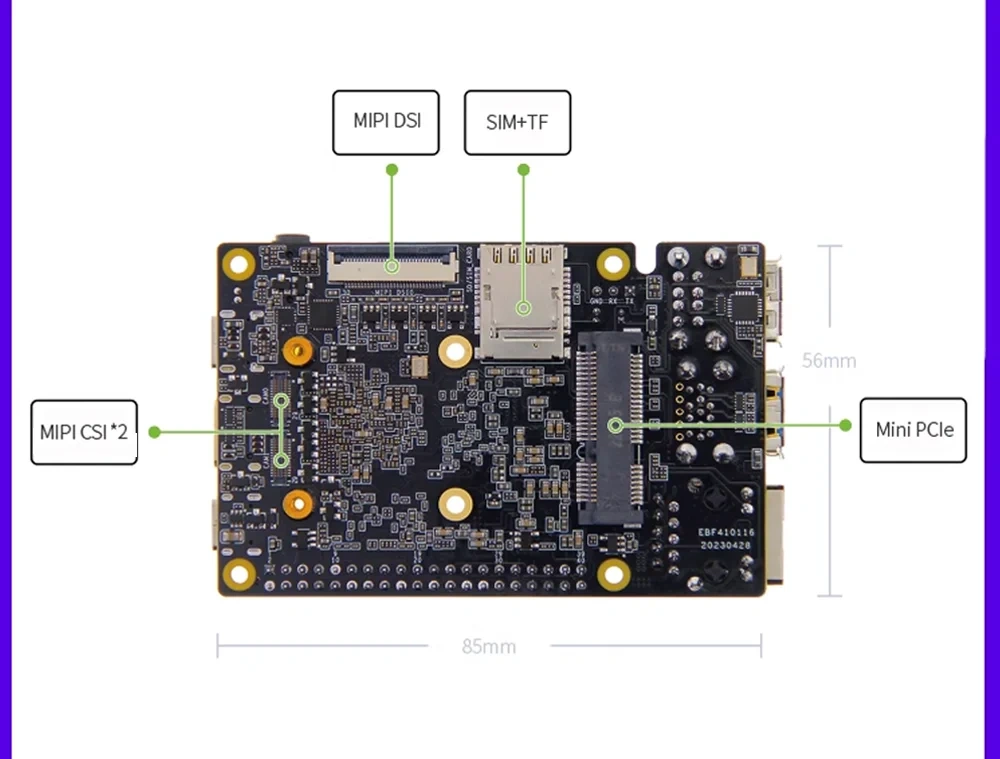

MIPI-DSI |
MIPI screen interface*2, can be plugged into wildfire MIPI screen, support |
MIPI-CSI |
2*15Pin BTB camera interface*3 (front*1, back*2), can plug wildfire MIPI camera |
SIM & |
Can insert SIM card and Micro SD (TF) card at the same time, support TF card |
Infrared receiver |
Support infrared remote control function |
RTC |
RTC power socket*1 |
Fan |
Support installation of 5V fan cooling |
