Sipeed LonganPi LPi3H Single board computer- 4K TV Box WIFI6 LPi3H - Allwinner H618 Development Board

SKU: SPDPLGPI0200

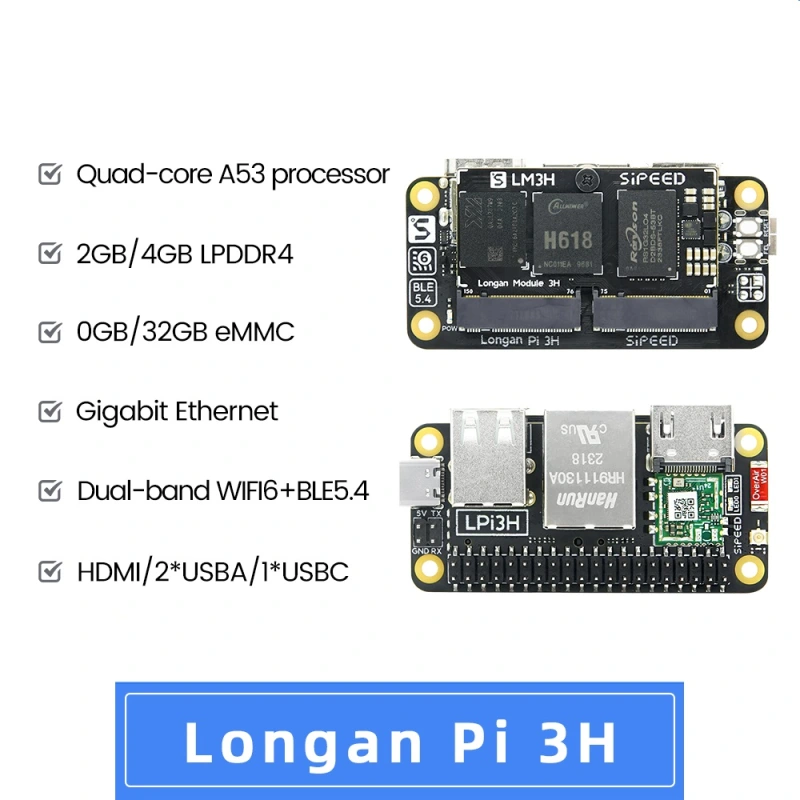

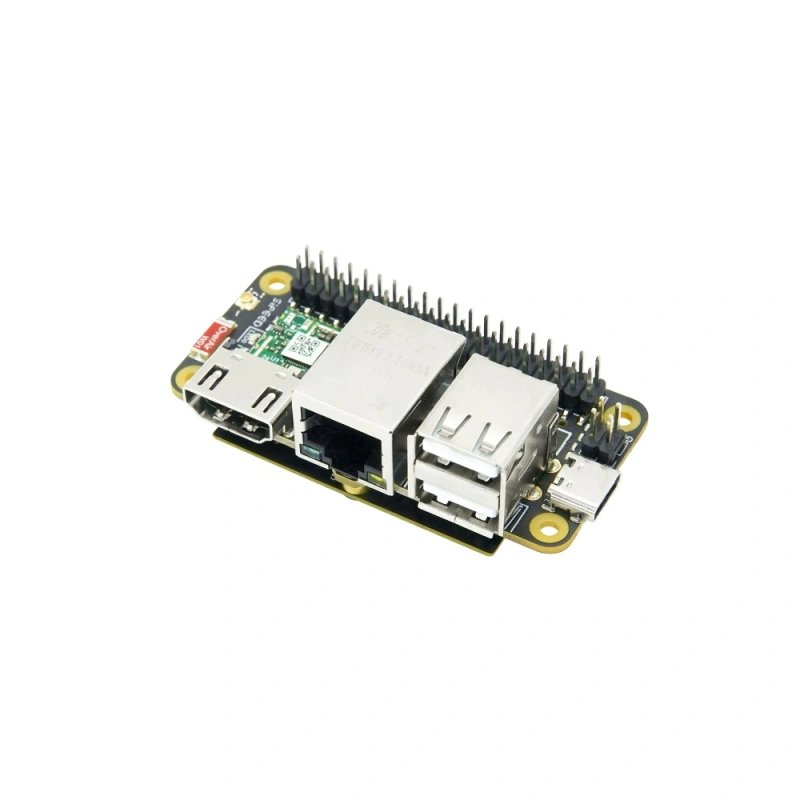

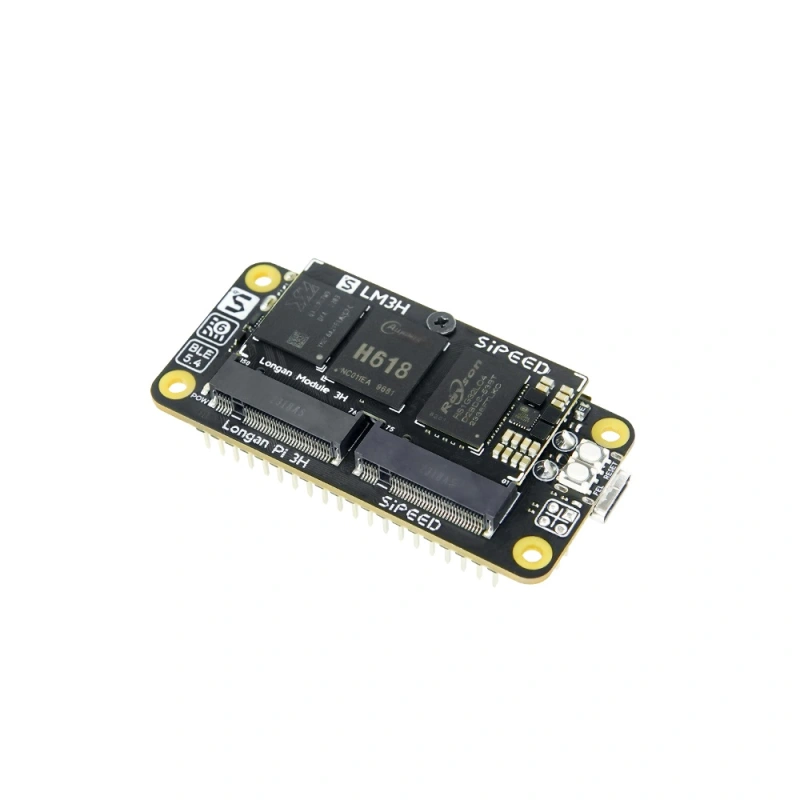

Sipeed Longan Pi3H is a Raspberry Pi Zero-sized single board computer (SBC) powered by an Allwinner H618 quad-core Cortex-A53 processor and equipped with full-size connectors namely an HDMI 2.0 video output, two USB 2.0 Type-A ports, and a gigabit Ethernet RJ45 jack.
0.0 (0 Reviews)
$0.00 $23.90
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Bundle:
    LM3H 2and0GB
    LPi3H 2and0GB Kit
    LPi3H 4and0GB Kit
    LPi3H 4and32GB Kit
    LPi3H 2and32GB kit
    Please select the information you wantX
Quantity
-
+
  • Sipeed Longan Pi3H - 4K TV Box WIFI6 LPi3H - Allwinner H618 Development Board
  • Sipeed Longan Pi3H - 4K TV Box WIFI6 LPi3H - Allwinner H618 Development Board
  • Sipeed Longan Pi3H - 4K TV Box WIFI6 LPi3H - Allwinner H618 Development Board
  • Sipeed Longan Pi3H - 4K TV Box WIFI6 LPi3H - Allwinner H618 Development Board
  • Sipeed Longan Pi3H - 4K TV Box WIFI6 LPi3H - Allwinner H618 Development Board
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

Sipeed LonganPi LPi3H Single board computer- 4K TV Box WIFI6 LPi3H



WIKI Documents

Github
Hardware Doc


  • SoC – Allwinner H618
    • CPU – Quad-core Arm Cortex-A53 processor @ up to 1.5GHz with 1MB L2 cache
    • GPU – Arm Mali-G31 MP2 GPU with support for OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
    • VPU
      • VP9-10 Profile-2 up to 6Kp30
      • H.265 HEVC MP-10 @ L5.1 up to 6Kp30
      • H.264 AVC HP @ L5.1 up to 4Kp30
      • H.264 MVC up to 1080p60
  • System Memory – 2GB or 4GB LPDDR4
  • Storage
    • MicroSD card slot
    • Optional 32GB eMMC flash,
  • Video & Audio Output – HDMI 2.0a up to 4Kp60
  • Networking
  • USB – 2x USB 2.0 Type-A ports, 1x USB 2.0 OTG Type-C port
  • Expansion – 40-pin Raspberry Pi-compatible GPIO header with I2C, SPI, UART, up to 28x GPIOs, etc
  • Debugging – 4-pin debug UART (3.3V)
  • Misc – FEL and Reset buttons; 2x user LEDs
  • Power Supply – 5V via USB Type-C port or 4-pin Debug UART header
  • Dimensions
    • SBC – 65 x 30.8 x 23.6 mm

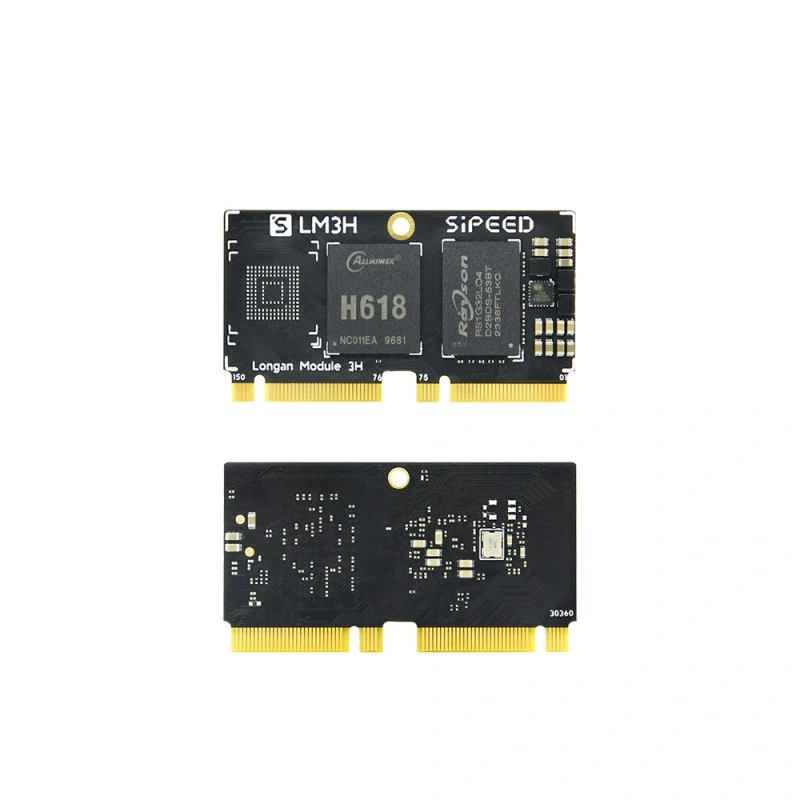

    • LM3H module only – 46.1 x 25 x 2.9mm
