Banana Pi BPI-M4 Zero




WIKI

BPI-M4 ZERO Quick Start
forum.youyeetoo.com

Products may not be back on the market until June


Introduction


Banana Pi BPI-M4 Zero is the successor model of M2 Zero. It has a huge improvement in performance. The SOC is upgraded to H618 and the CPU frequency is increased by 25%. The memory is upgraded to DDR4, the capacity is quadrupled, and 8G eMMC is added. It supports 5G WiFi, and the USB interface has also been upgraded to type-C.

It has same form factor and 40-pin connector as the Raspberry Pi Zero W, and it can fit most of the RPI Zero W cases and accessories.

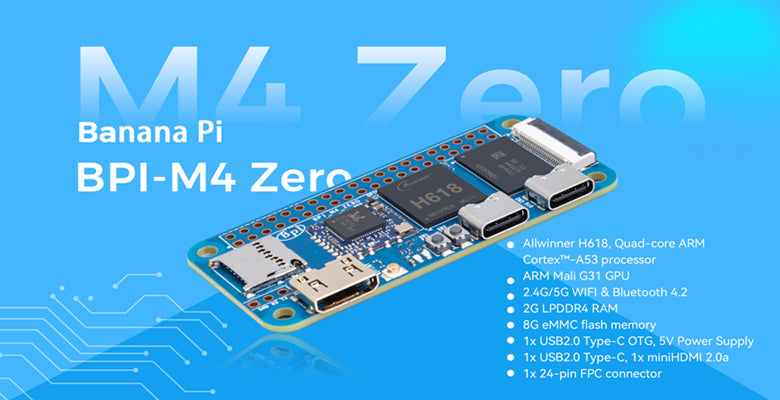

Key Features

  • Allwinner H618, Quad-core ARM Cortex™-A53 processor
  • ARM Mali G31 GPU
  • 2.4G/5G WIFI & Bluetooth 4.2
  • 2G LPDDR4 RAM
  • 8G eMMC flash memory
  • 1x USB2.0 Type-C OTG, 5V power supply
  • 1x USB2.0 Type-C
  • 1x miniHDMI 2.0a
  • 1x 24-pin FPC connector
    • 1x USB2.0
    • 1x 100Mbps Ethernet

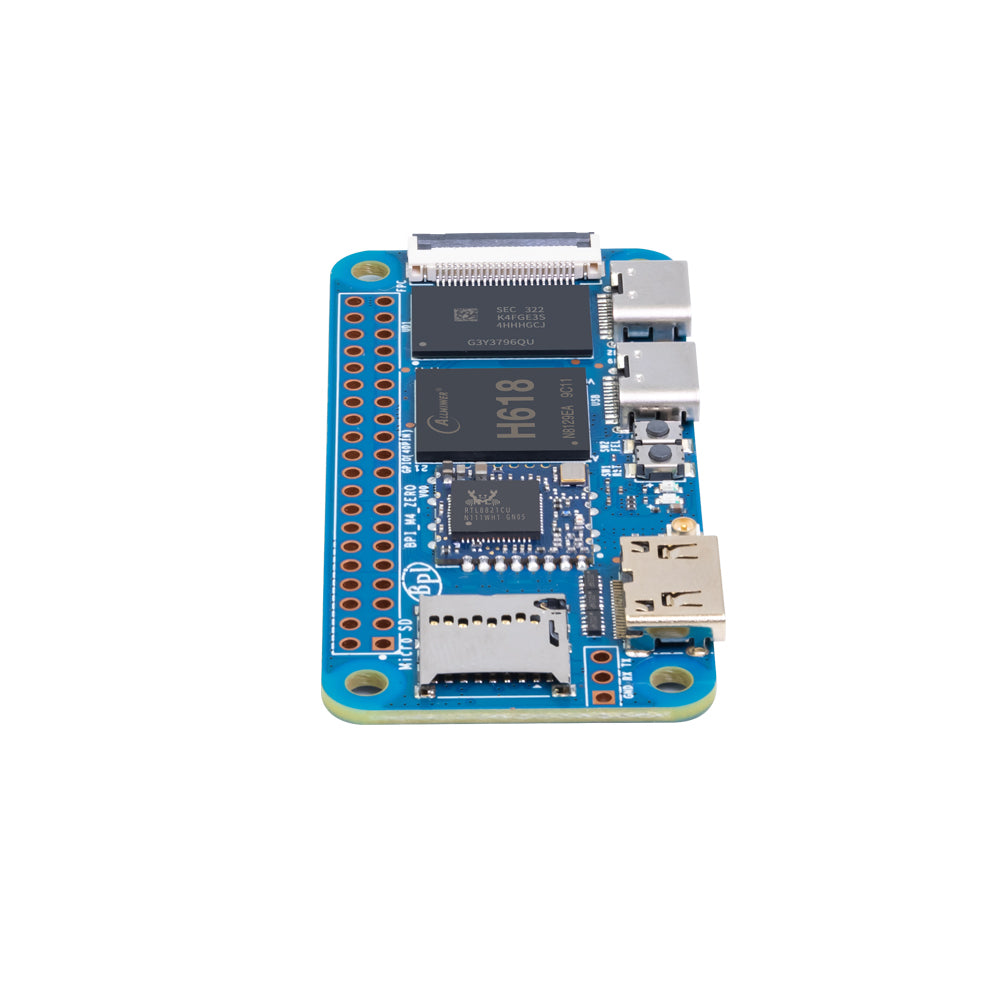

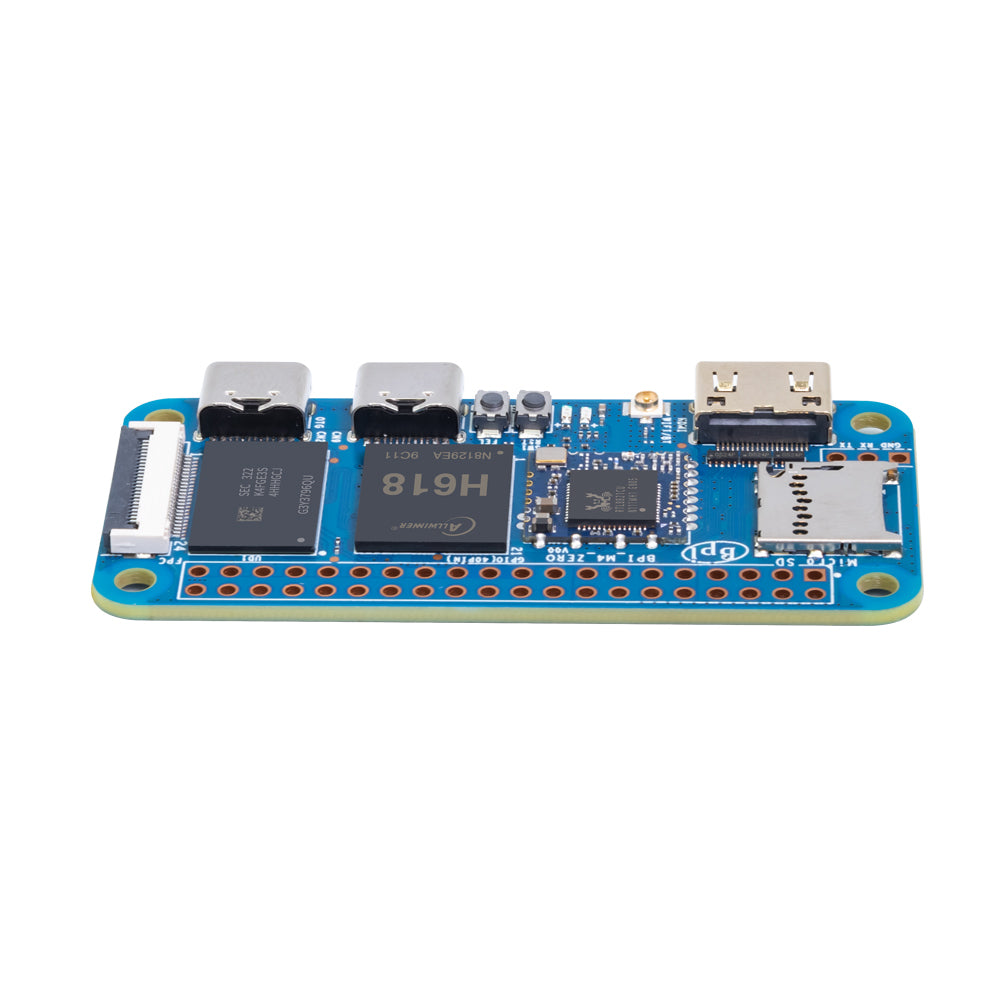

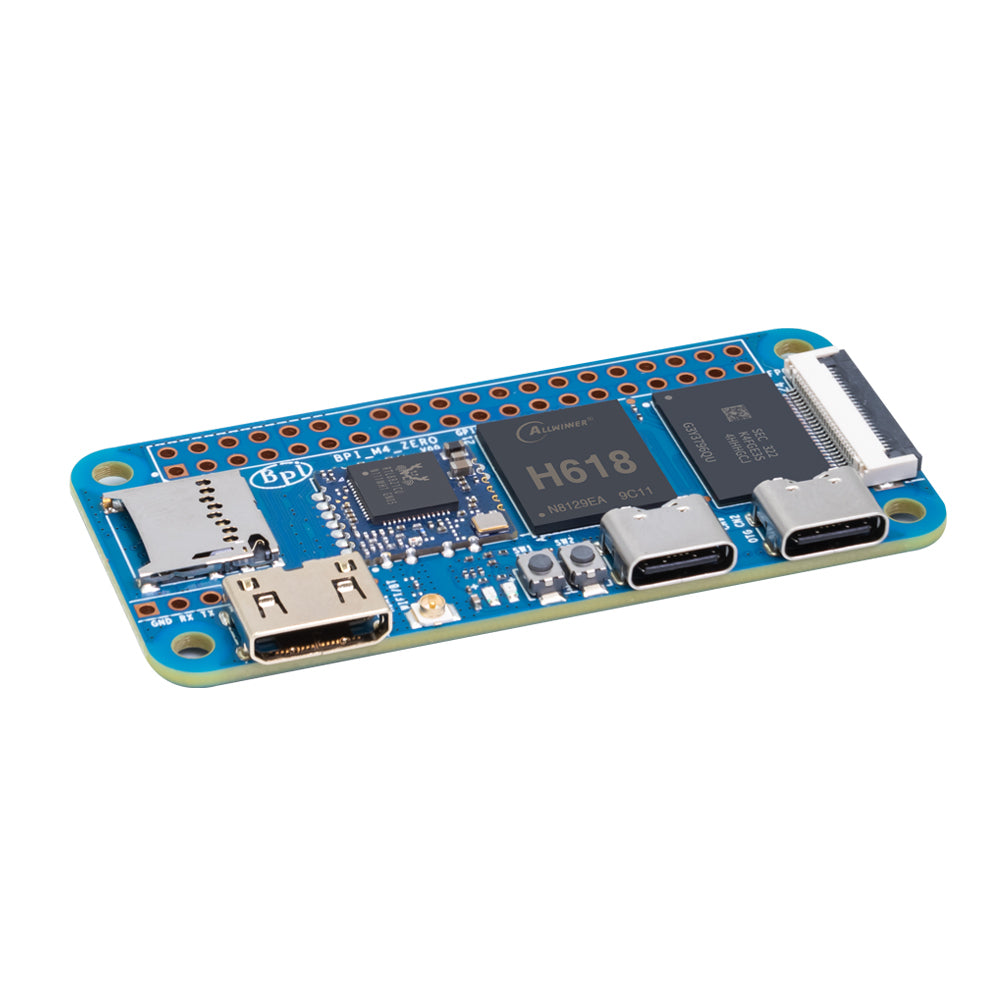

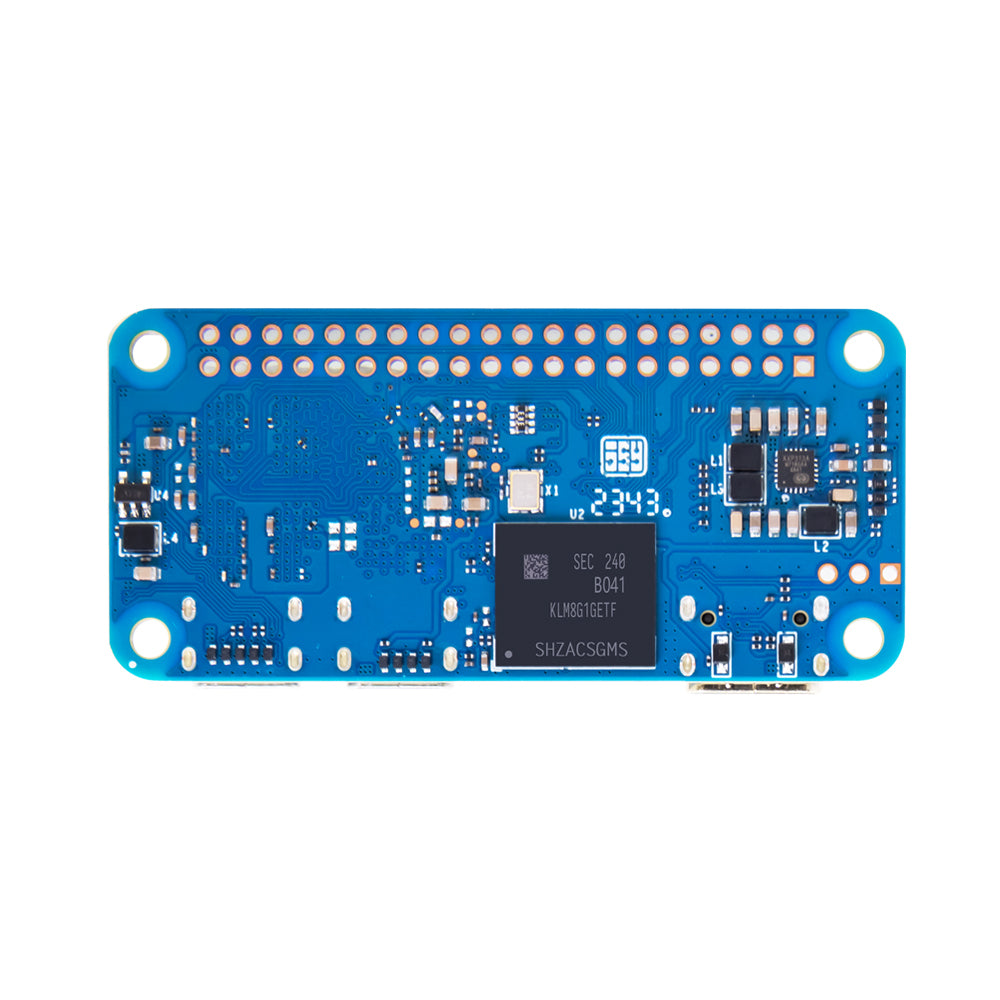

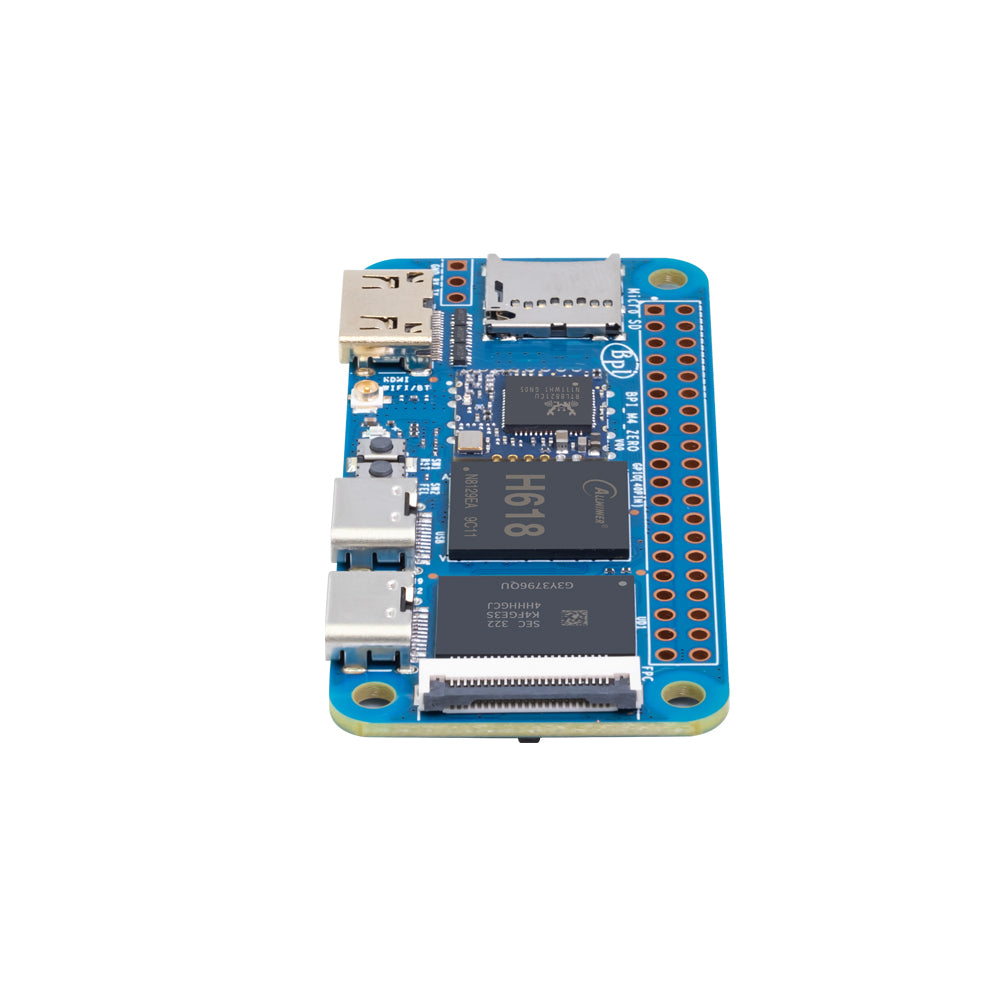

Hardware

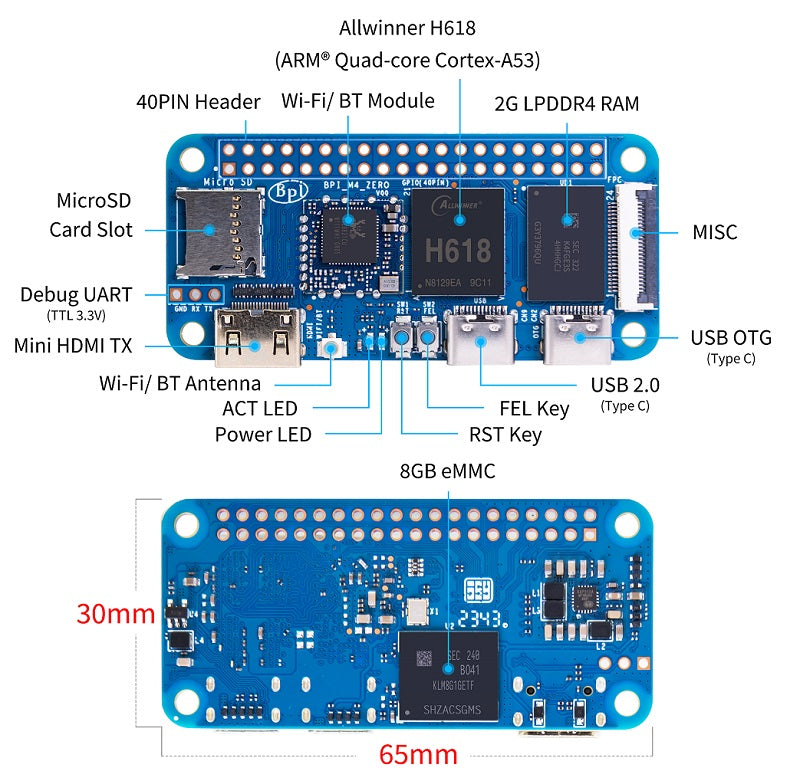

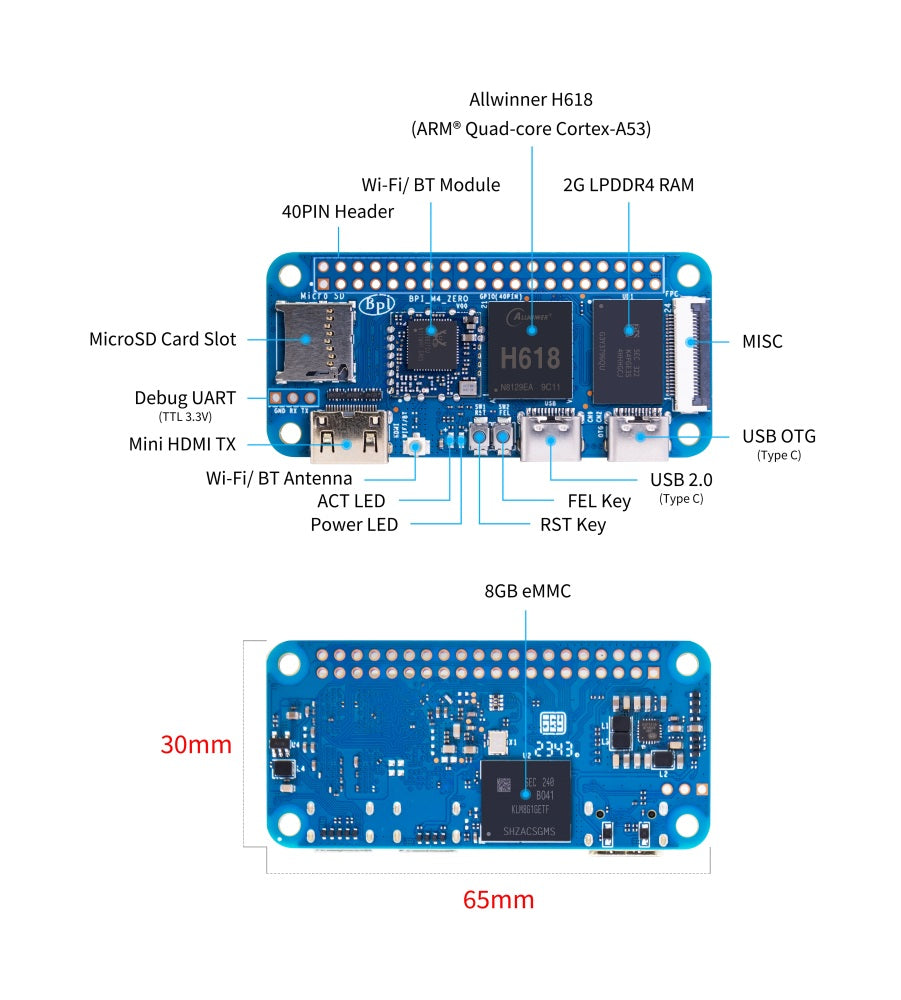

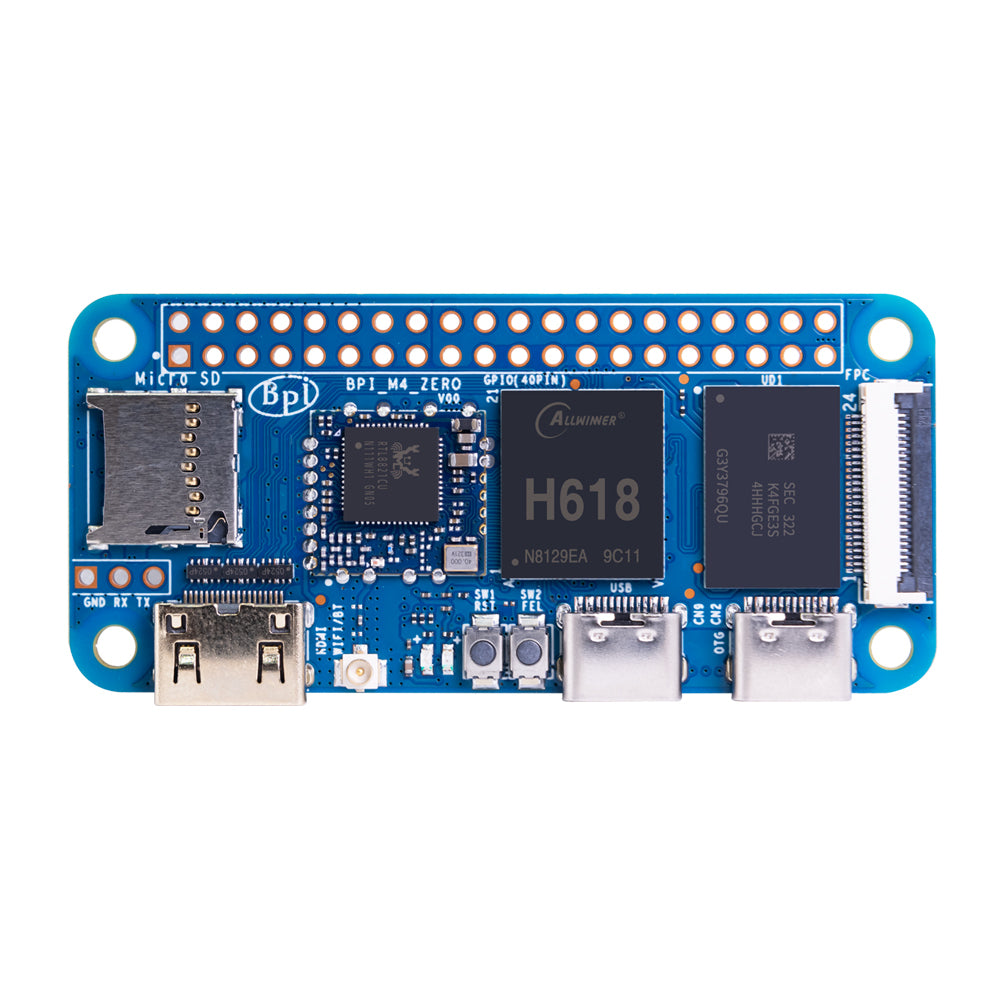

Hardware interface

Banana Pi BPI-M4 Zero interface.jpg

Hardware spec

Hardware Specification of Banana pi BPI-M4 Zero
CPU Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz
GPU ARM Mali G31 GPU
Memory 2 GB LPDDR4
Storage 8G eMMC flash
SD card MicroSD card slot, SDIO3.0
Wireless 2.4G/5G WiFi and Bluetooth 4.2
HDMI 1x miniHDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
USB 1x USB2.0 Type-C HOST, 1x USB2.0 Type-C OTG
40-pin header 28 pins GPIO and Power (+5V, +3.3V and GND)
UART, SPI, TWI/I²C, PWM, PCM/I²S
24-pin FPC 0.5mm pitch FPC connector, 1x USB2.0, 1x IR, 1x 100Mbps Ethernet
9 pins GPIO, UART,TWI/I²C, PWM, PCM/I²S
Buttons Reset, FEL
LED Power Status and Activity status
Power 5V@3A via USB Type-C
Size 65mm × 30mm
Weight

PIN define

BPI-M4 Zero 40-pin header

40-pin header define and GPIO Alternative Functions Assignments
Pin Num Pin Name ALT0 ALT1 ALT2 ALT3
1 3.3V
2 5V
3 PG16 UART2_RX TWI4_SDA
4 5V
5 PG15 UART2_TX TWI4_SCK
6 GND
7 PG19 PWM1
8 PG6 UART1_TX
9 GND
10 PG7 UART1_RX
11 PH2 UART5_TX PWM2
12 PG11 H_I2S2_BCLK
13 PH3 UART5_RX PWM1
14 GND
15 PG2
16 PG8 UART1_RTS
17 3.3V
18 PG9 UART1_CTS
19 PH7 UART2_RTS H_I2S3_LRCK SPI1_MOSI
20 GND
21 PH8 UART2_CTS H_I2S3_DOUT0 SPI1_MISO H_I2S3_DIN1
22 PG1
23 PH6 UART2_RX H_I2S3_BCLK SPI1_CLK
24 PH5 UART2_TX H_I2S3_MCLK SPI1_CS0
25 GND
26 PH9 H_I2S3_DIN0 SPI1_CS1 H_I2S3_DOUT1
27 PG18 UART2_CTS TWI3_SDA
28 PG17 UART2_RTS TWI3_SCK
29 PG3
30 GND
31 PG4
32 PG0
33 PG5
34 GND
35 PG12 H_I2S2_LRCK
36 PH4
37 PG10 H_I2S2_MCLK
38 PG14 H_I2S2_DIN0 H_I2S2_DOUT1
39 GND
40 PG13 H_I2S2_DOUT0 H_I2S2_DIN1

24-pin FPC

24-pin FPC define and GPIO Alternative Functions Assignments
Pin Num Pin Name ALT0 ALT1
1 GND
2 EPHY_RXN
3 EPHY_RXP
4 EPHY_TXN
5 EPHY_TXP
6 GND
7 PI9 UART3_TX TWI2_SCK
8 PI10 UART3_RX TWI2_SDA
9 PI12 UART3_CTS PWM2
10 PI11 UART3_RTS PWM1
11 3V3
12 3V3
13 PI4 H_I2S0_DIN0 H_I2S0_DOUT1
14 PI3 H_I2S0_DOUT0 H_I2S0_DIN1
15 PI2 H_I2S0_LRCK
16 PI1 H_I2S0_BCLK
17 PI0 H_I2S0_MCLK
18 GND
19 PH10 IR_RX
20 5V
21 5V
22 USB2_DP
23 USB2_DM
24 GND

BPI-M4 Zero Debug UART

1 GND
2 UART0_RX
3 UART0_TX
