NanoPi R2S Plus Openwrt Router - NanoPi R2S upgrade - 1GB RAM 32GB EMMC - FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core

SKU: YSDPR2SPLUSC

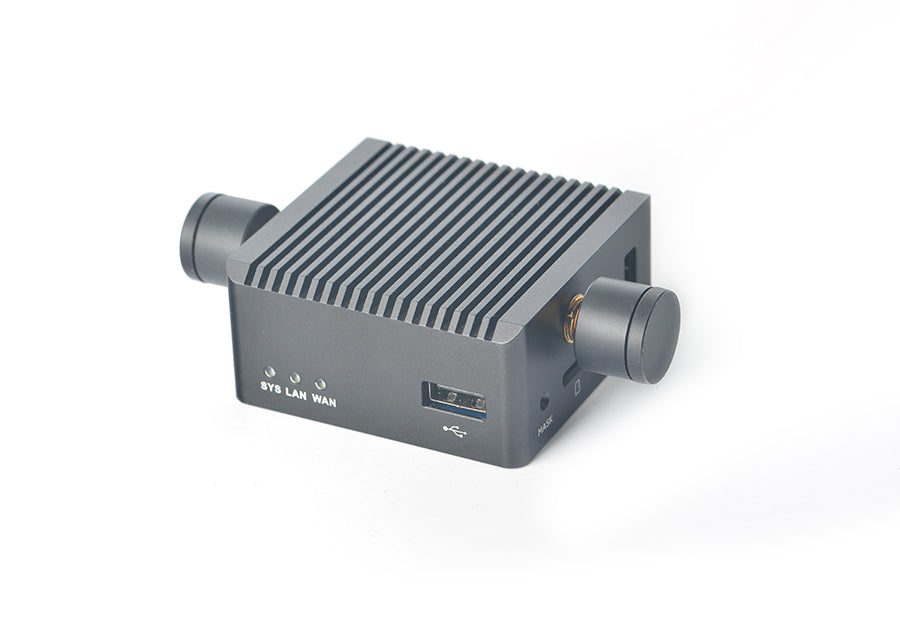

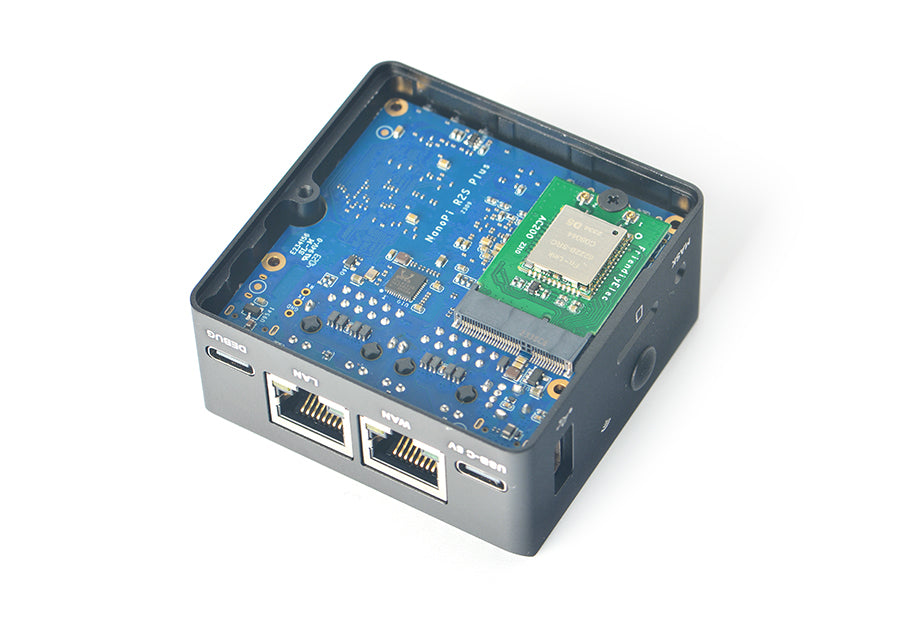

The NanoPi R2S Plus can be optionally equipped with an RTL8822CS WiFi module (SDIO Interface), which can work in AP mode or wireless repeater mode for wireless range expansion.

The NanoPi R2S Plus suppors TF card booting. It works with FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core etc. These systems are based on Linux-6.1(LTS). The NanoPi R2S Plus is powered through USB Type-C.
0.0 (0 Reviews)
$0.00 $45.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • R2S Plus:
    Bare Board
    With Metal Case
    With Case and Wifi
    Please select the information you wantX
Quantity
-
+
  • NanoPi R2S Plus Openwrt Router - NanoPi R2S upgrade - 1GB RAM 32GB EMMC - FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core
  • NanoPi R2S Plus Openwrt Router - NanoPi R2S upgrade - 1GB RAM 32GB EMMC - FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core
  • NanoPi R2S Plus Openwrt Router - NanoPi R2S upgrade - 1GB RAM 32GB EMMC - FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core
  • NanoPi R2S Plus Openwrt Router - NanoPi R2S upgrade - 1GB RAM 32GB EMMC - FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core
  • NanoPi R2S Plus Openwrt Router - NanoPi R2S upgrade - 1GB RAM 32GB EMMC - FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

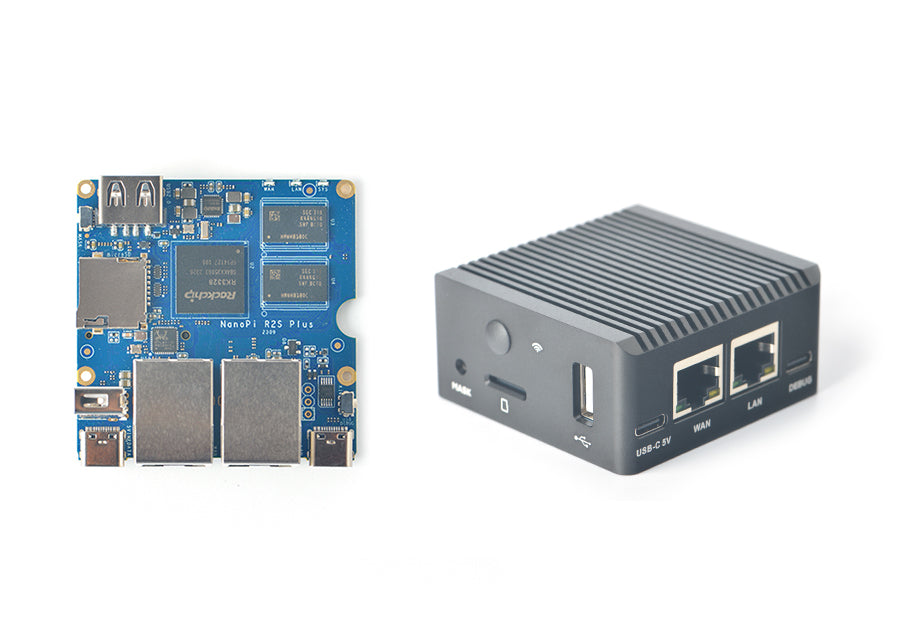

Nanopi R2S PLUS

mini-router with edge-computing and dual Gbps Ethernet ports



5V3A PSU : https://www.youyeetoo.com/products/5v-3a-power-supply-adapter


Hardware Spec

  • CPU: Rockchip RK3328, Quad-core Cortex-A53
  • DDR4 RAM: 1GB
  • Flash: 32GB eMMC 5.1 Flash
  • Network:
    • 1 x Internal 10/100/1000M Ethernet
    • 1 x USB 3.0 converted 10/100/1000M Ethernet
    • Optional M.2 SDIO Wi-Fi
  • 2 x USB 2.0 Host Type-A
  • 1 x microSD Slot

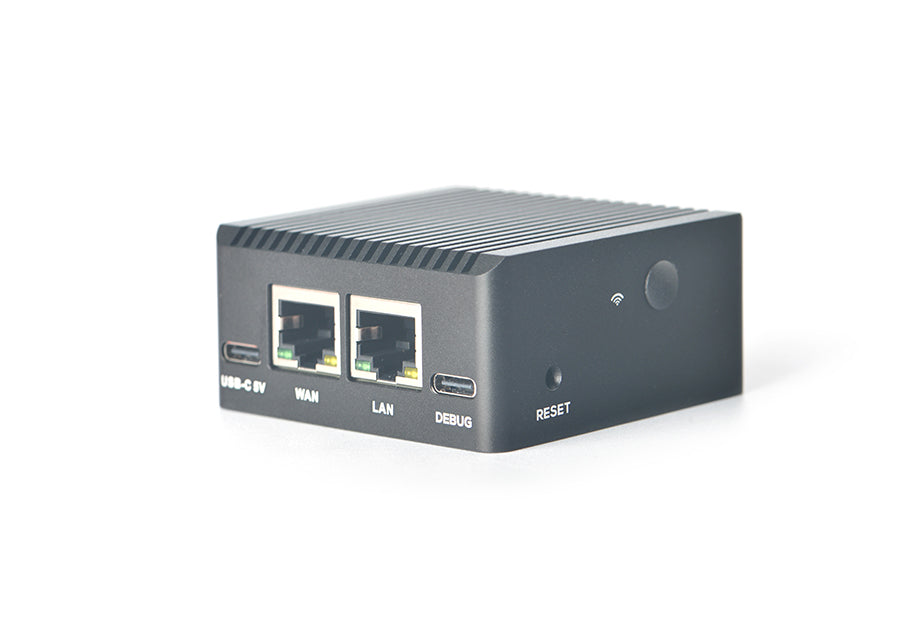

  • USB-C Power: 5V power input and USB update in maskrom mode
  • USB-C Bebug: onboard USB to Debug UART converter, 1500000bps bauds

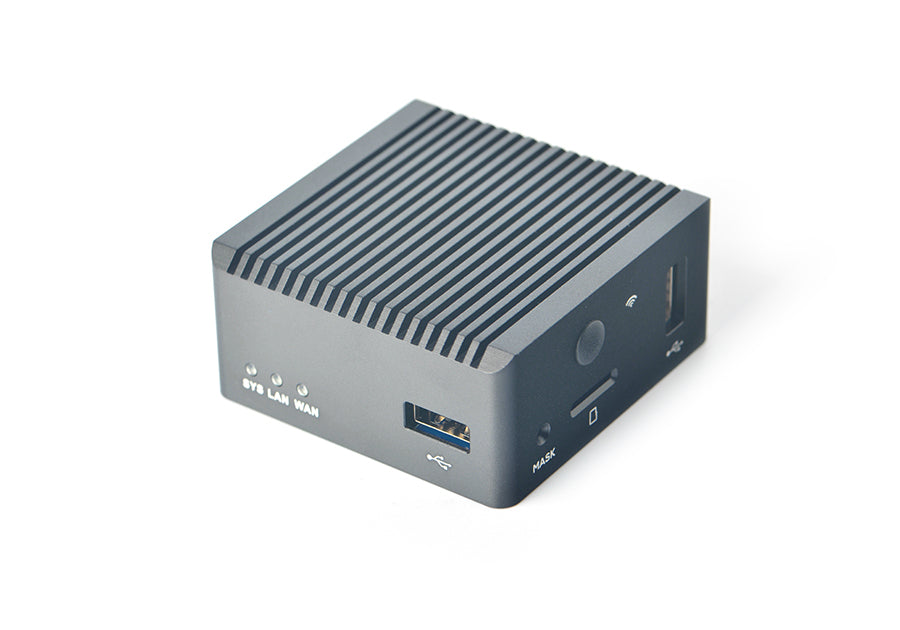

  • 3 x LED, for WAN, LAN and SYSTEM
  • 1 x GPIO Button, 1 x Maskrom mode button
  • PCB Size: 58*58*1.6mm
  • Power Supply: DC 5V/2A
  • Temperature measuring range: 0℃ to 70℃
  • OS/Software: U-boot,Ubuntu-Core,OpenWrt

  • Network Transmission Rates
TX RX
WAN 941 Mbps 941 Mbps
LAN 941 Mbps 941 Mbps
Notes: 1. test utility: iperf
2. use indepedent IP address section and test with a PC in simplex communication mode


















CPU Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GHz
Memory RAM: 1GB DDR4
Storage MicroSD Slot: MicroSD x1 for external storage up to 128GB
Flash: 32GB eMMC 5.1 Flash
Connectivity Ethernet: 1 x Internal Gbps Ethernet x 1,RTL8211F chip

1 x USB3.0 converted Gbps Ethernet.RTL8153B chip
Optional M.2 SDIO Wi-Fi

USB USB 2.0 Host x 1: USB Type A
1x USB-C :5V power input and USB update in maskrom mode
1 x USB-C : onboard USB to Debug UART converter, 1500000bps bauds
Pin-header Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL)
LED 1 x SYS LED(Red)
1 x WAN LED(Green)
1 x LAN LED(Green)
Button 1 x GPIO Button
1 x Maskrom mode Button
Working Temperature 0℃ to 70℃
Power DC 5V/2A
OS Support FriendlyWrt 21.02
FriendlyWrt 23.05
FriendlyCore Focal Lite (Base on Ubuntu 20.04) Buildroot
Debian 11 Core
OpenMediaVault
Buildroot
Kernel version Linux-6.1-LTS
U-boot-2017.09

PCB 6 Layer
Weight 145g(With Case)
Dimension 62.5x63.5x30 mm(with Case)
