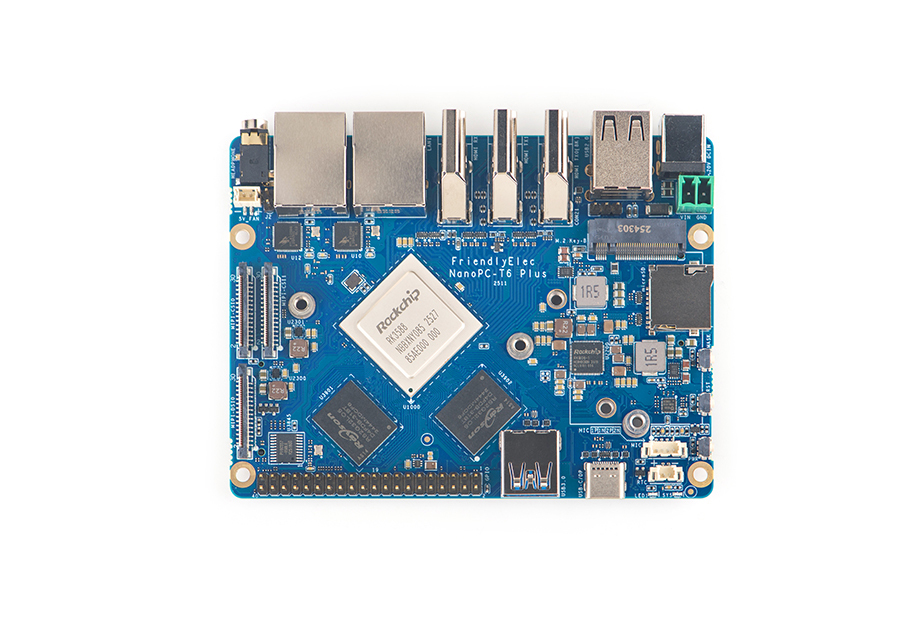

NanoPC-T6 Plus

• Quick Start: WIKI
• Tips
  • If you need NanoPC-T6 LTS, Click Here.

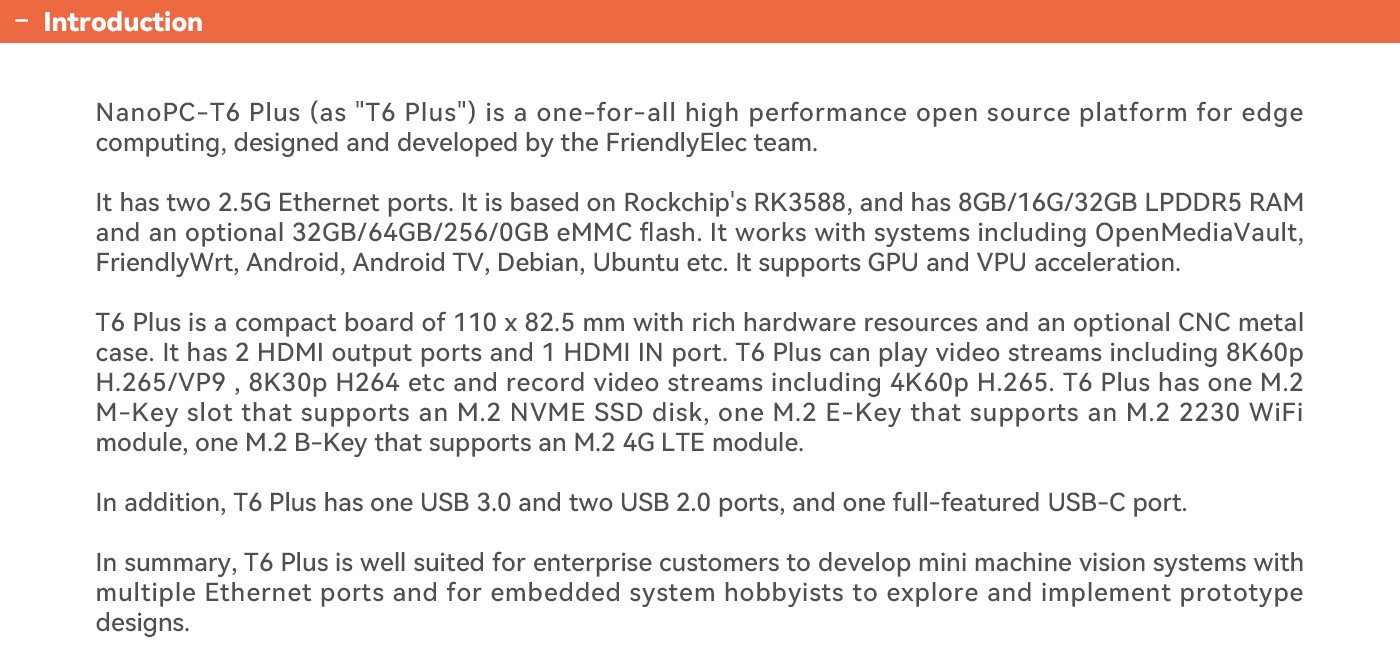

Introduction

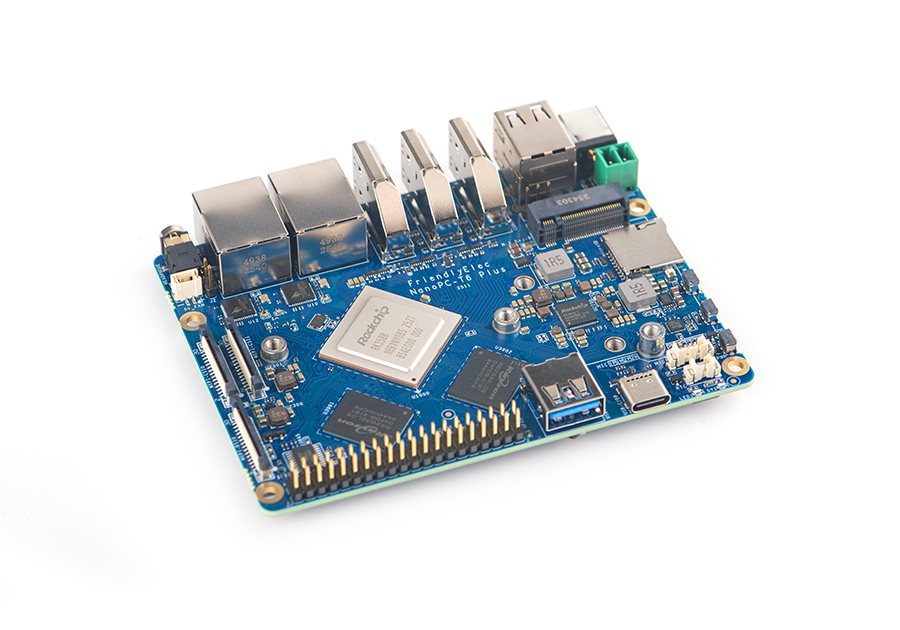

The NanoPC-T6 Plus is a high-performance single-board computer (SBC) developed by FriendlyELEC. Designed as an enhanced successor to the T6 LTS, it leverages the powerful Rockchip RK3588 octa-core processor. The standout feature is the memory upgrade to LPDDR5 (up to 32GB), providing significantly higher bandwidth compared to LPDDR4x standards. This makes it an ideal powerhouse for edge computing, smart gateways, and advanced maker projects.

Features

• Next-Gen Performance: Equipped with the RK3588 SoC and LPDDR5 memory (8GB/16GB/32GB options), ensuring faster data processing and multitasking capabilities for heavy workloads.

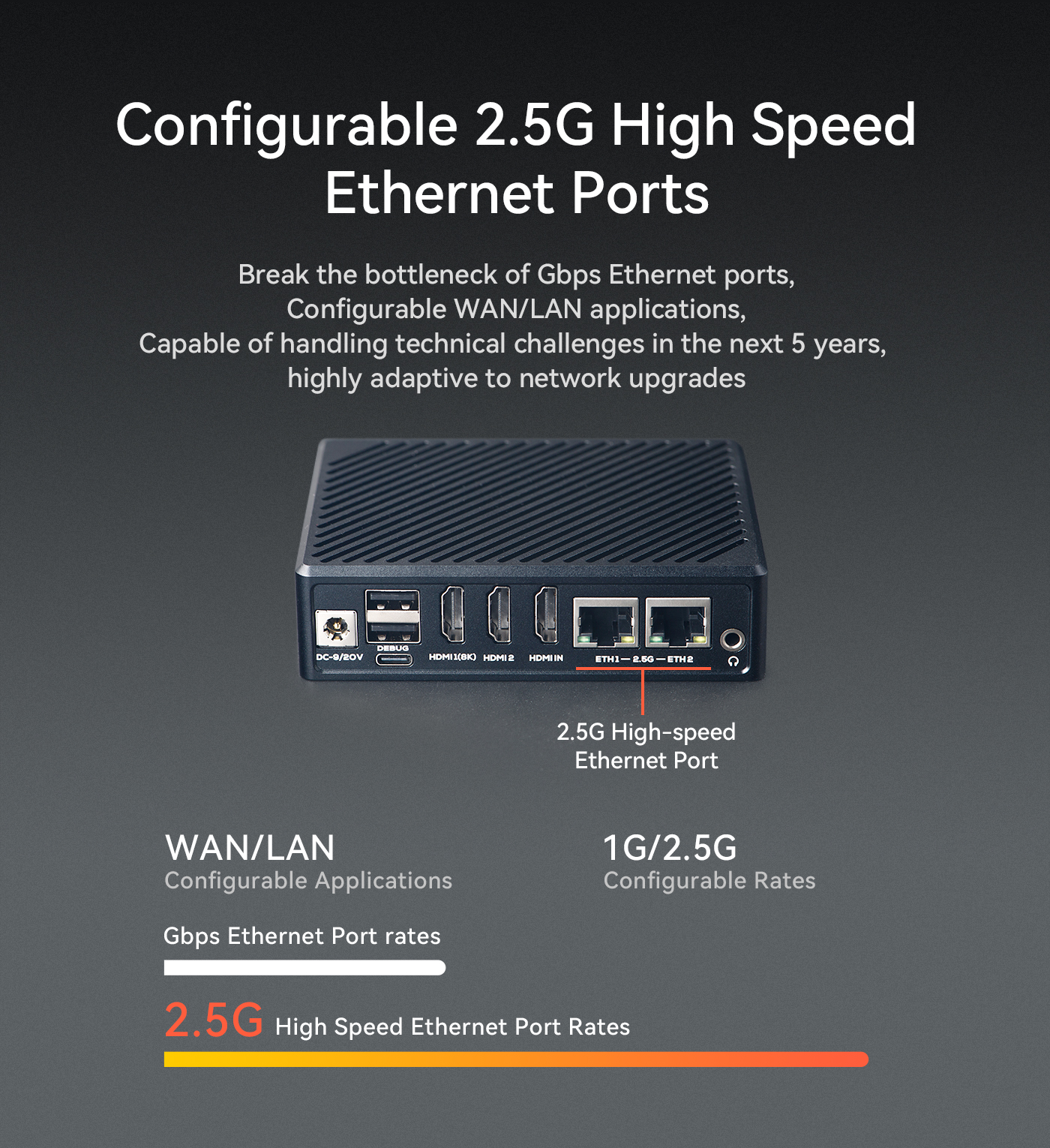

• Extensive Connectivity: Features Dual 2.5GbE RJ45 ports for high-speed networking, making it perfect for router or firewall applications.

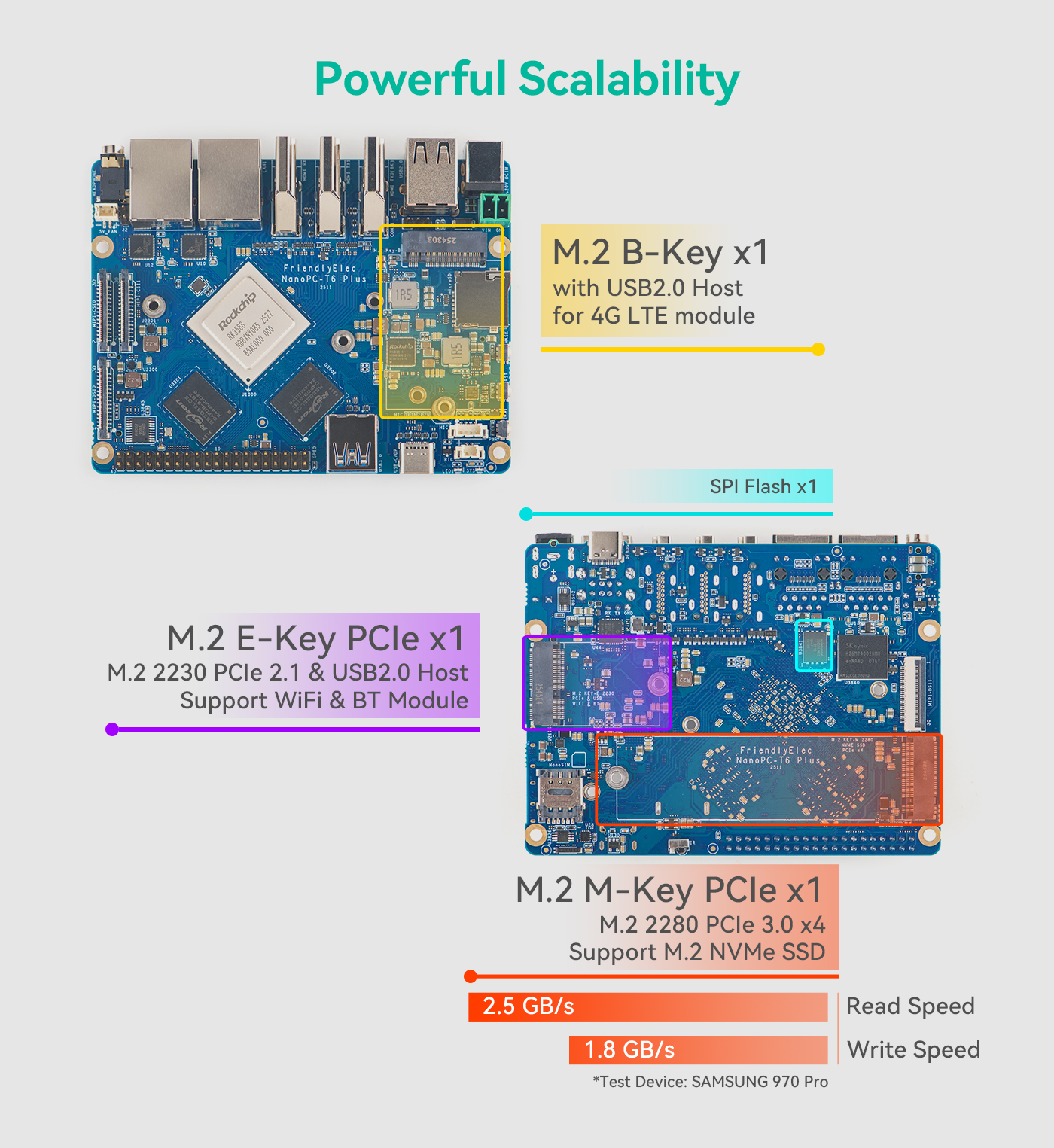

• Flexible Expansion: Includes an M.2 B-Key slot for 4G LTE modules and an M.2 E-Key for Wi-Fi/Bluetooth, ensuring wireless versatility.
• Rich I/O Interfaces: Packed with interfaces including USB 3.0 (5Gbps), USB-C (Full Function), HDMI 2.1 (Input/Output), and MIPI-DSI/CSI for diverse display and camera setups.
• Industrial Design: Built with an 8-layer PCB structure (110mm x 82.5mm) for stability and includes a standard 40-pin GPIO header for electronics prototyping.

Applications

Edge computing devices; AI development platforms; Industrial control hosts; Embedded smart systems; Mini desktop computers; IoT gateway & video processing terminals.

Detailed Descriptions

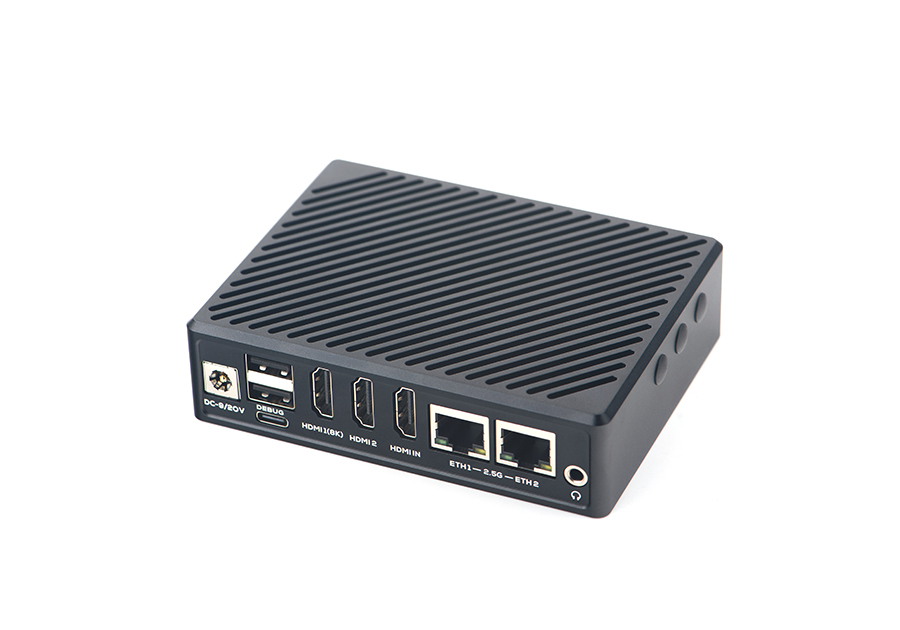

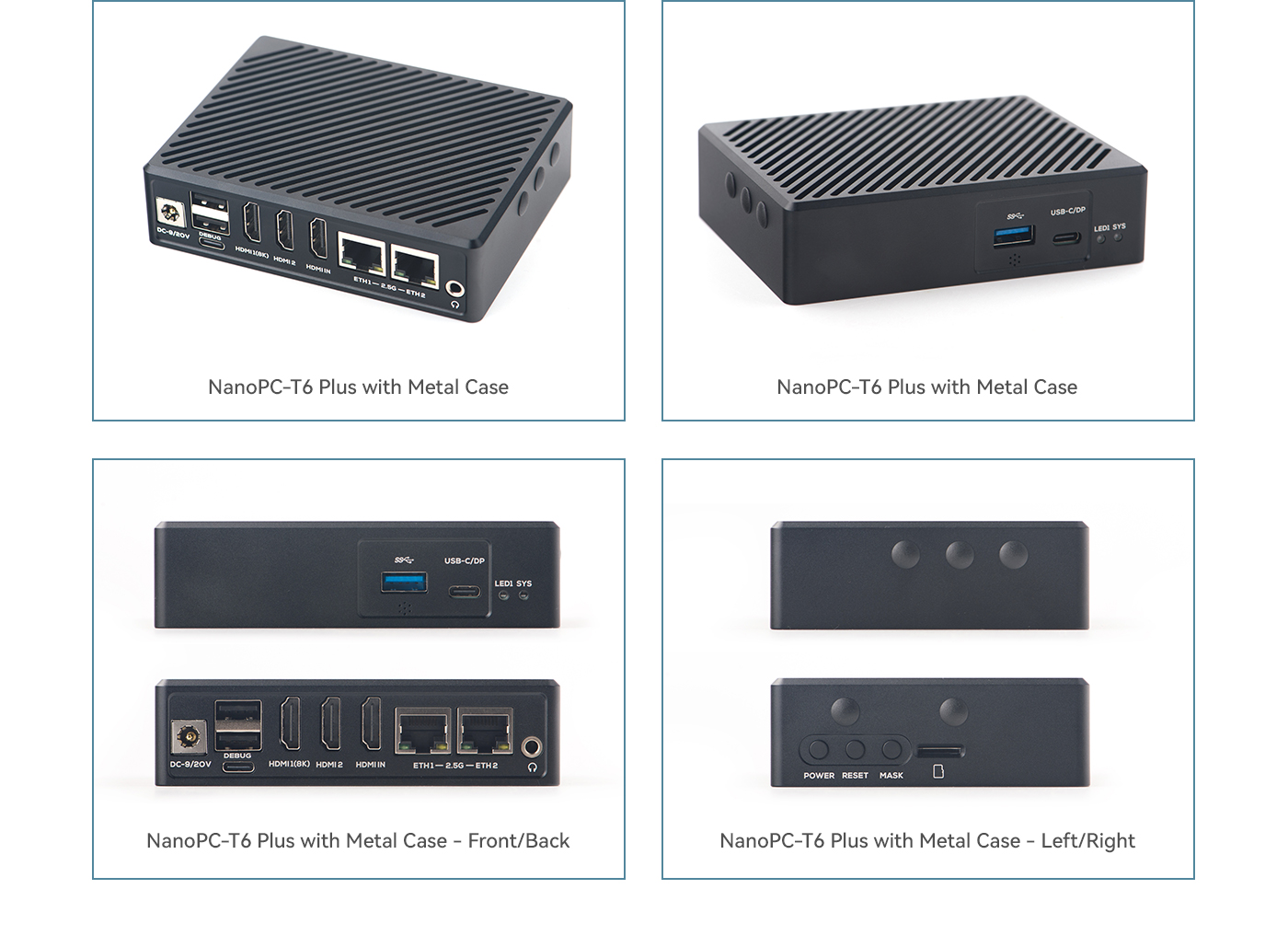

NanoPC-T6 Plus adopts RK3588 octa-core processor with strong NPU computing power. It supports stable long-term supply, configurable memory and storage, and can be used as bare board or complete machine with metal case. It is widely used in industrial control, edge AI and embedded scenarios with stable performance and complete function.

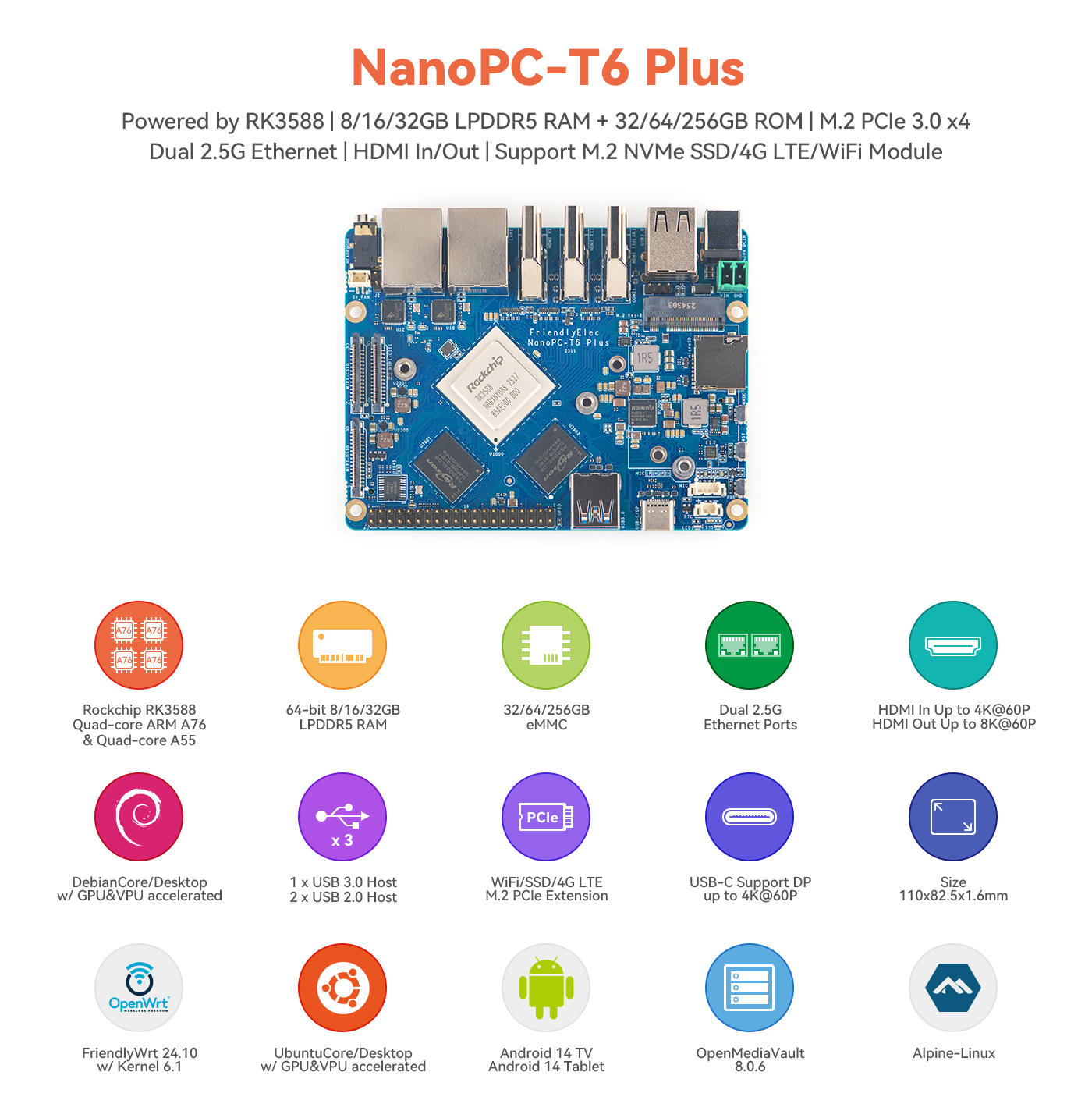

Specifications

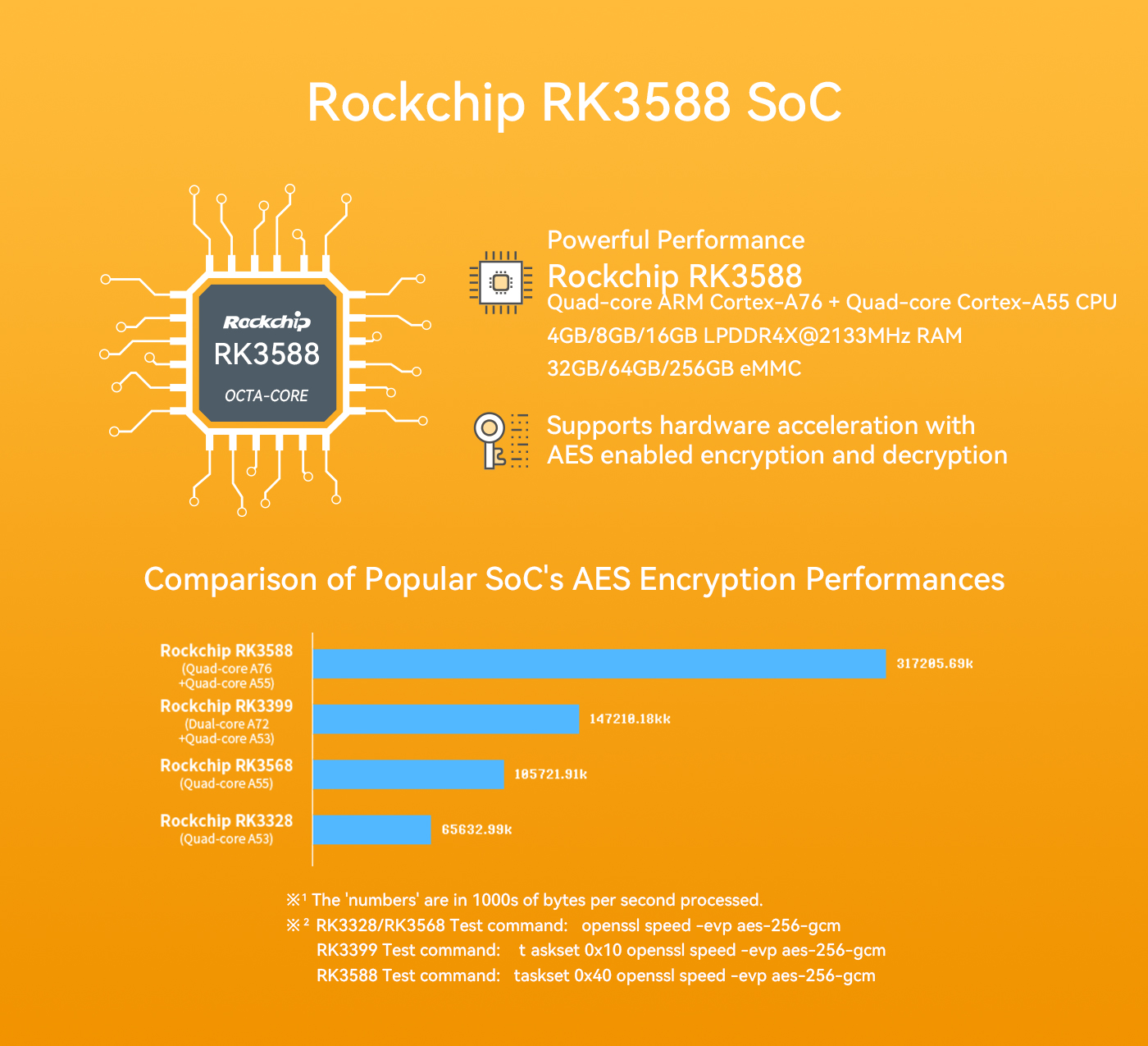

CPU: Rockchip RK3588 (Quad A76 @2.4GHz + Quad A55 @1.8GHz)
GPU: Mali-G610 MP4
NPU: 6 TOPS (INT4/INT8/INT16/FP16)
RAM: 8/16/32GB LPDDR5
Storage: eMMC 32/64/256GB + MicroSD + M.2 M-Key (PCIe 3.0 x4 for NVMe)
Connectivity: Dual 2.5GbE (RTL8125BG), M.2 E-Key (WiFi/BT), M.2 B-Key (4G LTE)

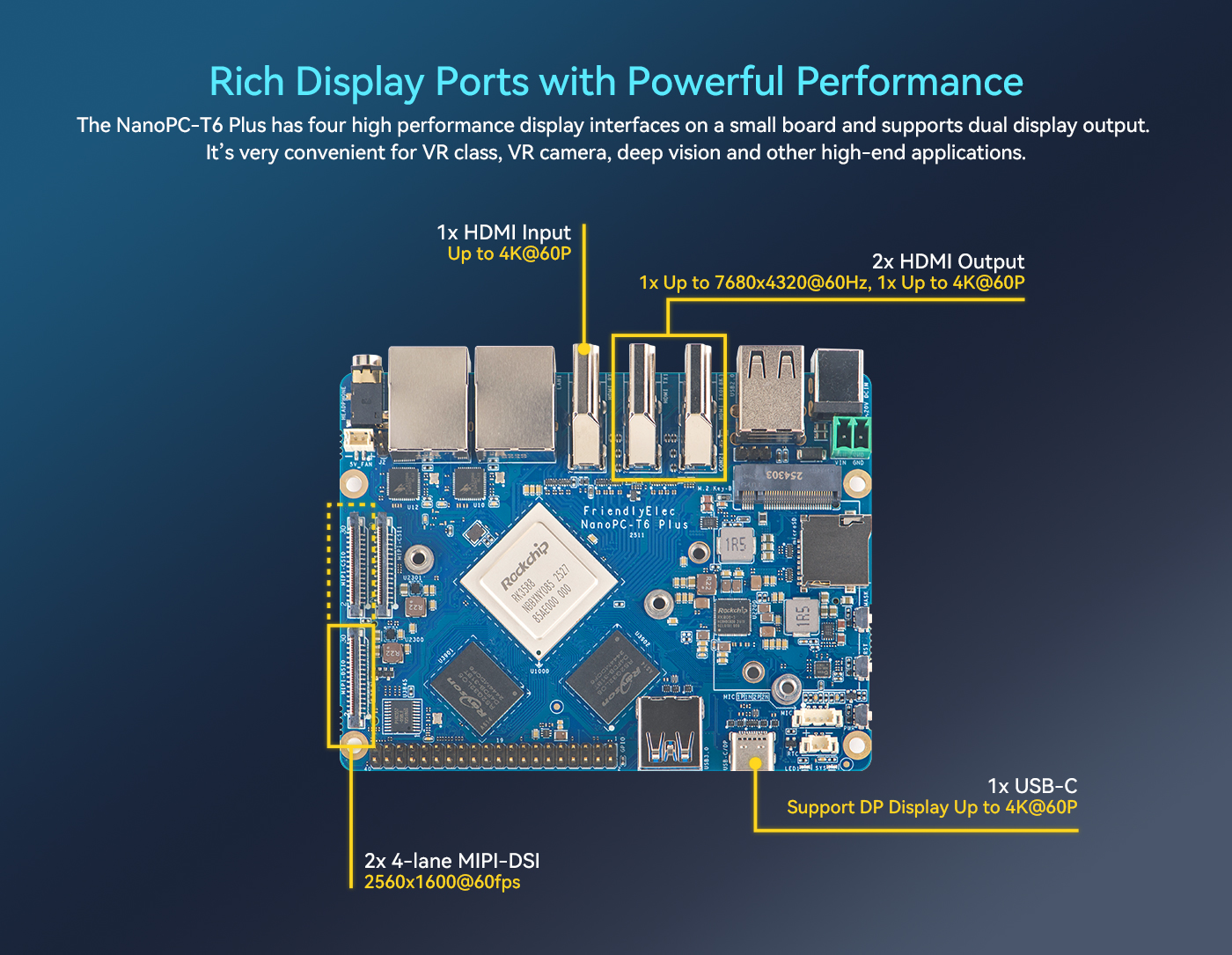

Video Out: 2x HDMI (up to 8K@60Hz + 4K@60Hz), 2x MIPI-DSI

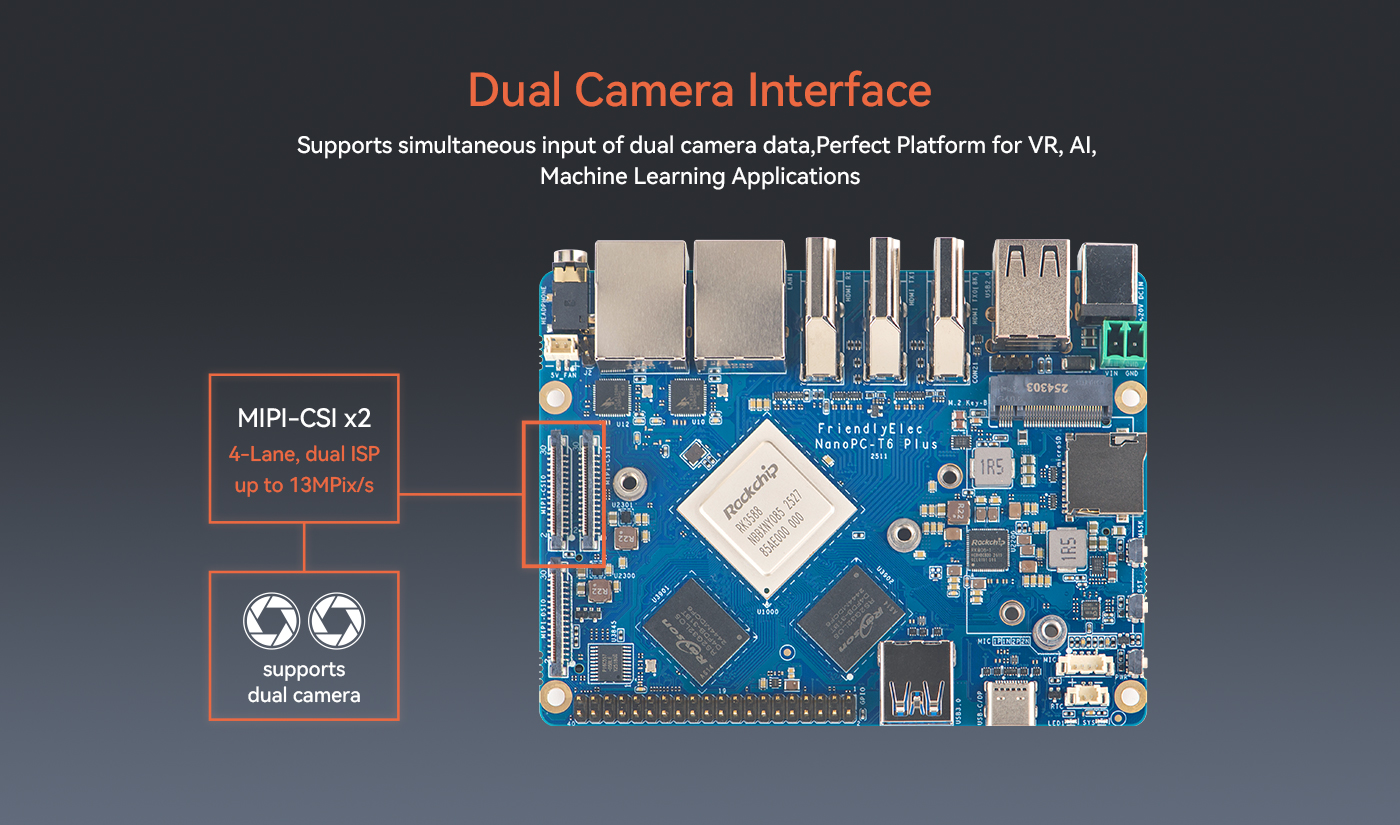

Video In: 1x HDMI input (4K@60Hz), 2x MIPI-CSI
USB: 2x USB 2.0, 1x USB 3.0, 1x USB-C (full function), 1x USB-C (debug)
Audio: 3.5mm headphone + 4-pin analog mic input
GPIO: 40-pin header (SPI, UART, I2C, PWM, I2S, GPIO)
Power: 12V DC (5.5×2.1mm jack or 2-pin connector, 65W recommended)
Working Temp: 0°C to 70°C

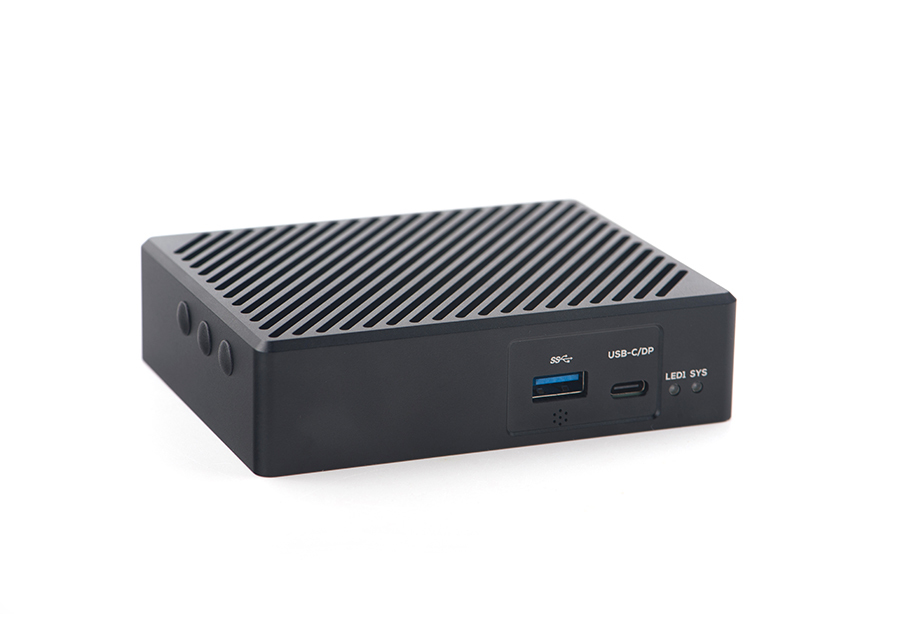

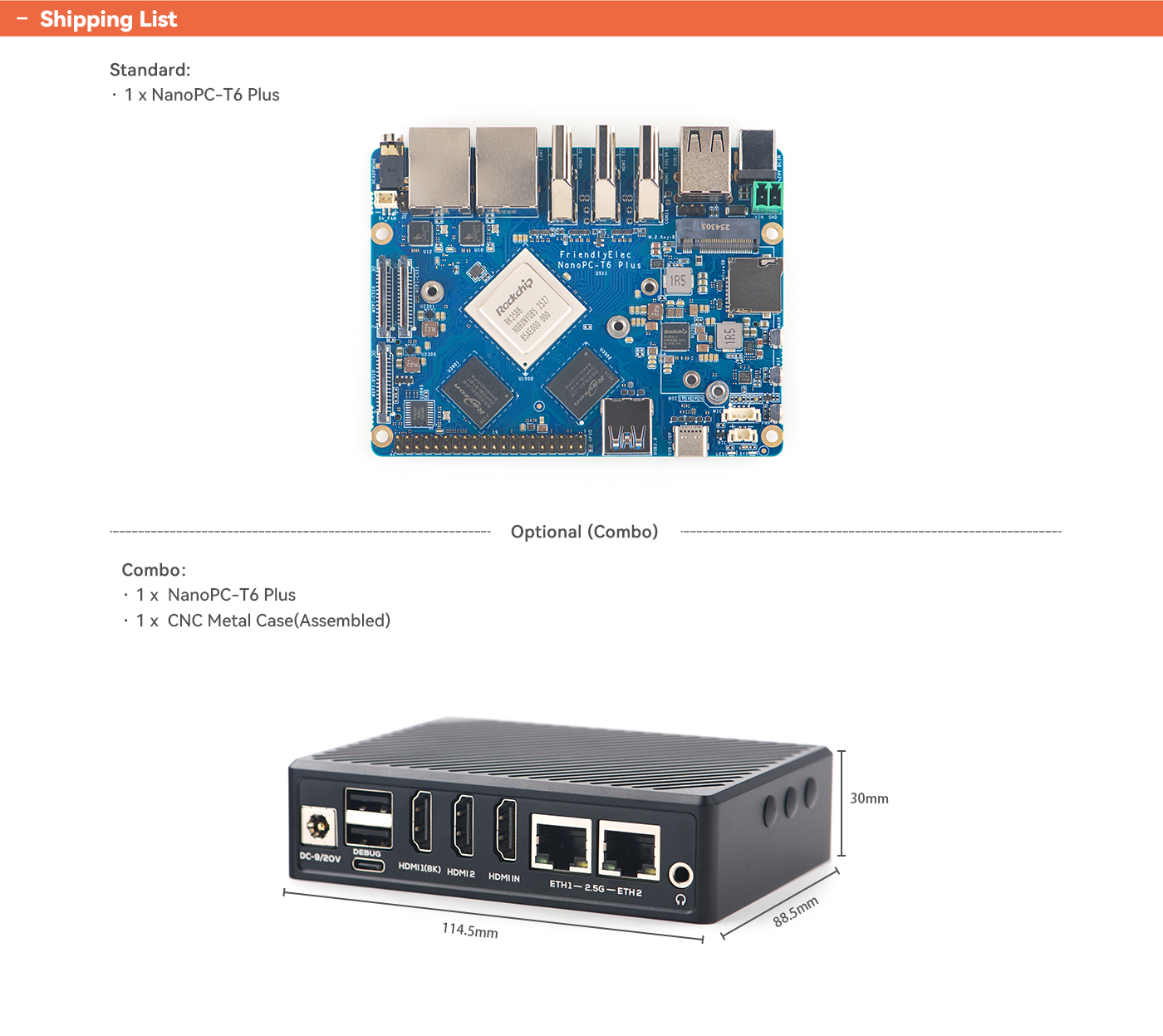

Dimensions: 110×82.5×1.6mm (PCB only), 88.5×114.5×30mm (with case)

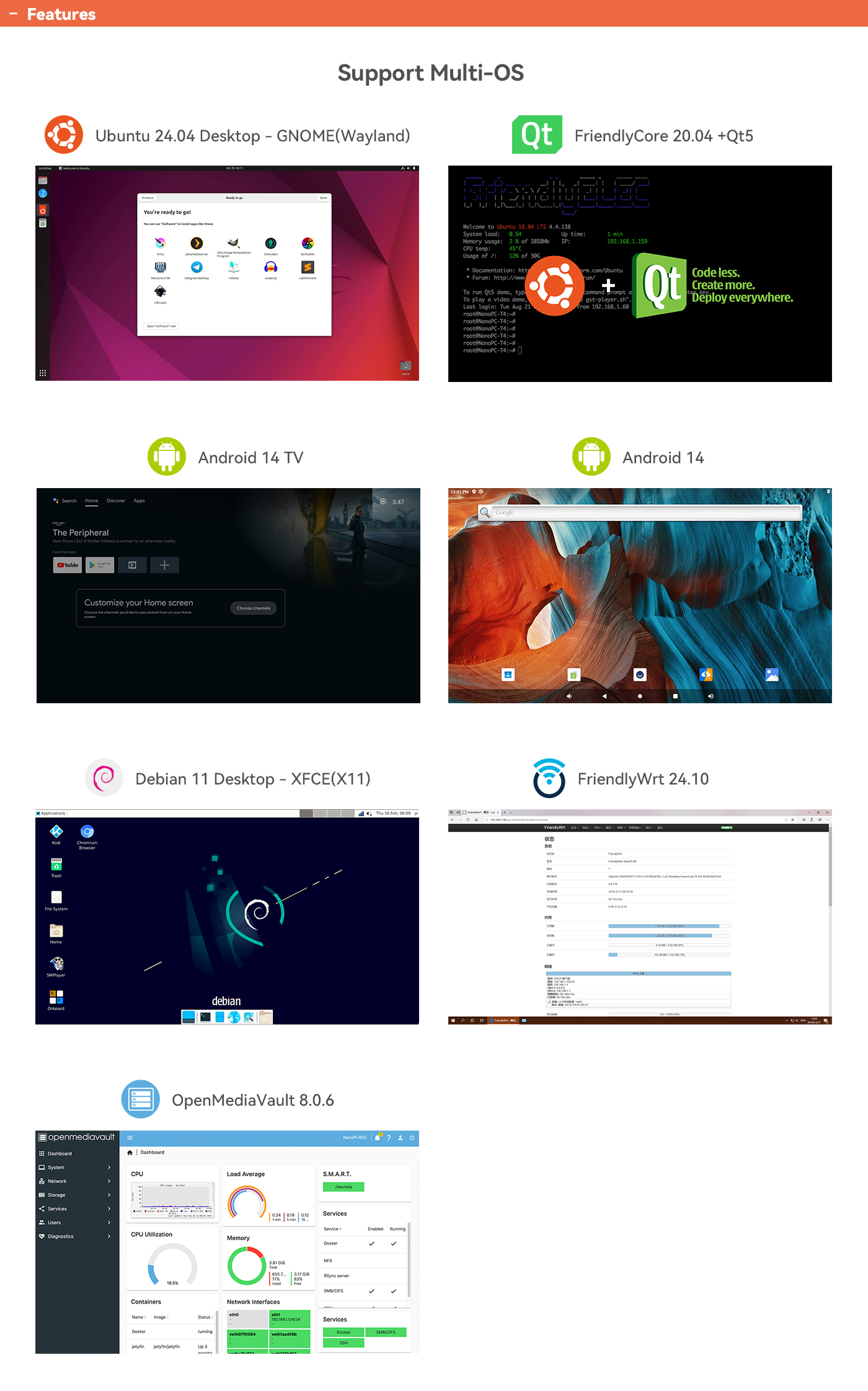

OS Support: FriendlyWrt, FriendlyCore, OpenMediaVault, Android 14 (Tablet/TV), Debian 11/13, Ubuntu 20.04/24.04, Proxmox VE, Alpine, Buildroot
Kernel: Linux 6.1 LTS
