13V~40V To 12V DC-DC Step Down Buck Module

• Quick Start:
• Tips
  • Product input should be greater than the output voltage, can keep more than 1V differential voltage is best, the input can not be reversed, reverse burn board.

Introduction

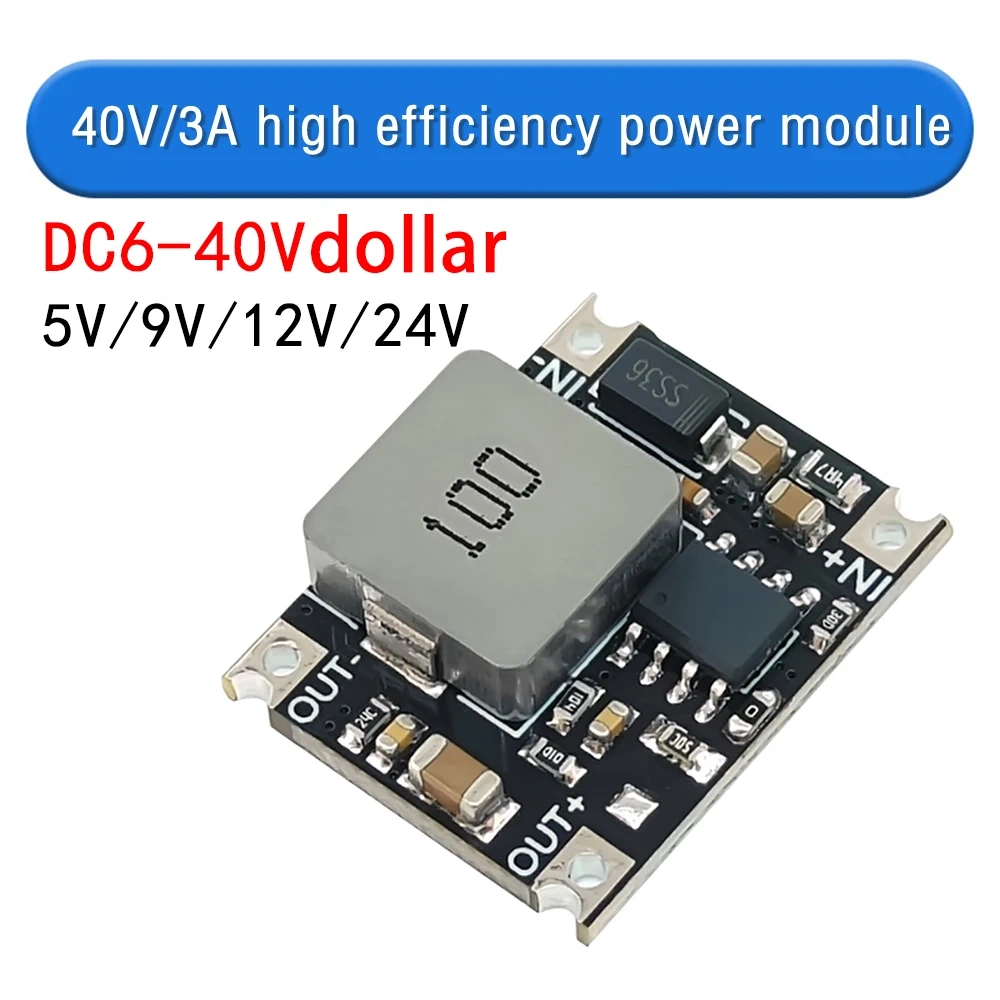

13V~40V To 12V DC-DC Step Down Buck Module - MAX 3A, Small, Low Ripple , High Power

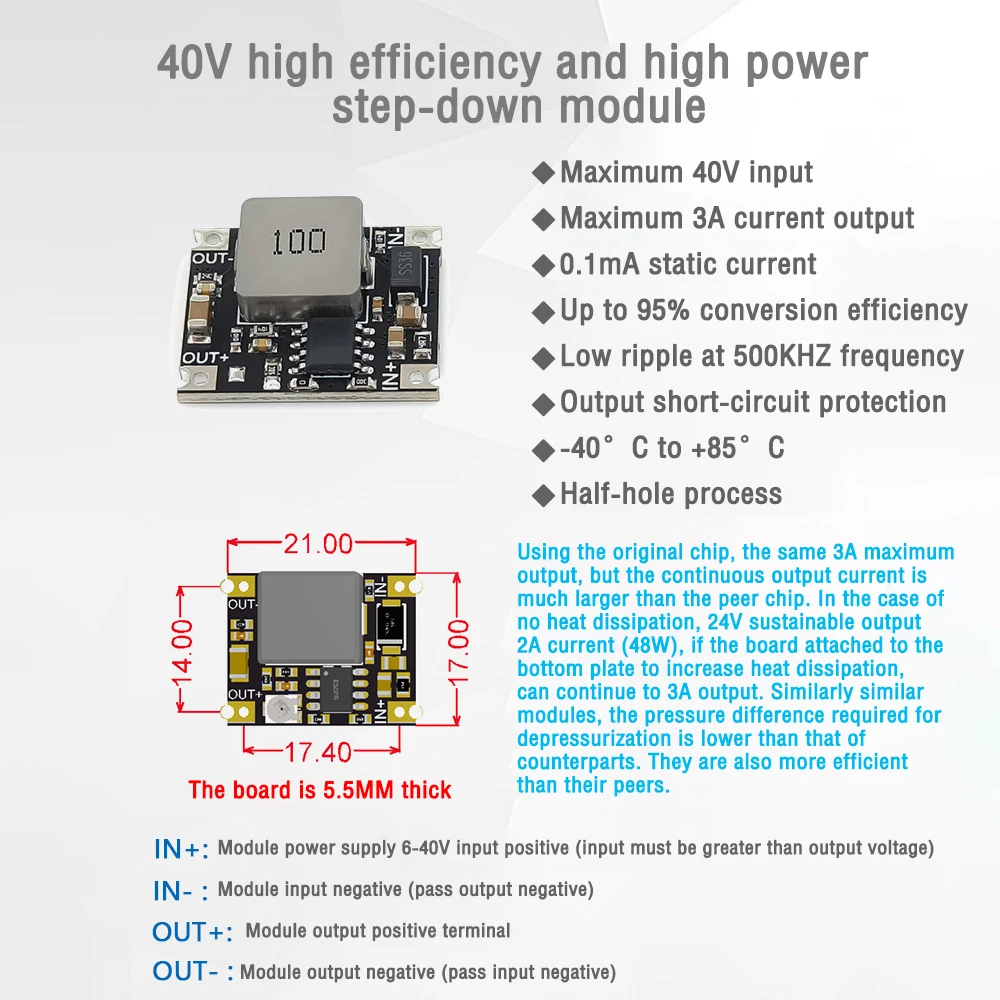

Features

Voltage: Maximum DC40V input (13V - 40V)
Current: Maximum 3A current output
Quiescent current: 0.1mA
Conversion efficiency: up to 95% conversion efficiency
Frequency: 500KHZ frequency low ripple
Short circuit protection: Output short circuit protection
Temperature: -40°C to+85°C
Process: Half-hole process
Half-hole process

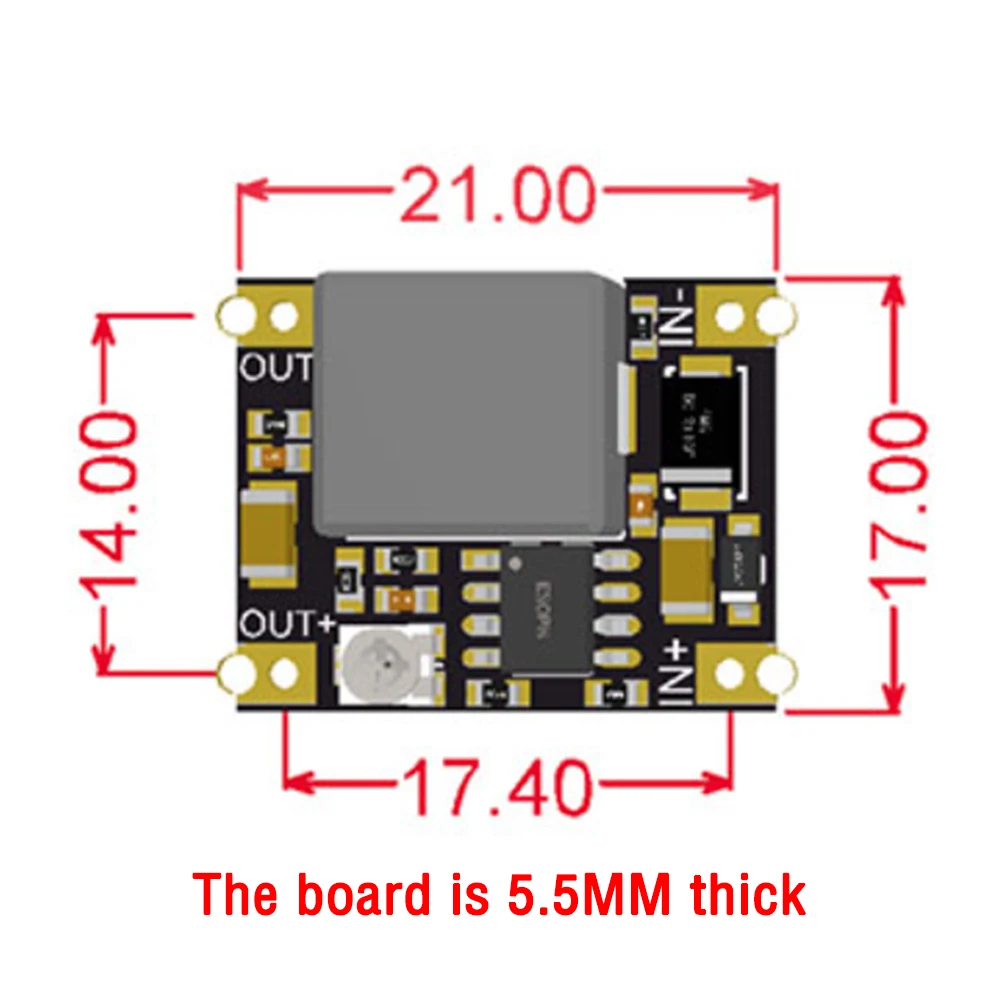

Size:
Board soldering small hole diameter 1.2MM
Outer half-hole space 1.6MM
Soldering plate: 22X3MM

Shipping List

13V~40V To 12V DC-DC Step Down Buck Module x1

Applications

13V~40V To 12V DC-DC Step Down Buck
