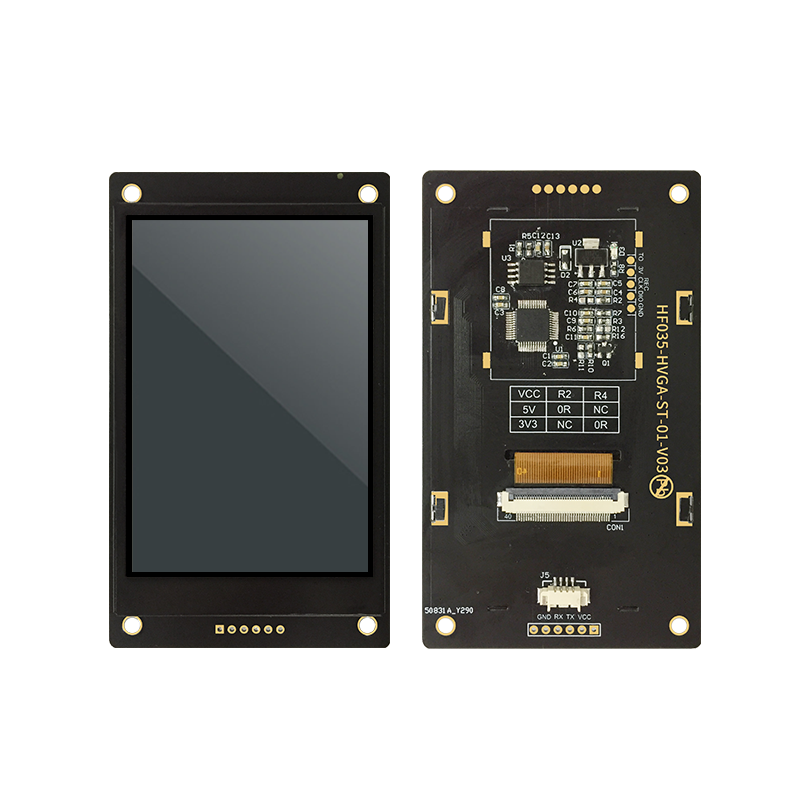

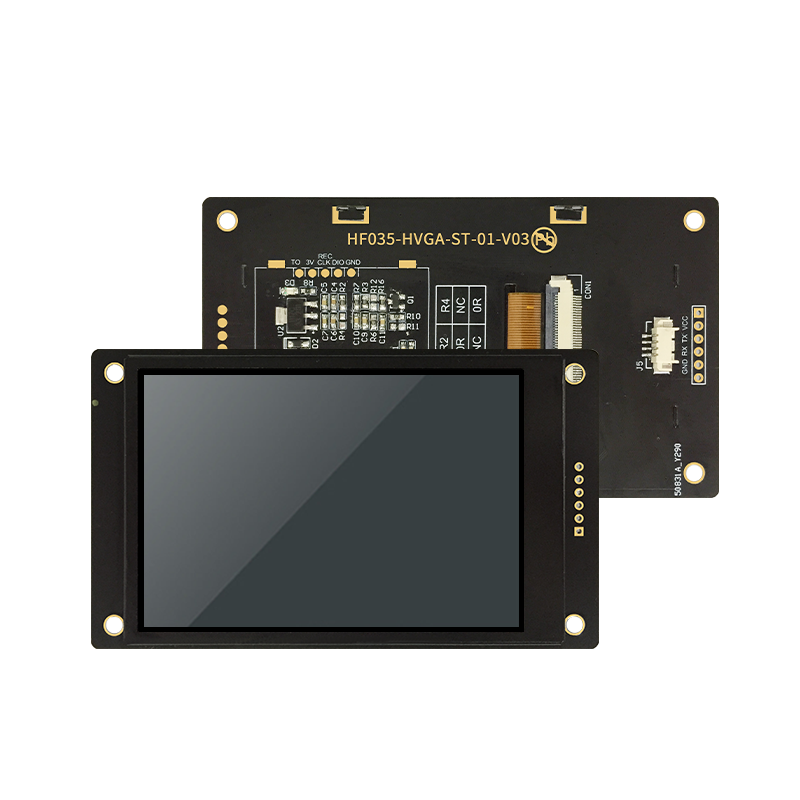

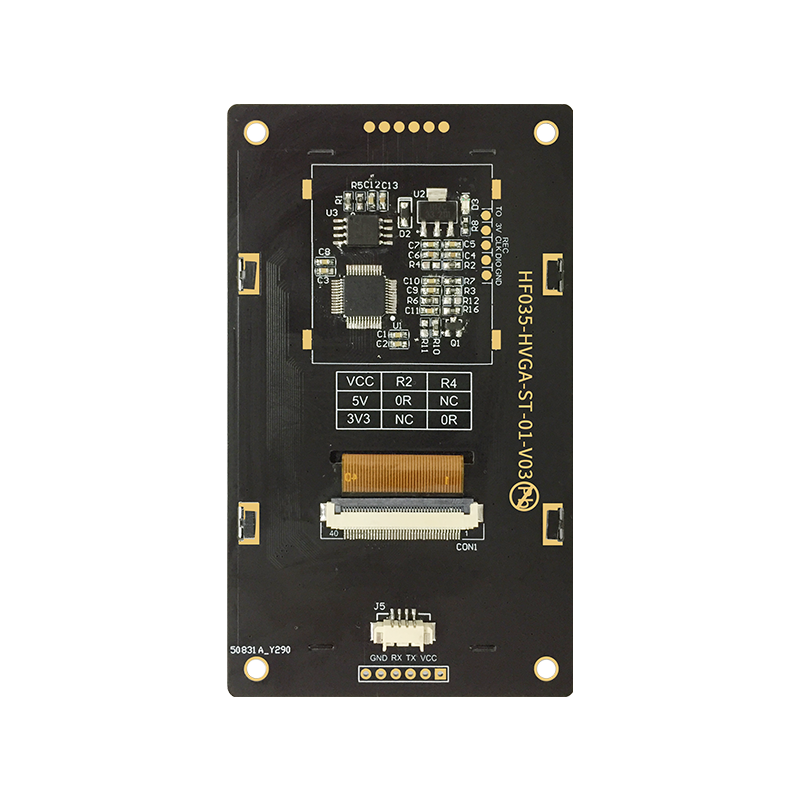

3.5" UART LCD Display

• Quick Start: Datasheet | Software
• Tips
  • Windows Demo: https://github.com/printlin/computerMonitorScreen

Introduction

The dot matrix resolution of the 3.5-inch HF series serial screen (HFD) is 320x480. It has a built-in simplified Chinese font library and English ASCII character set, and an open internal dot matrix DDRAM, which can display pictures and graphics at any position on the screen. In terms of hardware, it provides UART interface mode with simple wiring. With the sGUI drag-and-drop programming tool developed by our company, users can design beautiful and gorgeous user interfaces with only a few simple instructions. From then on, users no longer need to spend high hardware costs and long development cycles to configure LCD color screens for equipment and instruments. HFD's rich on-chip resources and powerful instruction set are the preferred solution for customer project development.

Features

• Control Drag and Drop Programming
• Minimalist instruction set
• Dynamic QR Code Display
• Startup Logo
• UART, RS485


Shipping List

Only Display
x1 3.5" UART LCD Display - HF035
Basic Kit
x1 3.5" UART LCD Display - HF035
x1 TTL-USB adapter
Full Kit
x1 3.5" UART LCD Display - HF035
x1 TTL-USB adapter
x1 TTL-RS485 adapter

Applications

For Arduino, Raspberry Pi, STM32, MINI PC HMI Display

Specification

Detailed Descriptions
