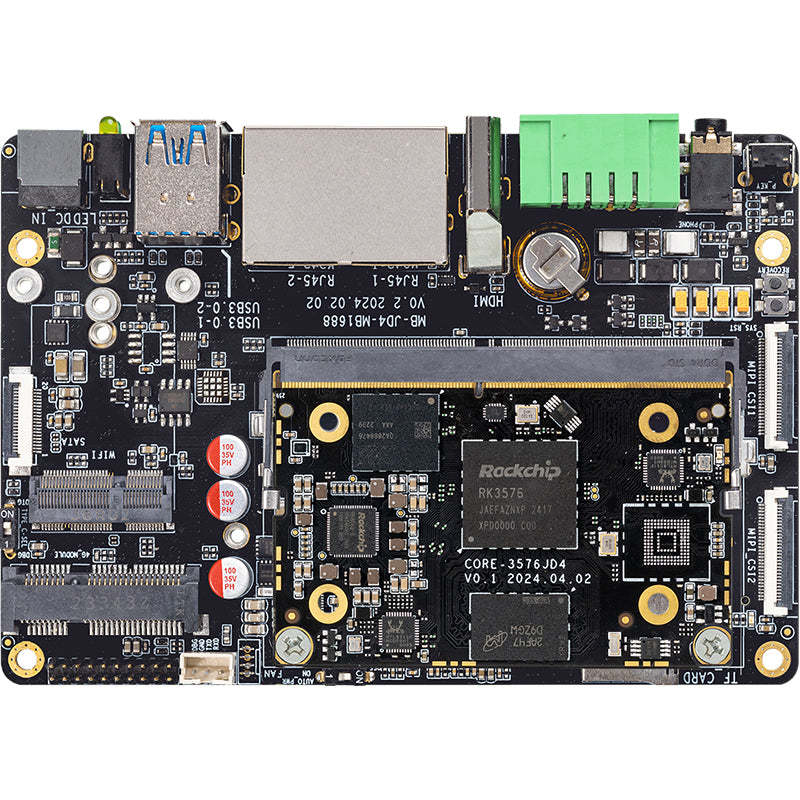

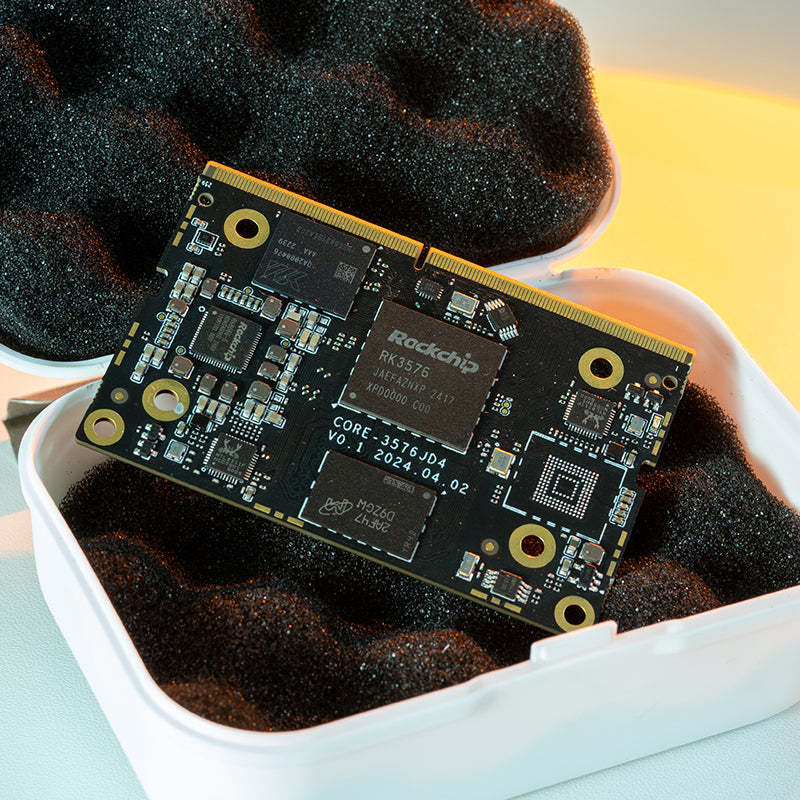

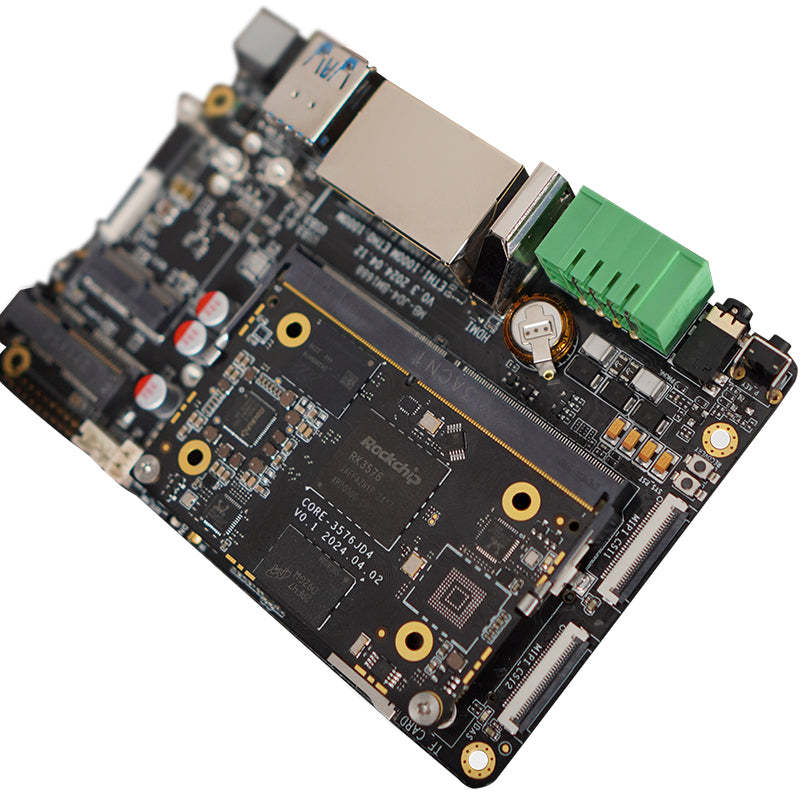

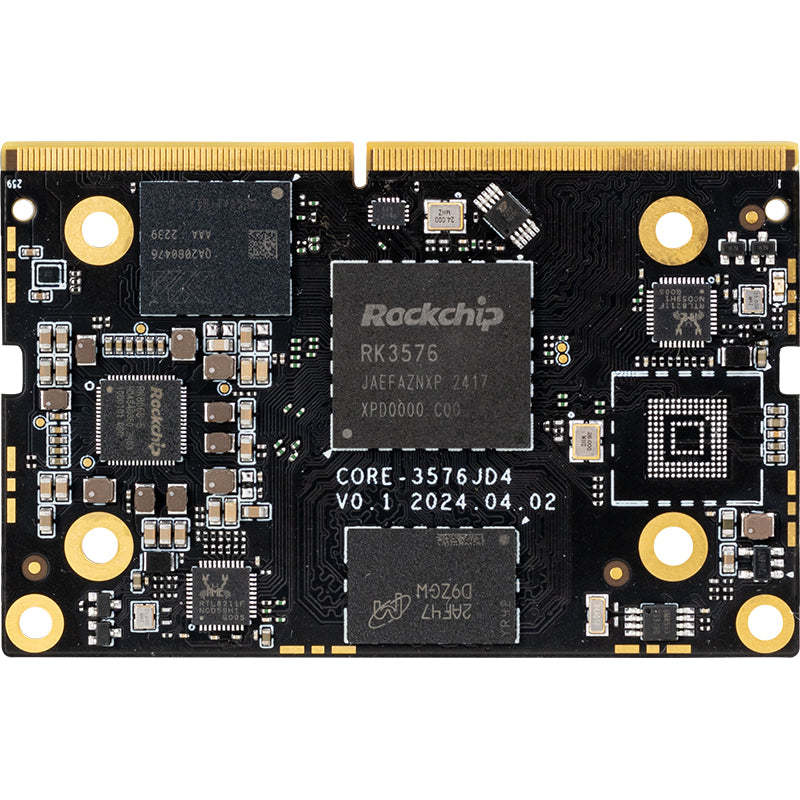

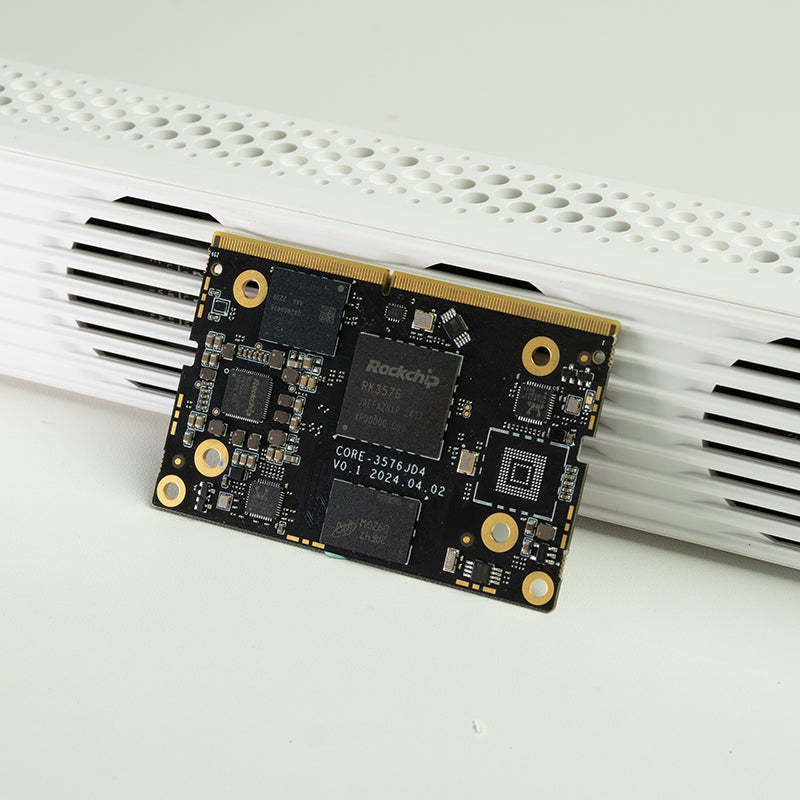

Rockchip RK3576

Octa-core 64-bit processor (4×A72 + 4×A53), up to 2.2GHz

G52 MC3 @ 1GHz, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Built-in high-performance 2D acceleration hardware

6 TOPS NPU, supporting INT4/8/16/FP16/BF16/TF32 mixed operations

The integrated 16-megapixel ISP supports low-light noise reduction, an RGB-IR sensor, and up to 120dB of HDR.

The AI-ISP enhances image quality with reduced noise.

Decoding: 4K@120fps: H.265/HEVC, VP9, AVS2, AV1; 4K@60fps: H.264/AVC

Encoding: 4K@60fps: H.265/HEVC, and H.264/AVC

LPDDR4/LPDDR4x (4GB/8GB optional)

eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS 2.0 (optional)

1 * M.2 (SATA3.0/ PCIe NVMe SSD expansion, supporting 2242/2260/2280)

DC 12V (5.5mm * 2.1mm, 12V~24V wide input voltage)

Android14, Linux OS, and Buildroot

・ The private deployment of ultra-large-scale parameter models under the Transformer architecture,

such as Gemma-2B, LlaMa2-7B, ChatGLM3-6B, and Qwen1.5-1.8B

・ Traditional network architectures such as CNN, RNN, and LSTM; a variety of deep learning

frameworks including TensorFlow, PyTorch, MXNet, PaddlePaddle, ONNX and Darknet

・ Custom operator development

・ Docker container management technology

122.89mm * 85.04mm * 22.7mm

≈120g

Operating temperature: -20℃~60℃

Storage humidity: 10%～90%RH (non-condensing)

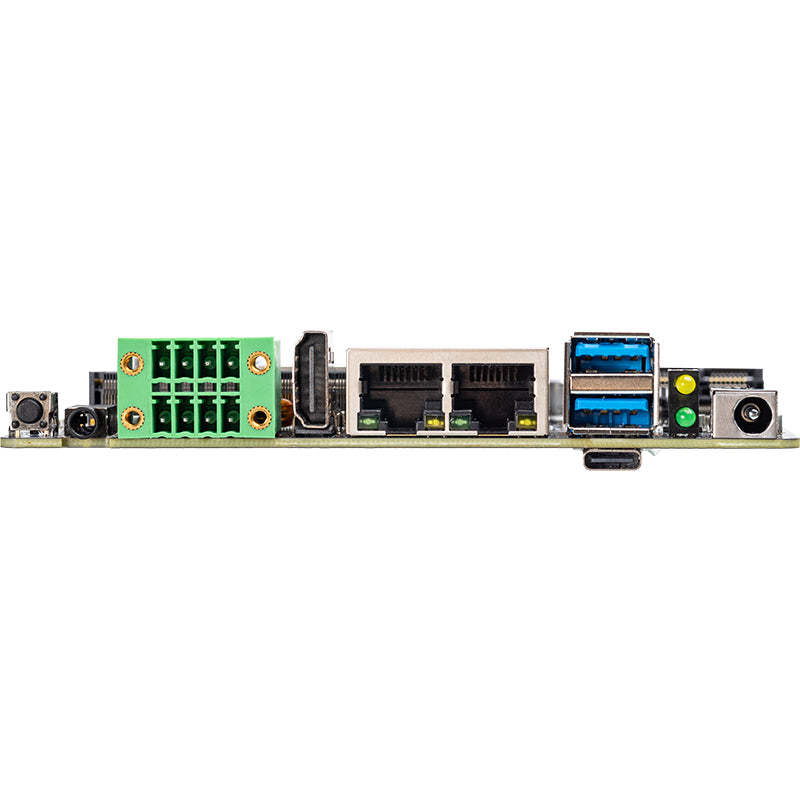

Ethernet: 2 * RJ45 (1000Mbps)

WiFi: WiFi/BT module expansion available via M.2 E-KEY (2230) interface,

supporting 2.4GHz/5GHz dual-band WiFi 6 (802.11a/b/g/n/ac/ax) and BT5.2

4G: 4G LTE expansion available via Mini PCIe (shared with 5G module)

5G: 5G expansion available via M.2 (shared with 4G module)

2 * MIPI CSI DPHY (1 * 4 lanes or 2 * 2 lanes)

1 * MIPI CSI D/C PHY (MIPI DPHY (1*4 lanes or 2 * 2 lanes) or MIPI CPHY (3 lanes) )

1 * HDMI2.1(4K@120fps)

1 * 3.5mm Audio jack, supporting MIC recording, CTIA standard

External watchdog

2 * USB3.0、1 * USB2.0

1 * Type-C (USB 2.0/DEBUG), 1 * FAN (4Pin-1.25mm), 1 * SIM card

1 * dual-row pin header (2*10-20PIN-2.0mm): USB 2.0, SPI, 2*I2C, Line in, Line out, GPIO

1 * Phoenix connector (2*4Pin, 3.5mm pitch): 1 * RS485, 1 * RS232, 1 * CAN 2.0
